Description

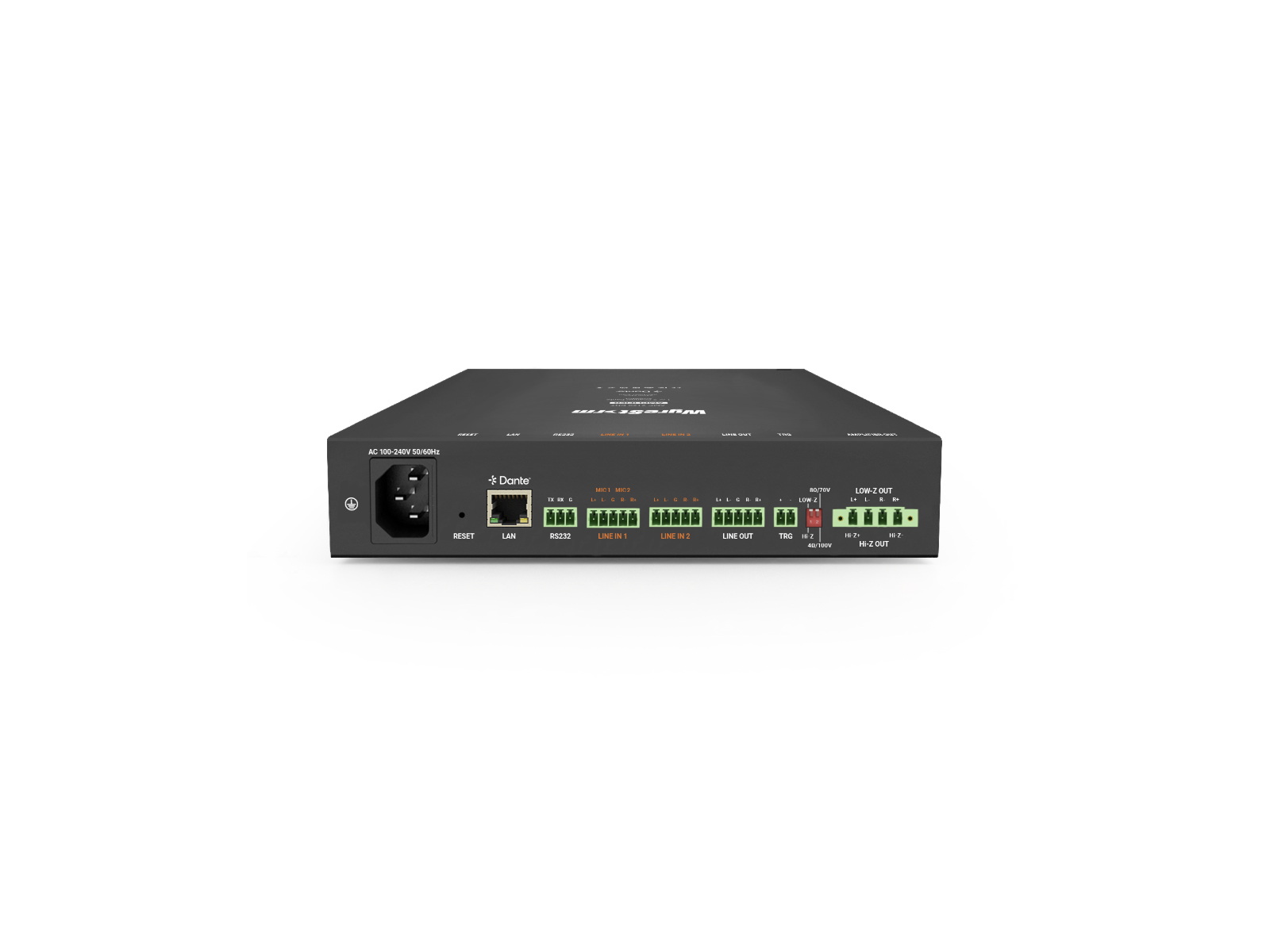

The WyreStorm AMP-2120-DNT is a compact 0.5U Dante-enabled amplifier engineered for flexible deployment in professional AV systems. AMP-2120-DNT supports both 70V/100V high-impedance and 4/8 ohm low-impedance speaker systems and delivers up to 240W in mono or 2x120W in stereo.
Local line-level inputs and Dante network audio inputs provide multiple source options while integrated DSP offers gain control, limiter, five-band EQ, filters, dynamics, delay up to 200ms and channel mixing to optimize speech and program audio. Control options include front panel, TCP/IP and an HTTPS web GUI with CA SB-327 compliant login.
Power can be supplied via PoE+ (802.3at) or a 24V DC supply for installation flexibility. The unit includes automatic paging mute, front panel volume controls and LED status indicators to simplify monitoring and operation in installations using Audio power amplifiers and digital audio splitters.
Key Features:- Dante Inputs/Outputs: 2x Dante In, 2x Dante Out for networked audio routing
- Flexible Power Output: 240W mono or 2x120W stereo to match room requirements
- Impedance Support: 70V/100V high-impedance and 4/8Ω low-impedance speaker support
- Integrated DSP: Gain, limiter, five-band EQ, filters, dynamics, delay 200ms, mixing for tuned audio
- Dual Power Options: PoE+ 802.3at or 24V DC supply for diverse installations
- Control & Monitoring: Front panel, TCP/IP, web GUI, LED status indicators for status and control
- Classroom Audio: Background music and clear speech reinforcement for teaching spaces
- Conference Rooms: Networked amplifier distribution for AV conferencing and playback
- Multipurpose Spaces: Paging and program audio with automatic paging mute and per-channel control
