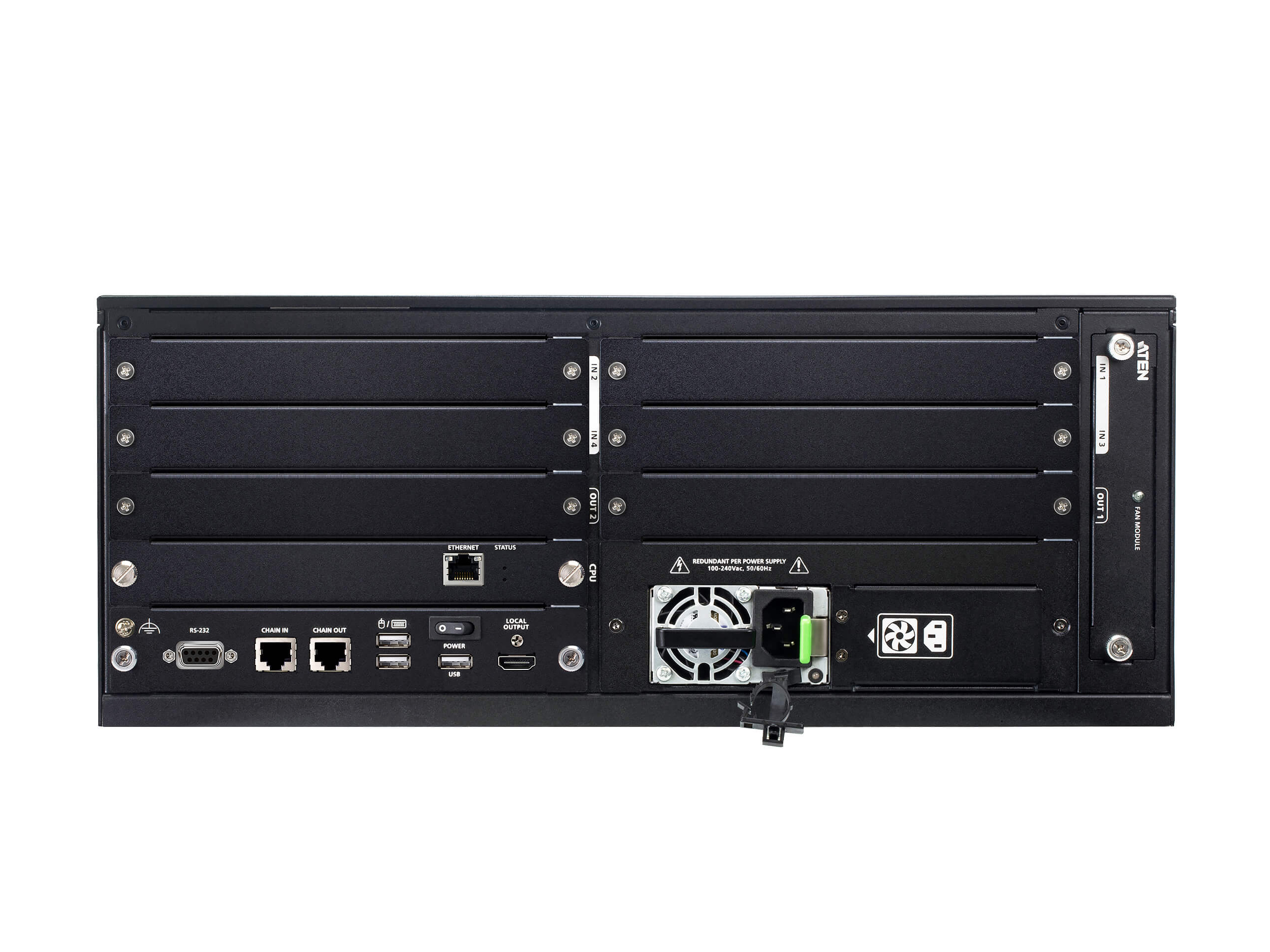

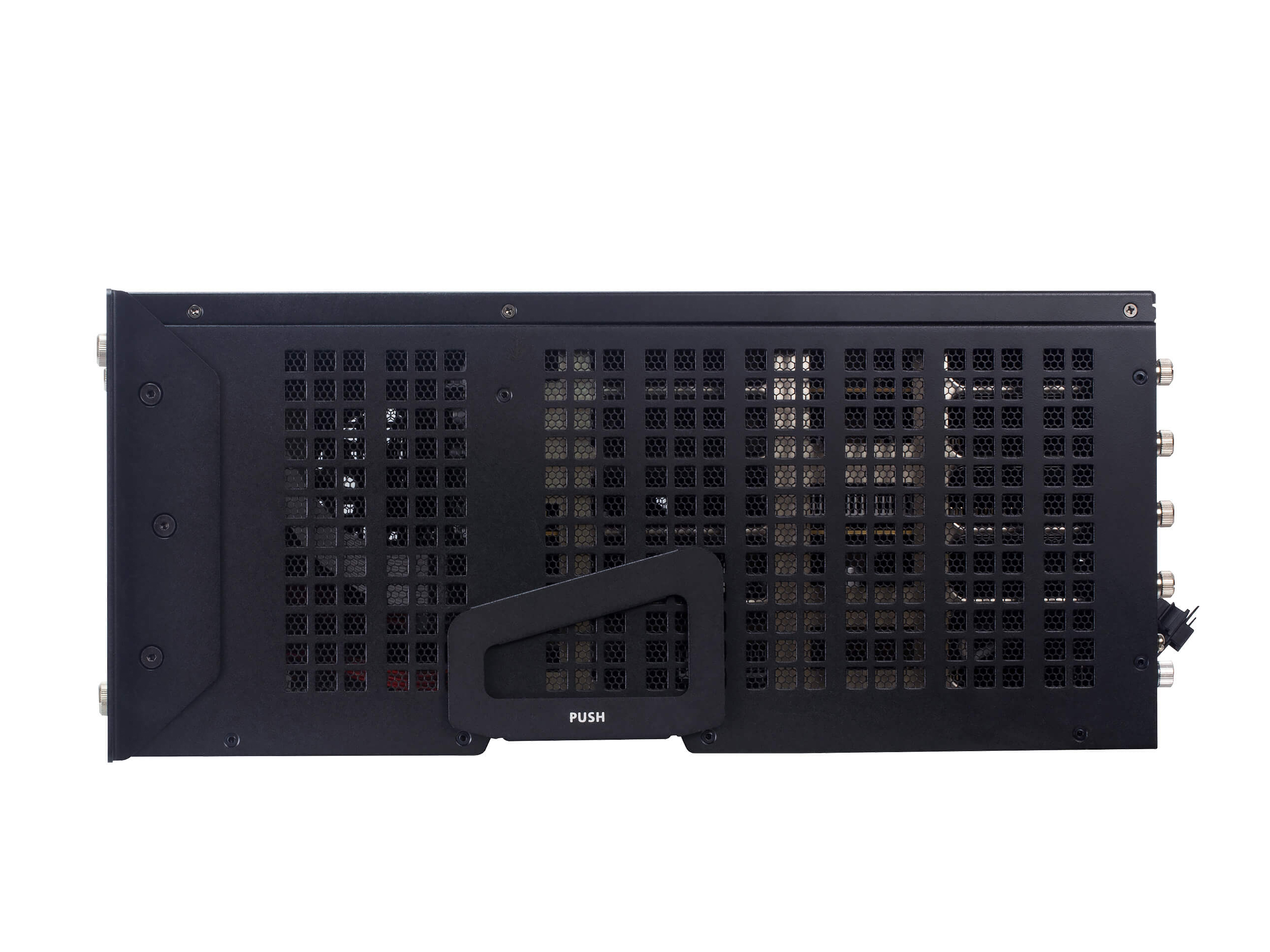

Aten VW1608 16 x 8 Modular 4K60 4:4:4 Video Wall Processor / 4U Chassis / Redundant Power

Description

The ATEN VW1608 is a modular 4U video wall processor that manages up to 16 inputs and 8 outputs in a compact chassis. ATEN VW1608 provides true 4K60 4:4:4 support using FPGA-based processing and FrameSync to ensure accurate color and frame-aligned output. The unit supports modular I/O expansion, hot-swappable modules and redundant power options to maintain continuous operation.

VW1608 supports up to four independent canvases with flexible multi-window layouts including overlapping, picture-by-picture and picture-in-picture, plus pixel-level cropping and bezel compensation. Local HDMI preview and a Web GUI enable drag-and-drop layout control and real-time monitoring before content goes live. Integration options include RS-232, Telnet, SSH and a RESTful API for third-party control systems.

For high-availability deployments, two VW1608 units can be configured in Backup Mode for real-time mirroring and automatic failover while daisy-chaining up to three units extends output capacity to 24 displays. Hot-swappable fans, hot-standby CPU board and redundant power options reduce service downtime in mission-critical environments.

Key Features:

True 4K60 4:4:4: FPGA-based processing and FrameSync deliver accurate color and near-zero-second switching for high-fidelity imagery
Modular 4U Chassis: Four input slots and two output slots support up to 16 inputs and 8 outputs for scalable I/O configurations
Multi-Canvas & Window Control: Up to four independent canvases with PIP/PBP/overlap and pixel-level cropping for tailored layouts
Redundancy & Hot-Swap: Dual power support, hot-swappable I/O and fan modules plus hot-standby CPU for 24/7 reliability
Daisy-Chain Expansion: Link up to three units for synchronized output across up to 24 displays with centralized control
Remote / Local Control: Web GUI, RS-232, SSH, Telnet, RESTful API and local HDMI preview for configuration and monitoring

Applications:

War Room: Multi-source visualization and redundant operation for continuous situational awareness
Control Room / Surveillance: Real-time 4K input switching and multi-window monitoring for monitoring centers
Auditorium: High-resolution multimedia output and multi-window layouts for large-screen presentations

Specifications

Weight	26.00 lbs
