Description

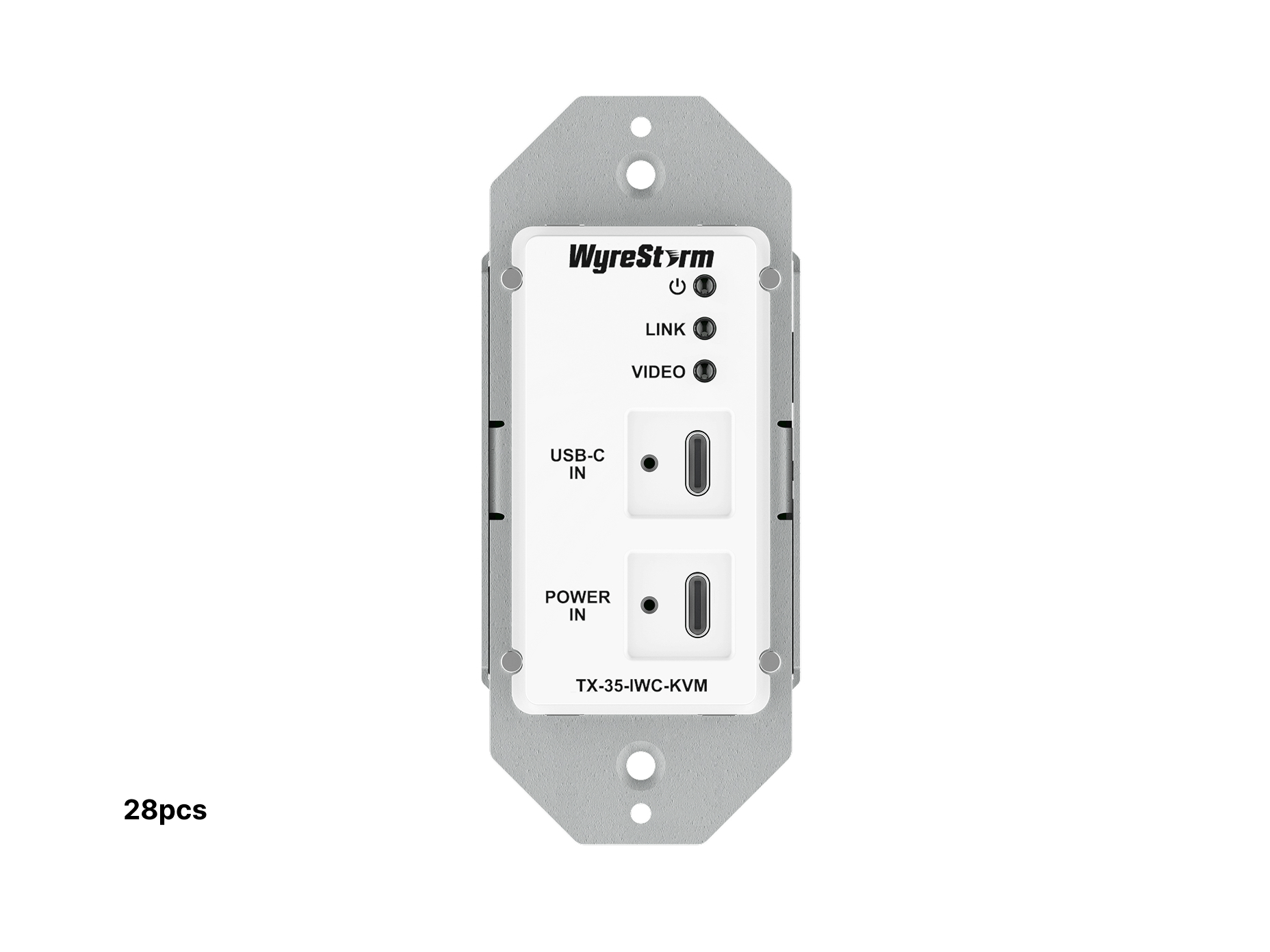

The WyreStorm TX-35-IWC-KVM is a single-gang in-wall HDBaseT 2.0 transmitter that extends USB-C sources using DisplayPort Alt Mode over a single RJ45 link. The TX-35-IWC-KVM supports up to 4K60 video and bi-directional USB2.0 data to enable source connectivity at the room edge.
Designed for AV installations, the transmitter carries video, multi-channel audio, USB 2.0 (150Mbps) and RS-232 control over HDBaseT, with PoH support to simplify power management. It supports automatic EDID handling and HDCP 2.2 compliance to maintain signal compatibility with modern displays.
The compact single-gang form factor installs in a US decor wall plate and pairs with a compatible WyreStorm receiver (such as the RX-500) to extend signals to displays and control systems at distances up to 35m for 4K and 70m for 1080p.
Key Features:- USB Type C Input: Extends DisplayPort Alt Mode video and USB data from a single USB-C source to a remote receiver
- 4K60 over HDBaseT: Transmits up to 3840×2160@60Hz to 35m to preserve high-resolution content at the display
- USB 2.0 150Mbps: Enables KVM and peripheral connectivity over the HDBaseT link for keyboards mice and low-bandwidth USB devices
- Power Over HDBaseT (PoH): Supports 1-way PoH from the receiver to eliminate local transmitter power where compatible

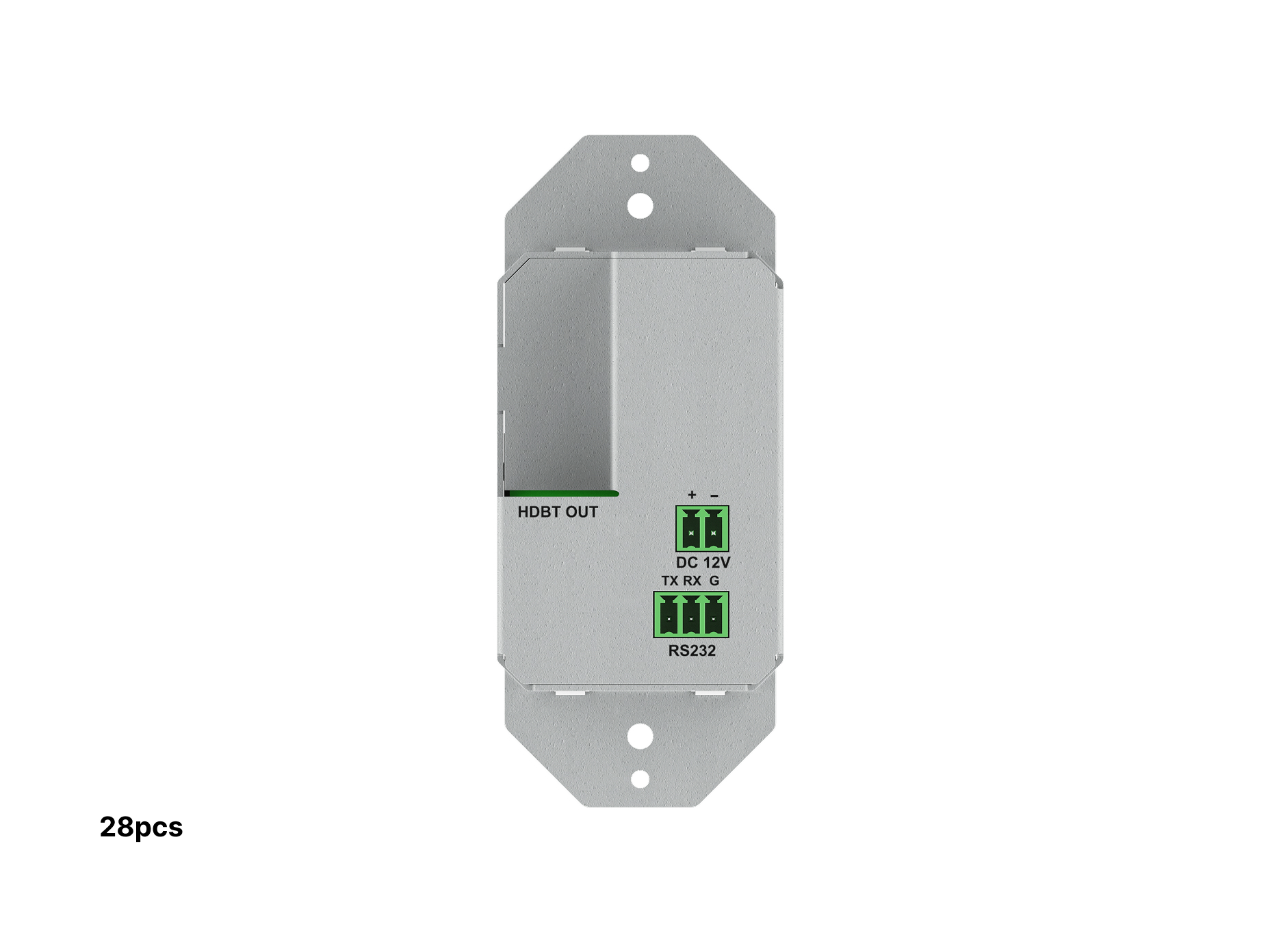

- RS-232 Passthrough: Passes serial control to the display or peripheral devices via a rear 3-pin phoenix connection
- EDID Management / HDCP 2.2: Automatic EDID handling and HDCP 2.2 compatibility to maintain source/display interoperability
- Conference Rooms: Wall-mounted source plate to feed room displays and share USB devices
- Classrooms: Instructor laptop connectivity to central AV receivers and room displays
- Training Facilities: Reliable long-reach 4K60 signal extension from podium or demo stations
- Control Rooms: RS-232 control passthrough and USB device extension for remote equipment management
