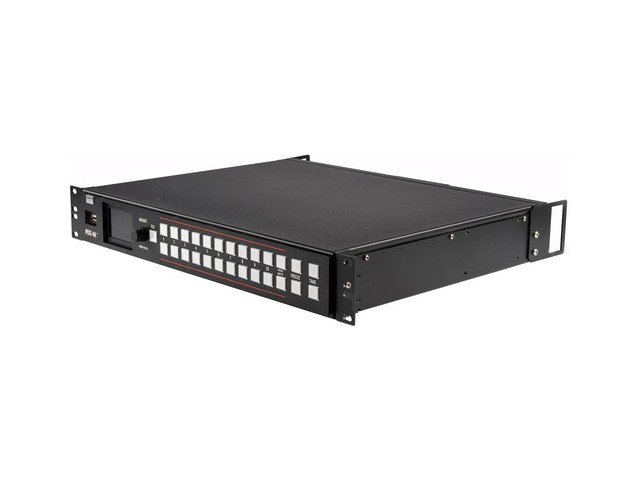

Barco R9009651B 4K UHD HDMI 2.0 / 12G-SDI Dual-Screen switcher 6 HDMI 2 SDI 4 Outputs

Description

The Barco PDS-4K UHD R9009651B is a 4K presentation switcher designed for single and dual-screen UHD 4K processing, delivering reliable signal management and low-latency performance for professional AV environments.

It provides six HDMI 2.0 inputs, two 12G-SDI inputs and multiple HDMI and 12G-SDI outputs, supports two live PiP layers and uses Event Master Athena scaling to preserve image clarity and minimize scaling artifacts.

Control options include front-panel mapping, WebUI, Ethernet and compatibility with Barco Event Master software and Overture; modular card expansion allows future feature upgrades.

Key Features:

6x HDMI 2.0 Inputs: Accepts multiple HDMI sources for UHD 4K at up to 60 fps to accommodate laptops and media players
2x 12G-SDI Inputs: Native 12G-SDI ingest for broadcast-quality feeds and camera signals

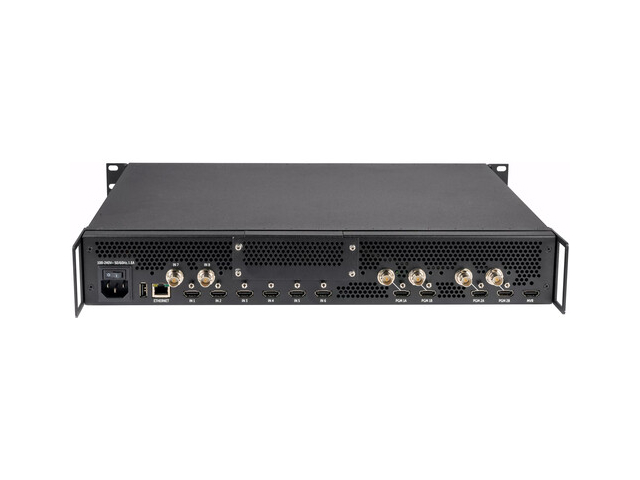

4x HDMI 2.0 & 4x 12G-SDI Outputs: Flexible output routing to displays, recorders or downstream processors
Ultralow Latency: 2 frames at 60 Hz processing to keep live content aligned with audio and live events
PiP Layers: Show up to two live inputs simultaneously to compare sources or present presenter plus content
Multiview Preview: 4-way HDMI multiview preview output for monitoring multiple inputs on a single screen
Control Compatibility: WebUI, Ethernet RJ45, Event Master software and API support for integration

Applications:

Corporate Presentations: Dual-screen executive briefings and conference rooms requiring mixed HDMI and SDI sources
Live Events & Staging: Multi-camera live shows using 12G-SDI cameras and HDMI media playback
Broadcast & OB Vans: On-site production where ultralow latency and 12G-SDI compatibility are required

Specifications

Weight	14.00 lbs
