Description

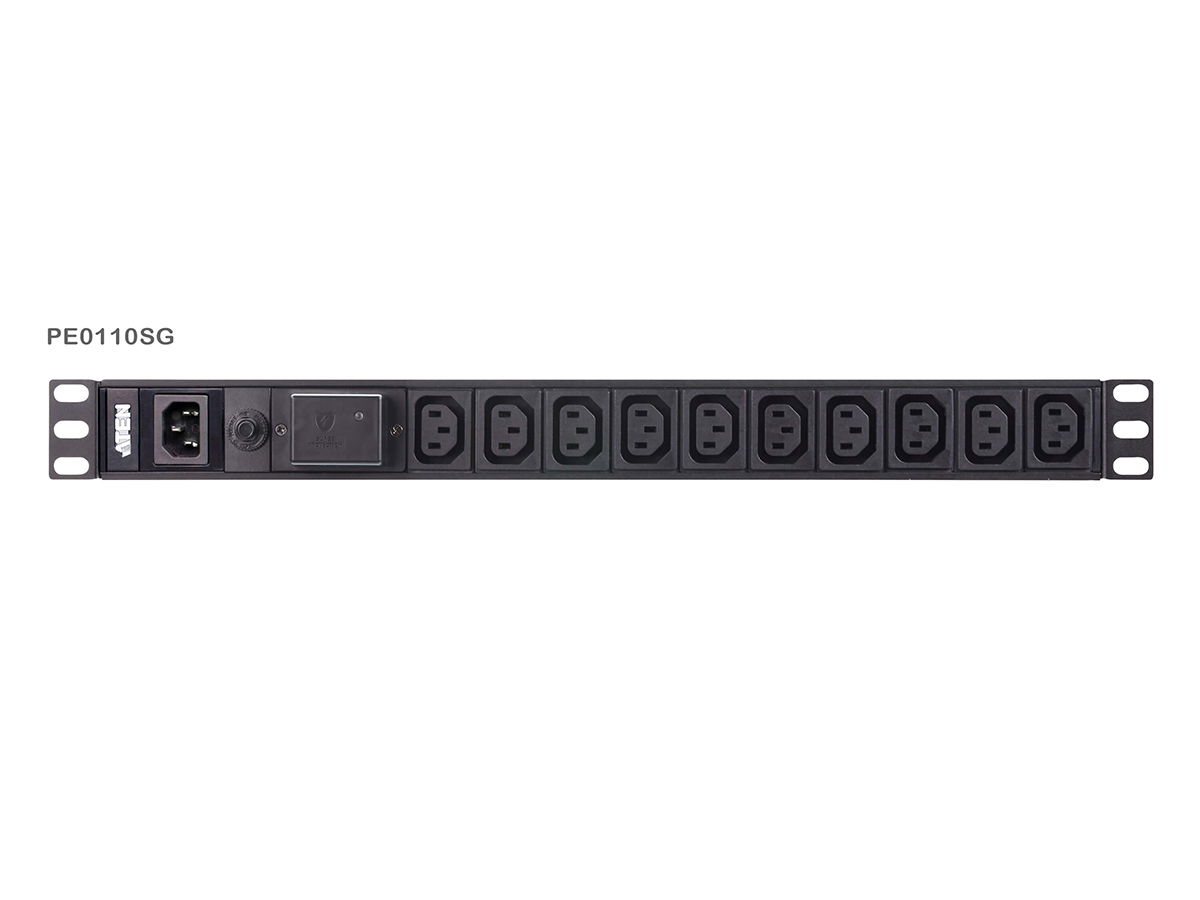

The PE0110SG is a compact 1U rack mount power distribution unit designed to provide reliable AC power distribution and surge protection in rack environments. It supplies power to ten IEC-320 C13 outlets from a single inlet while maintaining unfiltered electrical pass-through. The integrated surge protection includes an LED indicator to show surge module status.
This PDU features space-saving 1U rack mounting and an aluminum housing for improved durability and heat dissipation. It provides ten IEC-320 C13 outlets and supports nominal input voltage of 100-240 VAC with a maximum input current of 10A. Overcurrent protection is built in via an OPD device to protect connected equipment.
Electrical performance includes a 50-60 Hz input frequency and a rated input power of 2400VA maximum. Maximum output current per outlet, per bank, and total is 10A. The unit is engineered for standard operating elevations up to 3000m and an operating temperature range of 0 – 40 C.
Connectivity options include an IEC-320 C14 input (for G plug) or a Chinese 10A input (for Z plug) depending on regional configuration. The unit ships with a 10ft power cord sized 3×1.5mm2 to provide reliable mains connection. Outlet spacing and standard IEC-320 C13 connectors ensure compatibility with a wide range of servers and network devices.
This PDU is suited to data center racks, server rooms, telecom closets and AV racks where compact rack power distribution and basic surge protection are required. It is intended for users who need straightforward power distribution with an easy visual indicator of surge protector status. Typical applications include rack-mounted servers, network switches, and telecom equipment.
Installation is straightforward with standard 1U rack mounting hardware and optional wall or furniture mounts. The aluminum housing provides impact resistance while keeping weight low at 0.66 kg. Note that the warranty does not cover external accessories such as the surge protection module and users should follow load recommendations when ambient temperatures approach 40 C.
