Description

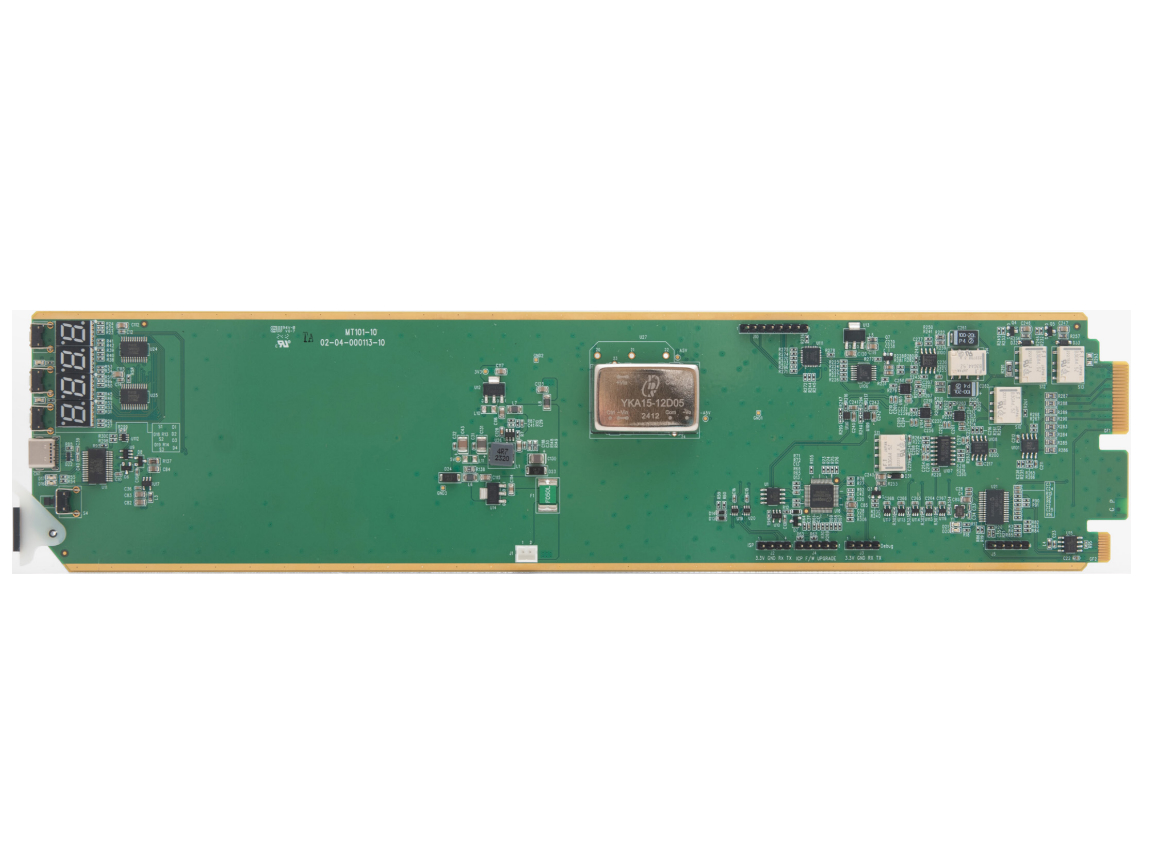

OG-DA-AV-MB
OpenGear 1×8 Analog Video Distribution Amplifier with Loop out with EQ
Features
- OGX/3.0 card-based form factor
- Dashboard control enabled
- 1 x 8 analog video distribution amplifier with loopout
- Easy and intuitive seven segmented LED display to represent EQ and gain adjustments
- Can fit up to 20 OG-DA-AV-MB in 2 RU with high density rear module
- Dashboard control of EQ and gain controls
- Supports card-edge control of EQ and gain control
- Supports input cable length of 1,000 ft (300m)
- Input provides differential or single-ended and hi-Z looping or card terminated operations
- Signal path can be set as DC or AC coupled
- User-selectable input clamping
- Low power consumption

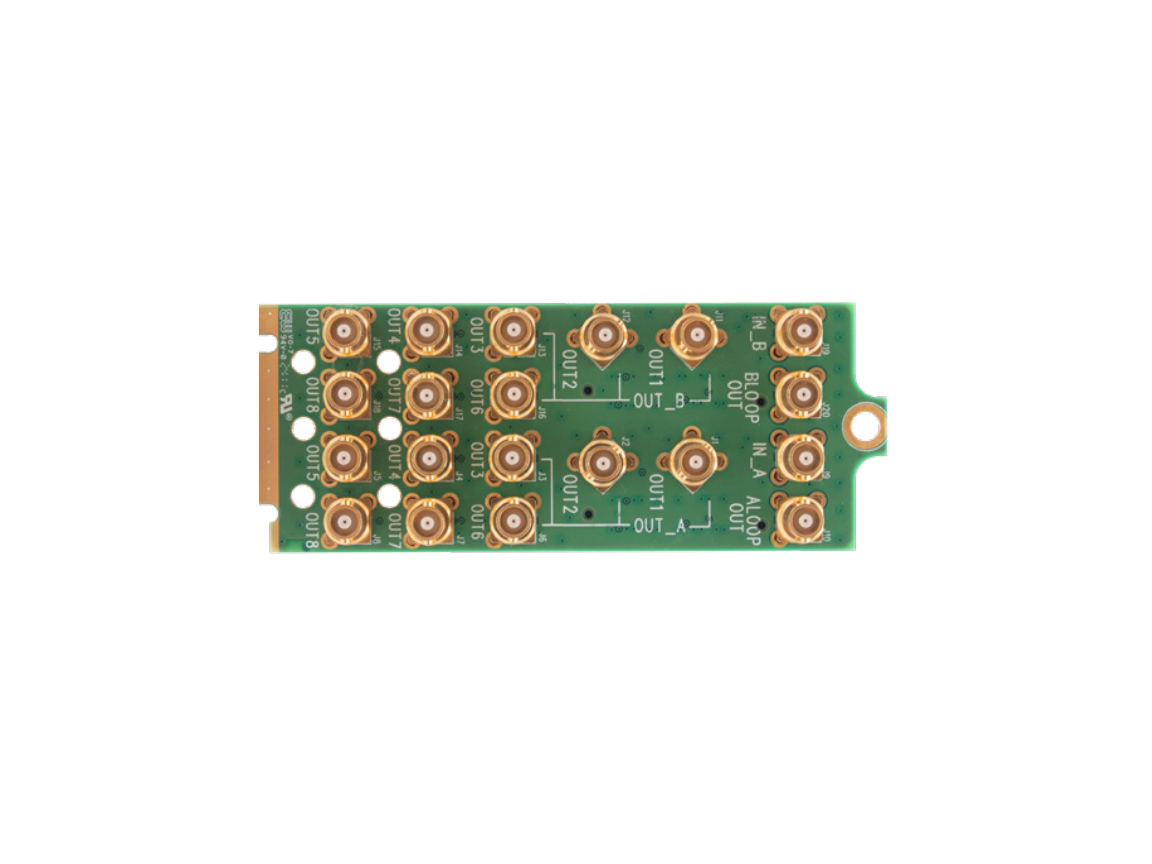

OG-DA-AV-RM2
High Density openGear Rear Module for 2 x OG-DA-AV-MB. Occupies 2 slots in the openGear frame. 2 x Analog Video inputs, 18 Analog Video outputs HDBNCs.
Side A
- 1x video input
- 1x passive loop out
- 8 x video output
Side B
- 1x video input
- 1x passive loop out
- 8 x video output
