Description

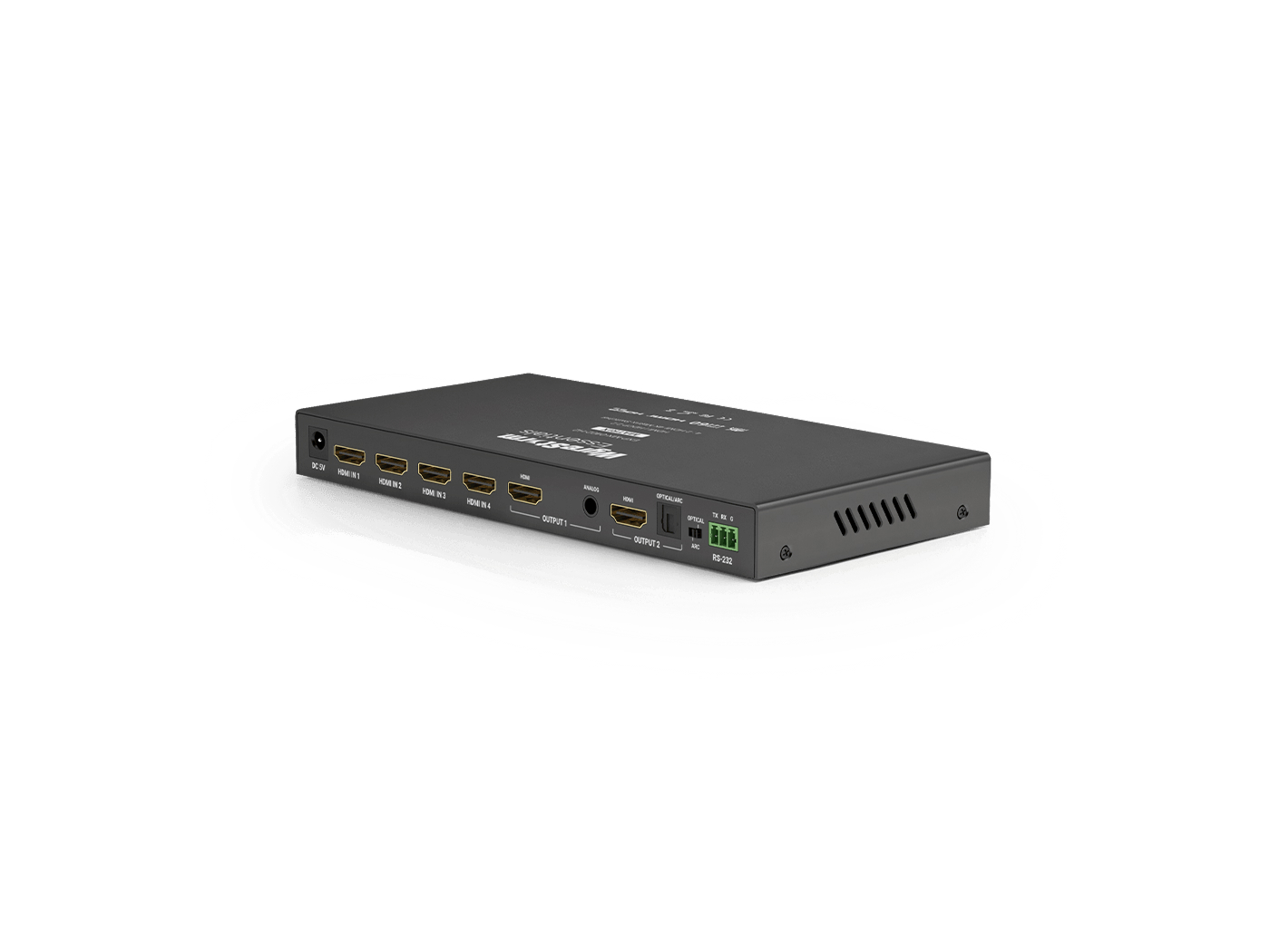

The WyreStorm EXP-MX-0402-H2 is a 4×2 HDMI matrix switcher that routes four HDMI sources to two displays while supporting 4K60 video and an 18Gbps HDMI backbone. Upgraded to HDCP 2.2, the unit adds built-in output scalers to handle mixed 4K and 1080p displays without compromising source quality.
The EXP-MX-0402-H2 includes analog and digital audio de-embed plus ARC support, offering flexible audio routing to amps, soundbars or AVRs. Control options include front-panel push buttons, IR, CEC triggers and an extensible RS-232 API for advanced integration and troubleshooting.
Designed for residential and light-commercial installs, the EXP-MX-0402-H2 supports HDR formats and modern audio codecs, enabling unified AV distribution with EDID control and timed CEC triggers to manage display and audio behavior.
Key Features:- 4x HDMI inputs / 2x HDMI outputs: Route multiple UHD sources to two displays with independent switching
- 18Gbps HDMI backplane / HDCP 2.2: Preserve 4K60 bandwidth and protected content compatibility
- Built-in output scalers: Downscale 4K to 1080p on outputs so mixed-resolution displays can be used simultaneously
- Audio de-embed / ARC: Extract analog stereo or 5.1 digital audio and accept ARC return from smart displays
- RS-232 / IR / CEC: API-enabled RS-232 plus IR and timed CEC triggers for integrator control and automation
- HDR / Dolby Vision / DTS:X support: Maintain HDR metadata and multichannel audio to compatible displays and AVRs
- Multiroom AV: Send any of four HDMI sources to two separate rooms while supporting mixed 4K and 1080p TVs
- Home theater integration: De-embed audio to an AVR or use ARC to return sound from a smart TV to a soundbar
- Light-commercial installs: Control via RS-232 and CEC timing for meeting rooms or digital signage pairings
