Description
The WyreStorm EX-100-KVM-8K is an HDBaseT KVM extender pair that transmits HDMI 2.1 video and USB 2.0 KVM signals over a single Cat6/6a/7 cable up to 100m. It supports ultra-high resolutions including 8K@30Hz or 8K@60Hz 4:2:0 plus 4K@120Hz and uses VESA DSC for visually lossless delivery.

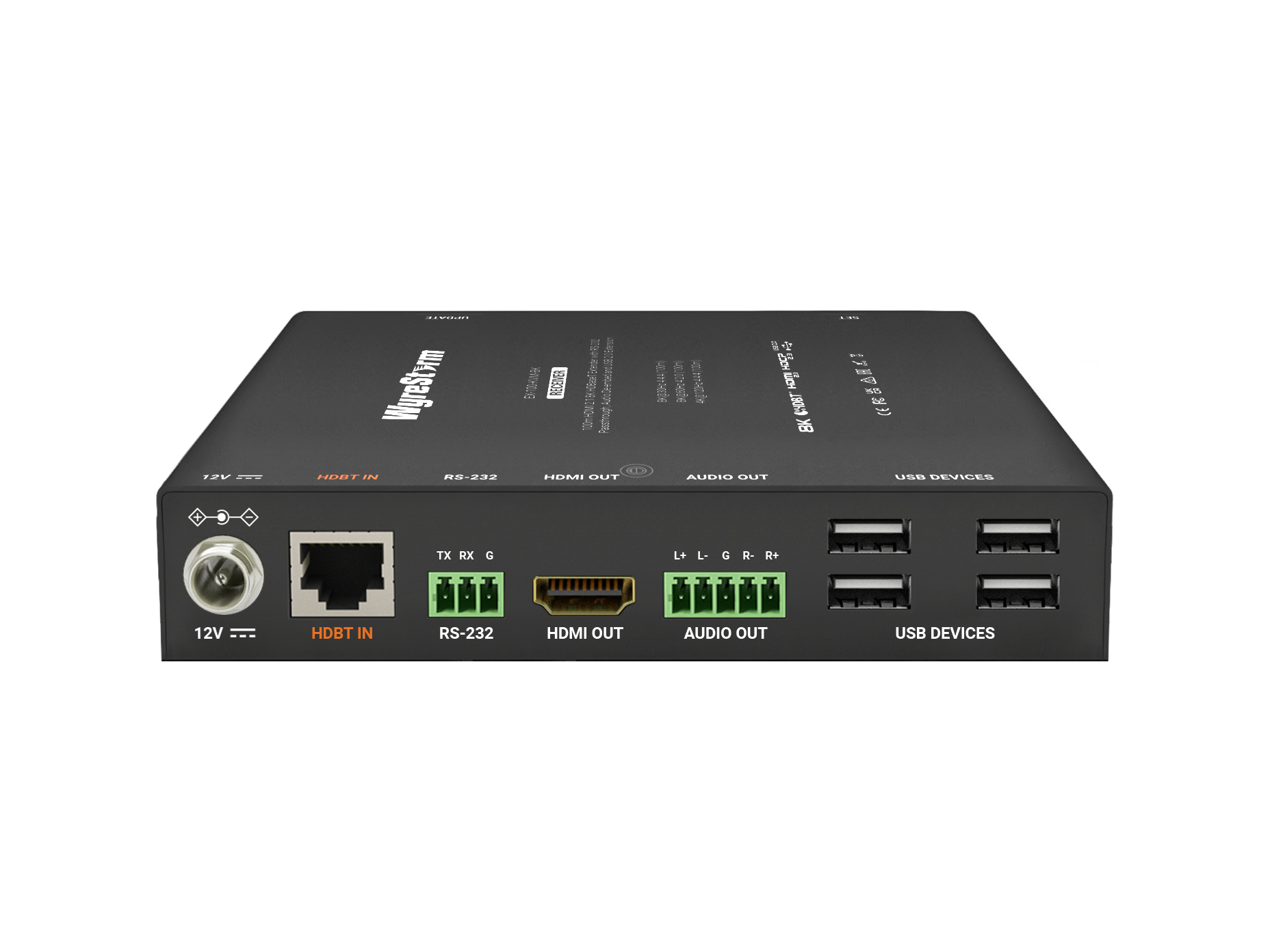

The system includes a transmitter and receiver with one-way Power over Cable from RX to TX, RS232 passthrough for remote control, and a balanced de-embedded audio output for integration with professional sound systems. USB 2.0 extension provides KVM control at up to 480Mbps.
Designed for conference rooms, control rooms, and pro AV installations, the EX-100-KVM-8K simplifies cabling and preserves high-fidelity audio/video and control signals across long distances while maintaining HDMI 2.1 and HDCP 2.3 compatibility.
Key Features:- 8K HDMI 2.1 Support: Extends 8K@30Hz or 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4 with VESA DSC to retain visual fidelity
- 100m HDBaseT Extension: Single Cat6/6a/7 cable transmission up to 100m/328ft for video, USB2.0 and control
- USB 2.0 KVM: Extends USB 2.0 data at up to 480Mbps for remote keyboard/mouse and peripheral control
- RS232 Passthrough: Bi-directional control passthrough for device management and automation
- Balanced Audio Output: 5-pin phoenix balanced audio de-embed on RX for pro audio integration
- Power over Cable: One-way PoC from RX to TX removes need for separate TX power in many installs
- Conference Room AV: Centralized PC or presentation source control with remote display and USB KVM access
- Control Rooms: Long-reach signal delivery for monitoring stations with RS232 device control
- Digital Signage: Drive high-resolution displays up to 8K over structured cabling while providing local audio extraction
