Description

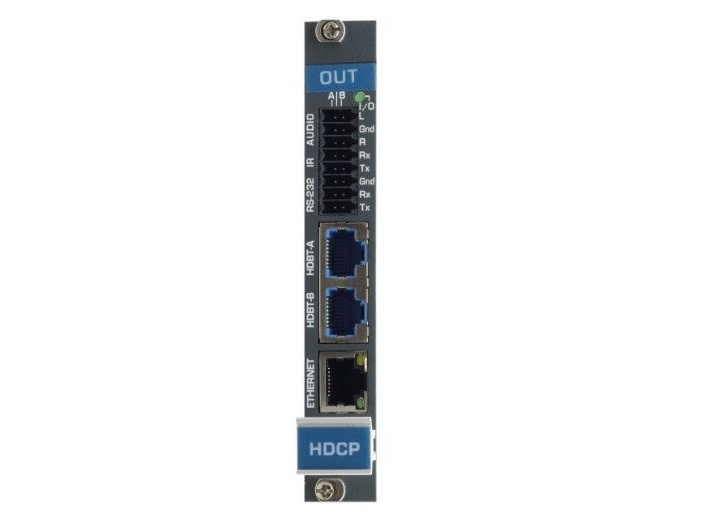

The DTAXR-OUT2-F16 is a 2-output HDBaseT HDMI output card designed to extend high-resolution video and analog audio over long distances. It installs into compatible modular matrix frames to deliver HDMI signals and embedded or de-embedded analog audio on a single jack. The card supports professional AV infrastructures that require centralized distribution and remote display endpoints.
This card provides dual HDBaseT outputs, HDMI signal routing, and on-jack analog audio embedding and de-embedding. It supports Ethernet extension, bidirectional RS-232 and IR control, and 3D pass-through for modern display systems. The unit is HDCP compliant and HDTV compatible to ensure interoperability with a wide range of sources and displays.
Performance is driven by a 10.2Gbps maximum data rate, delivered as 3.4Gbps per graphic channel, and a maximum resolution of 4K at 60Hz using 4:2:0 sampling. System range varies by mode – up to 100m at 4K normal mode, up to 130m at 2K normal mode, and up to 180m in ultra mode at 1080p@60Hz@24bpp. These ranges assume use of quality HDBaseT cabling such as Kramer HDBaseT cables.
Connectivity includes HDMI signaling over HDBaseT, analog audio on the same jack for embedding or de-embedding, and Ethernet extension up to 100Mbps for networked endpoints. Control channels include bidirectional RS-232 and bidirectional infrared extension to manage remote devices. The card preserves HDCP compliance and supports standard HDMI formats and pass-through features like 3D.
This output card suits broadcast, presentation, production, rental, and staging environments that require centralized signal distribution and remote device control. It is engineered to integrate with modular matrix switchers to simplify system architecture and reduce field cable runs. The combination of audio embedding and long-reach HDBaseT outputs supports mixed AV deployments where both analog and digital endpoints coexist.
Installation is streamlined for rack-based modular matrices and system integrators, with a form factor and control interfaces designed for professional AV racks. The card is built to meet installer expectations for robust signal transmission and straightforward control integration. Firmware and support from the manufacturer ensure maintainability and compatibility within larger AV systems.
