Description

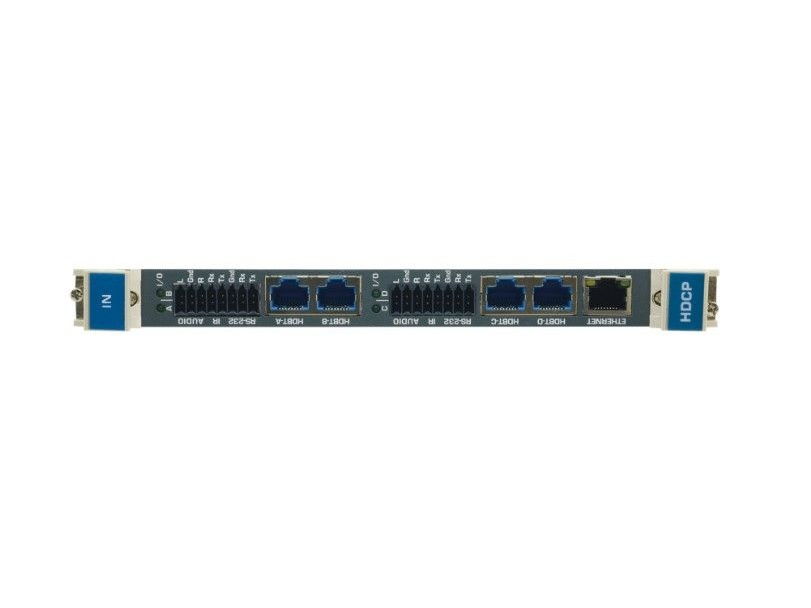

The DTAXR-IN4-F32 STANDALONE is a 4-input HDBaseT HDMI and analog audio input card designed to transport high-resolution video and embedded audio over a single cable. It sends HDMI video up to 4K@60Hz (4:2:0) and combines analog audio on the same jack for simplified signal management. The unit is optimized for long-distance transmission using HDBaseT technology.
Key features include a 10.2Gbps maximum data rate with 3.4Gbps per graphics channel and analog audio embedding and de-embedding on the same connector. The card supports HDCP and HDTV signal formats and provides 3D pass-through for supported sources. Ethernet extension, bidirectional RS-232 and IR pass-through add remote-control and network capabilities.
Performance supports 4K@60Hz in 4:2:0 format and extended reach depending on video resolution – up to 100m at 4K normal mode, up to 130m at 2K normal mode, and up to 180m in ultra mode for 1080p@60Hz. The card maintains signal integrity across those distances when used with compatible HDBaseT cabling. The 10.2Gbps bandwidth ensures sustained throughput for multi-channel video signals.
Connectivity includes four HDMI inputs plus integrated analog audio embedding/de-embedding on the same jack and HDBaseT output for long-distance transport. Network and control options include Ethernet extension up to 100Mbps, bidirectional RS-232 extension, and bidirectional infrared extension for remote control. The card is HDCP compliant for protected content workflows.
Typical applications include broadcast input aggregation, presentation systems, production studios, and rental or staging environments where remote transmit capabilities and centralized signal management are required. The product adapts to multi-source environments and supports professional AV signal distribution and control. It is suited to systems requiring combined audio embedding and long-distance HDMI delivery.
Installation is straightforward for qualified AV integrators and follows standard HDBaseT wiring practices – use recommended HDBaseT cabling to achieve specified ranges. The unit is built to professional installation standards and integrates with existing Kramer infrastructure or compatible HDBaseT receivers. Documentation and technical support are available to assist with system commissioning.
