Description

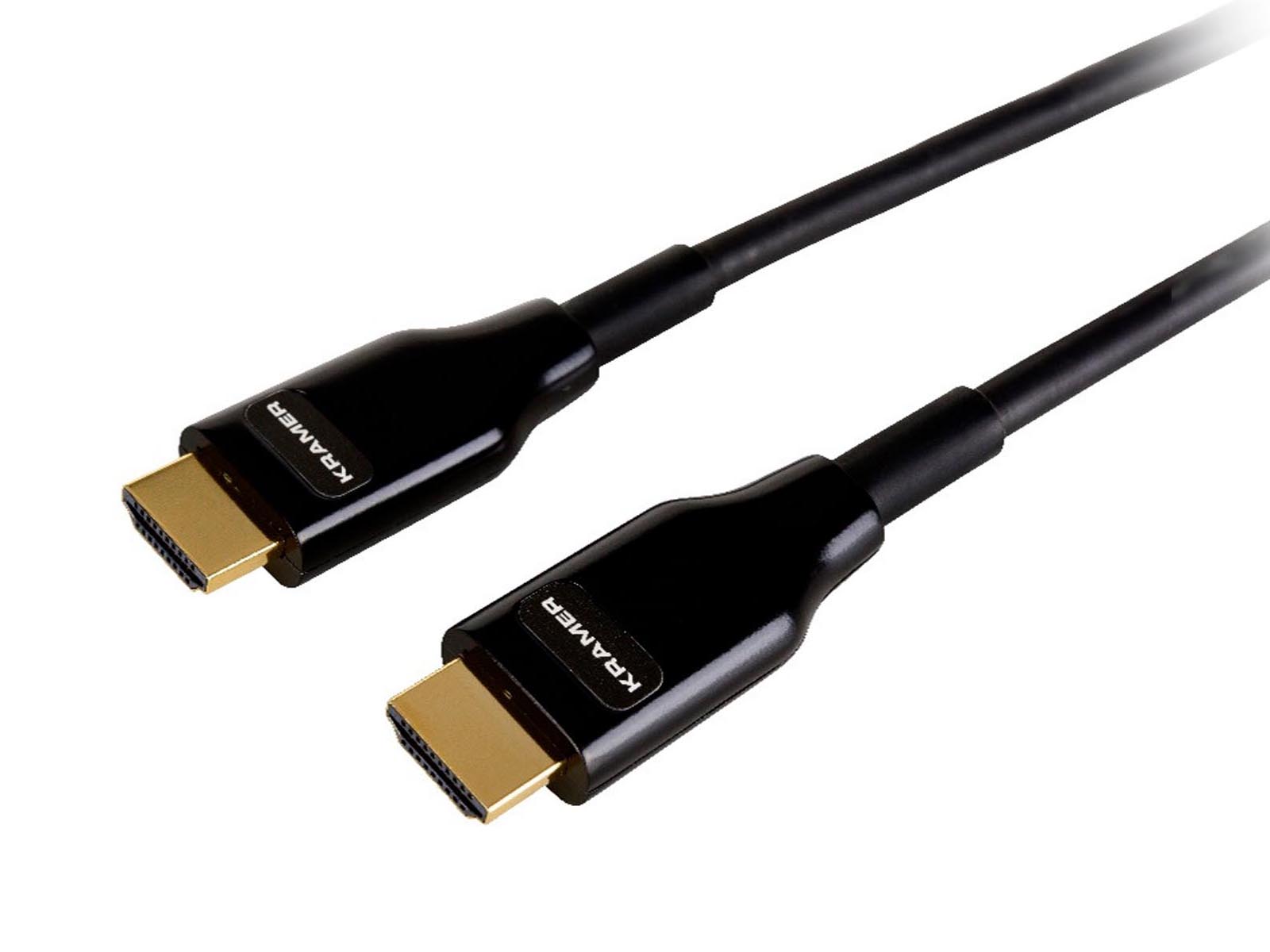

The CRS-PlugNView-H is an active optical armored HDMI cable engineered for long-range high-resolution video transmission – it delivers reliable connectivity over extended runs while eliminating the need for external power. This cable supports modern HDR formats and lossless multi-channel audio to maintain source fidelity end-to-end. Its heavy-duty construction is designed to withstand the demands of rental, touring, and fixed-install environments.
Key capabilities include support for 4K@60 4:4:4 and a sustained 18 Gbps data rate to preserve chroma and color depth across long distances. The cable powers its active optics through the HDMI connector and consumes only 0.25W 50mA at 5V while avoiding separate power supplies or extenders. Integrated protocols such as HDCP 2.2, EDID management, and CEC ensure source-device negotiation and control functions operate as expected.
Performance highlights include reliable operation at resolutions up to 4K@60 with full chroma sampling and HDR compatibility including HDR10, HLG, and Dolby Vision. Audio support covers Dolby TrueHD and DTS-HD Master Audio with 5.1 and 7.1 channel configurations. The active fiber design maintains signal integrity over long cable runs up to 100 meters while the marketed length for this unit is 50.00m 164ft.
Connectivity and compatibility extend to standard HDMI connectors and common control features – EDID and CEC are supported for source handshakes and remote control pass-through. The cable interoperates with HDCP 2.2 compliant sources and displays to enable protected content playback. Its HDMI interface makes it suitable for direct connection to AV switchers, scalers, processors, and displays that accept HDMI inputs.

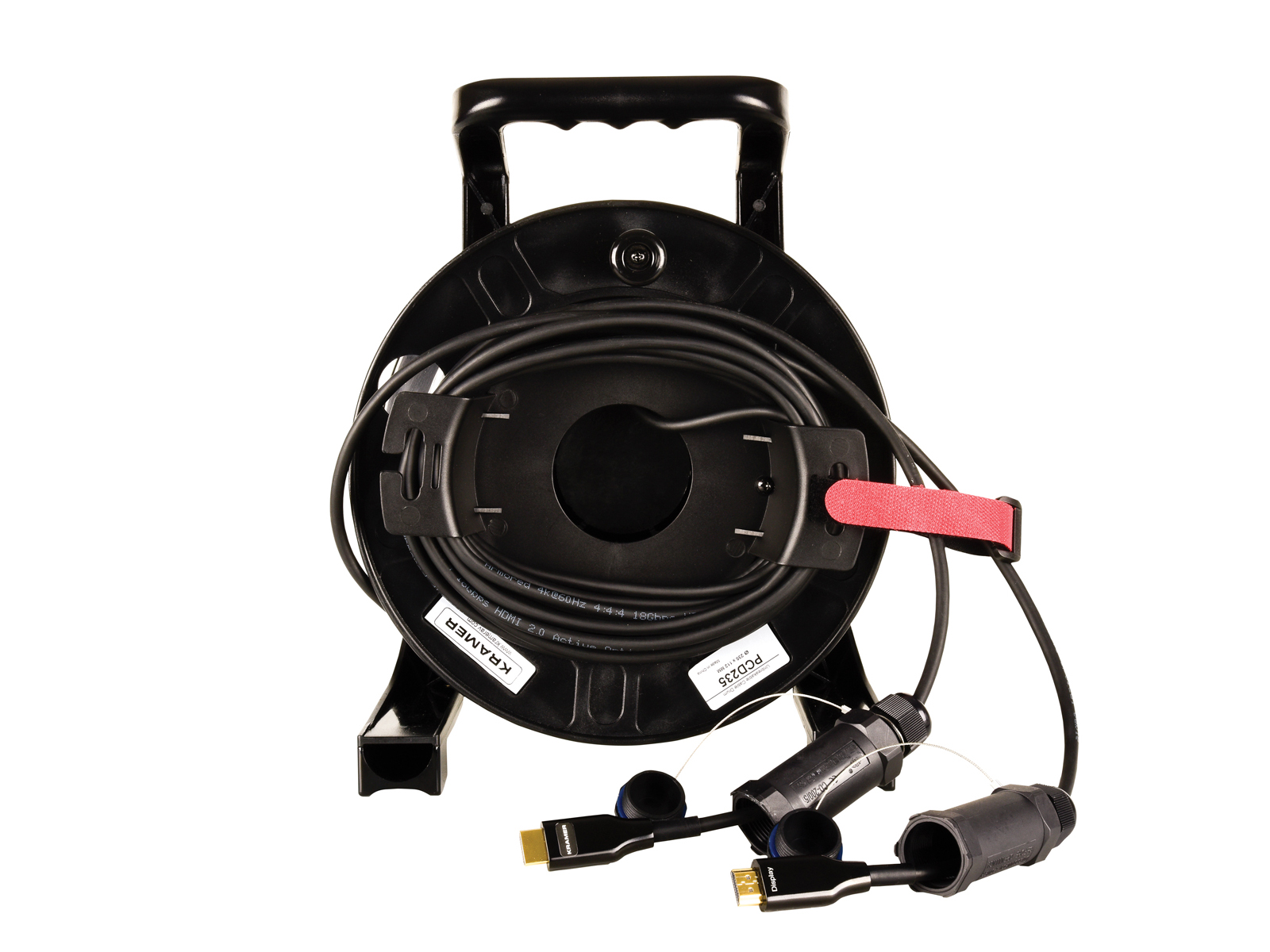

Typical use cases include live production, corporate and education AV installs, digital signage, and rental/road applications where long runs and robust handling are required. The armored construction and reinforced internal elements mean the cable tolerates repeated deployment, retraction, and pulling stresses. Mobile spool dispensing simplifies staging, storage, and transport for event crews.
Installation is straightforward – standard HDMI terminations allow plug-and-play connection while the active optics auto-power via the HDMI bus for simple setup. The stainless steel corrugated tube, Kevlar reinforcement, TPU jacket, and waterproof impact-resistant connector covers provide mechanical protection and higher pulling strength. This combination of durability and signal performance delivers a reliable, long-range HDMI link for professional AV environments.
