Description

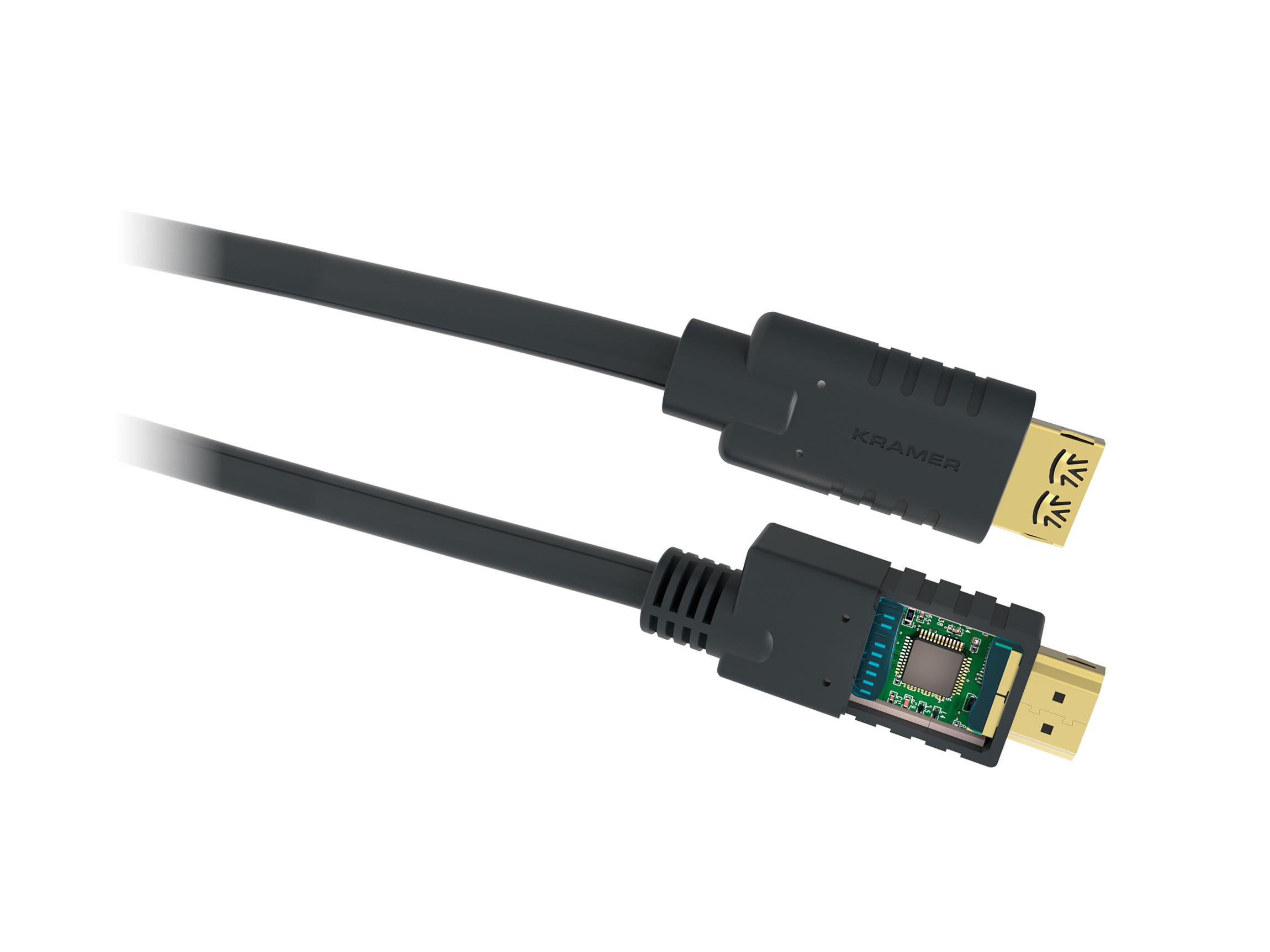

The CA-HM-50 is an active high speed HDMI cable designed to carry HDMI video and audio signals over extended copper runs. It supports up to 4K@60Hz 4:4:4 video and high-bandwidth audio formats, enabling professional AV installations that require long cable runs without external power. The cable draws power from the HDMI source for plug-and-play operation.
Key features include an 18Gbps capable data path for shorter runs, HDCP 2.2 and HDR support, and Kramer K-Lock connectors that provide pull resistance and a visual LED status indicator. The cable is triple-shielded to reduce EMI and uses 24K gold-plated connectors for reliable contact. It is UL listed and CL3/FT4 rated for in-wall installation where permitted.
Performance varies by length – the active electronics equalize and compensate to support 4K@60Hz 4:4:4 up to 20m and maintain lower-resolution support at greater distances. The CA-HM family uses different conductor gauges across lengths to optimize signal integrity. Conductor resistance, power consumption, temperature rating, and voltage ratings are specified to ensure predictable system behavior.
Connectivity is straightforward – male Type A HDMI on both ends with an optional micro-USB power input on the display end for challenging source environments. The cable supports EDID, ARC and CEC control channels, and passes Dolby TrueHD and DTS-HD audio formats. K-Lock connectors provide 15 lbs of restraining force to prevent accidental disconnects.
This cable is suited to conference rooms, classrooms, digital signage runs, and boardroom AV where a clean single-cable connection is required over extended distance. It is also appropriate for installations requiring in-wall rated cables and persistent mechanical retention. The CA-HM-50 simplifies installations by avoiding external power bricks while maintaining signal quality.
Installation is plug-and-play and requires no additional configuration in most systems – the cable draws the small operating current from the HDMI source and includes an LED to indicate successful transmission. The PVC jacket and controlled bend radius offer reliable routing through typical wall cavities and raceways. Kramer engineered the CA-HM-50 for professional integration and long-term reliability.
