Description

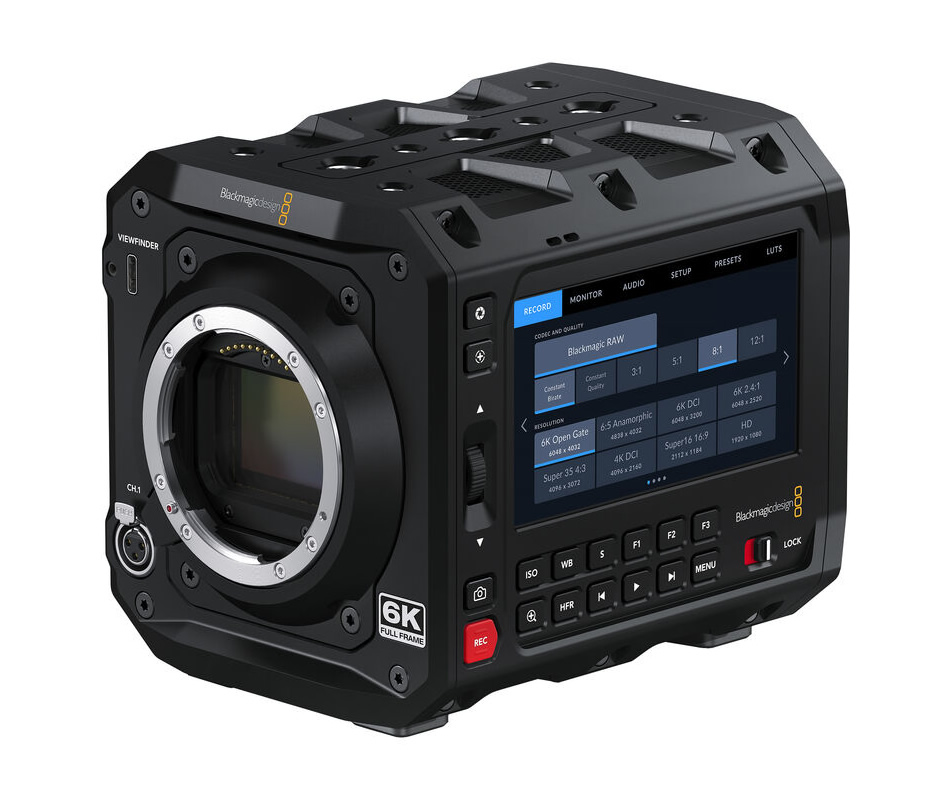

The Blackmagic Design PYXIS 6K transforms the Cinema Camera 6K into a modular box-style cinema camera with a Leica L lens mount and customizable side plates. Its full-frame 6K sensor delivers rich colors, accurate skin tones, and 13 stops of dynamic range. Record Blackmagic RAW and H.265 proxy files simultaneously or stream directly via Ethernet or mobile 4G/5G.
Firmware Update (Camera 10.0)
Adds pre-recording, 4-channel audio support, and mono headphone monitoring.
Includes frame guide opacity control, REST API updates, and proxy recording options.
Large-Format Sensor
24 x 36mm full-frame sensor with 6048 x 4032 resolution.
Up to 36 fps full resolution and 120 fps windowed recording.
13-stop dynamic range with dual-native ISO up to 25,600.
Flexible Film Formats
Supports Open Gate 3:2 for reframing in post.
True 6:5 anamorphic shooting without cropping.
Super35 window mode for close-up shots.
Resolutions & Frame Rates
6K Open Gate 3:2 at 36 fps.
4832 x 4032 anamorphic at 24 fps.
1080p up to 120 fps.
Supports still images up to 24.6 MP.
HDR & Dual-Native ISO
13-stop dynamic range preserves highlights and shadows.
ISO 400 (standard) and ISO 3200 (low light).
Expanded ISO up to 25,600 with minimal noise.
Customizable Design

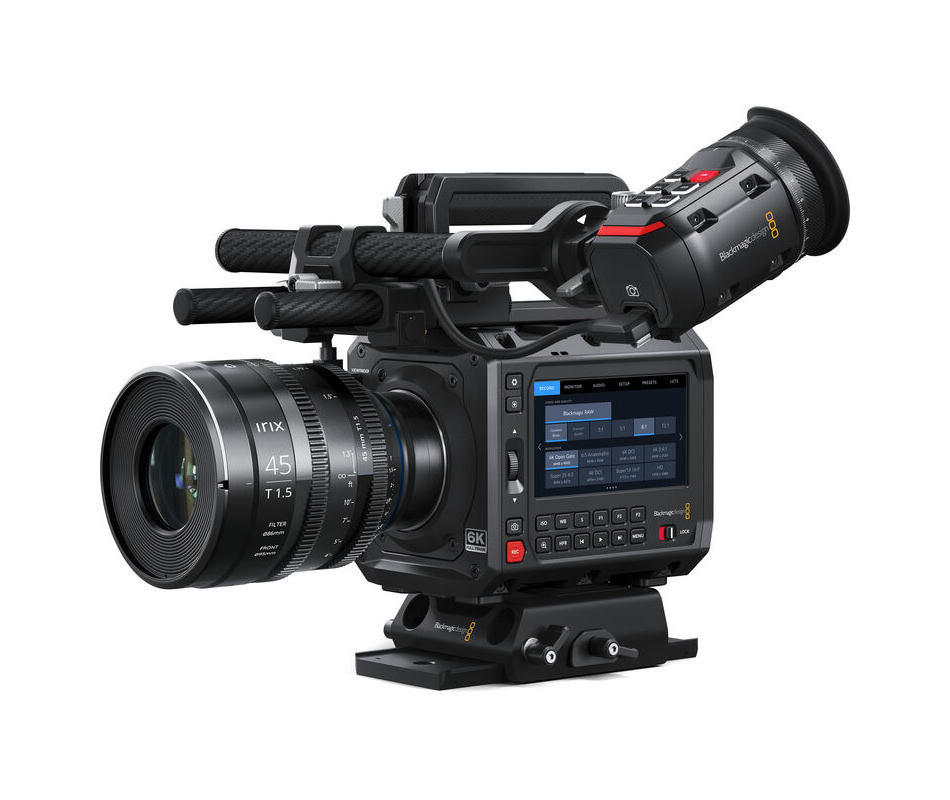

Side mounting plates with multiple threads for accessories.
Optional SSD and rosette plates for expanded functionality.
LCD Monitor & Controls
4″ Full HD touchscreen (1500 cd/m² brightness).
Displays LUTs, histograms, frame guides, and settings.
Custom buttons and control wheel for fast operation.
Post-Production Formats
Records in Blackmagic RAW for maximum flexibility.
H.264 proxy recording for quick sharing via cloud or mobile.
Recording Options
Dual CFexpress Type-B slots.
USB-C recording to external SSDs or flash drives.
Live Streaming
Supports SRT and RTMP streaming protocols.
Stream directly to YouTube, Facebook, or X.
Connectivity
Front: USB-C, mini XLR (+48V).
Rear: 3.5mm mic input, headphone jack, USB-C.
Includes 12G-SDI output, timecode input, and RJ45 Ethernet.
Power & Control

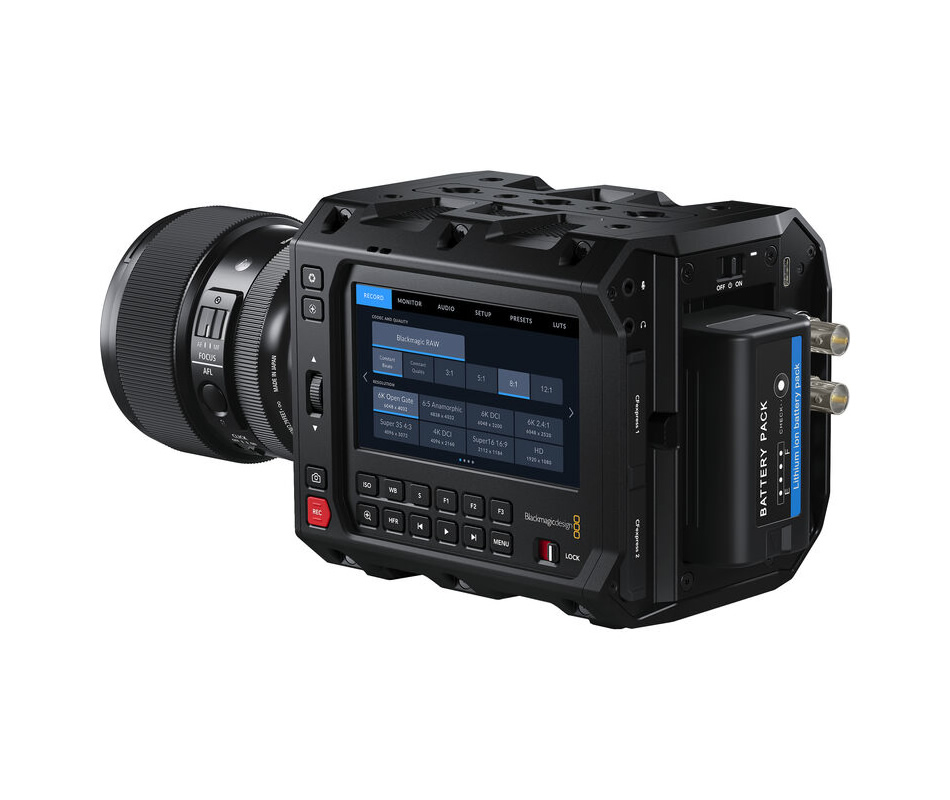

Powered via 2-pin DC input or Sony BP-U batteries.
Bluetooth control via Blackmagic Camera Control app (up to 30 ft).
