Description
Download Manual The BG-UHD-VWP19 is a professional-grade multi-format video wall processor engineered for maximum versatility and performance in large-scale display environments. Designed to handle a broad range of input sources – including HDMI, DisplayPort 1.4, USB-C, VGA, YPbPr, and CVBS – it supports ultra-high-definition video up to 4K2K@60Hz (YUV 4:4:4). With nine HDMI outputs for display configurations and an additional HDMI loop-out, it enables both direct source monitoring and dynamic multi-screen layouts for digital signage, broadcast, and control room applications.

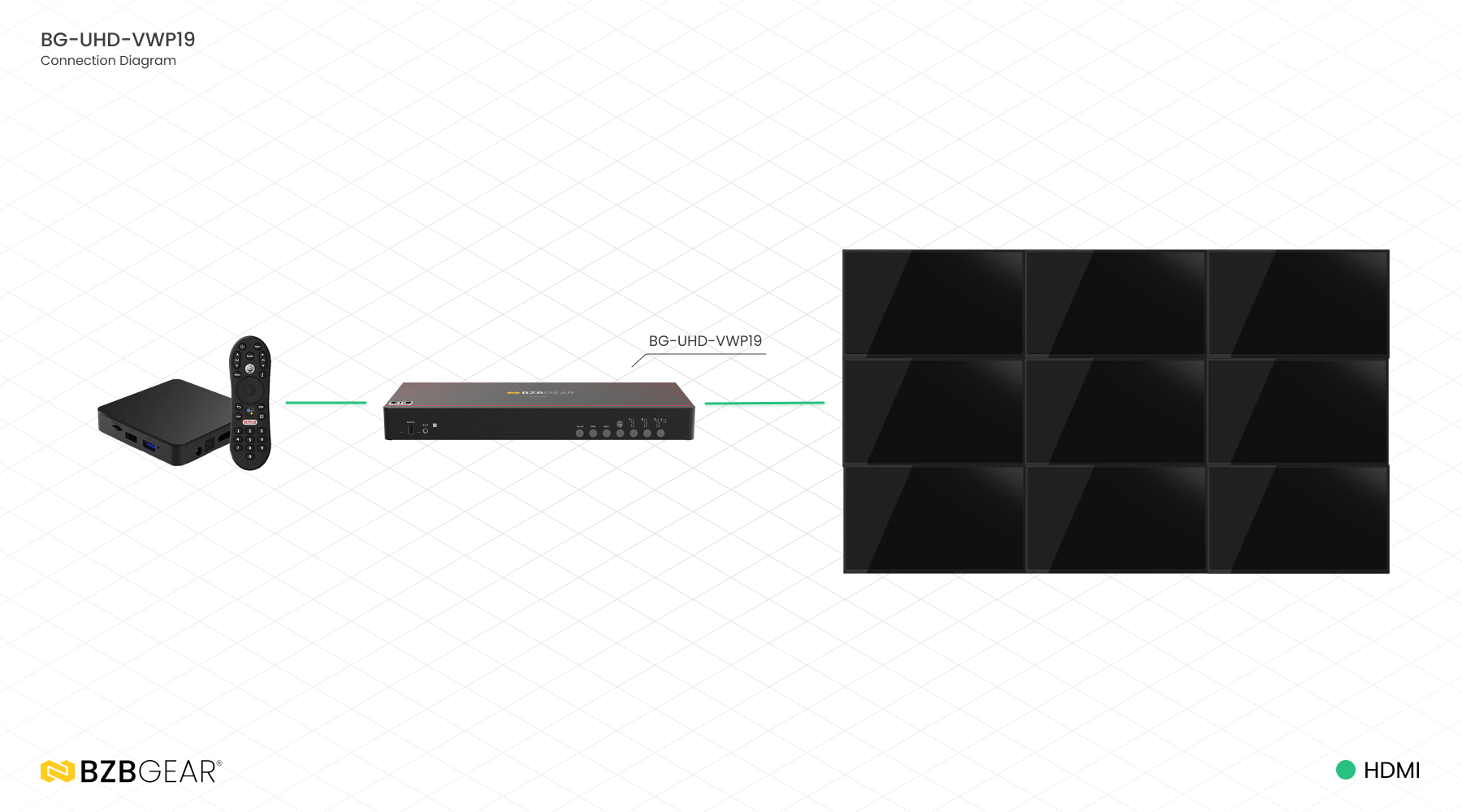

Built for flexibility, this processor allows users to resize, rotate, and position content across multiple displays to form complex video wall arrangements such as 3×3 layouts in full 4K resolution. With onboard memory for storing display presets and multiple control options – including front-panel buttons, IR remote, and PC software – the BG-UHD-VWP19 provides an intuitive and powerful platform for real-time video wall management in professional AV installations.
Features in DepthThe BG-UHD-VWP19 delivers uncompromising performance with multi-format input compatibility, allowing seamless integration of digital and analog sources. HDMI and DisplayPort 1.4 inputs support resolutions up to 3840×2160 and 4096×2160 @60Hz, while legacy inputs such as VGA, YPbPr, and CVBS ensure compatibility with older systems. Its integrated high-performance scaler automatically optimizes image quality to match the connected displays, ensuring precise color reproduction and low-latency processing across all output channels.
The unit’s nine HDMI outputs enable flexible configuration options – perfect for building large-scale 3×3 video walls or distributing content to multiple displays simultaneously. A dedicated HDMI loop-through output provides direct signal pass-through, allowing simultaneous viewing or recording of the source. Each output channel supports individual scaling, cropping, and zoom adjustments, giving users total creative control over the video wall presentation. Advanced frame synchronization and per-display propagation delay settings ensure smooth, tear-free visuals across all screens, even during high-motion video playback.
For ease of operation, the BG-UHD-VWP19 supports multiple control interfaces, including direct front-panel operation, infrared remote, and software-based configuration via PC. The onboard flash memory allows storage and recall of customized display layouts and parameters for quick reconfiguration during live events or installations. Designed with reliability in mind, the processor is HDCP-compliant, firmware-upgradeable, and built to meet professional standards for 24/7 operation.

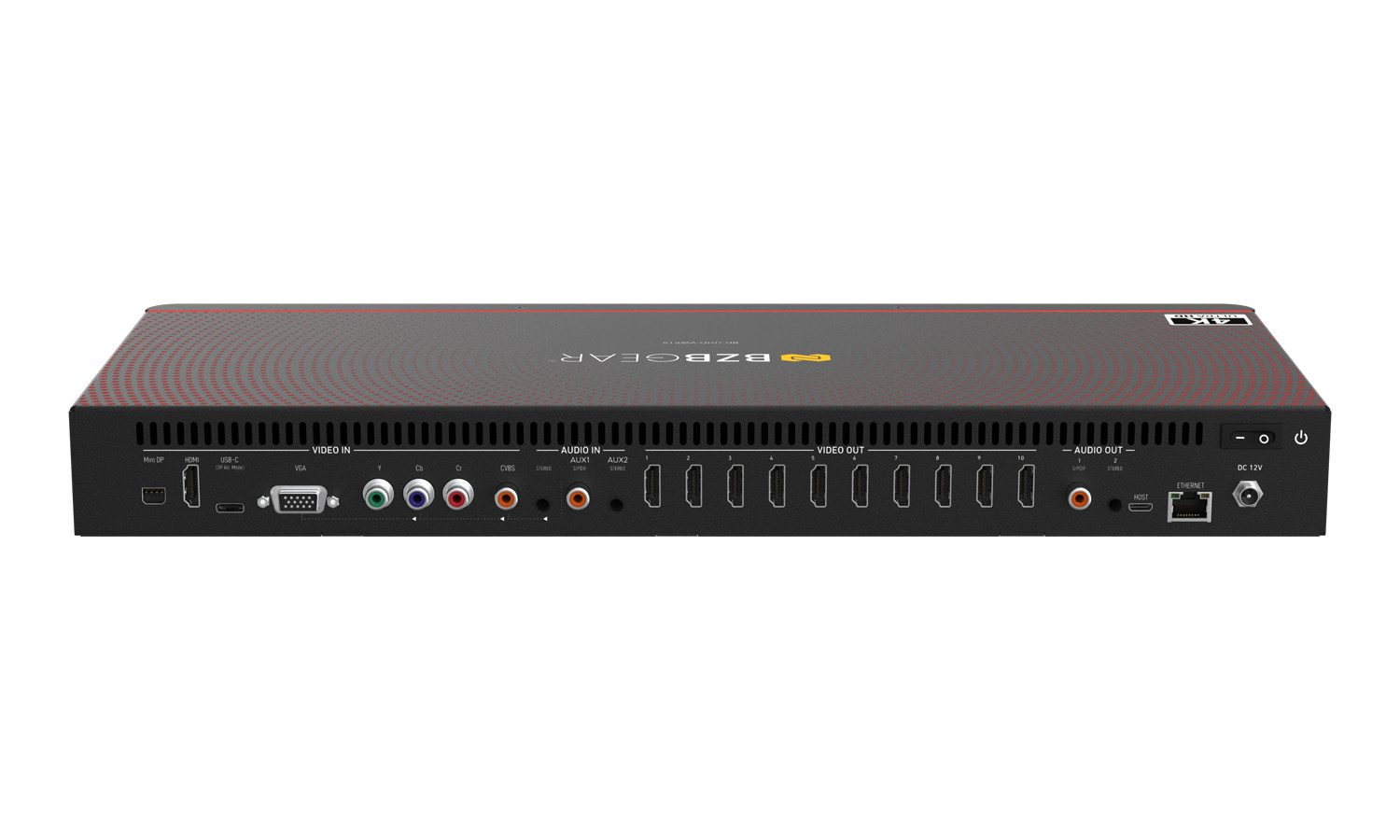

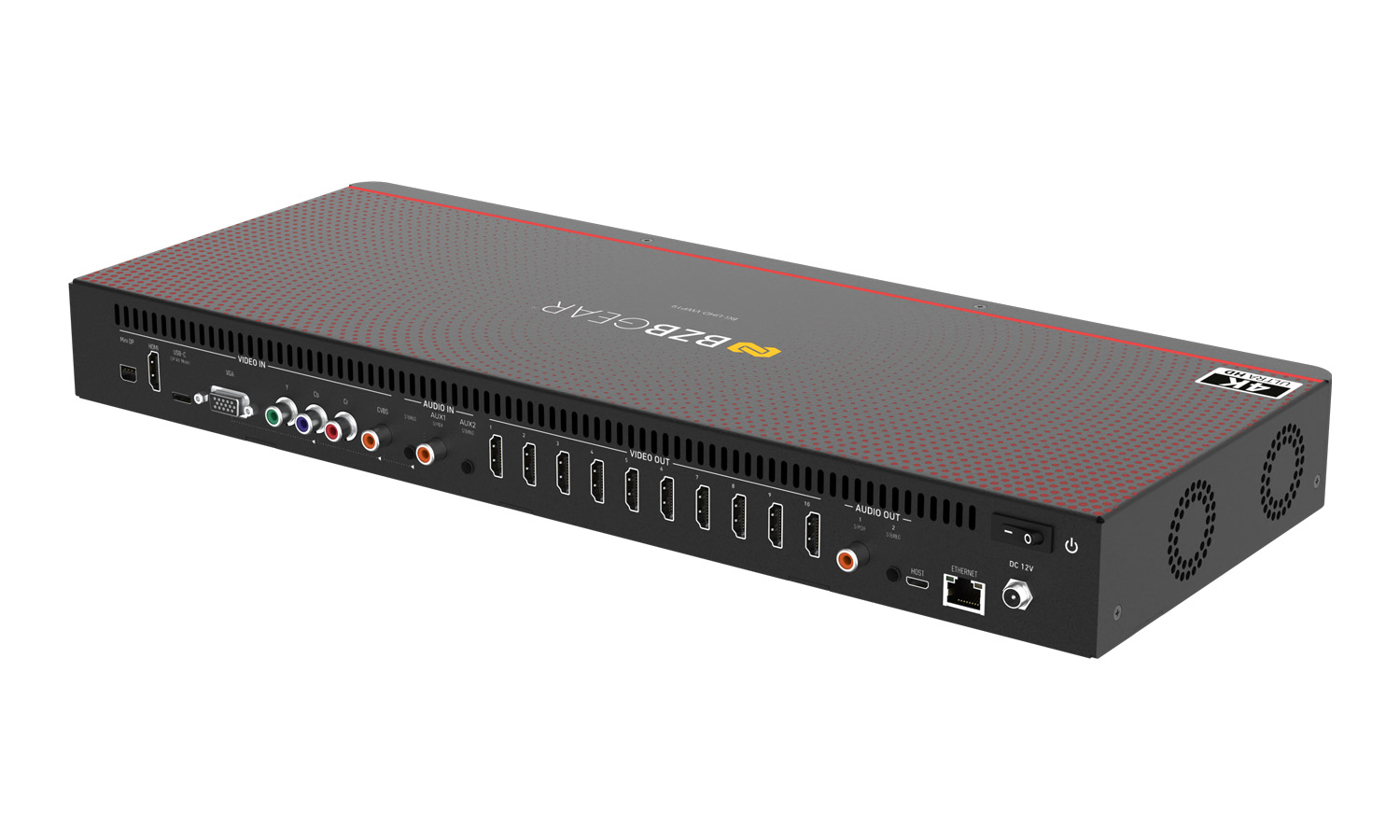

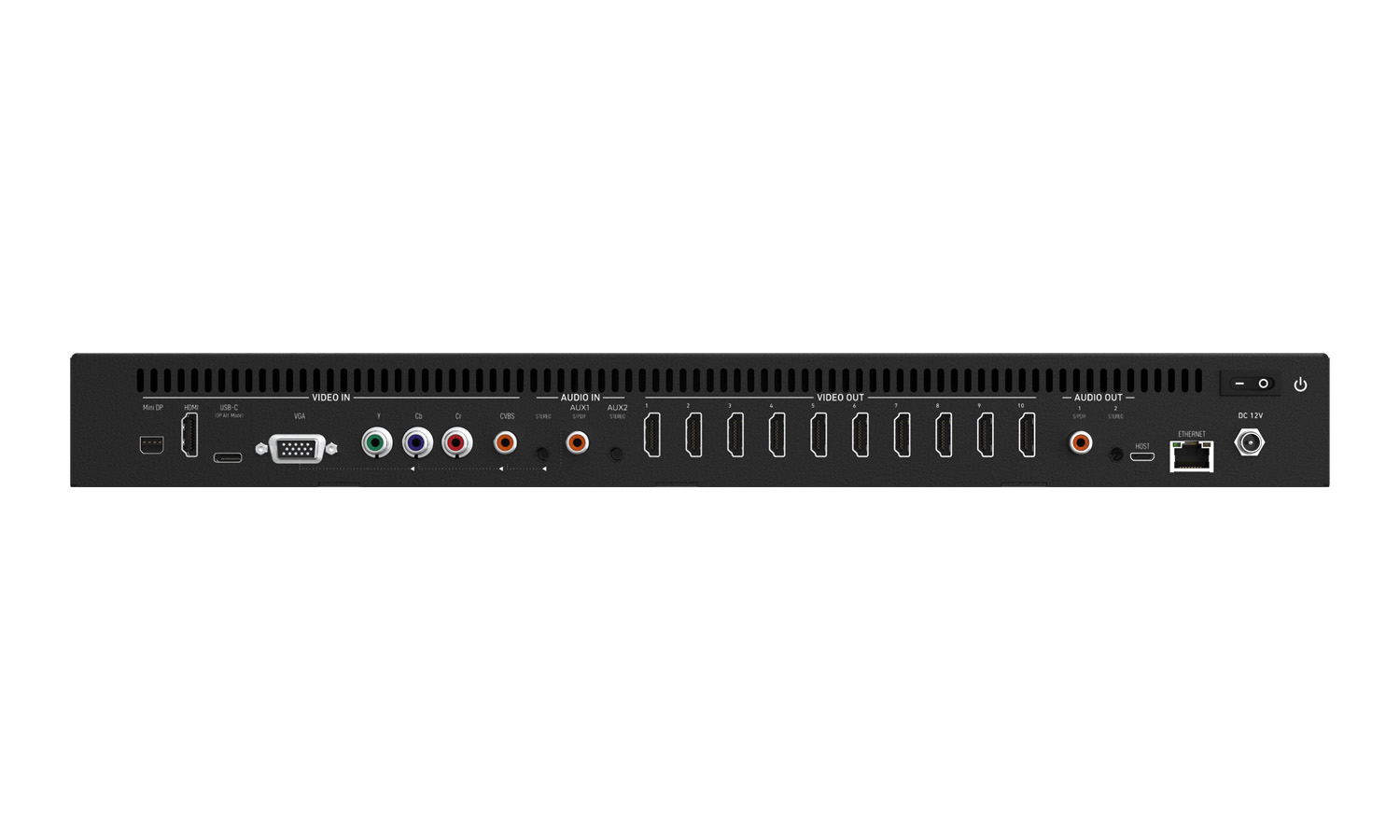

Features- Multi-Format Input Support – Accepts HDMI, DisplayPort, USB-C, VGA, YPbPr, and CVBS signals for flexible source compatibility
- Nine HDMI Outputs with Loop-Through – Delivers nine HDMI outputs for video walls plus one HDMI bypass output from the selected input
- 4K UHD – Handles resolutions up to 3840×2160/4096×2160 @60Hz (YUV 4:4:4, progressive) for exceptional image quality
- 3×3 Video Wall Support – Displays a full 4K60 source across nine displays with independent scaling and positioning per output
- Advanced Image Control – Resize, zoom, and position functions available on every output for precise display customization

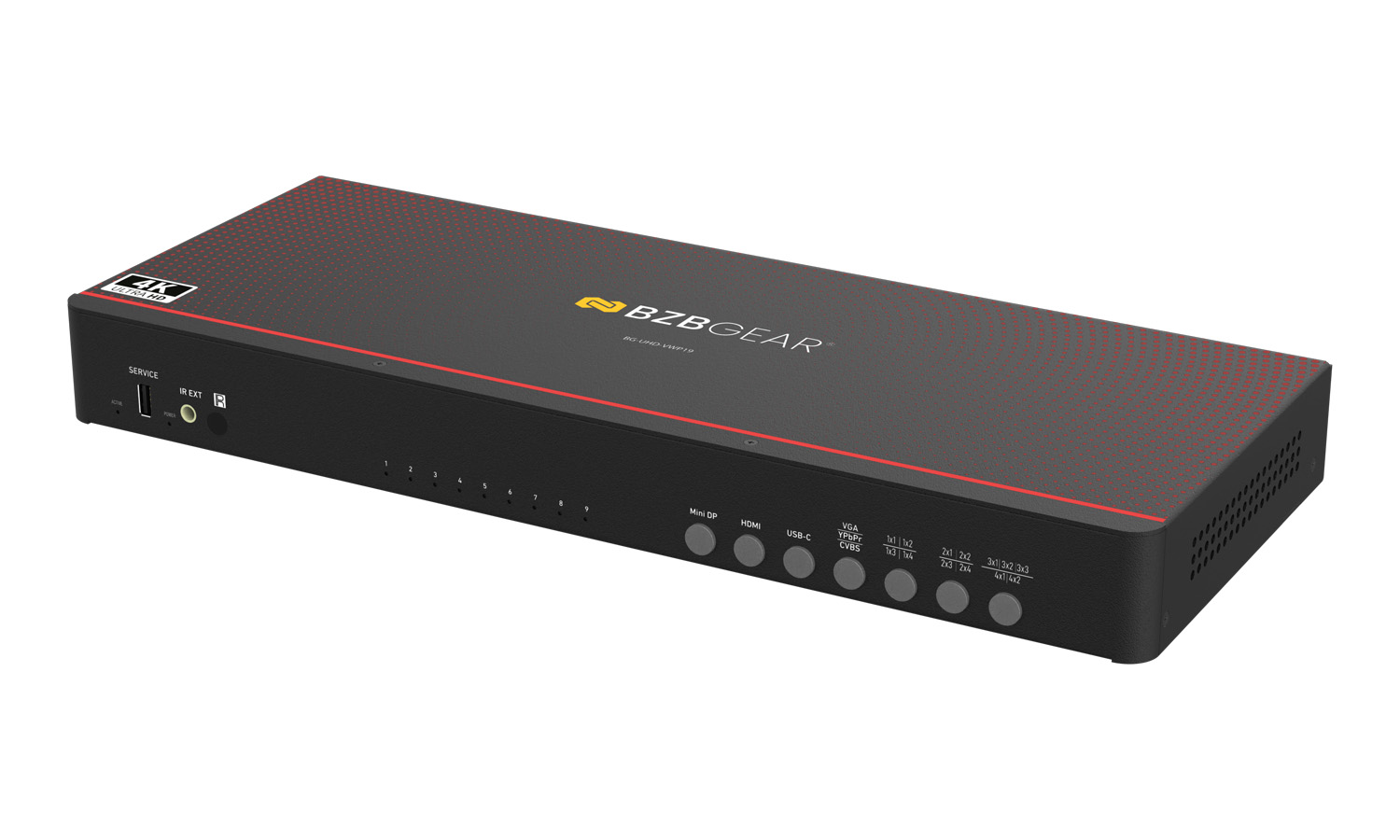

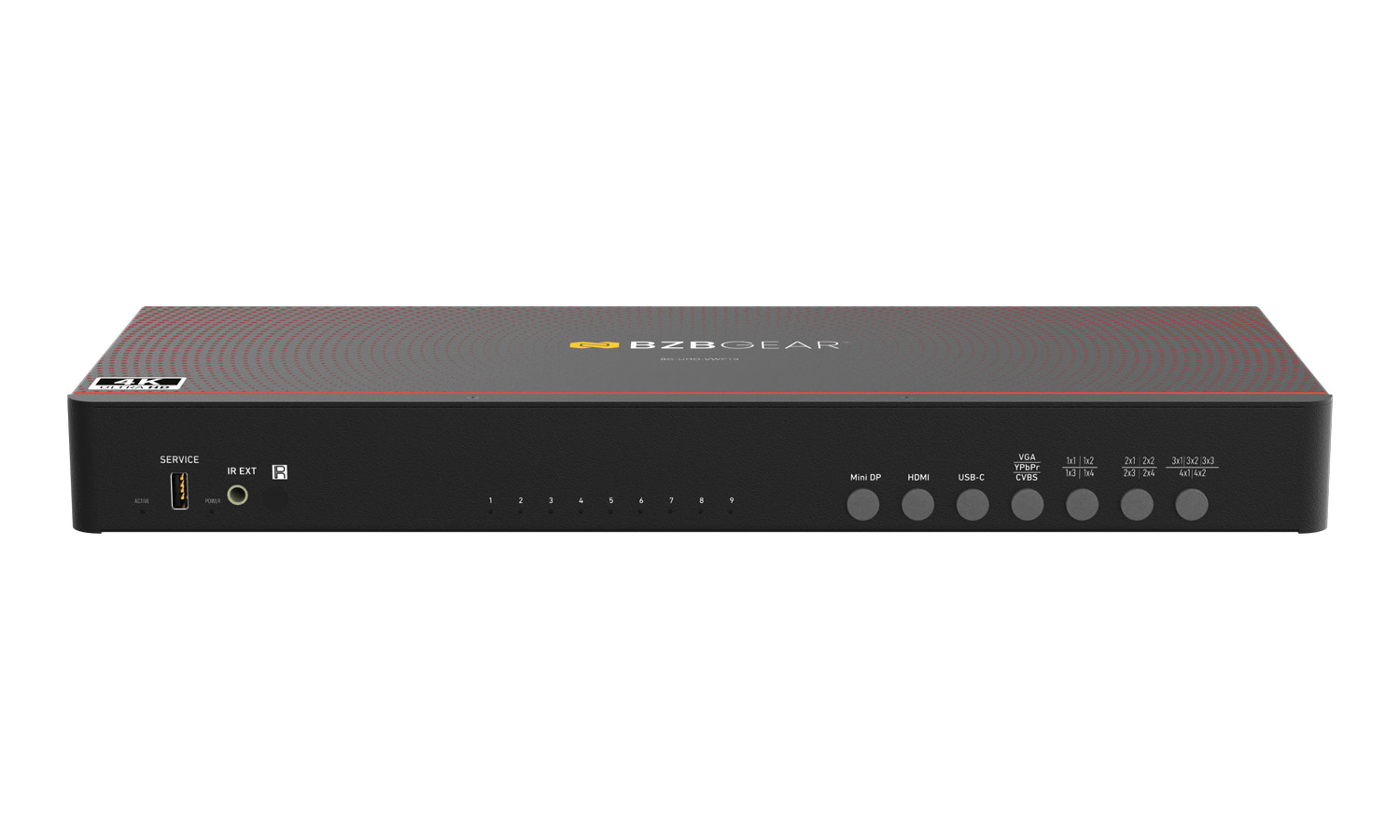

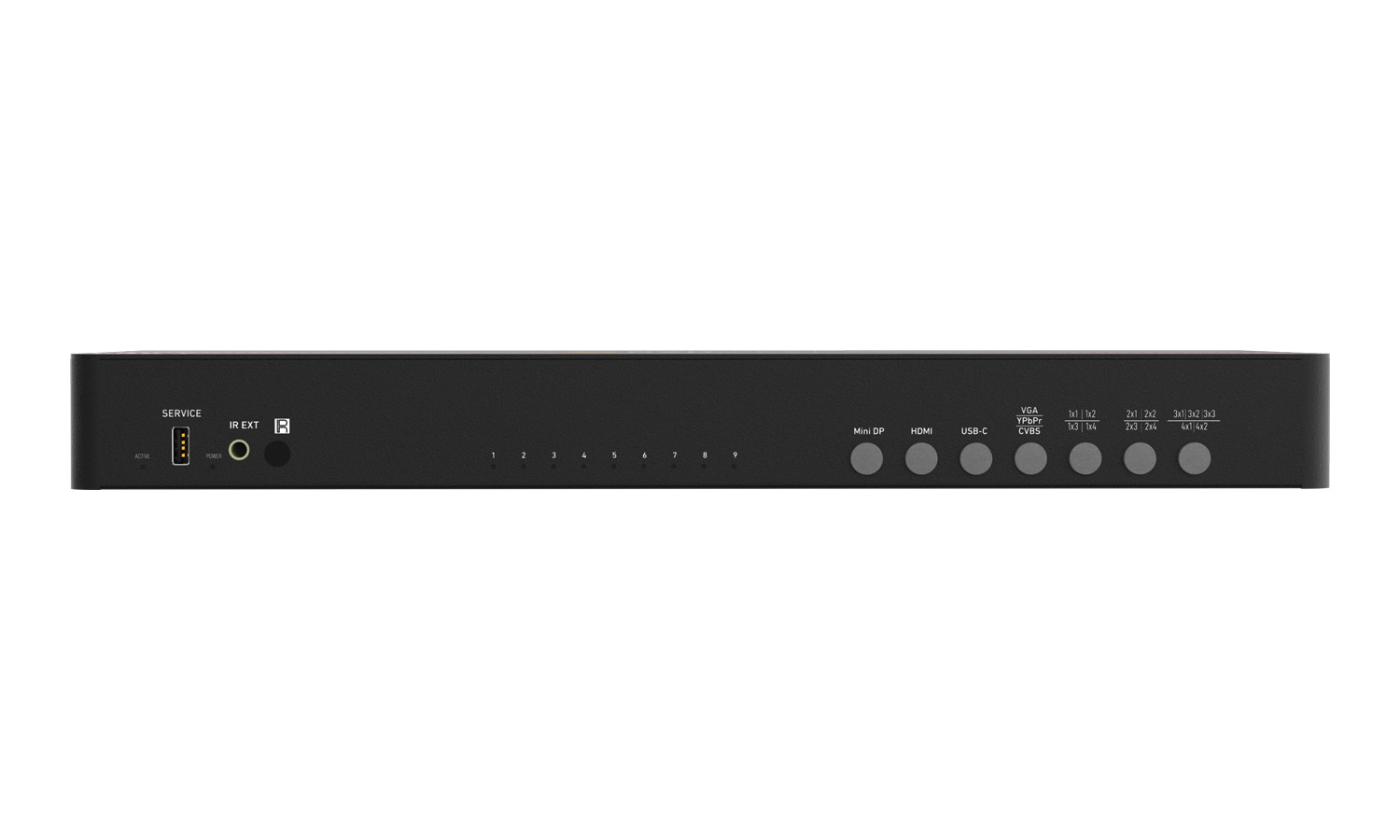

- Flexible Control Options – Operate via front-panel keys, IR remote, or software for convenient configuration and management
- VGA input supports resolutions up to 1920x1080p60 (TV) and UXGA 1600×1200 (PC)
- YPbPr input up to 1920x1080p; CVBS input up to SECAM
- User-selectable HDMI output resolutions from 720×480 to 3840×2160
- Input rotation support up to 1080p60 resolution
- Stores multiple display layouts and configurations in onboard flash memory
- Fully compliant with HDCP, DisplayPort 1.4, and HDMI 2.0a standards
- Firmware upgradeable for future functionality enhancements
- Individual propagation delay adjustment per display for fine-tuned synchronization
- Frame tearing prevention ensures seamless playback across all screens
