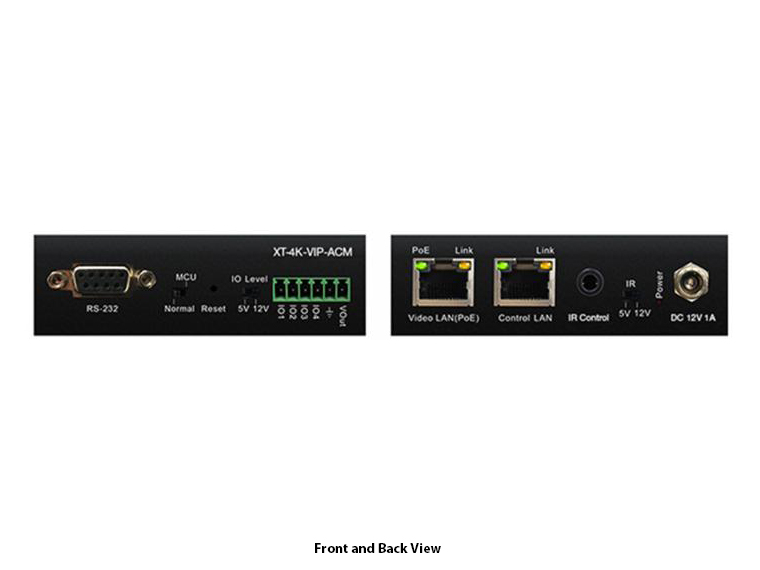

Xantech XT-4K-VIP-ACM 4K UHD Video Over IP Advanced Control Module

Description

Advanced Control Module for Xantech 4K UHD Video Over IP

The Xantech Premium Video over IP (VIP) platform distributes HDMI video over a 1GB Network switch using visually lossless technology. The XT-4K-VIP-ACM Advanced Control Module allows advanced third-party control of the system using TCP / IP, RS-232 and IR. The XT-4K-VIP-ACM includes a web interface module for control and configuration of the system and features ‘Drag & Drop’ source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio, and Video. Xantech drivers built into each product’s firmware simplify product installation and negate the need for an understanding of complex network infrastructures.

Features

Web interface module for configuration and control of the Xantech Video Over IP (VIP) systems
Intuitive ‘drag & drop’ source selection with video preview feature for active monitoring of system status
Advanced signal magagement for independent routing of IR, RS-232, USB, audio and video
Auto system configuration
2x RJ45 LAN connections to bridge existing network to VIP video distribution network, resulting in:

Better system performance as network traffic is separated
No advanced network setup required
Independent IP address per LAN connection
Allows simlified TCP / IP control of VIP system

RS-232 integration for control of VIP system
IR integration for control of VIP system
Powered with PoE (Power over Ethernet) using a PoE Switch
Local 12V power supply (optional) should Ethernet switch not support PoE
Support for IOS and Android App control
3rd Party drivers available for all major home control brands

Specifications

Video Ethernet port: 1 x LAN RJ45 connector (PoE 9W)
Control Ethernet port: 1 x LAN RJ45 connector
RS-232 serial port: 1 x DB-9, female
I/O port: 1 x 6-pin Phoenix connector (reserved for future use)
IR control port: 1 x 3.5mm stereo jack
Dimensions (W x D x H ): 96mm x 110mm x 26mm
Shipping weight (Kit): 0.6kg
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
