Description

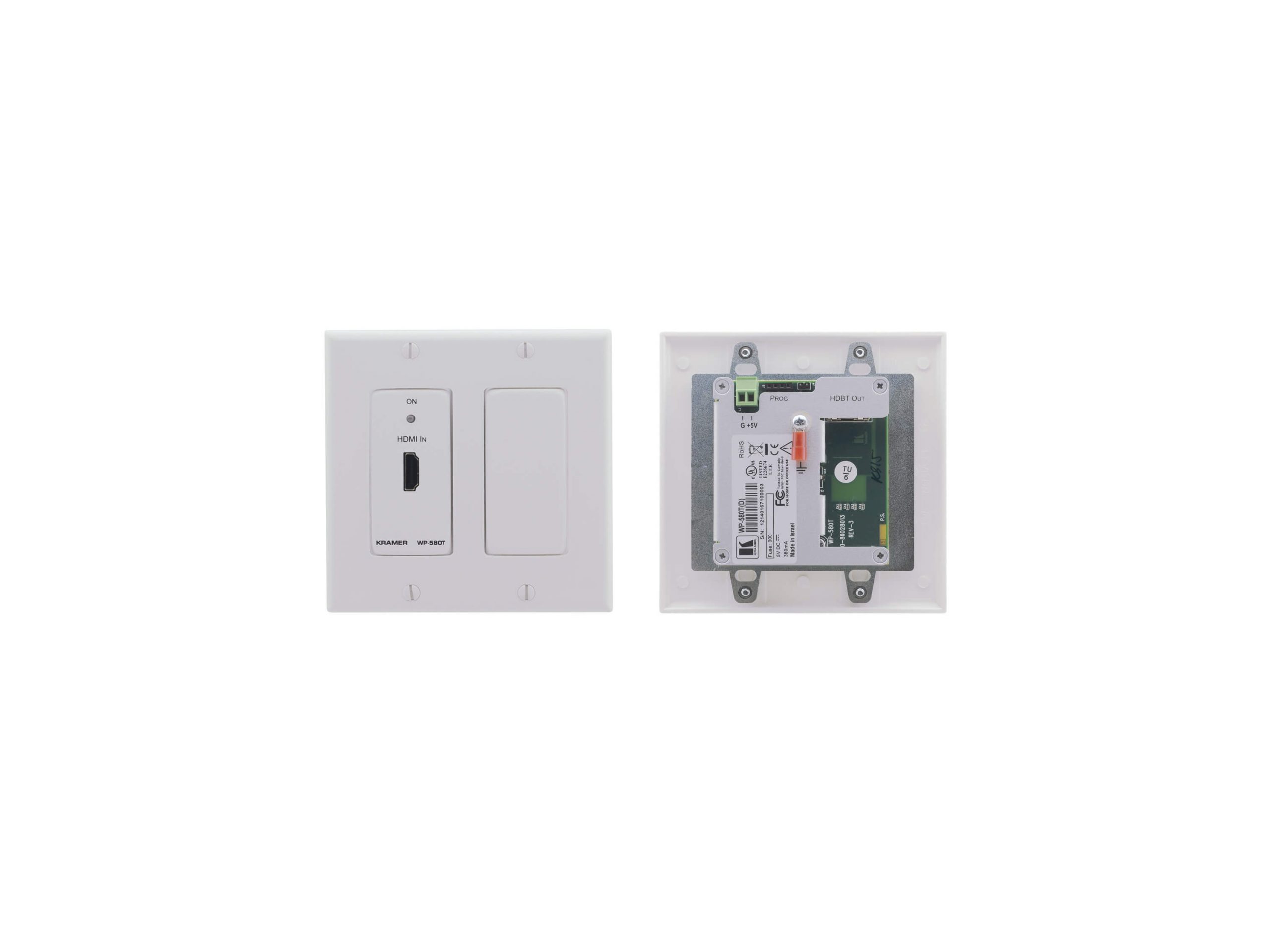

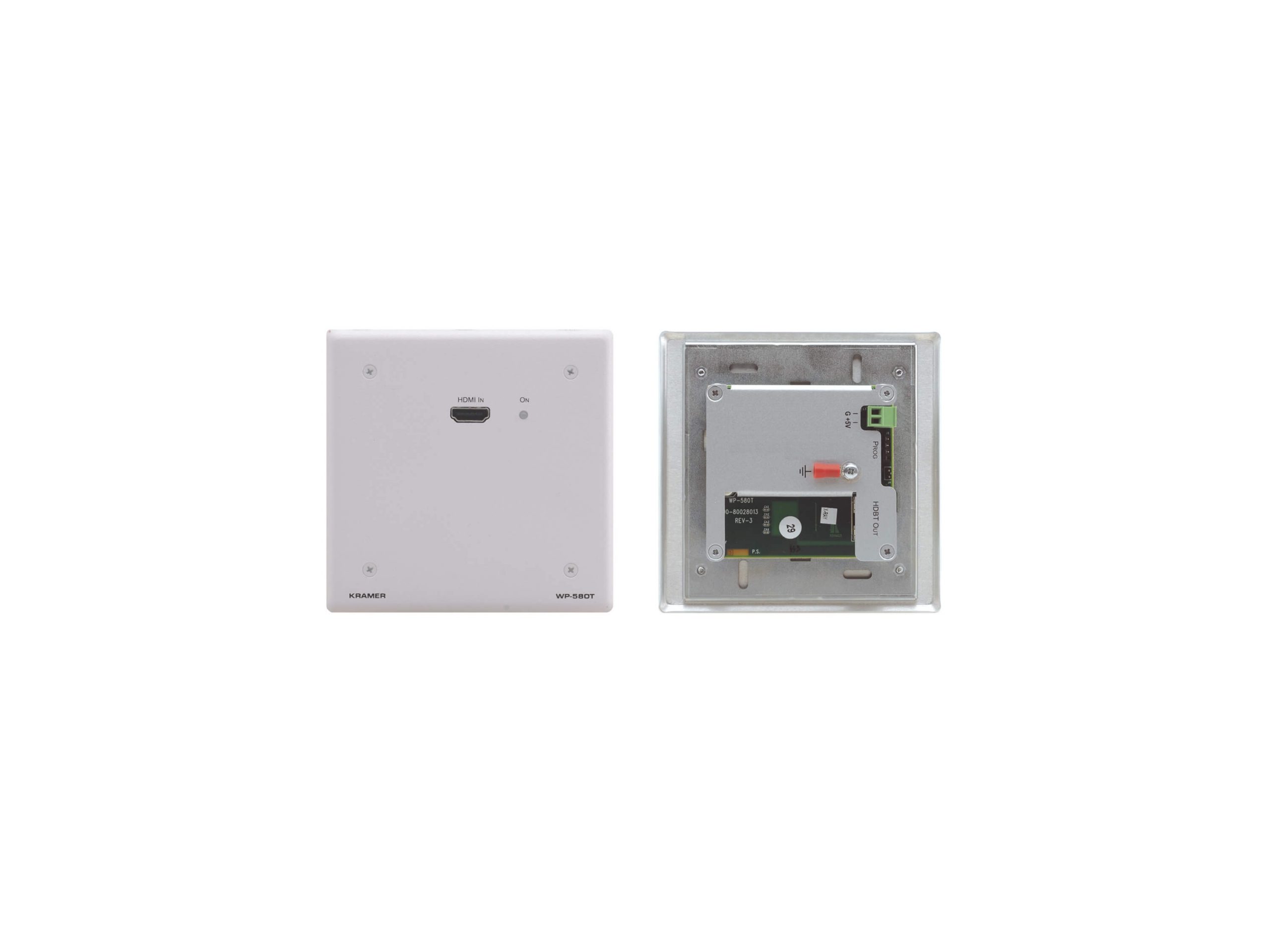

The WP-580T(D) is an HDBaseT HDMI wall-plate transmitter designed to convert HDMI signals into a single twisted-pair HDBaseT stream. It supports 4K@60Hz 4:2:0 video and is intended to extend HDMI sources to a remote WP-580R receiver. The unit installs into a standard Decora 2-gang wall plate aperture and is suitable for concealed wall mounting.
Key features include HDBaseT transmission, HDCP 2.2 compliance and a 10.2Gbps bandwidth (3.4Gbps per graphic channel). The device passes Deep Color, x.v.Color, Lip Sync and uncompressed HDMI audio formats including Dolby TrueHD and DTS-HD. It also supports 3D pass-through and EDID pass-thru for reliable signal negotiation.
Performance-wise the WP-580T(D) supports resolutions up to 4K60 4:2:0 and operates at a maximum data rate of 10.2Gbps. System range extends up to 70m (230ft) depending on cable and resolution. The manufacturer recommends using Kramer BC-HDKat6a cable for optimum range and signal integrity.
Connectivity includes a single HDMI input and an HDBaseT RJ-45 output for connection to the matching receiver. Indicators include status LEDs for input, output, link and power to aid diagnostics during commissioning. The device supports HDMI features such as CEC and EDID pass-thru to maintain compatibility across sources and displays.
Typical applications include conference rooms, boardrooms, auditoriums and hotel AV systems where a discreet wall-plate HDMI source connection is required. The WP-580T(D) is suitable for presentation and projection systems, houses of worship and studio applications that require HDMI signal extension. It is optimized for installations that require applied HDCP 2.2 content protection.
Installation is straightforward – the transmitter fits a 2-gang Decora style wall frame and includes a compact external power supply. The metal enclosure and simple LED feedback simplify integration and troubleshooting. For dependable long-reach operation adhere to recommended cabling and pair it with the WP-580R receiver for end-to-end HDBaseT performance.
