Description
The VW784 is a 4-port 4K HDMI input board designed to integrate with modular video wall processors. It accepts four HDMI sources and unifies input formats to support demanding multi-screen displays. The board is engineered for mission-critical environments where stable, real-time video delivery is required.
Key capabilities include support for 4K resolutions, HDR, HDR+ and Dolby Vision to preserve high dynamic range content. The Seamless Switch function maintains continuous video streams and enables real-time switching between sources. EDID Expert optimizes EDID settings to ensure smooth power-up and consistent display quality across varied screens.
Performance specifications include a maximum data rate of 10.2 Gbps (3.4 Gbps per lane) and a 340 MHz pixel clock. The board supports 4096×2160/3840×2160 at 30Hz in 4:4:4 color sampling and is HDCP 2.2 compatible. Signal distance is supported up to 5 m over standard HDMI cabling and power consumption is rated at 17.71 W / 83 BTU/h.

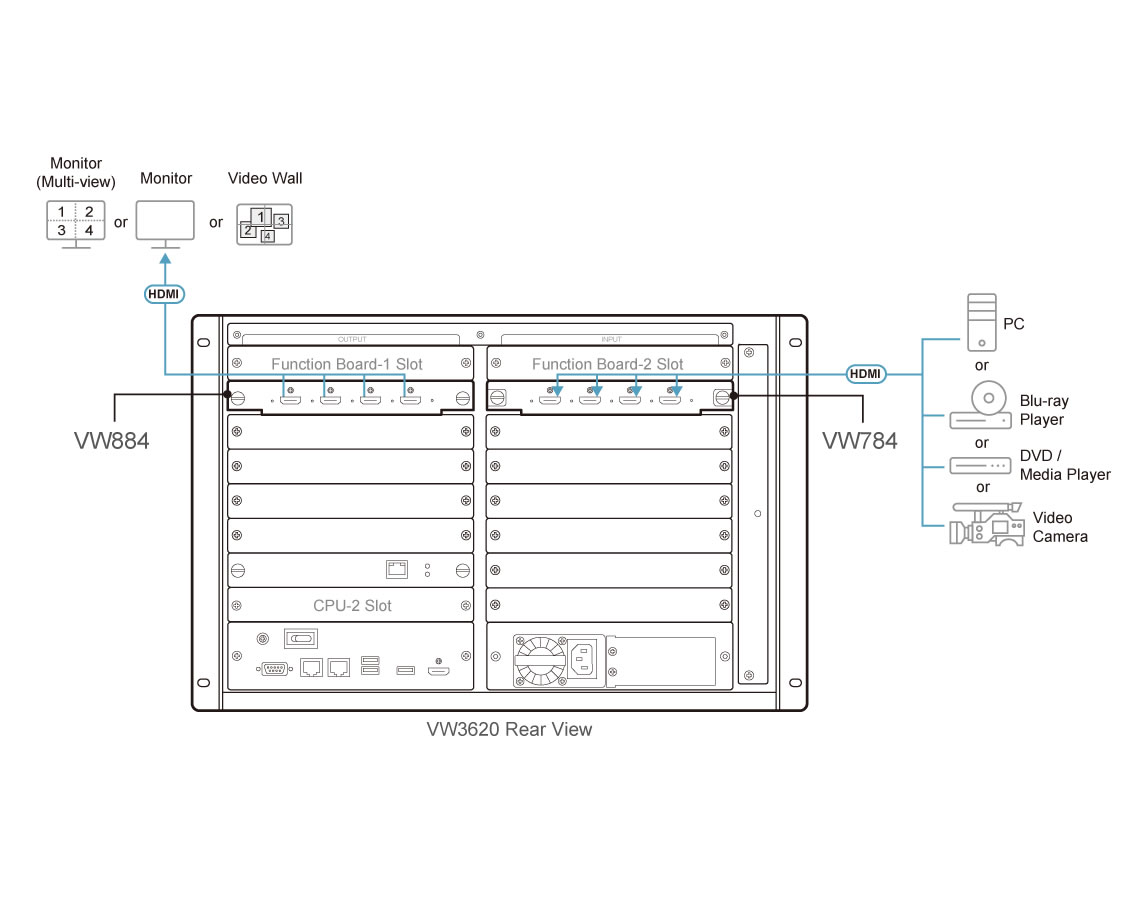

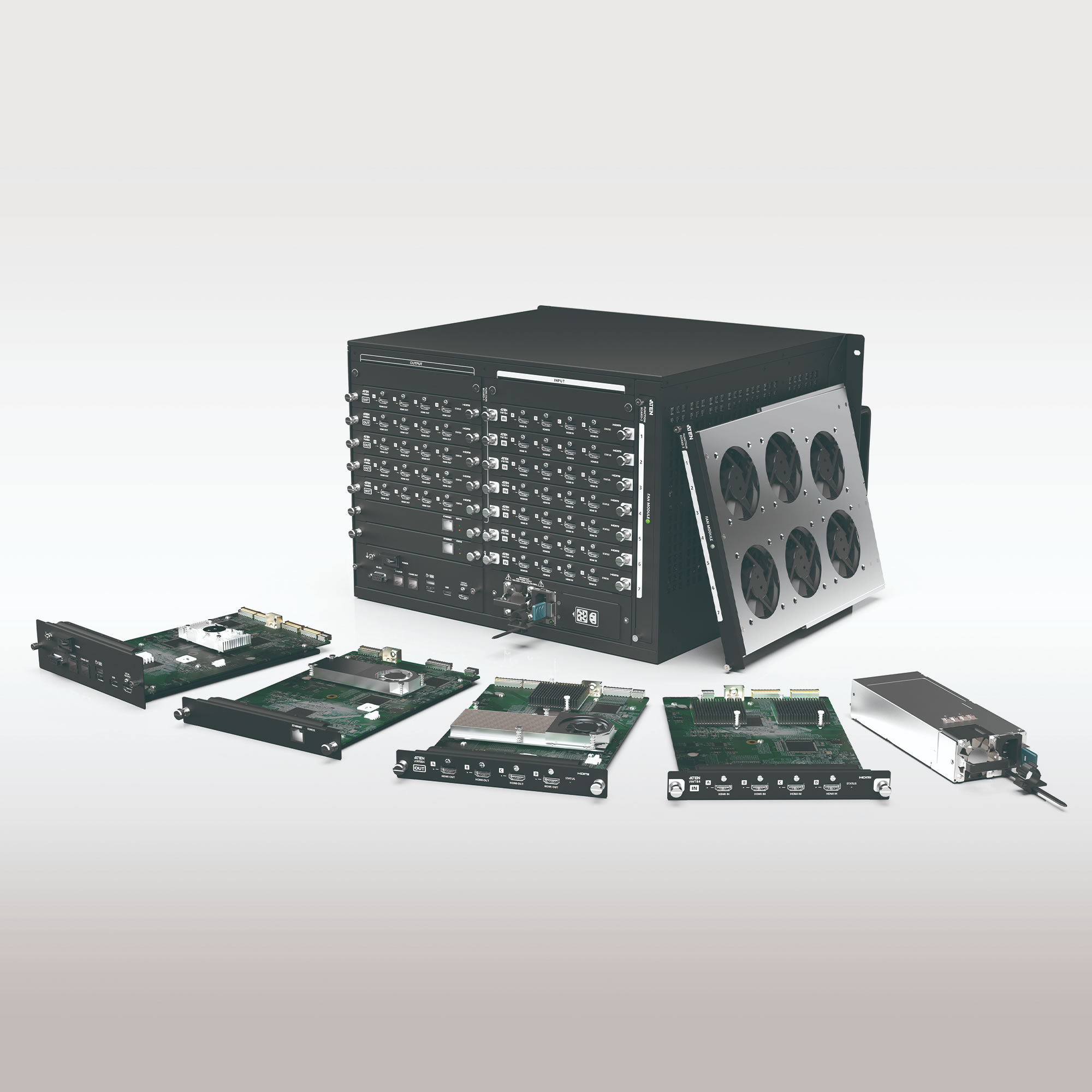

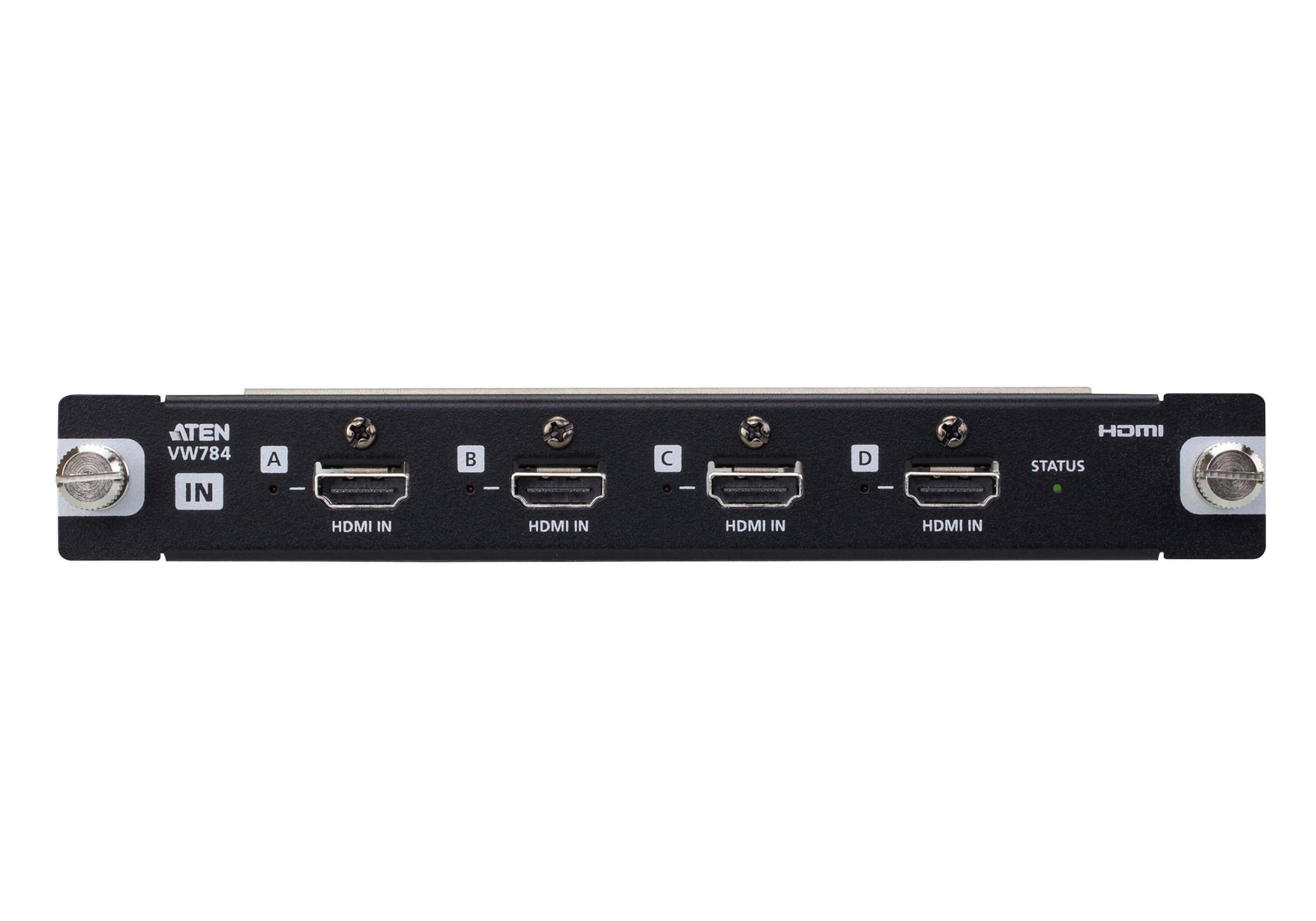

Connectivity is provided by four HDMI Type A female connectors and supports HDMI features such as Deep Color and Consumer Electronics Control (CEC). The VW784 is built for integration with the VW3620 modular video wall processor and maintains compatibility with common display and source equipment. The metal housing and hot-swappable design simplify system maintenance and upgrades.
Typical applications include control rooms, broadcast operations, security operation centers and enterprise command centers where multiple high-resolution sources must be managed. The board is suited to live monitoring, multi-source visualization and 24/7 operation environments. Its HDR and Dolby Vision support preserve critical image detail for situational awareness and media playback.
Installation is streamlined by the hot-swappable form factor that enables quick replacement without system downtime. The metal chassis provides durable protection for prolonged operation and the unit operates within 0 to 40 degrees Celsius with storage from -20 to 60 degrees Celsius. Overall, the VW784 delivers stable 4K input handling and practical maintenance features for video wall deployments.
