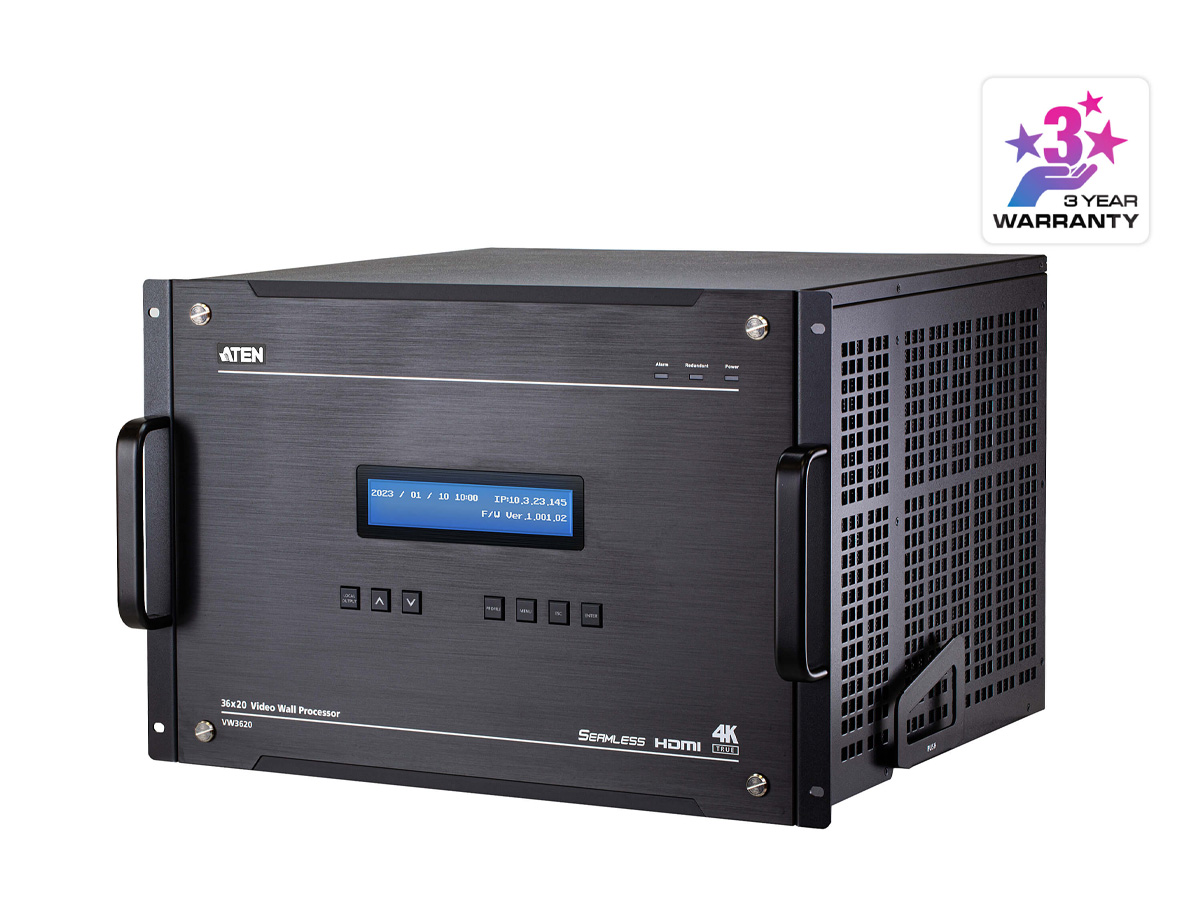

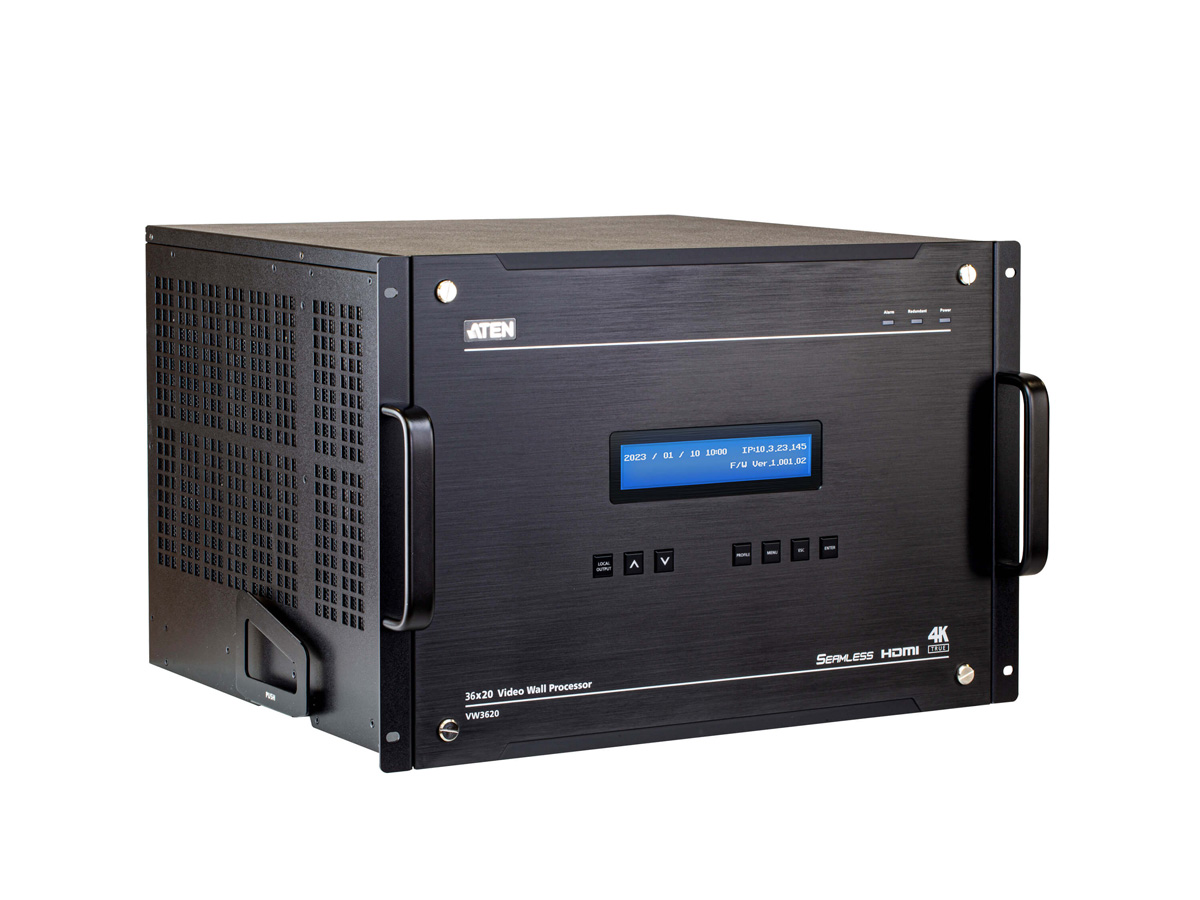

VW3620 Video Wall Processor 36x20 4K60 4:4:4

Description

The VW3620 is a modular True 4K video wall processor designed to manage multiple input sources and drive large multi-screen displays from a single 7U chassis. It supports up to 36 input sources and up to 20 displays in mixed resolutions and sizes. The unit is engineered for continuous 24/7 operation and mission-critical environments where reliability and image fidelity matter.

The processor uses an FPGA hardware architecture to handle True 4K signals and supports 4K@60 4:4:4 signal processing for high color precision. Seamless source switching operates near-zero-second to avoid visible interruption during live switching. Advanced windowing features enable PiP, PbP, cropping, overlap, and spreading content across multiple displays in custom layouts.

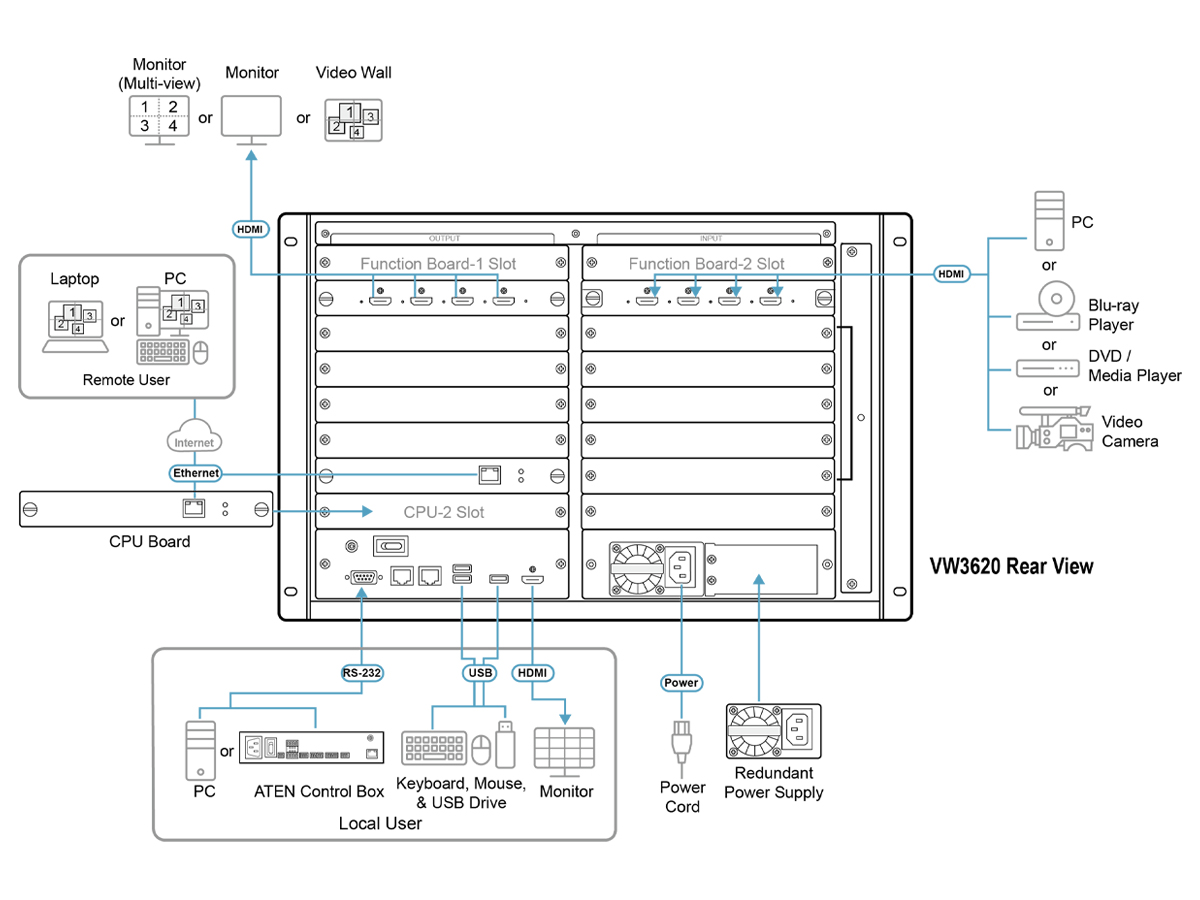

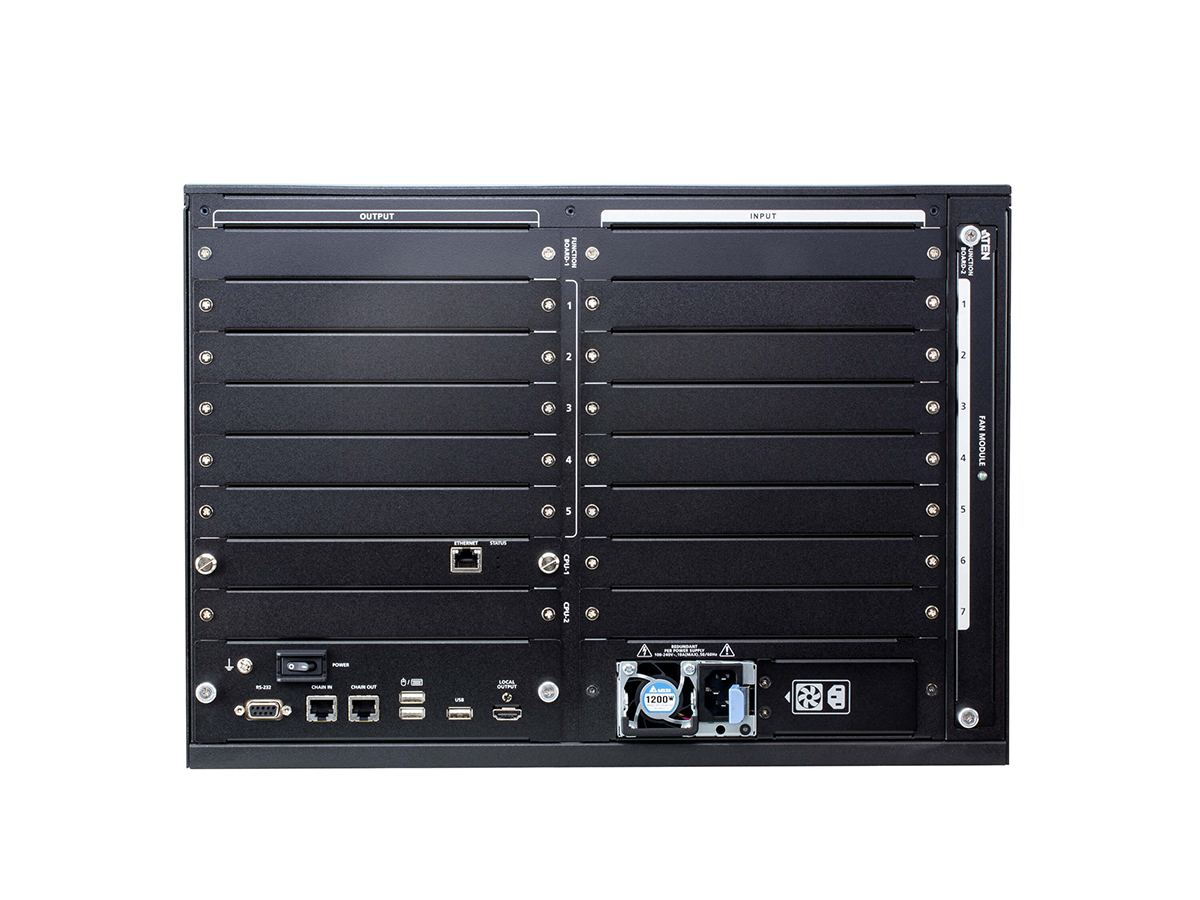

Technically, the VW3620 offers 7 input slots, 5 output slots, and 2 function board slots that can function as additional input slots, enabling flexible I/O configurations. It supports HDMI Deep Color and is HDCP 2.2 compliant where HDMI I/O boards are installed. Local monitoring via HDMI supports Single and Array mode previews at up to 1080p in real time.

Connectivity and control options include RS-232, Ethernet, front-panel controls, a Web GUI and RESTful API support. The unit also integrates with ATEN Control System and third-party devices via RS-232 and Ethernet. Built-in USB Type-A ports allow background image updates and firmware upgrades.

The VW3620 is tailored for command centers, control rooms, public security hubs, broadcast facilities, and large-scale digital signage installations where synchronized, tear-free playback and high-resolution accuracy are essential. Backup Mode and Expansion Mode allow daisy-chaining for redundancy or to scale up to 60 displays across multiple units. FrameSync and EDID management help ensure clean output and reliable startup across heterogeneous screens.

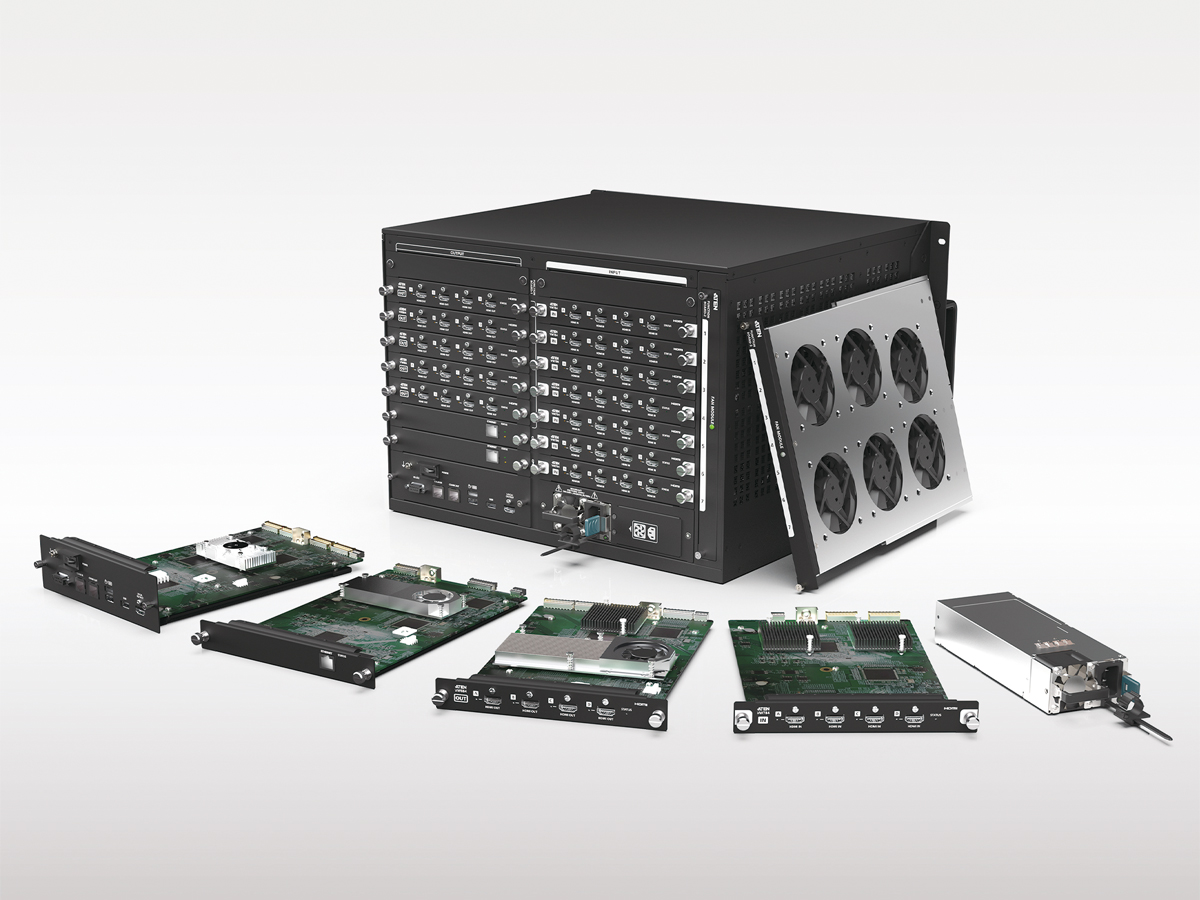

Designed for serviceability, the chassis supports hot-swappable CPU control board, dual redundant power modules, hot-swappable I/O boards and cooling fan modules for minimal downtime. The metal 7U rackmount housing provides robust build quality and the system can be remotely managed and automated through RESTful API or integrated control systems. Production based in Taiwan and certifications include HDCP 2.2 compliance where applicable.

Specifications

Processes up to 36 input sources and manages up to 20 displays in any sizes at varying resolutions from a single 7U chassis	36 inputs, 20 outputs, 7U chassis
Modular construction with 7 input slots, 5 output slots, and 2 function board slots, which also work as input board slots, to meet various expansion needs	7 input slots, 5 output slots, 2 function slots
FPGA hardware architecture - handles True 4K input sources, supports near-zero-second seamless source switching, and transmits high quality video streams without delay	FPGA, near-zero switching, low latency
True 4K@60 scalability with 4:4:4 signal processing - supports custom resolutions and enables upscaling of video signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens	4K@60 4:4:4, custom resolutions, upscaling
Backup Mode enabled with two VW3620s daisy-chained together - the secondary unit continuously mirrors all system settings and configurations from the primary one in real time and takes control automatically when any primary unit malfunctions occurs for uninterrupted display performance	Backup Mode, real-time mirror
Expansion Mode enabled with up to three VW3620s daisy-chained together - supports up to 60 display outputs for larger video wall installation with centralized control being conducted by the primary unit while ensuring synchronized video output clocks across all units and consistent, frame-accurate playback without tearing	Expansion Mode, up to 3 units, 60 displays
Reliable 24/7 operation with hot-swappable, redundant CPU control board and dual power modules, and hotswappable input / output cards and cooling fan module	Hot-swappable CPU, redundant PSU, hot-swappable I/O, fans
HDMI (Deep Color, True 4K); HDCP 2.2 compliant	HDMI Deep Color, HDCP 2.2
Powerful windowing technology for nearly restriction-free content placement - outputs signals in real-time in customizable layouts, such as PiP, PbP, source cropping, overlapping, and spreading across multiple screens, and in any sizes based on the correct aspect ratio	PiP, PbP, cropping, overlap, multi-screen spreading
Supports Multiview - content source monitoring in 2x2 or 4x4 layouts from a single display	Multiview 2x2, 4x4
Customizable elements to enhance organization identity and video wall presentation including logos, color schemes, calendar, clock, and scrolling text	Logos, color schemes, calendar, clock, scrolling text
Direct control via RS-232 / Ethernet connection and the front panel buttons	RS-232, Ethernet, front panel
Remote control via intuitive Web GUI to preview input signals in real-time and control outputs including content placement and management of up to 4 canvases	Web GUI, preview, 4 canvases
Local HDMI output - monitoring of video input signals and video wall layouts via Single / Array mode at up to 1080p in real-time from one display	Local HDMI monitoring, up to 1080p
Integration with ATEN Control System and the 3rd party devices via RS‑232 / Ethernet / RESTful API	ATEN Control, RS-232, Ethernet, RESTful API
Built-in USB Type-A ports - video wall background image change and firmware upgrade	USB Type-A, firmware upgrade, image upload
Supports FrameSync - avoids image tearing by synchronizing the scaler output frame rate to the input signal frame rate	FrameSync
EDID Expert™ - selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens	EDID Expert, EDID Wizard
Supports SSH to strengthen data and information protection	SSH support
Perfect for mission-critical video wall applications, including command centers, control rooms, public security organizations, governments, or other large-scale digital signage scenarios	Command centers, control rooms, public security, broadcast, signage
Board Input	Board Input
7 x Slot, up to 32 4K inputs	7 slots, up to 32 4K inputs
Board Output	Board Output
5 x Slot, up to 20 4K outputs	5 slots, up to 20 4K outputs
Function	Function
2 x Slots for Function Board, can also used as Input Slot	2 slots, function/input
Video Input	Video Input
Interfaces	Depends on I/O board
Depends on which I/O board is inserted	I/O board dependent
Video Output	Video Output
Interfaces	Local HDMI, I/O board dependent
Local Output: 1x HDMI Type A Female (Black)	1x HDMI Type A
Control	Control
RS-232	RS-232
Connector: 1 x DB-9 Female (Black)	1x DB-9 female
Serial Control Pin Configurations:	Pins config
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd	Pin2 Tx, Pin3 Rx, Pin5 Gnd
Baud Rate and Protocol:	Baud/Protocol
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No	19200, 8N1, no flow control
Ethernet	Ethernet
Connector: 1 x RJ-45 Female	1x RJ-45
USB	USB
3 x Keyboard (TBD) / Mouse(TBD) /FW upgrade & Storage	3x USB Type-A, keyboard/mouse/fw/storage
EDID Settings	EDID Settings
EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)	Default, Port1, Remix, Customized, EDID Wizard
Communication	Communication
Daisy Chain Ports	Daisy Chain Ports
RJ45 x2	RJ45 x2
Connectors	Connectors
Power	Power
1 x 3-Prong AC Socket	1x 3-prong AC
Power (Optional)	Optional power
Redundancy, Optional Hot Swap PSU	Redundant PSU, hot-swap optional
Power	Power
Maximum Input Power Rating	Maximum input power rating
100-240 VAC; 50-60Hz; 10A	100-240 VAC, 50-60Hz, 10A
Power Consumption	Power consumption
AC110V:573.4W:2720BTU/h	AC110V 573.4W, 2720 BTU/h
AC220V:555.4W:2636BTU/h	AC220V 555.4W, 2636 BTU/h
Note:	Notes
● The measurement in Watts indicates the typical power consumption of the device with no external loading.	Watts = typical consumption
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.	BTU/h = full load consumption
Environmental	Environmental
Operating Temperature	Operating temperature
0 - 40°C	0 - 40°C
Storage Temperature	Storage temperature
-20 - 60°C	-20 - 60°C
Humidity	Humidity
0 - 80% RH, Non-Condensing	0 - 80% RH non-condensing
Physical Properties	Physical properties
Housing	Housing
Metal	Metal
Dimensions (L x W x H)	Dimensions
48.20 x 45.80 x 30.98 cm (18.98 x 18.03 x 12.2 in.)	48.20 x 45.80 x 30.98 cm, 18.98 x 18.03 x 12.2 in
Weight	Weight
16.21 kg ( 35.7 lb )	16.21 kg, 35.7 lb
Rack Height (U Spaces)	7U
Carton Lot	1 pc
Note	Dimension format note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.	WxDxH expressed as LxWxH
