Description
The VS-62HA is a 6×2 matrix switcher designed to route HDMI video and analog audio sources to one or two displays or audio destinations. It supports 4K@60Hz (4:2:0) video and provides reclocking and equalization to preserve signal integrity over longer runs. The unit offers automatic switching modes and flexible control options for both local and remote operation.
Key features include 6 HDMI inputs, 2 HDMI outputs, independent audio breakout and balanced stereo outputs, and programmable auto AV switching. The switcher supports HDCP and standard HDMI features including 3D, Deep Color and multi-channel audio formats up to 7.1 channels. Non-volatile EDID storage, an internal test pattern generator and Kramer reKlocking technology ensure consistent performance in mixed-signal environments.
Performance specifications cover up to 8.91 Gbps total bandwidth and compatibility with resolutions up to 4K@60Hz (4:2:0). The unit provides EDID capture and programmable step-in functionality for compatible devices. Power input is 100-240V AC with a rated consumption of 22VA, and the VS-62HA operates between 0 to 40 C ambient temperature.

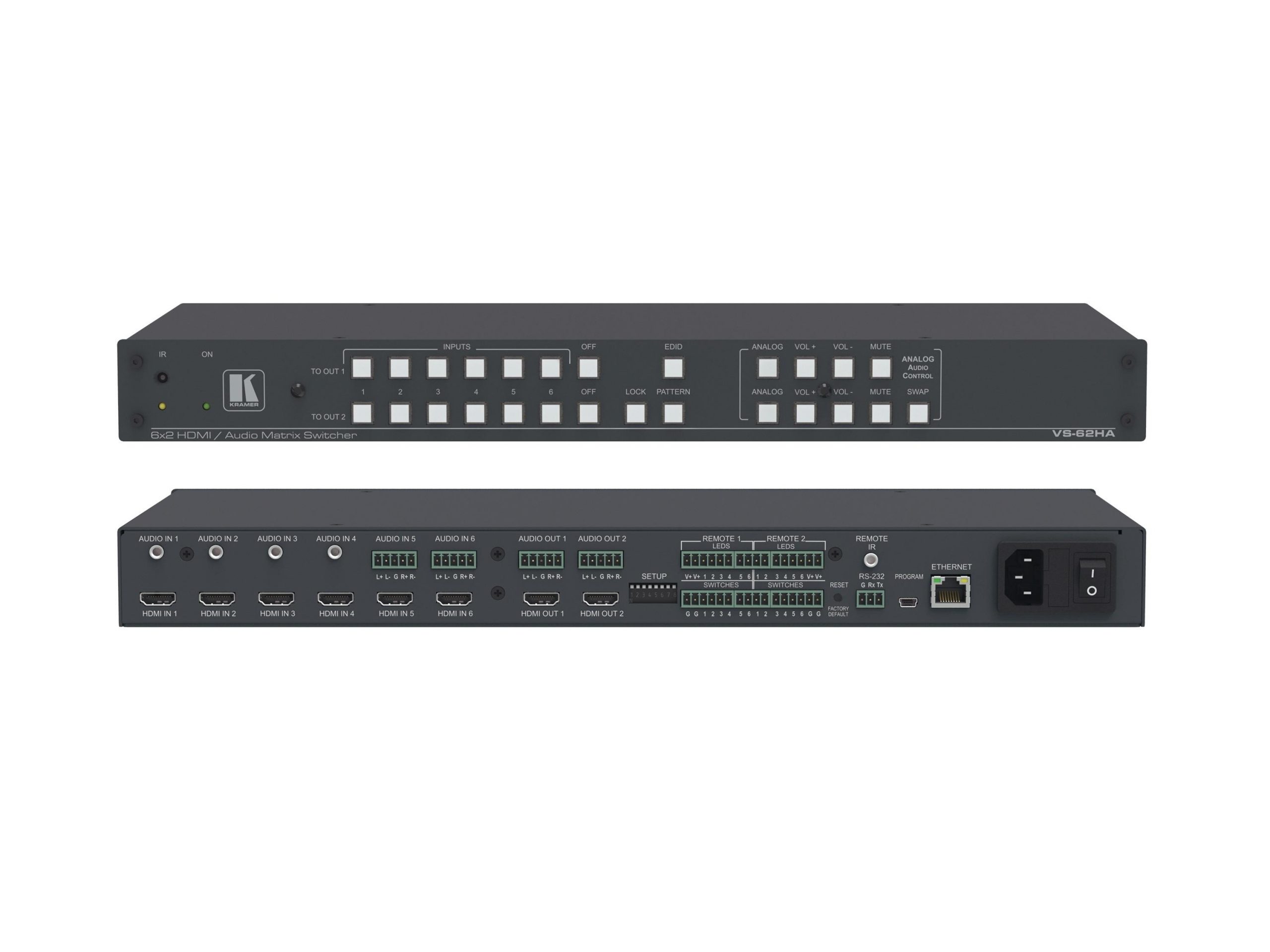

Connectivity includes 6 HDMI inputs, 2 HDMI outputs, four unbalanced stereo mini-jack inputs, two balanced stereo 5-pin terminal block audio inputs, and two balanced stereo 5-pin audio outputs. Control and monitoring options include RS-232 terminal block, Ethernet with embedded web pages, IR remote and optional external IR receiver, USB Type-C for firmware updates, and programmable contact closures and LED outputs. Supported web browsers and DHCP/static IP options simplify network integration.

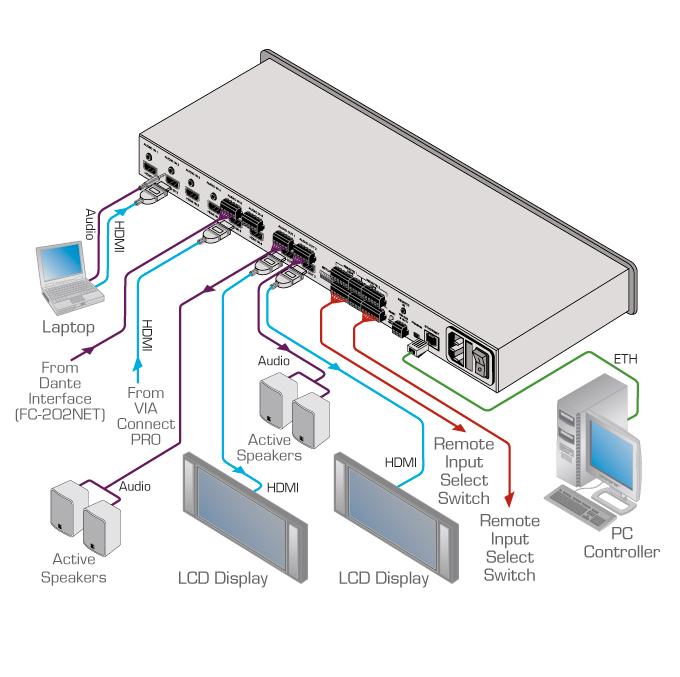

The VS-62HA is suitable for meeting rooms, training facilities, classrooms and light AV distribution where automatic input selection and audio breakout are required. It supports step-in functionality with compatible devices and offers manual override for intuitive front-panel control. The unit’s balanced audio outputs and independent audio routing enable separation of embedded HDMI audio and analog feeds for AV systems that require breakaway audio management.
Installation is rack-friendly in a standard 19 inch 1U enclosure and includes rack ears for mounting. Front-panel lock prevents accidental changes and the unit provides multiple control pathways to integrate with existing control systems. Firmware is upgradable via USB and the embedded web server supports remote configuration and monitoring, simplifying maintenance and system commissioning.
