Description

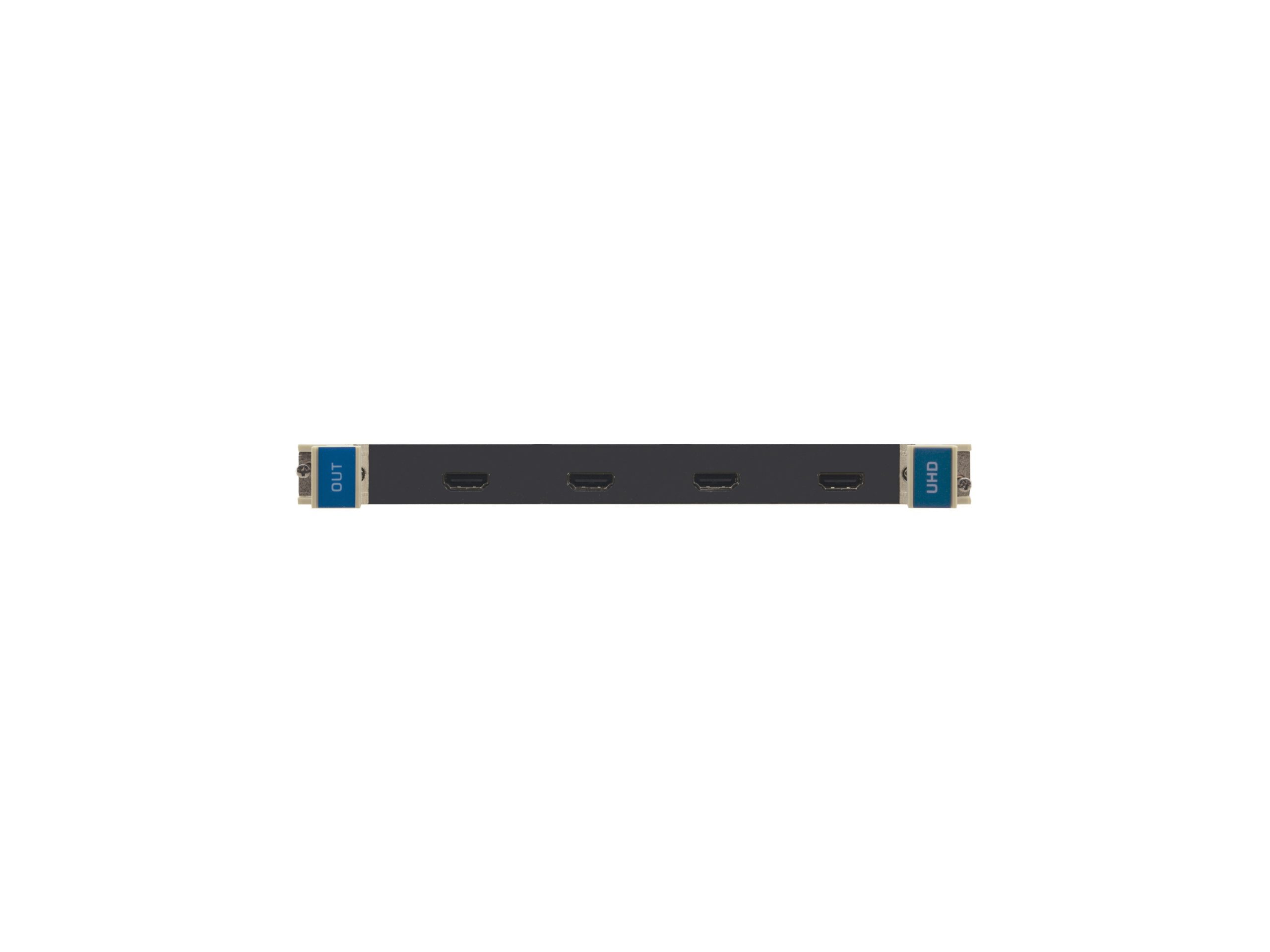

The UHD-OUT4-F32 is a four-channel HDMI output card designed to provide four independent HDMI outputs from a compatible modular matrix chassis. It supports up to 4K60 at 4:2:0 color sampling and is intended to deliver consistent HDMI output performance for professional AV systems. The card integrates with multi-slot chassis to expand output capacity without adding external boxes.
The card delivers a total data rate of 8.91 Gbps and 2.97 Gbps per graphics channel, supporting 3D pass-through, deep color, x.v.Color, and multi-channel audio formats. It supports Dolby TrueHD, Dolby Digital Plus, DTS-HD and 7.1 channel audio so complex audio/video streams are preserved. EDID capture is included to copy and store display EDIDs for reliable source negotiation.
Resolution support extends to 4K@60Hz using 4:2:0 chroma subsampling and it is HDTV compatible and HDCP 1.4 compliant. Cable reach supports up to 10m for 4K60 4:2:0 or 4K30 4:4:4 and up to 15m for 1080p 12-bit deep color. The card draws 8W and is specified for operation from -40C to +70C in 10% to 90% non-condensing humidity.
Connectivity is provided via four HDMI outputs that carry both video and multi-channel audio. The module supports Kramer equalization and re-klocking technology to improve signal integrity over HDMI cable runs. EDID capture simplifies integration with diverse displays and ensures correct timing and audio formats are used.
Typical applications include professional display systems, broadcast and production monitoring, presentation systems, and rental and staging installations where multiple outputs from a single chassis slot are needed. The card is built for integration into larger matrix systems used in control rooms, lecture halls, and live events. Its HDMI feature support makes it suitable for systems requiring 3D, deep color, or advanced audio formats.
Installation into a compatible Kramer modular chassis provides a compact, serviceable output expansion option that minimizes rack space and cabling. The low power draw and compliance with CE, RoHS and WEEE simplify system design and regulatory alignment. The design focuses on consistent signal quality and simplified setup through EDID management and robust HDMI feature support.
