Description
The TT-16 is a 16-channel synthesized wireless IFB transmitter designed to provide a reliable wireless link from an intercom system to talent and crew. It combines selectable intercom inputs and front-panel control with a compact base station layout. The unit is optimized for clear cueing and talent IFB applications.
Key features include 16 user-selectable frequencies, a backlit LCD with control buttons for on-the-fly configuration, and Enhanced Dynamic Range (EDR) for improved signal-to-noise performance. The transmitter accepts standard RTS two-wire, Audiocom, or Clear-Com intercom-level inputs. Hi/Low selectable RF output power and an adjustable input meter provide operational flexibility.
On the audio side the TT-16 provides a balanced 3-pin XLR input with level control and viewable meter and an unbalanced 1/4-inch line input for auxiliary sources. EDR processing works with compatible receivers such as the TR-16 to deliver clearer and more dynamic audio. The synthesized RF architecture ensures stable frequency generation across the 16 channel set.

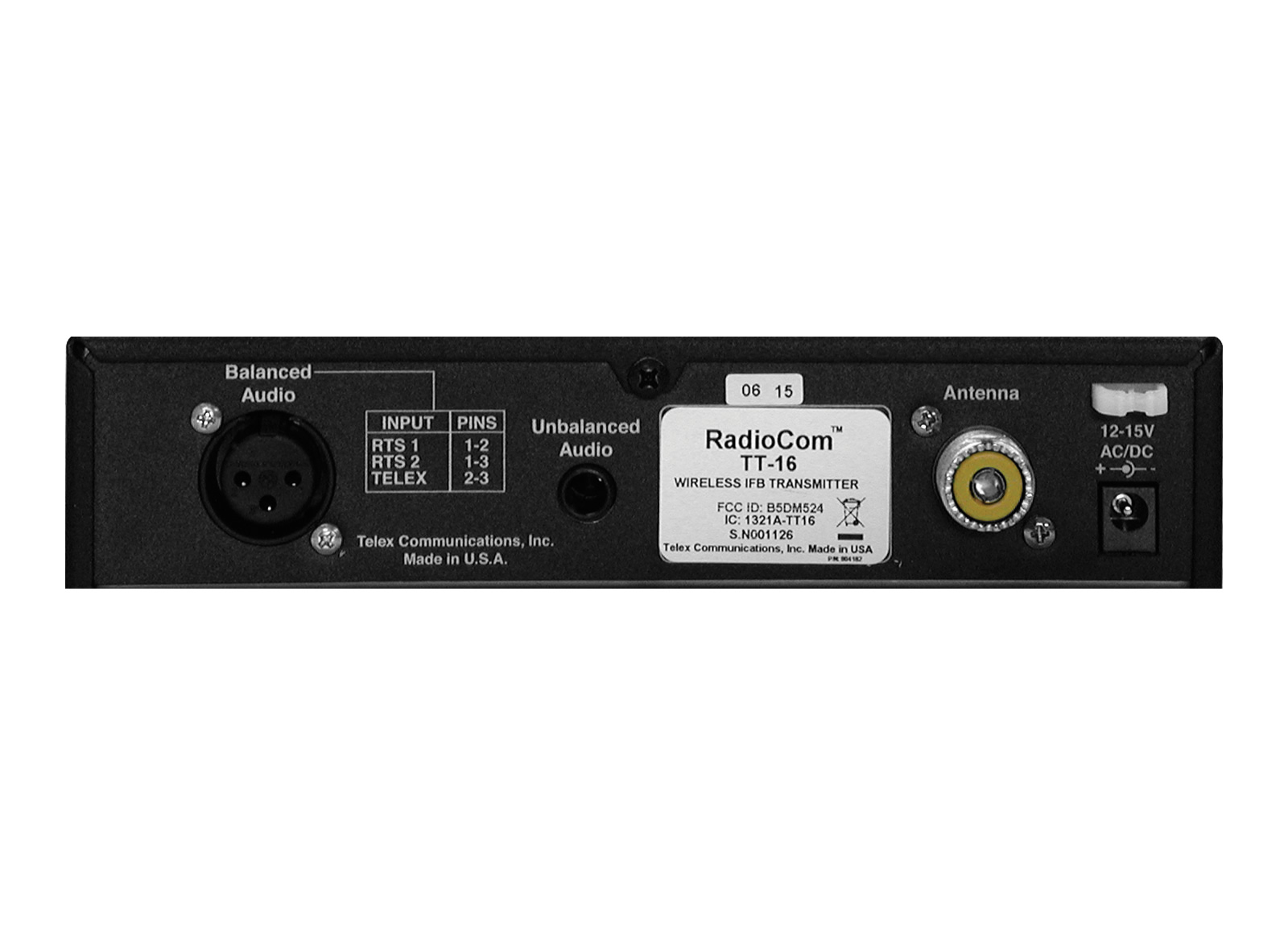

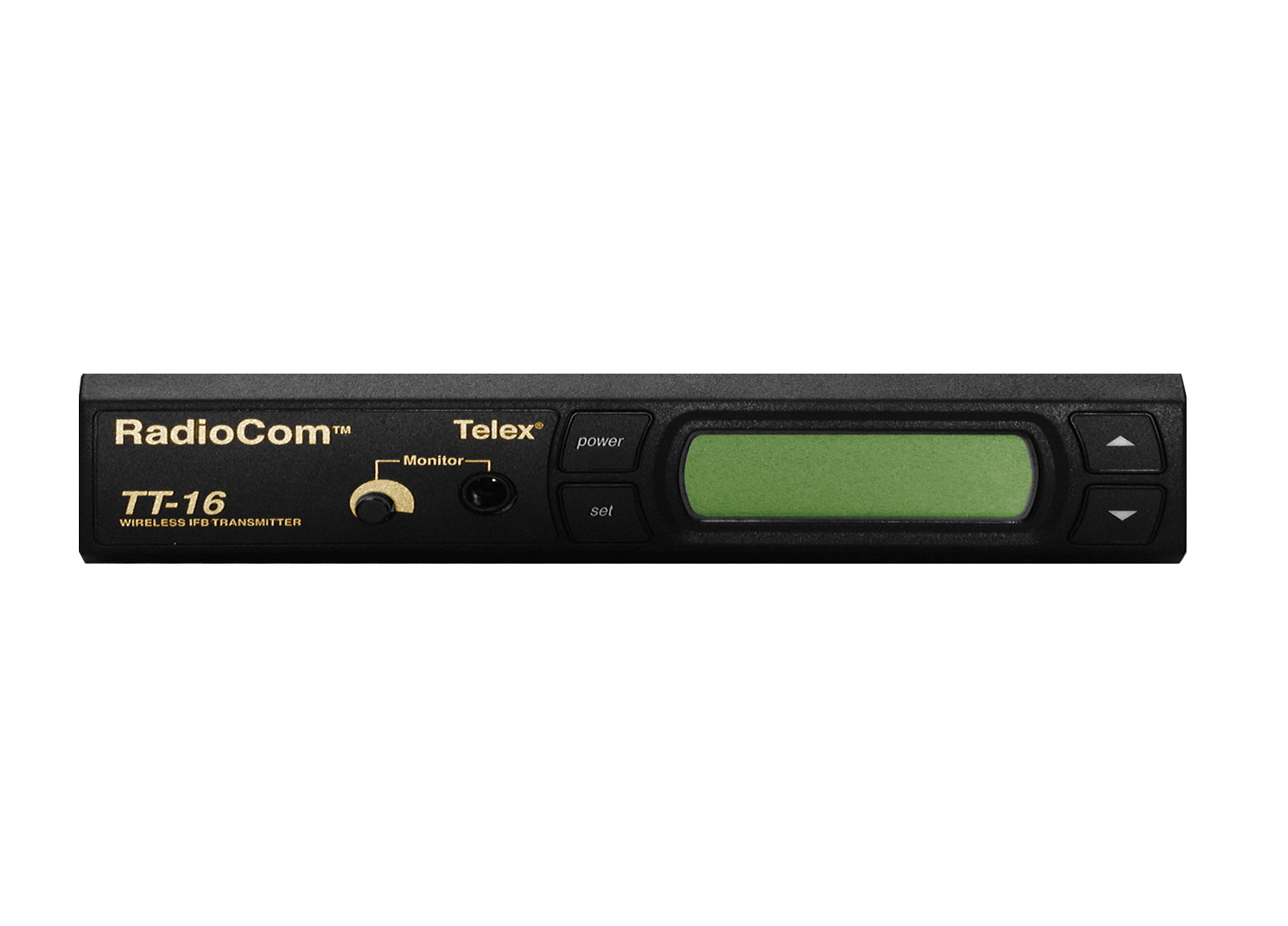

Connectivity is handled via a rear-panel 3-pin XLR for balanced intercom inputs and a 1/4-inch unbalanced input for line-level sources. Front-panel controls allow selection of intercom type, channel, RF power and input level adjustment. A front-panel 1/4-inch monitor jack with level control provides convenient local monitoring.
The TT-16 is well suited to broadcast studios, ENG crews, live event productions and theatrical cueing where clear IFB and intercom distribution are required. It supports integration with existing RTS, Audiocom and Clear-Com two-wire systems and pairs with talent receivers for consistent monitoring. The selectable RF power and synthesized channel selection allow adaptation to different RF environments.
Installation and operation are straightforward thanks to the backlit LCD and intuitive front-panel controls. The transmitter’s balanced and unbalanced inputs and selectable intercom formats simplify tie-in to legacy and modern intercom infrastructures. Note – this product is not CE certified.
