Description
The TP-789Rxr is an HDBaseT receiver designed to extend HDMI video, audio and control signals over a single twisted-pair cable. It receives HDMI 2.0 signals up to 4K60Hz 4:2:0 and supports HDCP 2.2 to preserve protected content. The receiver also handles Ethernet, RS-232 and IR signaling to maintain full remote control and network connectivity.
The unit provides bidirectional PoE functionality – it auto-senses PoE on the extension line and either accepts power from a PoE source or supplies power to a PoE acceptor. Video features include HDMI 2.0 compliance, deep color and x.v.Color support, and passthrough of EDID and CEC. Audio support includes HDMI uncompressed channels plus Dolby TrueHD and DTS-HD compatibility for multi-channel formats.
Performance specifications include support for 4K@60Hz (4:2:0) 24bpp video over copper up to 100m 330ft using recommended Kramer cables. Lower HD resolutions achieve even greater reach. The receiver supports up to 32 channels of digital audio for complex surround configurations and extends Ethernet up to 100Mbps for LAN communication.

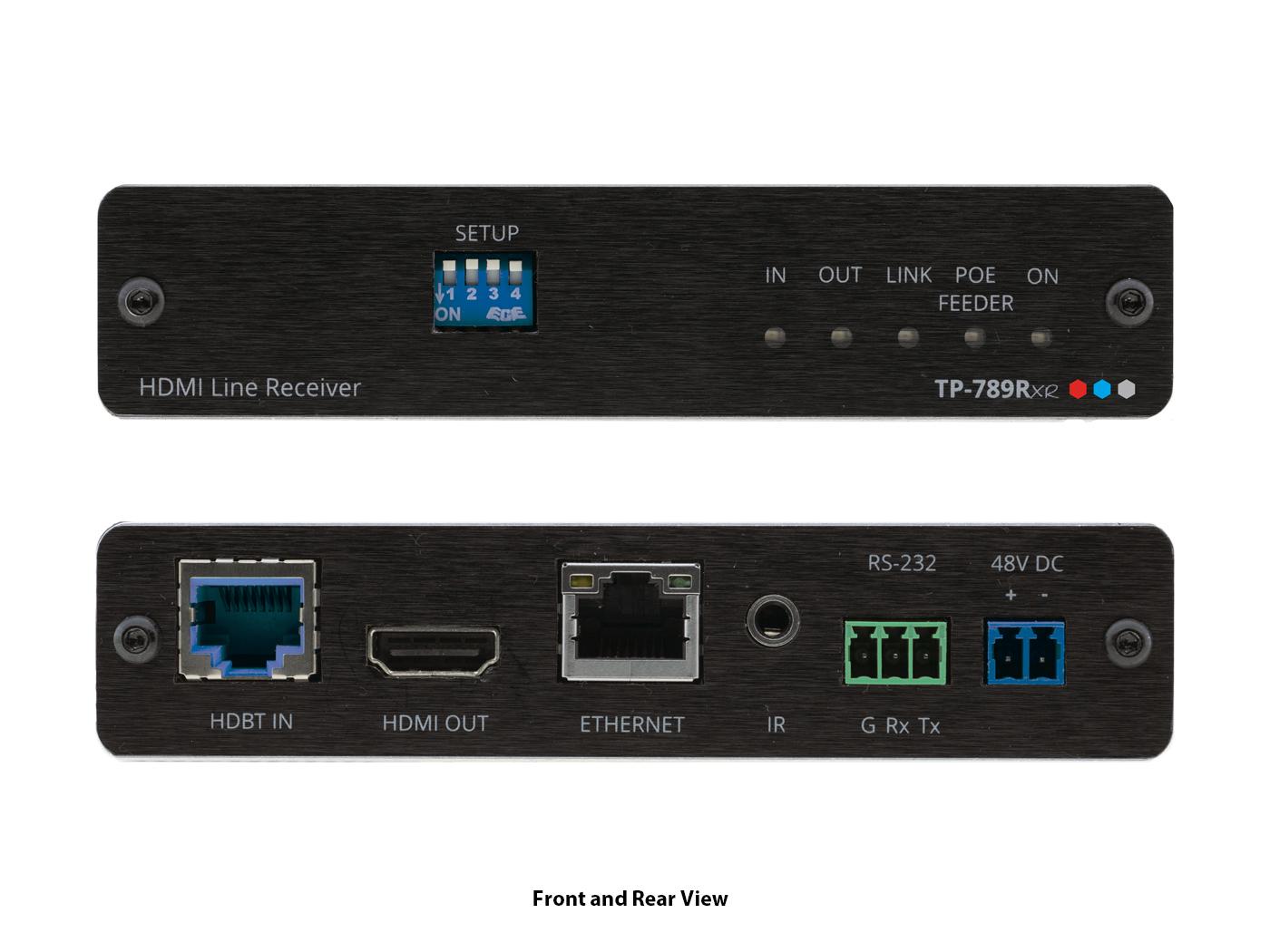

Connectivity includes an HDBaseT extension interface for video and control, HDMI for local display connection, bidirectional RS-232 for device control and bidirectional IR for remote control forwarding. The receiver also supports Ethernet extension in both directions to carry network traffic. Status LEDs indicate HDMI, HDBT and PoE feed status to simplify troubleshooting.

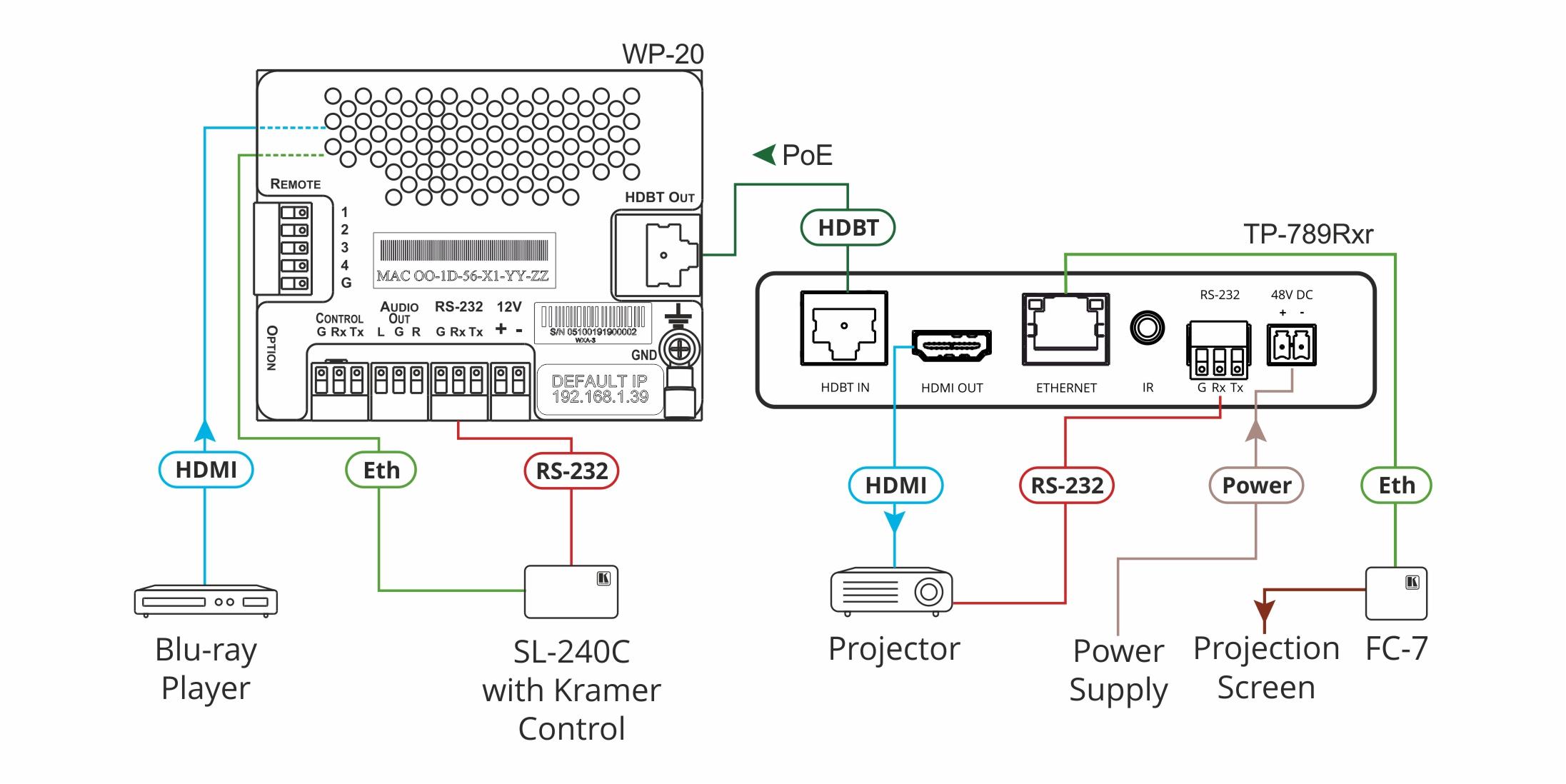

Typical applications include long-distance AV signal distribution in auditoriums, lecture halls and large divisible rooms, AV extension in conference rooms and boardrooms, and installations in hotels and houses of worship. The TP-789Rxr is intended for system integrators and AV technicians who need reliable extension of 4K sources with full control and network pass-through. It is compatible with market-available HDBaseT-compliant transmitters and extenders.

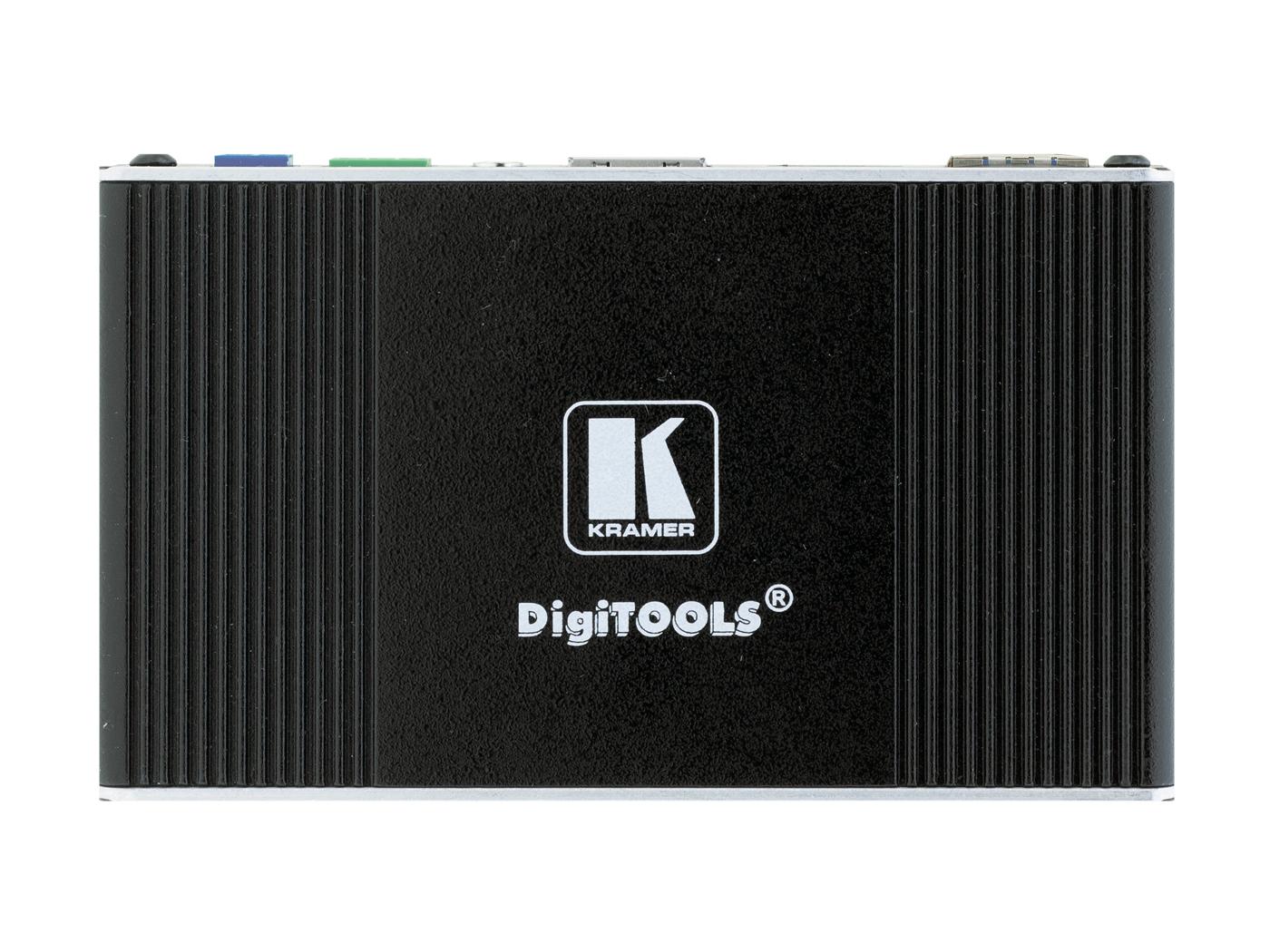

Installation is simplified by single-cable connectivity that carries both HDBaseT signals and power when appropriate. The compact DigiTOOLS fanless enclosure supports dropped-ceiling mounting or side-by-side mounting of three units in a single 1U rack using the recommended rack adapter. Local firmware upgrade via RS-232 allows field maintenance and future updates.
In summary, the TP-789Rxr receiver delivers HDBaseT extension of HDMI 4K60 video, multi-channel audio and two-way control while offering bidirectional PoE and Ethernet pass-through. Its EDID management and HDMI compliance ensure seamless source-to-display interoperability. The compact form factor, status indicators and upgrade path make it a practical choice for professional AV deployments.
