Description
The TP-752T is an HDMI extender transmitter designed to carry 1080p HDMI signals over long distances using any 2-wire cabling. It extends HDMI up to 600m 2000ft while preserving video signal integrity. The unit is intended for installations where existing copper wiring or legacy infrastructure must be reused.
Key features include three connector options – a terminal block for plain 2-wire connections, an RJ-45 CAT option for common long-distance cable runs, and a VGA option to interface with legacy VGA cabling. The transmitter also provides an active reclocking HDMI output loop for cascading extenders or local monitoring. Bidirectional RS-232 extension enables remote control of displays or sources from either end of the link.
Performance is optimized for 1080p HD video distribution and reliable long-distance transmission up to 600m 2000ft over appropriate cabling. The unit performs signal reclocking on the HDMI loop output to maintain signal timing for downstream devices. No user configuration is required, providing plug and play operation out of the box.

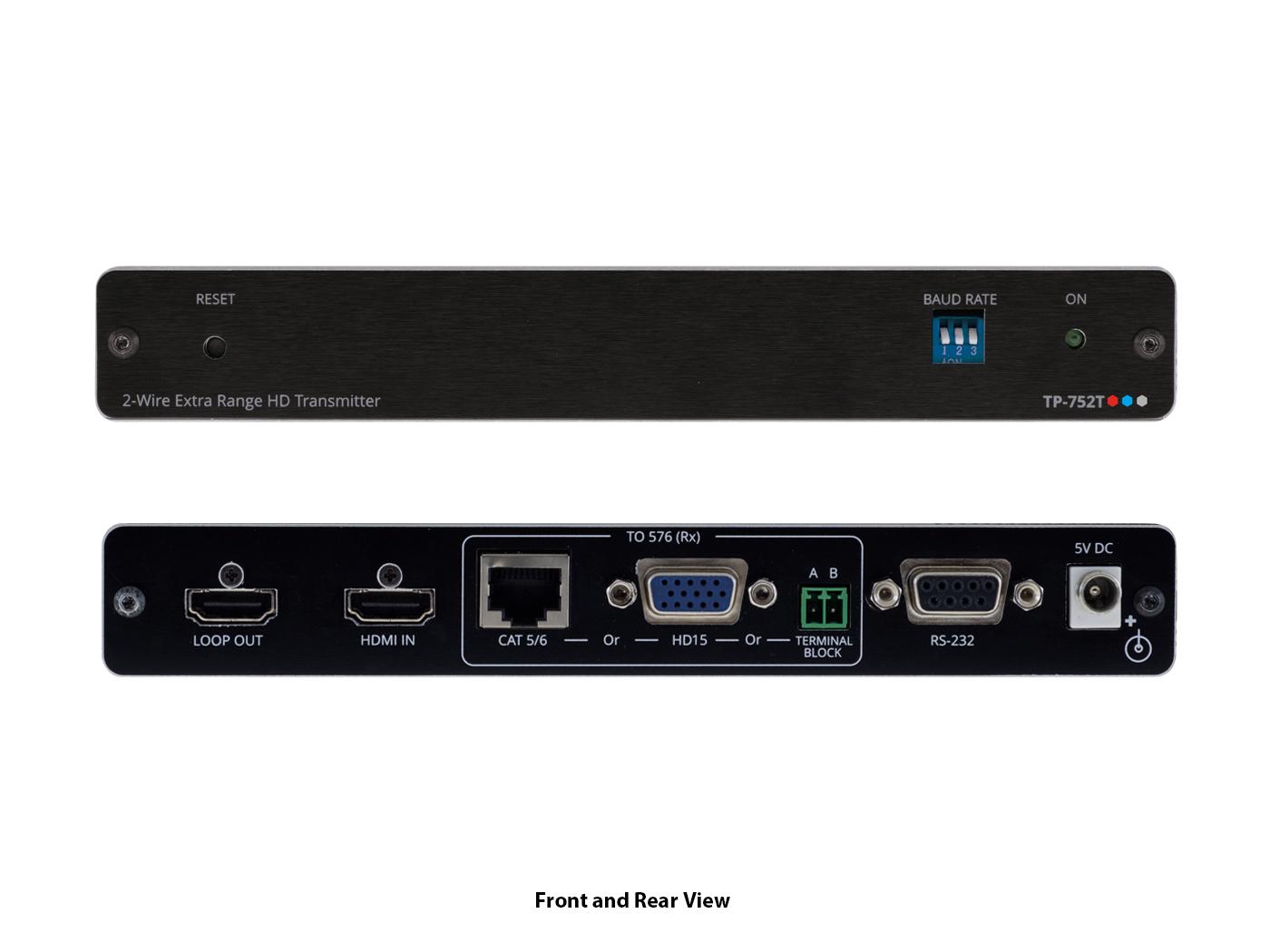

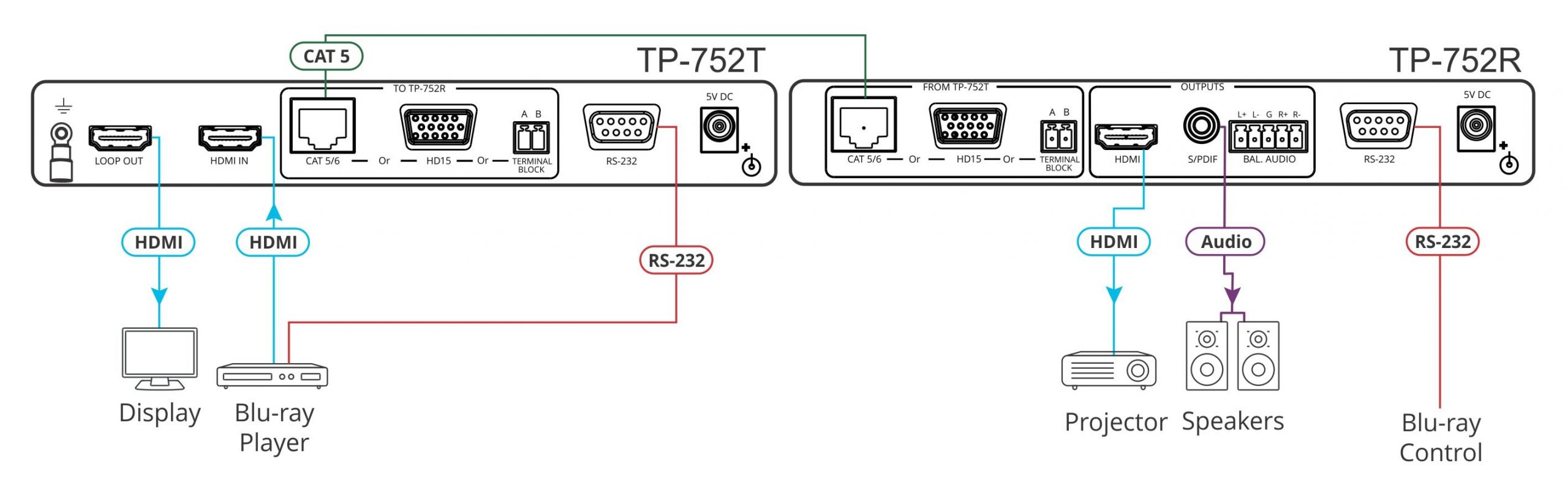

Connectivity covers HDMI input and an HDMI loop output, terminal block 2-wire connection, RJ-45 CAT option, VGA connector for legacy wiring reuse, and RS-232 control. The transmitter is compatible with standard HDMI sources and displays when used with a matching receiver. Cable flexibility allows integrators to adapt the unit to existing infrastructure without replacing entire cabling runs.
Typical applications include reuse of legacy long-distance cabling in education, corporate AV, digital signage, and conference facilities. The TP-752T is suitable where replacing cabling is impractical and where display control from either end of the link is required. It supports straightforward distribution chains by using the loop output for cascaded devices or local monitoring.

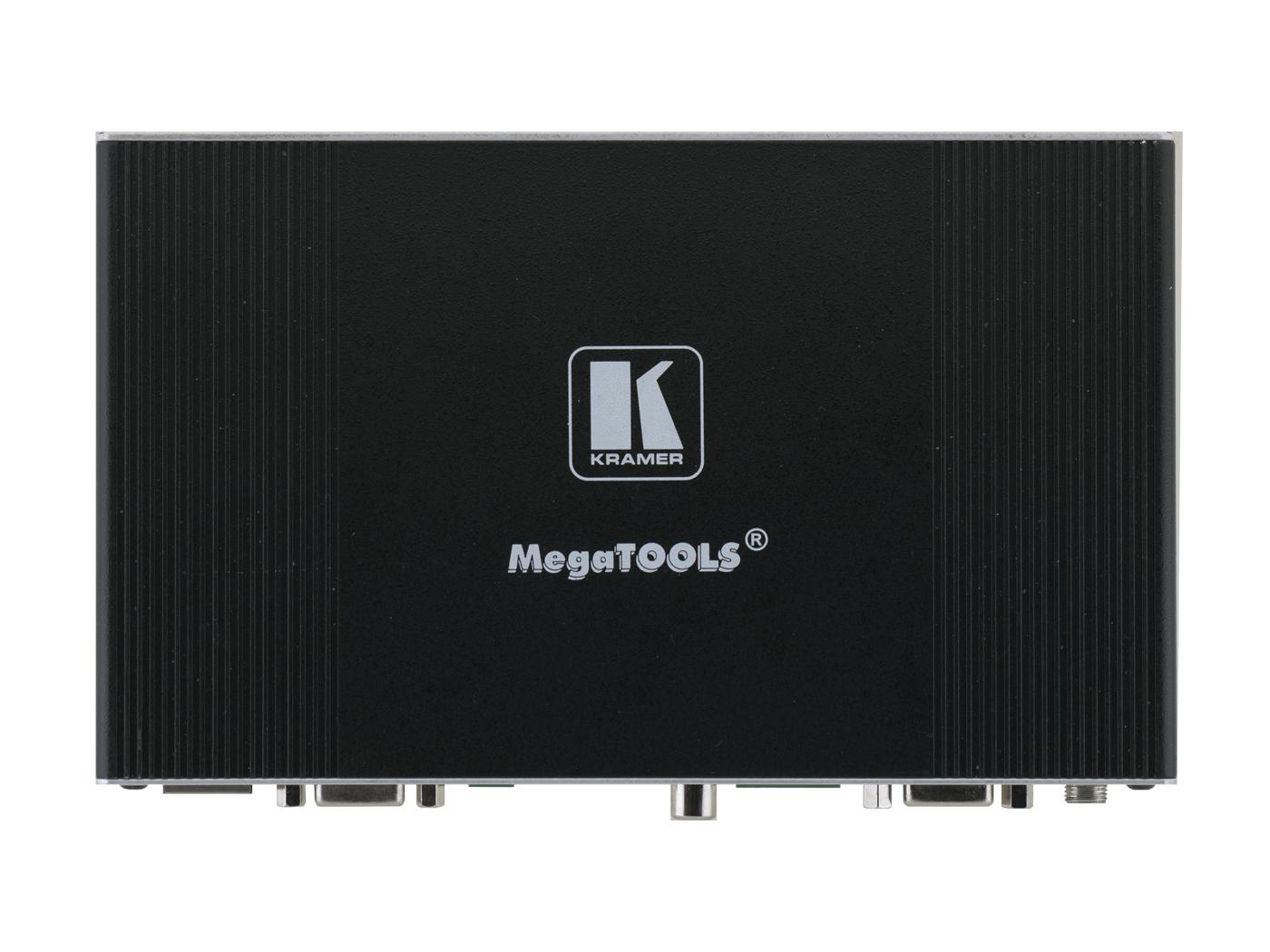

Installation is simplified by a compact MegaTOOLS fan-less enclosure that supports surface mounting and side-by-side mounting of two units in a single 1U rack space using the recommended rack adapter. The fan-less design reduces maintenance and noise in installed environments. Overall the TP-752T provides a practical solution for extending 1080p HDMI over existing 2-wire infrastructure while adding control and monitoring capabilities.
