Description

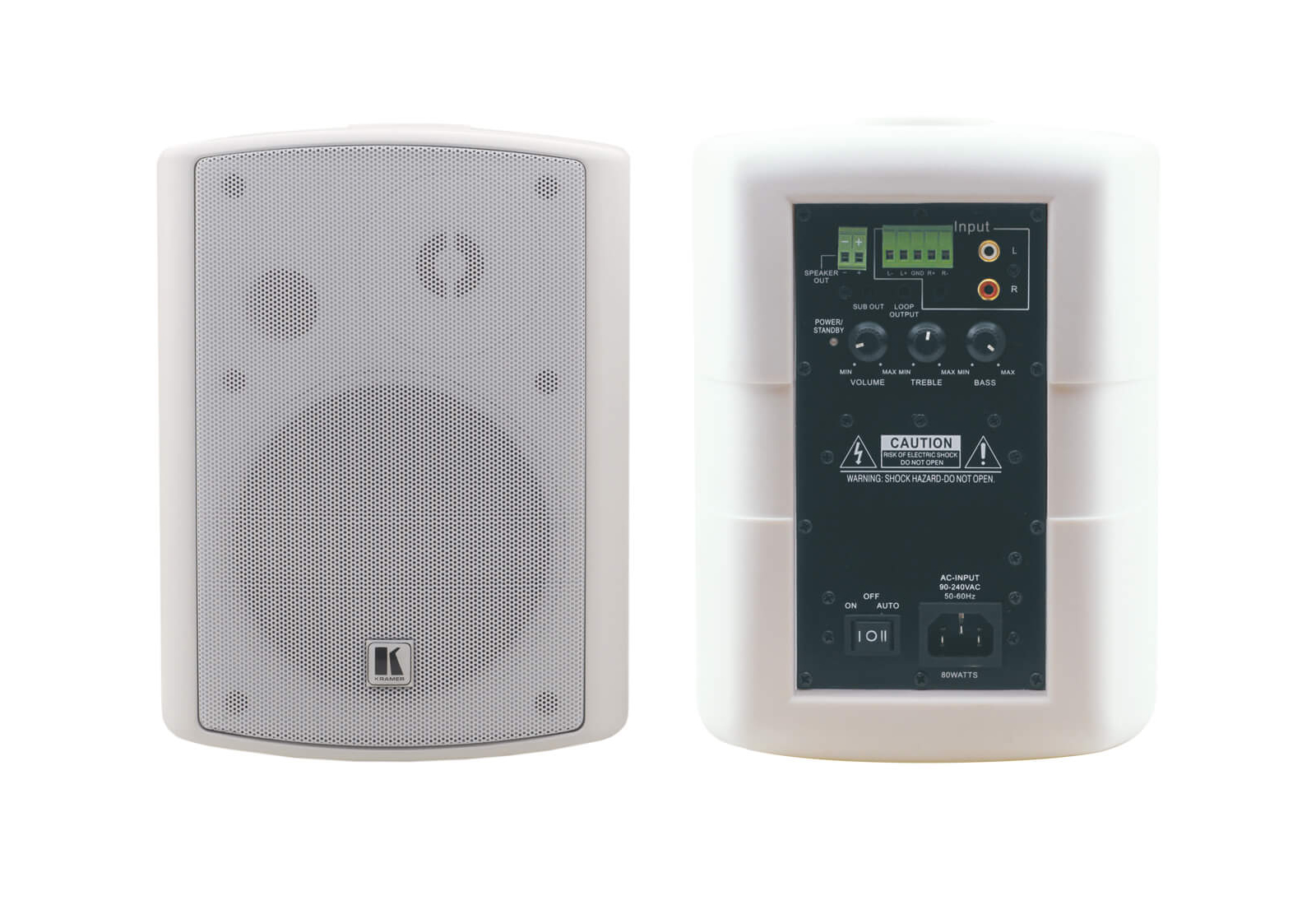

The Tavor 5-O is a pair of 5.25 inch on-wall two-way powered speakers designed to deliver clear stereo sound in indoor environments. Each pair includes one active speaker with a built-in amplifier and one passive speaker. The system is optimized for wall mounting and long-term installation use.
These speakers feature an onboard amplifier rated 2x30W RMS and 2x80W continuous program power, plus independent volume, bass and treble controls for precise tonal adjustment. The design includes a 5.25 inch polypropylene woofer and a 0.5 inch Mylar dome tweeter in a bass-reflex cabinet, which improves low-frequency extension and overall clarity. The active unit drives the passive speaker using the included speaker cable for simplified setup.
Acoustic performance covers 45Hz to 20kHz at -10dB and 100Hz to 20kHz at ±3dB, with a sensitivity of 85dB SPL at 1W 1m and continuous SPL up to 105dB. The crossover is set at 8kHz and measured THD is under 0.2 percent, while the signal-to-noise ratio exceeds 83dB. Directivity is specified with a Q of 5.8 and a DI of 7.6dB averaged from 1kHz to 10kHz for predictable dispersion.
Connectivity options include a 3.5mm mini jack for unbalanced stereo input, a terminal block for balanced line input, and RCA left/right unbalanced inputs. Outputs include the speaker output to the passive enclosure, a 3.5mm line out for an optional subwoofer, and a 3.5mm loop output for daisy-chaining. Input power is auto-selecting across 90 to 240V AC at 50/60Hz and an LED indicates power and standby status.
The Tavor 5-O is suitable for a range of installations including home theaters, conference rooms, classrooms and presentation venues where clear speech and music reproduction are needed. The magnetically shielded drivers prevent interference with nearby displays or equipment and the enhanced bass-reflex porting delivers a fuller low end compared to sealed enclosures. Wall-mount brackets allow rotation and aim for optimized coverage in small to medium rooms.
Installation is straightforward using the included U-shaped rotating mounting brackets and hardware, and front-to-wall clearance requirements are minimal. The cabinets use an aluminum grill, steel brackets and ABS enclosures for durable, long-term performance. Automatic standby and an input-signal wake-up reduce power draw when the system is idle while preserving instant readiness when audio is present.
