Description

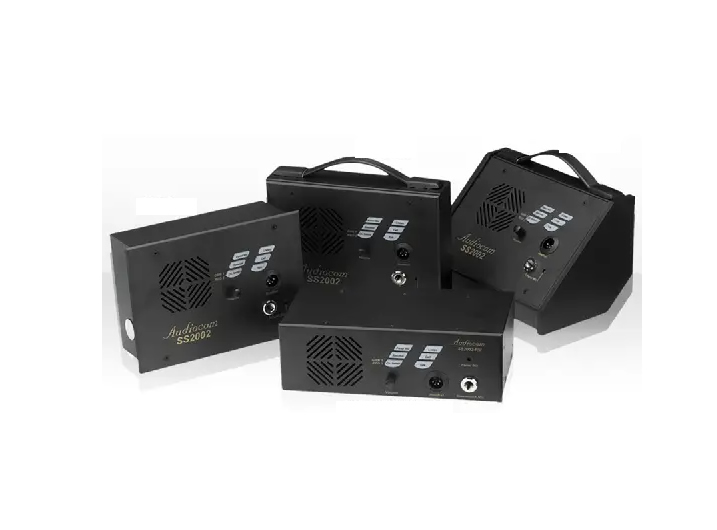

The SS-2002RM is a 2-channel intercom speaker station engineered for broadcast and professional AV communications. It ships in an RM-box enclosure that supports desktop placement and optional rack mounting using the RM-14 rack kit. The unit delivers full send and receive capability for two intercom channels while providing on-panel controls for everyday operation.
Key features include a 4 watt speaker and selectable panel microphone inputs, along with backlit channel and function switches for clear status under studio lighting. The station offers push-to-talk and hands-free latching talk modes, panel mic selection between the internal electret and a gooseneck input, and side tone adjustment for comfortable monitoring. Internal DIP switch configuration enables customization of call signaling and microphone behavior.
Performance specifications include a broad frequency response that supports voice clarity across the intercom range and a 35 dB microphone preamp gain. The device contains program and speaker amplifiers plus a panel microphone preamp. Input level and impedance options accommodate headset microphones and a range of headphone loads to ensure compatibility with common pro headsets.
Connectivity is provided via internal XLR loop connectors plus dedicated headset and gooseneck microphone inputs. The station includes internal 6-pin XLR male and female connectors for system loop-thru and headset connection via an XLR-4M headset jack or a 1/4″ TRS for a gooseneck panel mic. Phantom power is available at 24 VDC for compatible microphones and the unit accepts local DC power when required.
Typical applications include production control rooms, studio booths, remote broadcast trucks, and any multi-channel intercom installation requiring a compact desk or rackable station. The SS-2002RM is suited to both permanent installs and portable setups where clear two-channel intercom audio and reliable control are required. Backlit controls and selectable talk modes make it practical for fast-paced production environments.
Installation and setup are straightforward using front-panel controls and internal DIP switches for system integration. The RM-box format supports desktop use and can be rack-mounted using the optional RM-14 kit for tidy deployment in a rack. Robust build quality, simple cabling via XLR loop-thru, and selectable power options help simplify deployment and maintenance.
