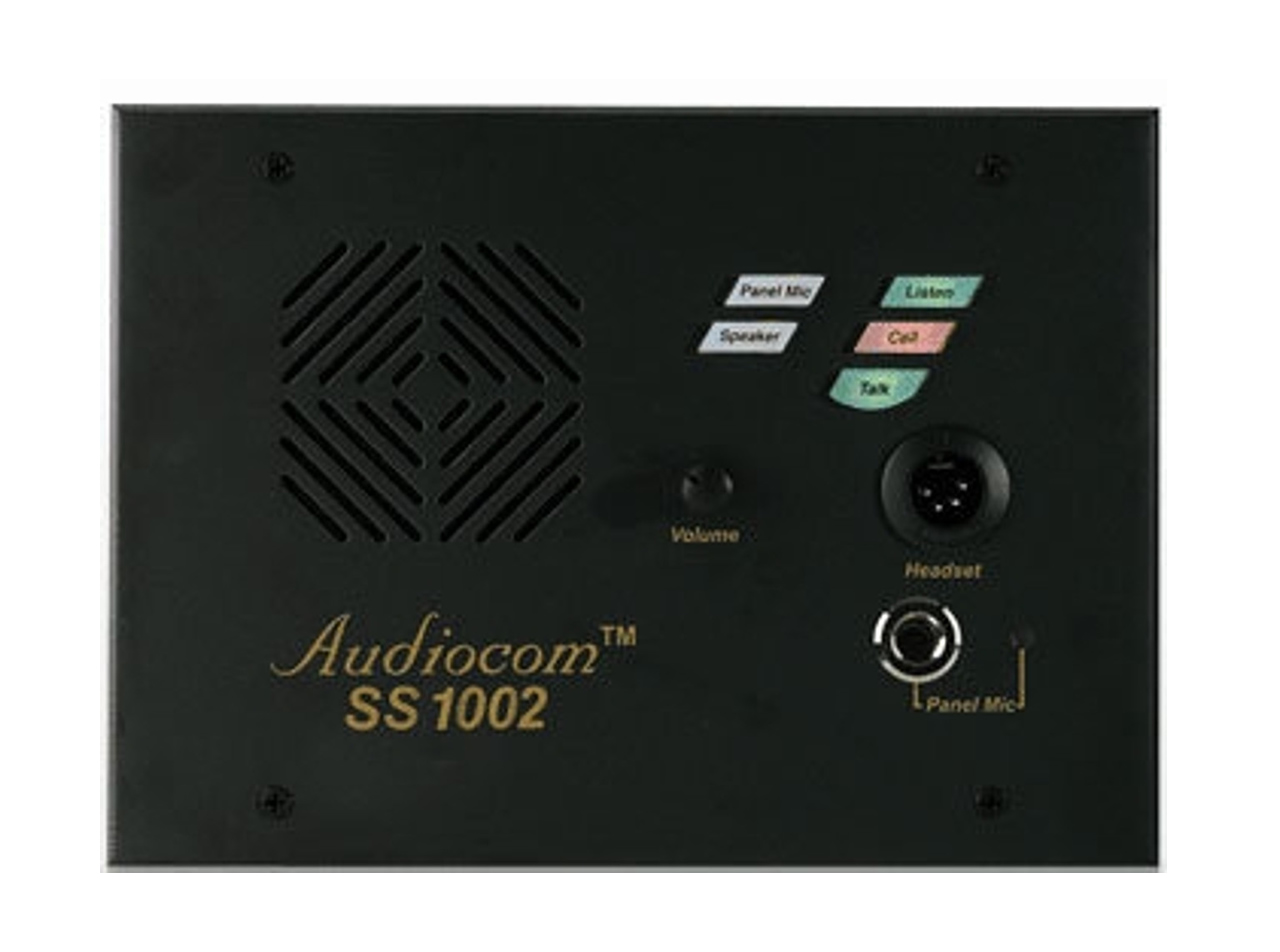

RTS SS-1002S 1 Ch portable speaker station w/top handle box, (2) XLR-3)

Description

The Telex SS-1002 is a single-channel professional intercom speaker station available in four mounting versions. This model is equipped with an “S” box enclosure designed for portability with an integral carrying handle.

The SS-1002 S-box model uses dual 3-pin XLR loop-thru connectors for quick connection to the intercom system, and offers both a built-in panel microphone and an input for a gooseneck microphone

Features

Single-channel intercom speaker station with portable S-box enclosure and full send-receive capability
4-watt speaker
Simplified 3-pin XLR loop-thru connectors for quick connection to intercom system
Internal DIP setup switch control and full sidetone adjustment trim
Backlit Channel Select switch
Backlit front panel control switches for Talk, Call, Listen, Speaker and Panel Mic
Talk key with push-to-talk and hands-free latching operation modes
Panel Mic Key switches between built-in electret and optional gooseneck
24VDC phantom power

Specifications

Category	Specification
Frequency Response	Send and Receive: 20 Hz - 20 kHz ±800Hz, 100mVrms Mic Kill/Detect: 24 kHz ±800Hz, 100mVrms
Gain	35dB
Microphone Input Type	1 x XLR-4M (Headset Mic) 1 x 1/4" TRS Phone (Gooseneck Panel Mic)
Limiter	No
Power Output	Unbalanced Mode: 1 Vrms, ±10% Balanced Mode: 1 Vrms
Speaker	8 Ohms
SPL	Not Specified by Manufacturer
Signal-to-Noise Ratio	Not Specified by Manufacturer
THD + N	Not Specified by Manufacturer
Panel Microphone Preamp	Yes
Program Amplifier	Yes
Speaker Amplifier	4 Watts
Input Level	-40dB - +35dB
Input Impedance	Headset Headphones: 150 - 600 Ohms Headset Microphone: 50 - 200 Ohms Panel Mic (Built-In): 2.2 kOhms Panel Mic (Gooseneck): 5 kOhms Intercom Channels (Balanced): 300 Ohms Intercom Channels (Unbalanced): 200 Ohms
Internal Connectors	1 x 3-pin XLR Female 1 x 3-pin XLR Male
Internal Controls	1 x Side Tone Trim 1 x Mic Kill Receive DIP Switch 1 x Call Signal Method DIP Switch 1 x Incoming Call Beep DIP Switch 1 x Microphone Type DIP Switch 1 x Incoming Call Speaker Beep DIP Switch
Front Panel Controls and Indicators	1 x Channel Select Button 1 x Panel Mic Button 1 x Headset Button 1 x Listen Button 1 x Call Button 1 x Talk Button 1 x Volume Trim
Power Requirements	Phantom Power: 24VDC Nominal (12 - 30VDC, 175mA) Local Power: 12 - 15VDC, 250mA
Dimensions	9.1 x 2.1 x 6.75" (WxDxH) (231.8 x 54 x 171.5mm)
