Download Manual DESCRIPTION

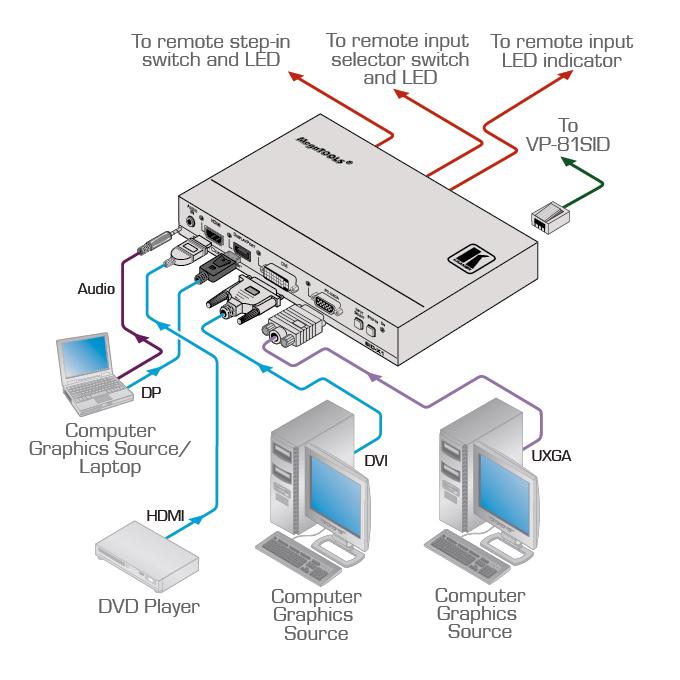

The SID-X1 is a DGKat™ twisted pair transmitter and step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step-In” button that allows the local source to be routed as the active source on the main display through the main switcher.
- HDTV Compatible.

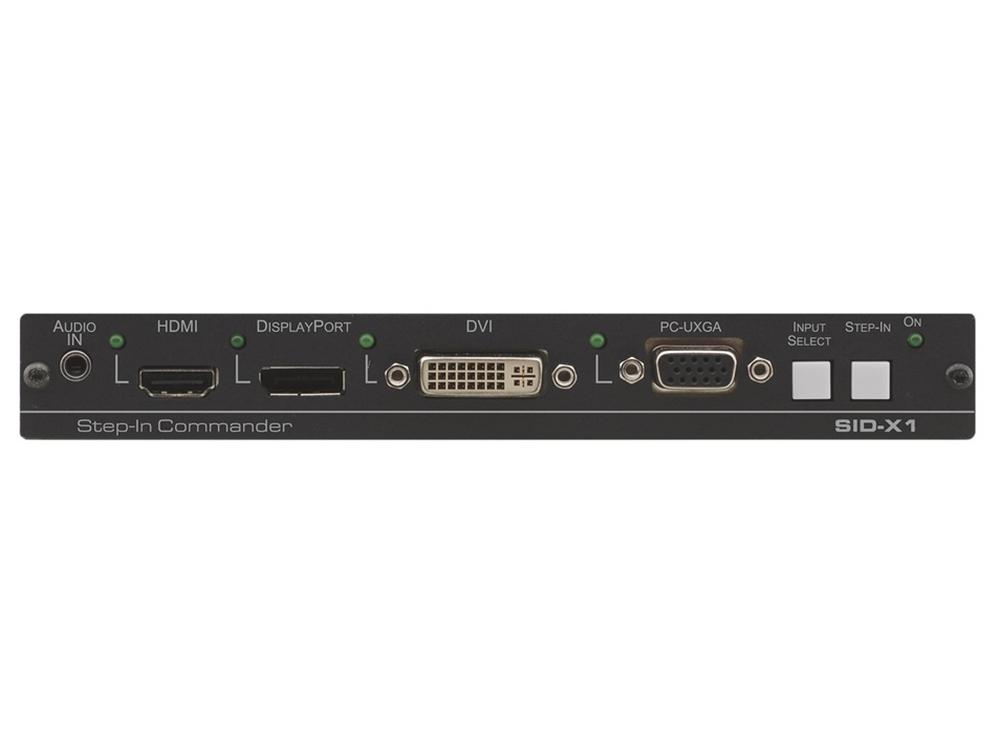

- Inputs – Computer graphics video on a 15-pin HD connector, DVI-D on a DVI-I connector, HDMI, DisplayPort and unbalanced stereo audio on a 3.5mm mini jack.

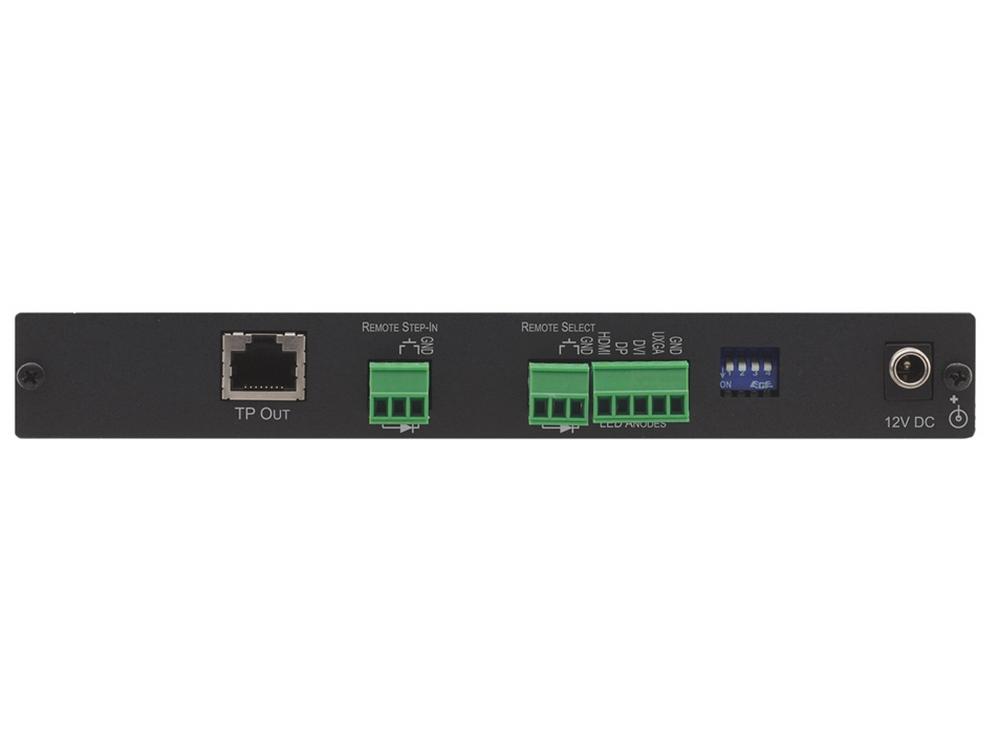

- Output – DGKat™ twisted pair on an RJ-45 connector.
- DGKat™ Signal Integration – Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
- Cable – Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer’s BC-DGKat623 or BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Local Step-In Switching – Button & contact closure.
- Compatible Switcher – VP-81SID.
- Power Supply – Requires independent power supply.

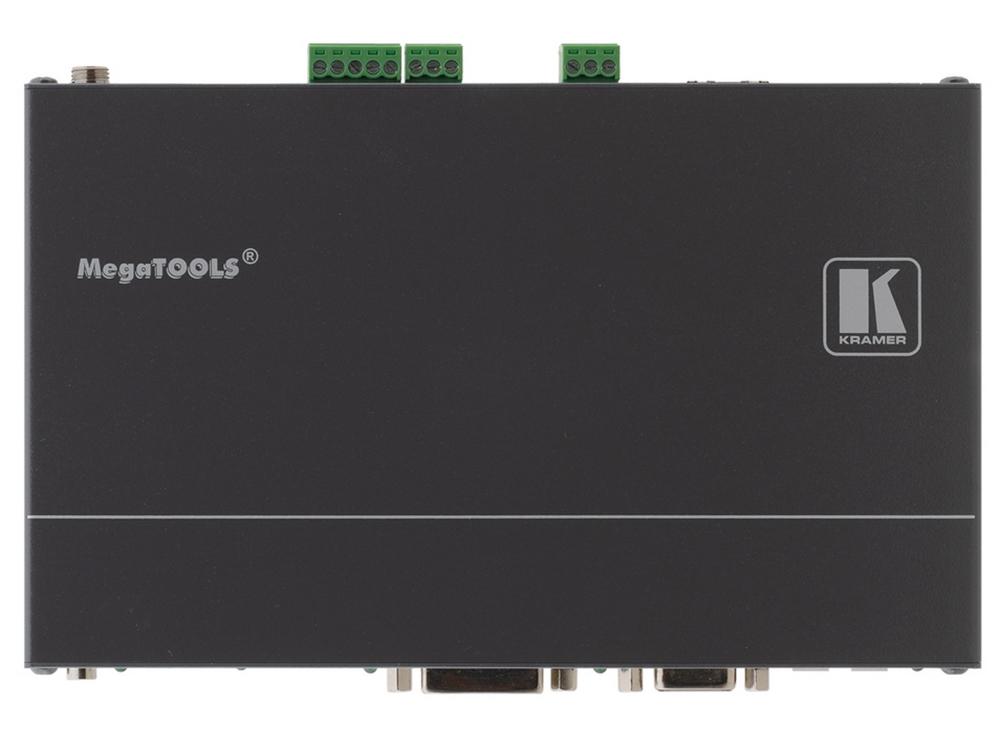

- Compact MegaTOOLS™ – 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.
SPECIFICATIONS
| INPUTS: | HDMI, DVI on a Molex 24-pin connector, DisplayPort and UXGA on a 15-pin HD connector and 3.5mm mini jack. |
| OUTPUT: | CAT 5 on an RJ-45 connector. |
| POWER SOURCE: | 12V DC, 200mA. |
| DIMENSIONS: | 18.8cm x 11.3cm x 2.5cm (7.4″ x 4.5″ x 1″) W, D, H. |
| WEIGHT: | 0.48 kg (1.1lbs) approx. |
| ACCESSORIES: | Power supply. |
