Description
The RXV-35-4K is an HDBaseT HDMI receiver designed to convert a single Cat6 run from a WyreStorm MXV-H2A matrix into a full HDMI output. It delivers native 4K UHD video at up to 2160p 4:4:4 60Hz and supports current HDR formats for uncompromised picture quality. The unit is intended for installations that require a compact receiver behind displays or in shallow voids.
The receiver uses WyreStorm’s proprietary lossless compression technology to transport high-bandwidth HDMI 2.0 signals over HDBaseT without added latency. It supports HDMI 2.0 up to 18 Gbps and maintains HDCP 2.2 compliance for protected content. HDR formats supported include HDR-10, HDR-10+, HLG and Dolby Vision with Dolby Vision supported up to 30Hz.

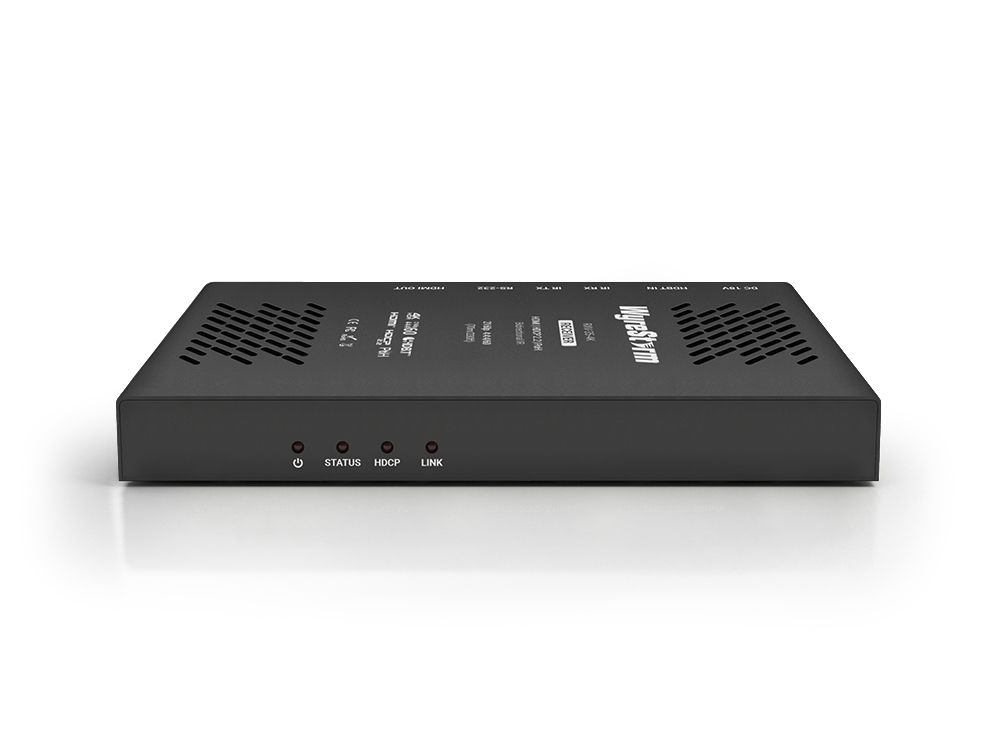

Performance specifications include 4K UHD over a single Cat6 cable up to 35m (131ft) at 2160p 4:4:4 60Hz 8-bit and 2K signals up to 70m (230ft) at 1200p 60Hz 16-bit. The HDBaseT link uses Class B signalling and carries video, multichannel audio, bidirectional control and Power-over-HDBaseT. The unit provides LED indications for HDCP presence and link status to aid troubleshooting.

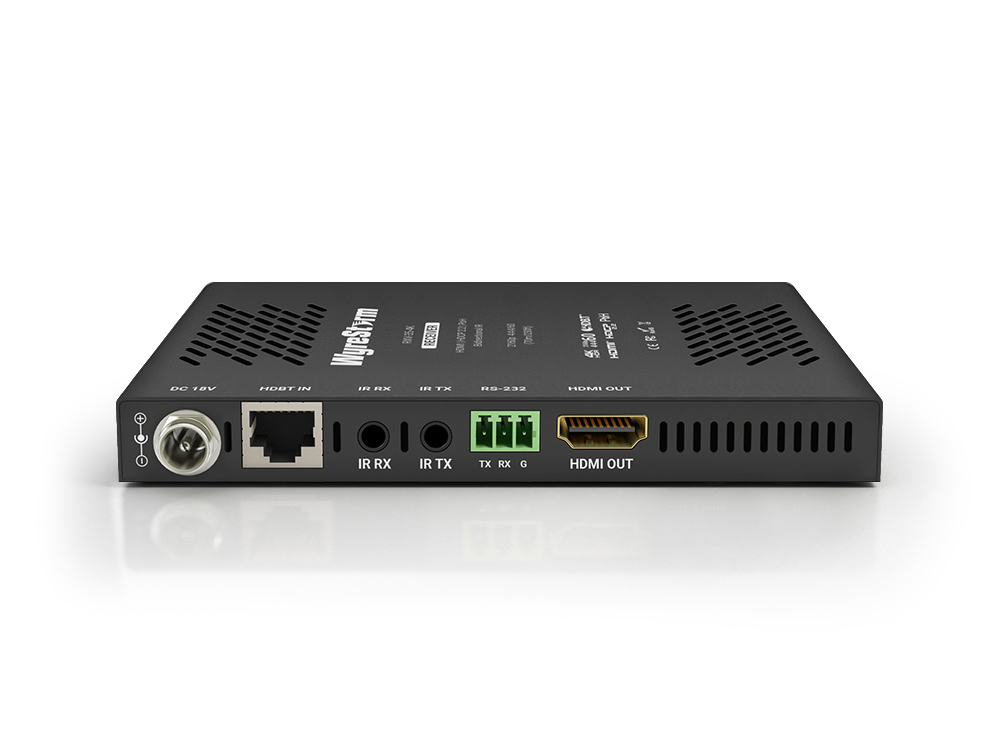

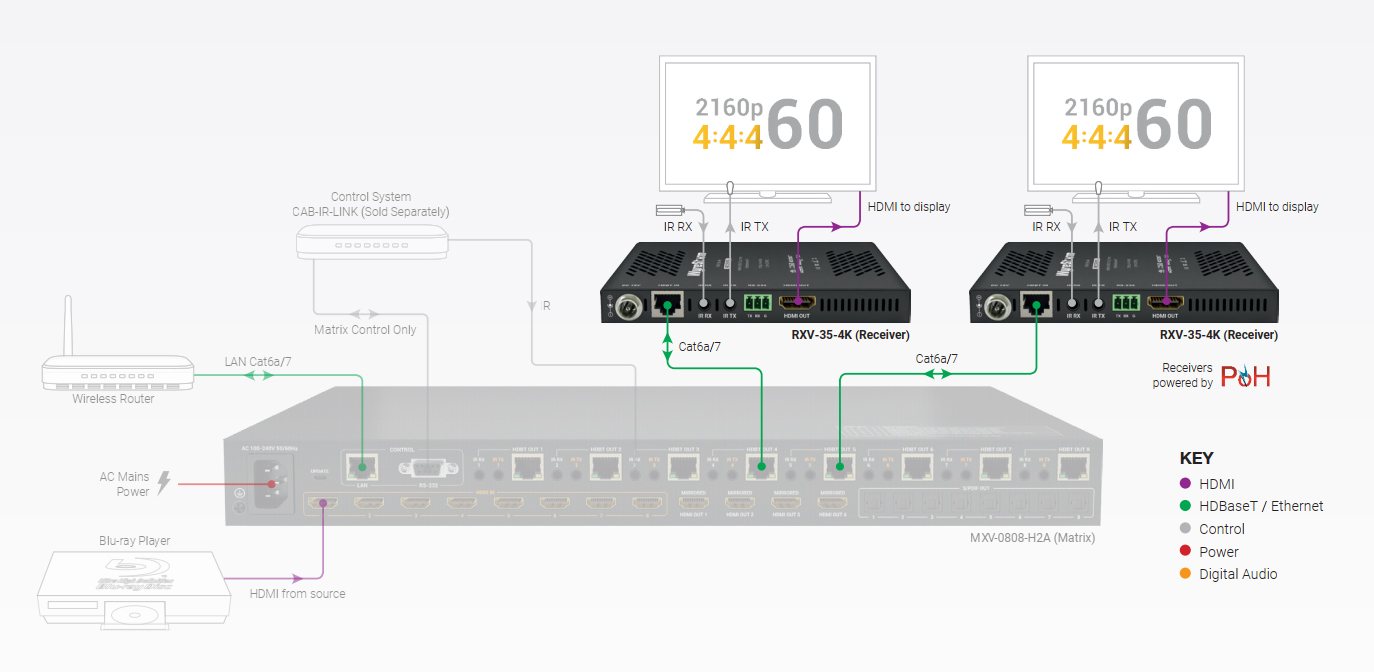

Connectivity includes an HDMI output, HDBaseT RJ45 input, bidirectional IR TX and RX ports and an RS-232 port for routed two-way serial control. The receiver is remotely powered via PoH from compatible WyreStorm MXV matrix switchers and conforms to IEEE-568B cabling standards. It is intended for use exclusively with Class B 4×8, 6×6 and 8×8 MXV-H2A matrix switchers.
Typical applications include AV distribution behind flat panels in boardrooms, residential home theaters, retail digital signage and education environments that require centralized source distribution. The compact, slim profile makes the receiver suitable for shallow mounting locations and tight install spaces. Its support for HDR and high frame rates also suits media room and gaming displays where image fidelity is critical.
Installation is simplified by PoH power delivery which removes the need for a local power supply and by included wall mounting brackets and IR accessories. The ventilated steel chassis provides physical durability and thermal ventilation for continuous operation. LED link and HDCP indicators help integrators verify link integrity during commissioning and maintenance.
