Description

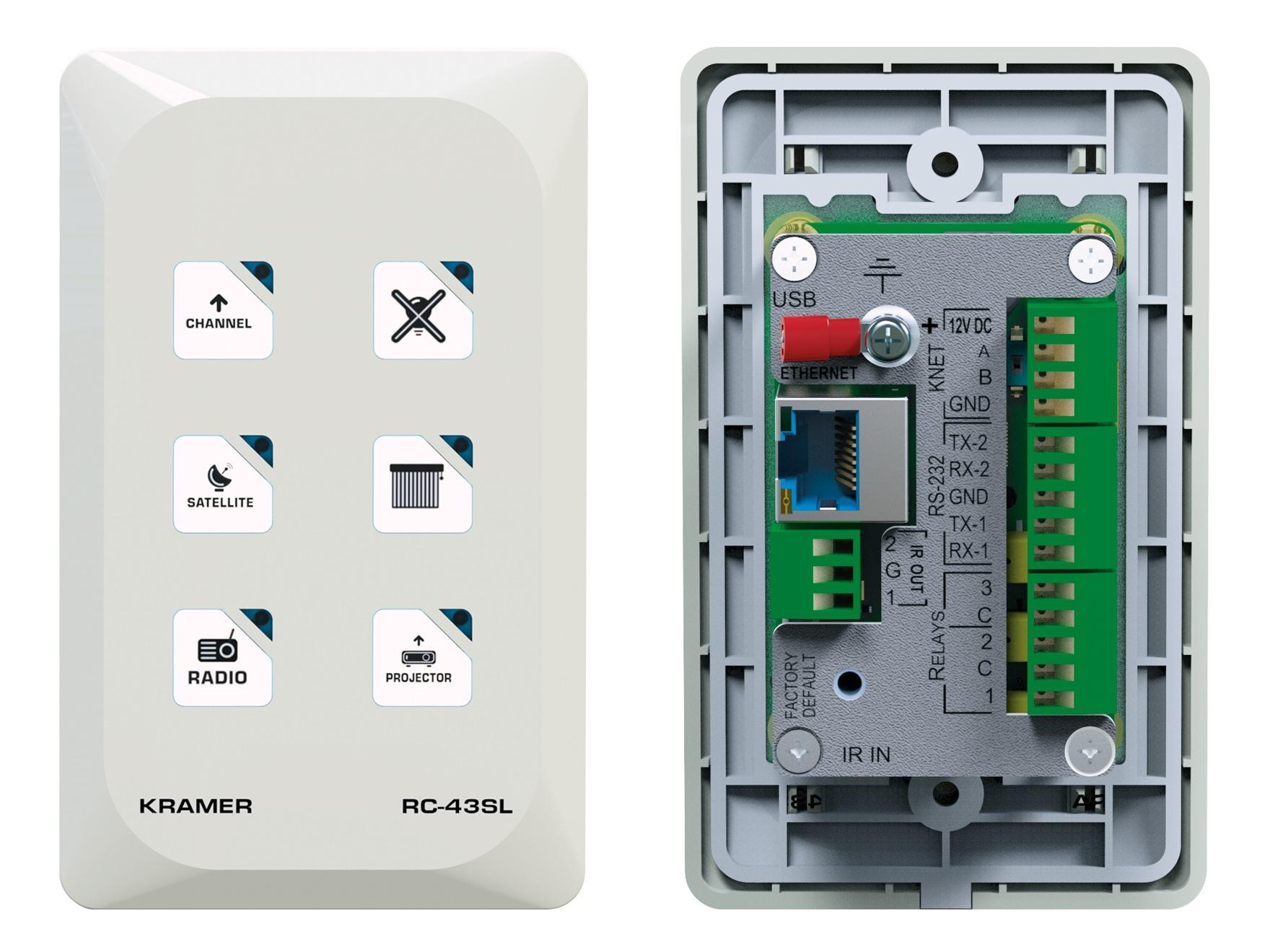

The RC-43SL is a compact 6-button touch room controller designed to manage audiovisual devices and room facilities. It provides direct control over displays, amplifiers, screens and lighting using standard AV control interfaces. The module is intended for multimedia rooms where centralized device management and simple user control are required.
Key features include six touch-sensitive buttons with LED indicators, two bidirectional RS-232 ports, three relay contact closures and IR control with learning capability. The controller supports K-NET control channel connectivity for remote panels and supplies power and control data over a single cable. A USB port is provided for firmware updates and configuration via Kramer K-Config software.
Performance is optimized for reliable room automation with low power consumption and wide environmental tolerances. Power is 12V DC at 100mA. The device operates between 0 to 40 degrees Celsius and stores between -40 to 70 degrees Celsius, accommodating typical AV installation conditions.
Connectivity covers Ethernet control, terminal-block RS-232 and K-NET connections, two IR outputs and a built-in IR learning sensor. Three relay outputs provide dry-contact control rated to 36V AC/DC, 2A, 60V AC maximum on non-inductive loads. Default network settings are supplied for initial setup and Site-CTRL compatibility enables remote management over IP.

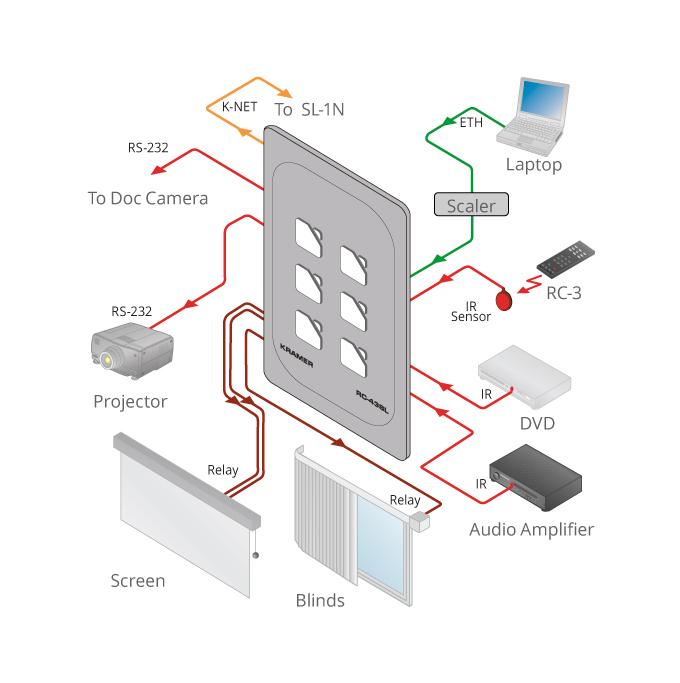

Typical applications include conference rooms, training rooms, lecture halls and small auditoria where simple button-based control is required. The RC-43SL can be used to trigger projector power, lower screens, mute audio or control lighting presets using its relays and control ports. Its compact footprint and low weight make it easy to integrate into existing control systems.
Installation is straightforward using terminal-block connectors and an RJ-45 Ethernet port. Configuration is handled with Kramer K-Config and firmware is loaded over USB. The unit is built for continuous operation and provides LED feedback on button status to guide end users during routine use.
