Kramer PT-580T 4K UHD HDMI over Twisted Pair HDBaseT Transmitter 230ft

Description

The PT-580T is a 4K resolution, HDBaseT twisted pair transmitter for HDMI signals. The unit inputs an HDMI signal that it converts to a twisted pair signal. An HDBaseT receiver (for example the TP-580R or WP-580R) converts the twisted pair signal back into an HDMI signal and together they form a transmitter receiver pair.

Max. Data Rate – 10.2Gbps (3.4Gbps per graphic channel), supporting 4K resolution.
HDTV Compatible.
HDCP Compliant.
Certified HDBaseT Technology.
HDMI Support – Deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC.
2K x 4K Support.
3D Pass-Through.
EDID Pass-Through – Passes EDID signals from the source to the display.
Range – Up to 70m (230ft) when using BC-HDKat6a cables.
Indicator – Power LED.

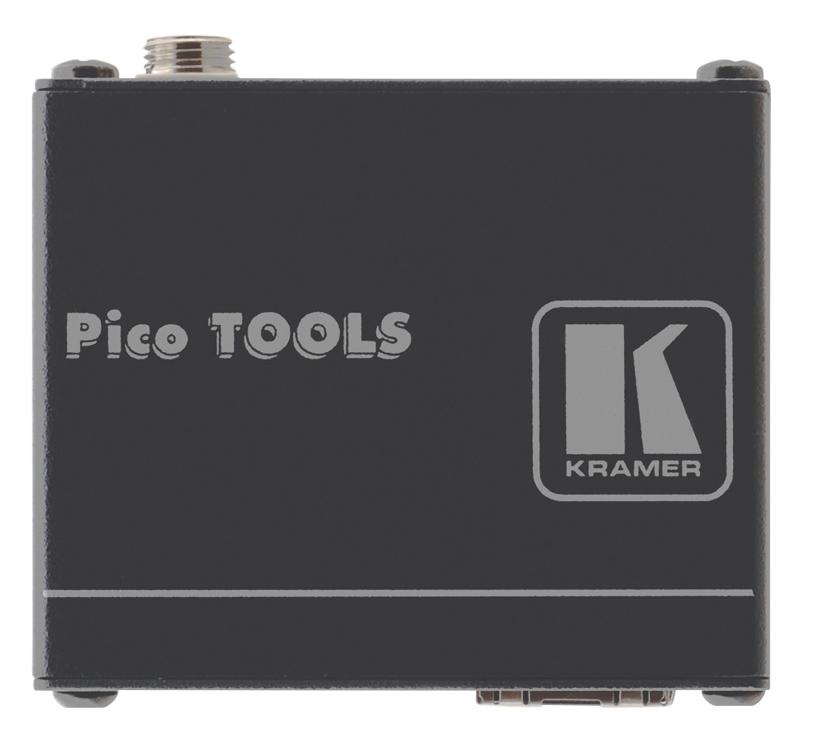

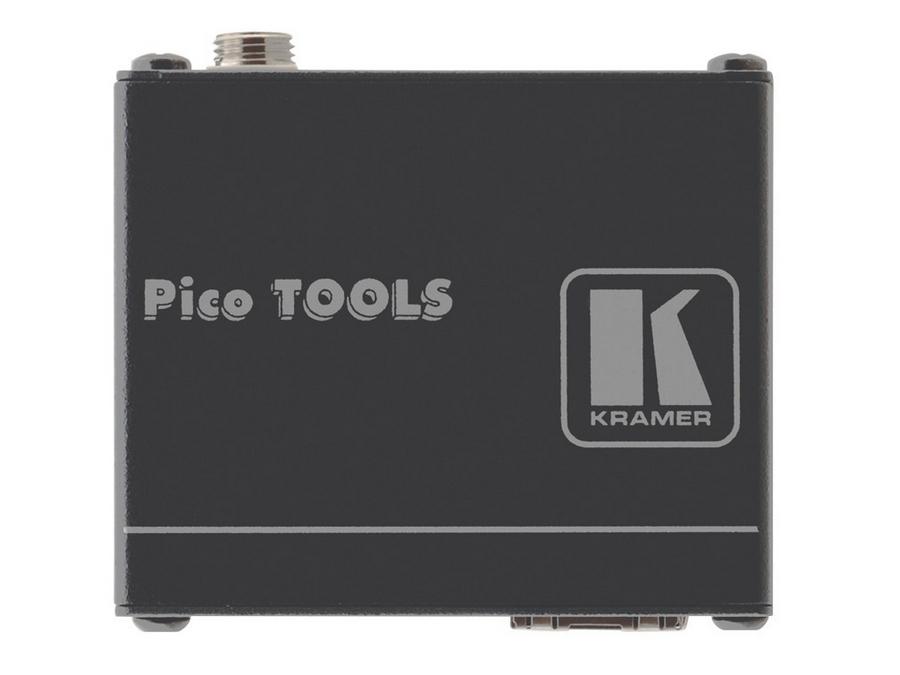

Size – Ultra-Compact Pico TOOLS – 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

Applications:

Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios

Rental and staging

Product Diagrams

View Diagrams

Specifications

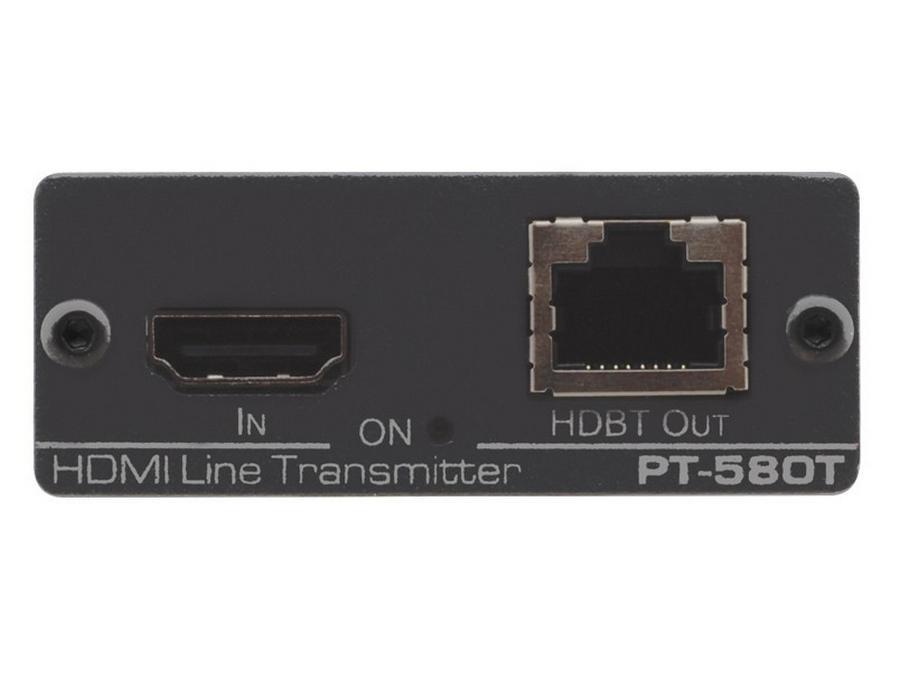

INPUT:	1 HDMI connector.
OUTPUT:	1 RJ-45 connector.
MAX. DATA RATE:	10.2Gbps (3.4Gbps bandwidth per graphic channel).
COMPLIANCE WITH HDMI STANDARD:	Supports HDMI and HDCP.
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F).
HUMIDITY:	10% to 90%, RHL non-condensing.

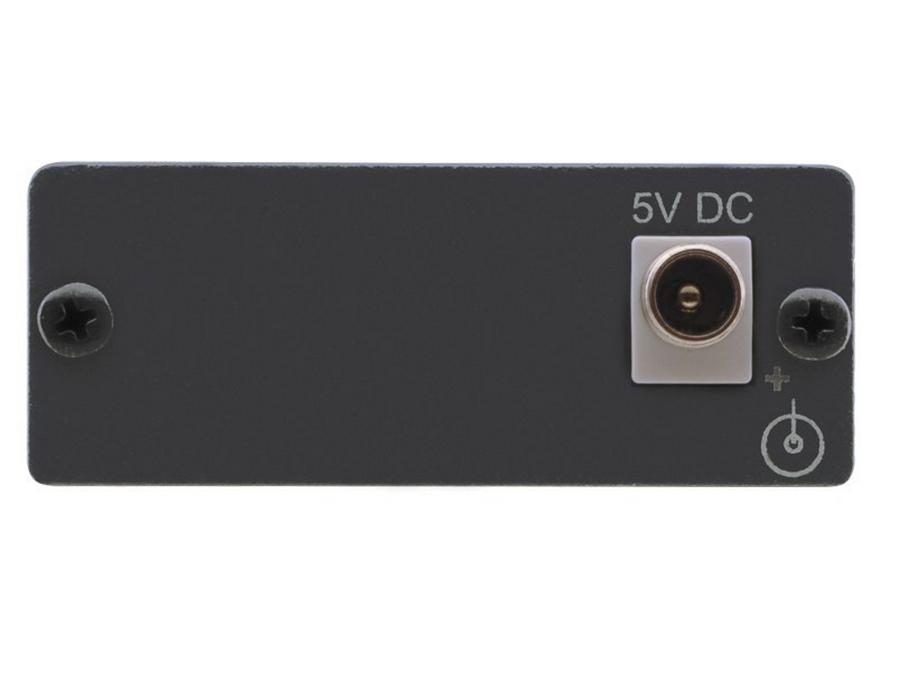

POWER CONSUMPTION:	5V DC, 575mA.
DIMENSIONS:	6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H.
WEIGHT:	0.14kg (0.3lbs).
INCLUDED ACCESSORIES:	5V DC power supply.
OPTIONS:	19" RK-4PT rack adapter; Kramer BC-HDKat6a cable.
