Description
The PT-101H2 is an HDMI repeater designed to extend and regenerate HDMI video signals – it supports up to 4K@60Hz 4:4:4 and maintains signal integrity over extended cable runs. This compact unit rebuilds incoming HDMI data and forwards a clean output to downstream devices. It is intended for installations that require preserving high-resolution video and full color sampling across longer distances than standard HDMI cables allow.
The unit features HDMI 2.0 compatibility and supports HDCP 2.2 – ensuring content protection compliance for modern 4K sources and sinks. It implements Kramer signal equalization and re-clocking technology to restore degraded HDMI signals and reduce bit errors. The device supports a maximum data rate of 17.82Gbps (5.94Gbps per channel) to accommodate high-bandwidth formats.
Performance specifications include support for up to 4K@60Hz 4:4:4 and practical extension ranges: up to 10m (33ft) for 4K@60Hz (5m input + 5m output) and up to 20m (66ft) for 4K@30Hz (15m input + 5m output). The device is powered by a 5V DC supply and includes an LED power indicator. Operating range and environmental specifications are provided to support planning for installation environments.

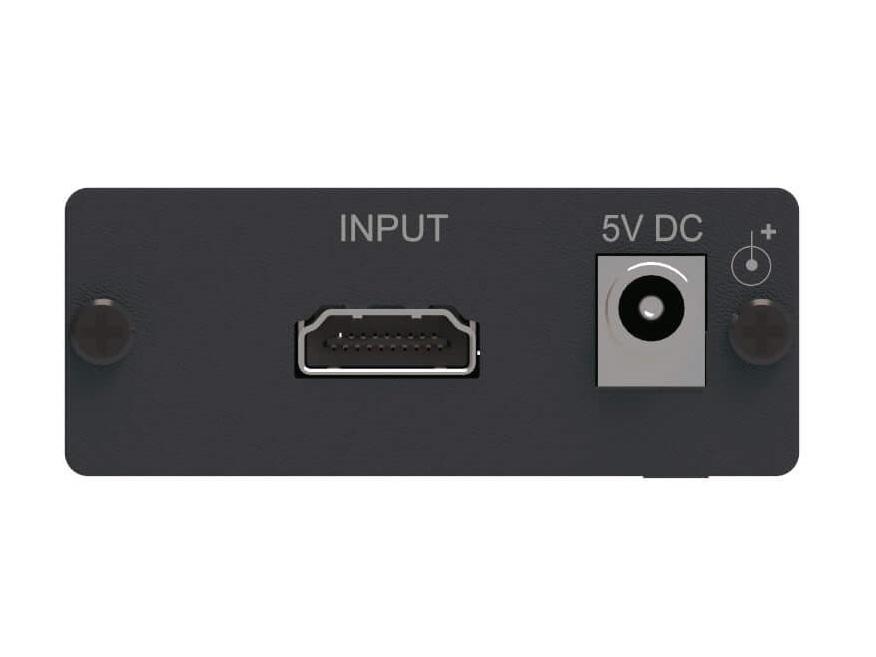

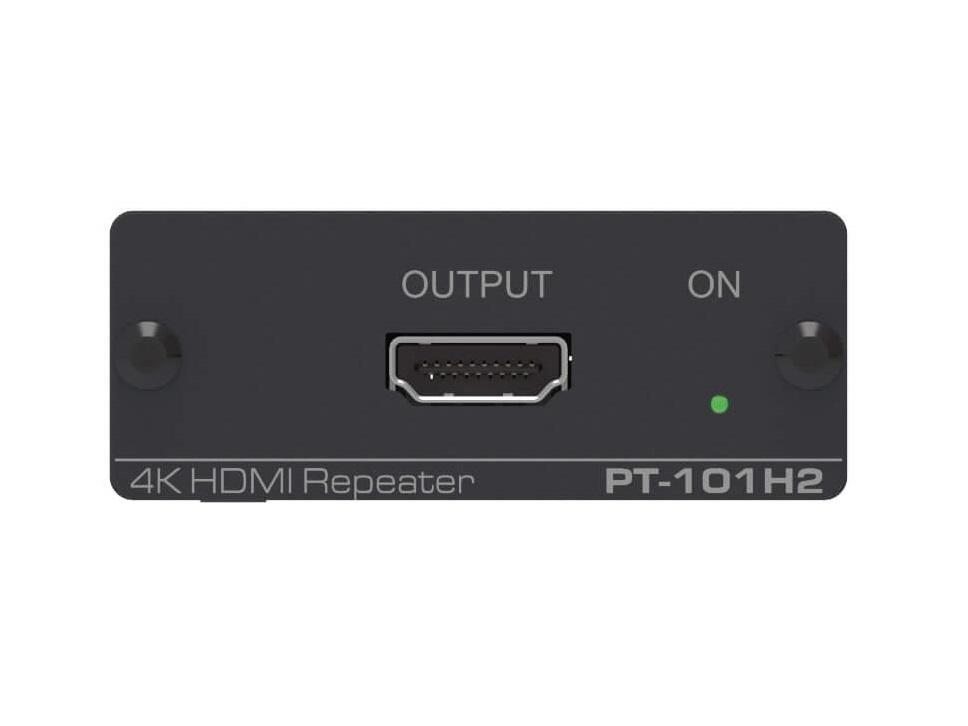

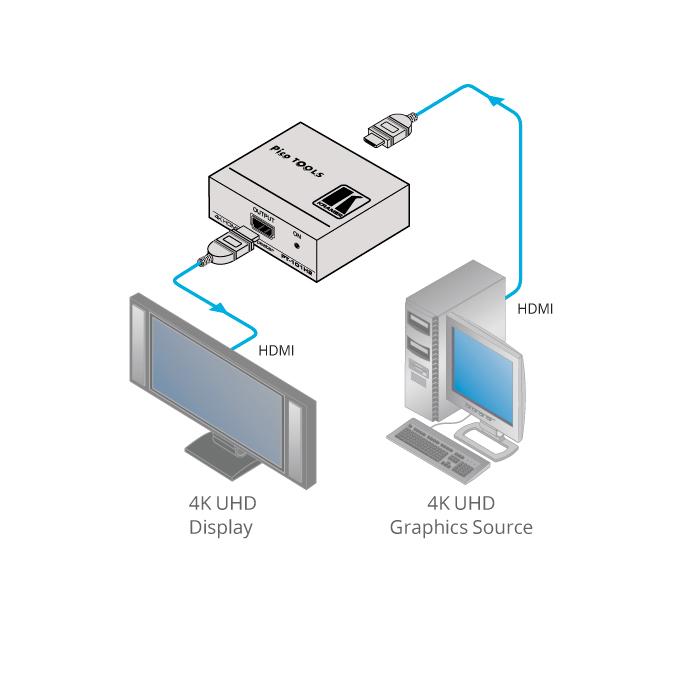

Connectivity is straightforward with one HDMI input and one HDMI output on standard HDMI connectors – the repeater follows input HDMI output power and passes HDMI 1.4/2.0 and HDCP 1.4/2.2 signaling transparently. The unit is compatible with common HDMI sources, displays, and AV receivers that support the stated HDMI and HDCP versions. Installation requires only inline placement between source and display with the included power supply.
Typical use cases include meeting rooms, digital signage runs, classroom AV systems, and control rooms where cable length or signal degradation would otherwise limit 4K delivery. The PT-101H2 is suitable where maintaining 4:4:4 chroma and high refresh rates is required for image quality. It is also useful for extending HDMI runs within AV racks or between equipment cabinets and wall-mounted displays.

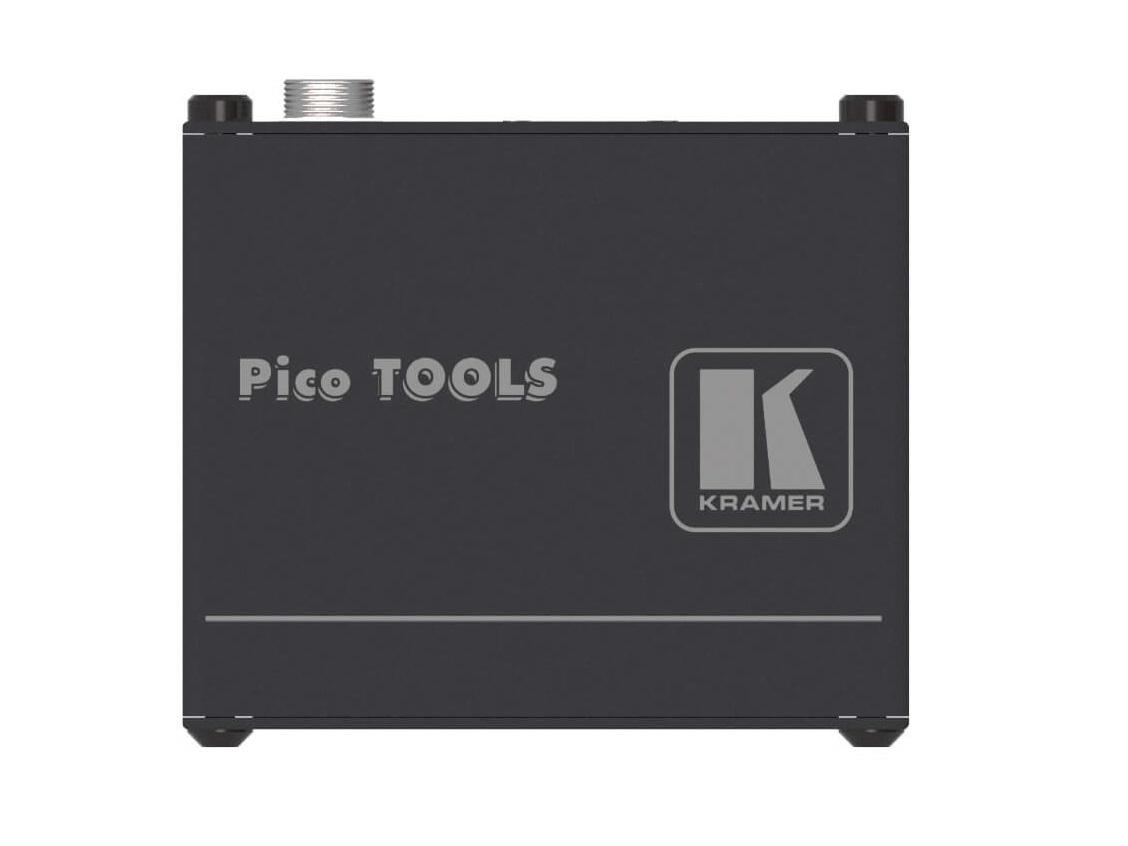

Installation is simple and requires minimal configuration – the unit is housed in an aluminium enclosure and can sit on furniture using the supplied rubber feet or be rack mounted using an optional adapter. Cooling is by convection and the design follows industry regulatory and environmental standards, including CE, RoHS and WEEE compliance. The PT-101H2 provides a compact, practical solution to extend and restore HDMI 4K signals in professional and commercial AV installations.
