Description

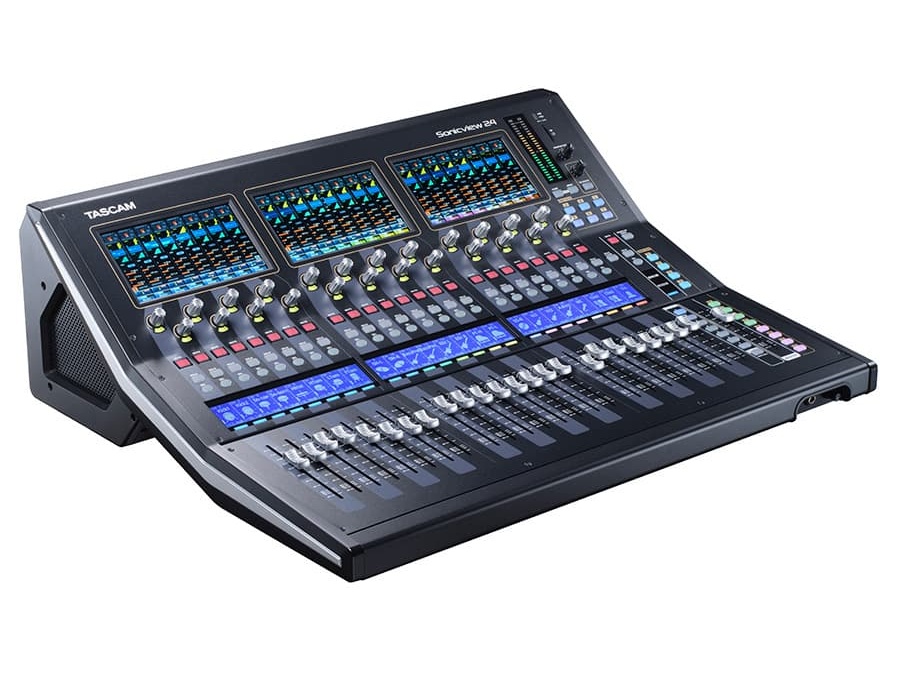

The Sonicview 24XP is a compact digital live mixing station and multi-track recorder designed for ST2110 audio-over-IP environments. It provides SMPTE ST 2110 compliance and integration with AES67 to bring networked audio into broadcast and production workflows. The system pairs a front-end mixer with an IF-ST2110 interface card to deliver full channel count and redundancy.
Key features include up to 64 input and 64 output channels at 48 kHz and support for 32 In/32 Out at 96 kHz. Redundancy is provided via SMPTE ST 2022-7 and the unit supports NMOS IS-04/05 for discovery and connection management. The IF-ST2110 card includes built-in WebUI control along with Ember+ and SNMP monitoring capabilities.
Performance specifications address professional audio transmission and control – supporting ST2110-30/31 and AES67 standards and offering ST2022-7 stream redundancy. Sample-rate configurations include 48 kHz and 96 kHz operation with corresponding channel counts. The device also supports NMOS for registration and management in modern IP studios.
Connectivity covers two media ports for primary and redundant streams and an independent control port for setup and monitoring. The unit exposes the IF-ST2110 WebUI for browser-based configuration and uses the main Ethernet port for Ember+ control. SNMPv1 and SNMPv2 are supported for network monitoring and alerting.
Typical use cases include IP studio systems, remote production links, and OB vehicle integration where high channel counts and network redundancy are required. The Sonicview 24XP is optimized for environments that need multi-track recording plus live mixing while maintaining networked audio standards compliance. It integrates into AES67 and NMOS-managed infrastructures.
Installation and operation emphasize predictable network behavior and system stability – the dedicated IF-ST2110 processing card isolates stream handling from mixer control. The WebUI enables quick configuration and point-to-point stream verification. The unit is built to broadcast standards and provides SNMP and Ember+ hooks for centralized management and monitoring.
