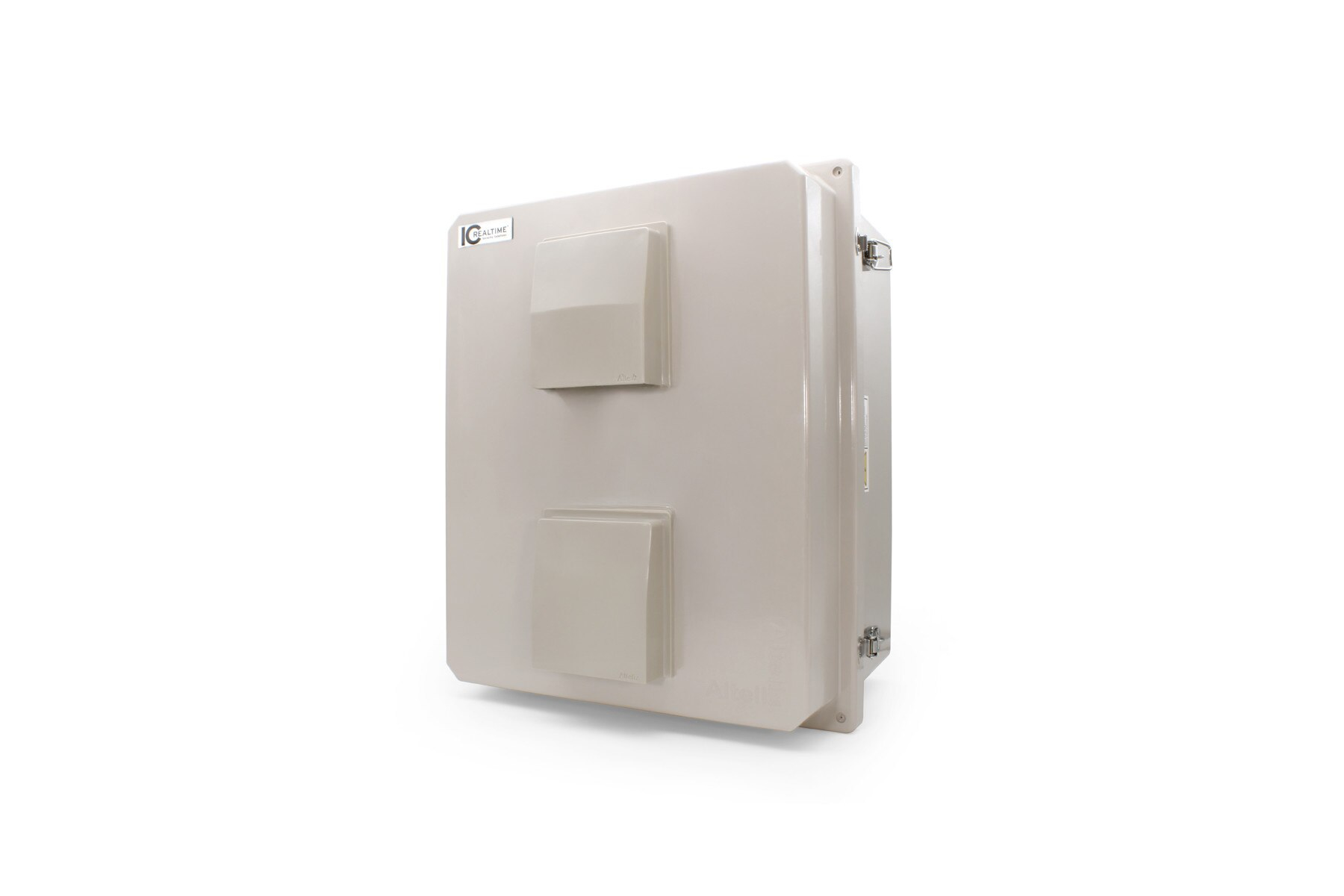

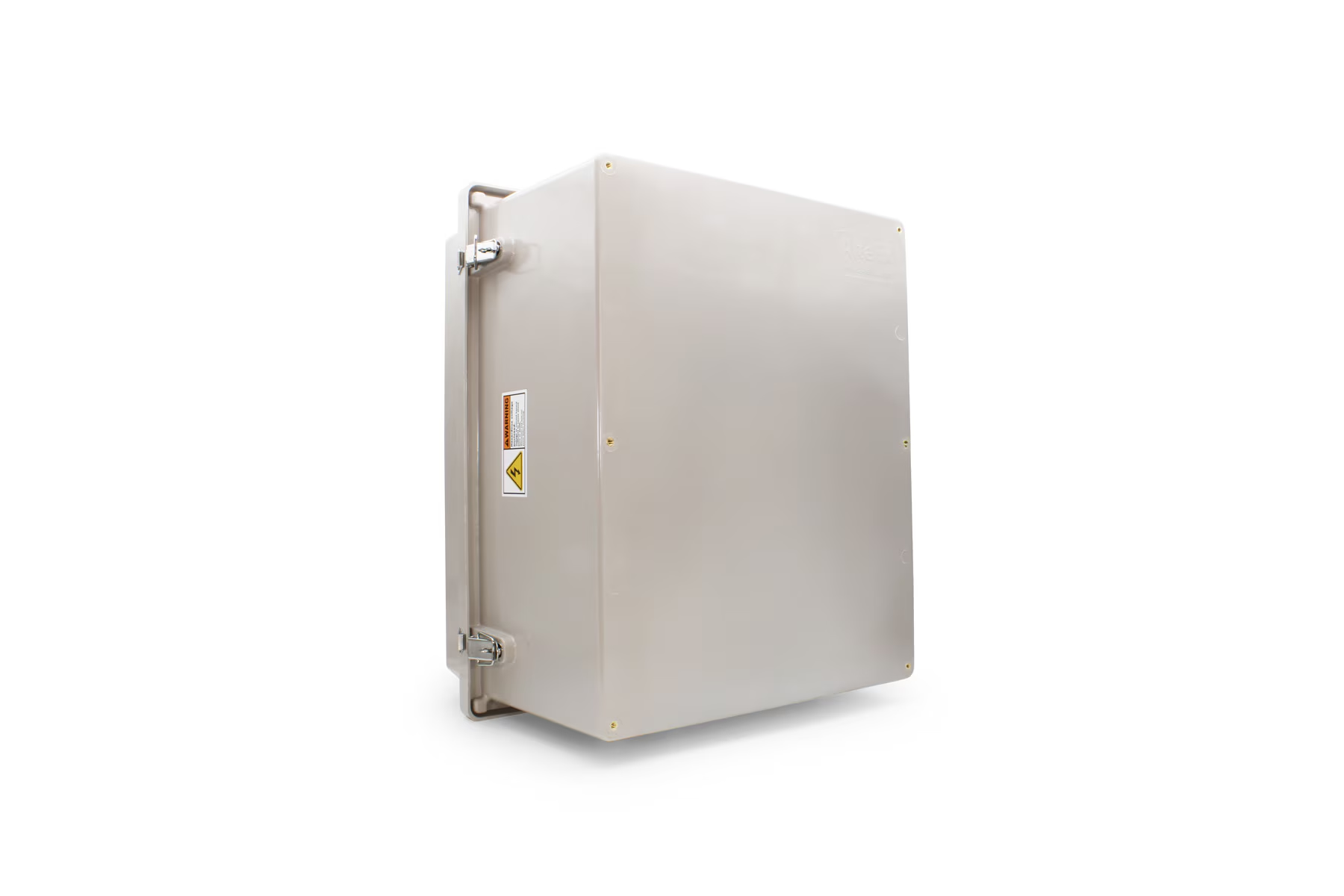

ICRealtime NEMABOX-LG-H-AL Large Heated NEMA Enclosure with Dual Cooling Fans and Aluminum Mounting Plate

Description

Climate-ready outdoor NEMA enclosure for recorders, networking devices, and power components. Dual thermostat-controlled cooling fans plus a 200W heater, pre-wired outlets, and extra interior clearance for demanding installs.

The NEMABOX-LG-H-AL protects critical equipment through heat and cold with automatic fan cooling and a built-in 200W heater. It’s built for integrators who need uptime in extreme climates without custom-build complexity.

Replace ad-hoc housings with a plug-and-play enclosure that adds thermostat-controlled airflow, integrated heating, pre-wired power, and long-term durability—cutting install time and temperature-related callbacks.

Applications

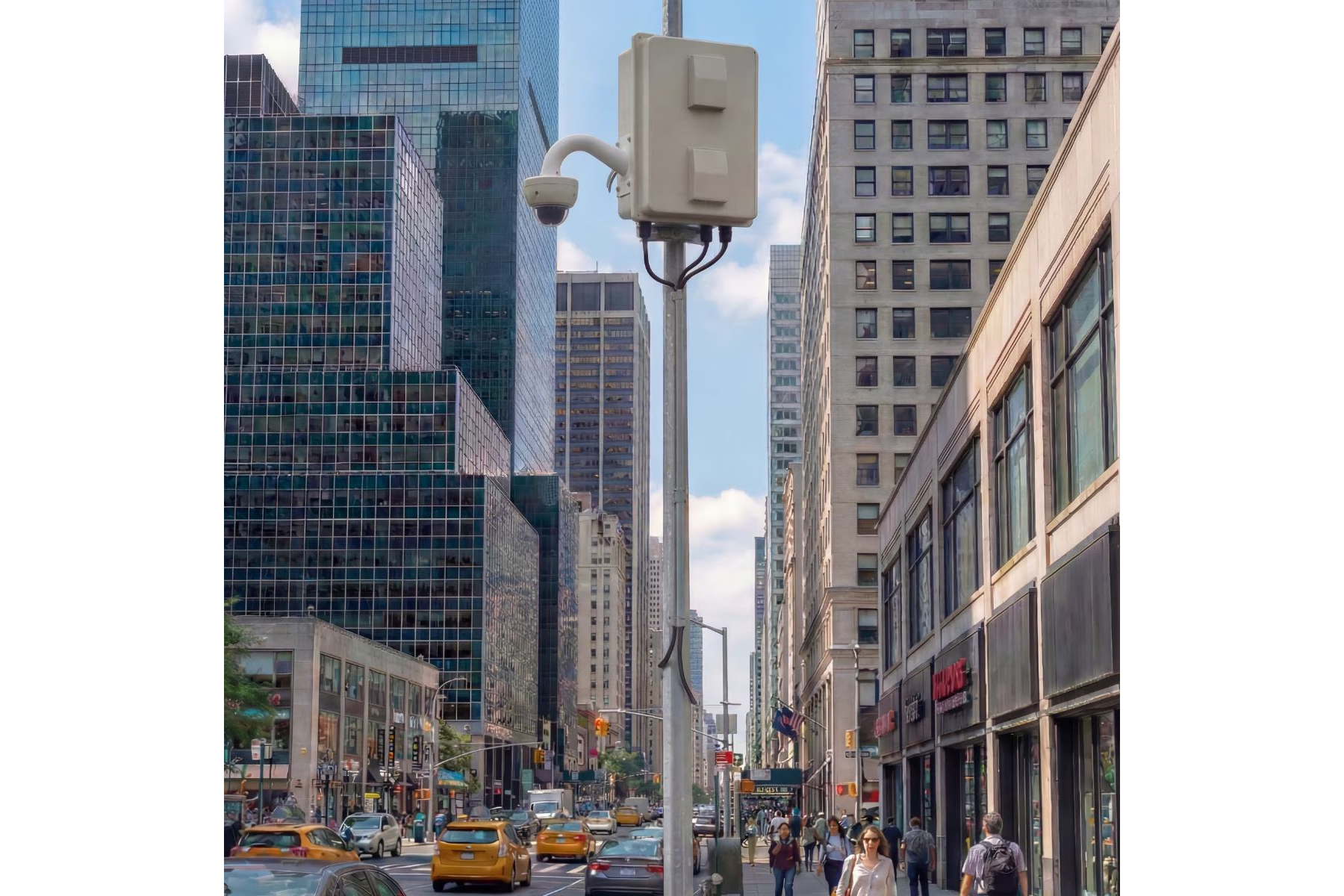

- Outdoor recorder / NVR housing
- Power & cooling hub for surveillance installations
- Protection for networking / PoE gear
- Smart home & AV control in harsh environments

Features

All-weather protection for mission-critical recorders and network gear
Faster installs via pre-wired outlets and quick-connect terminal block

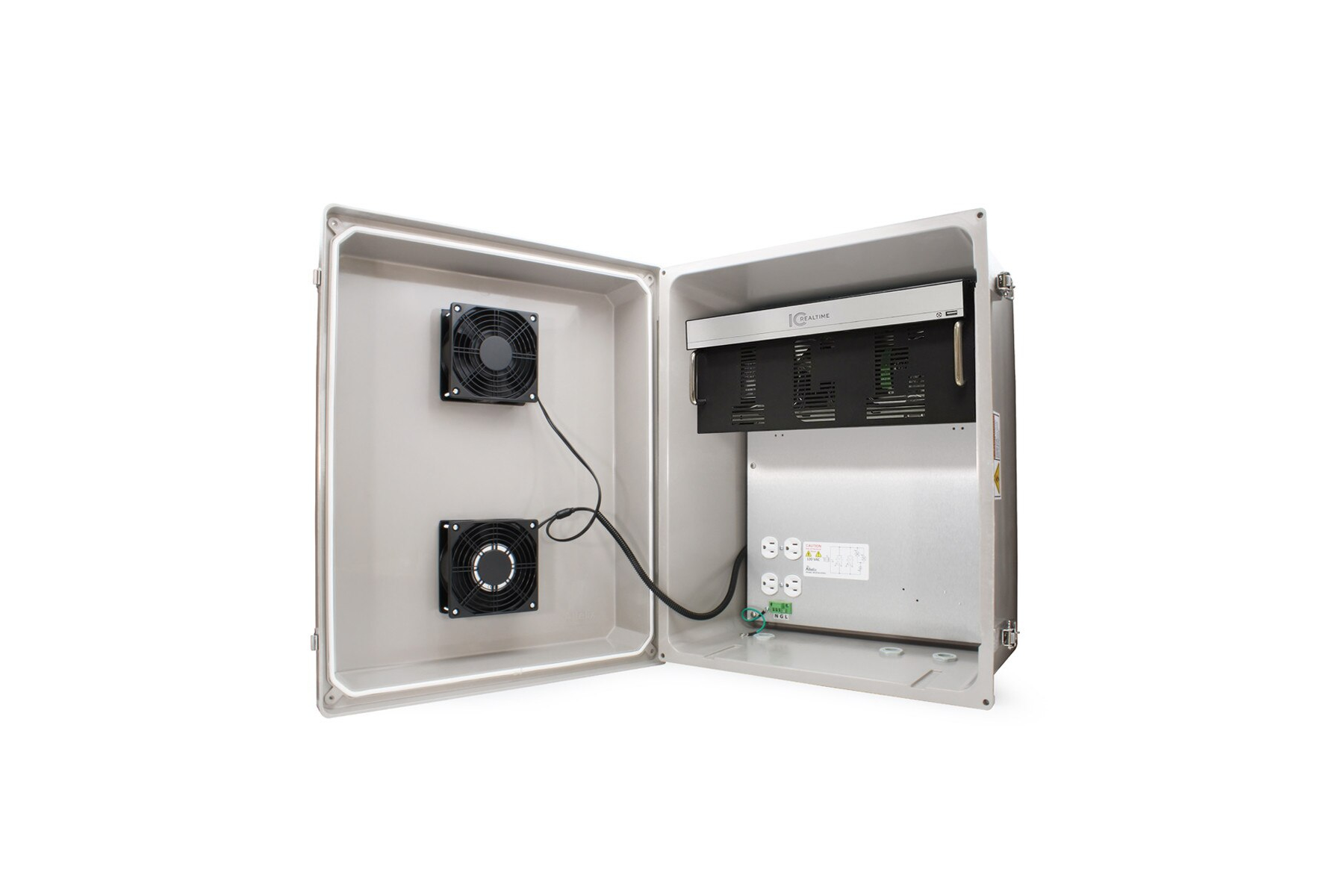

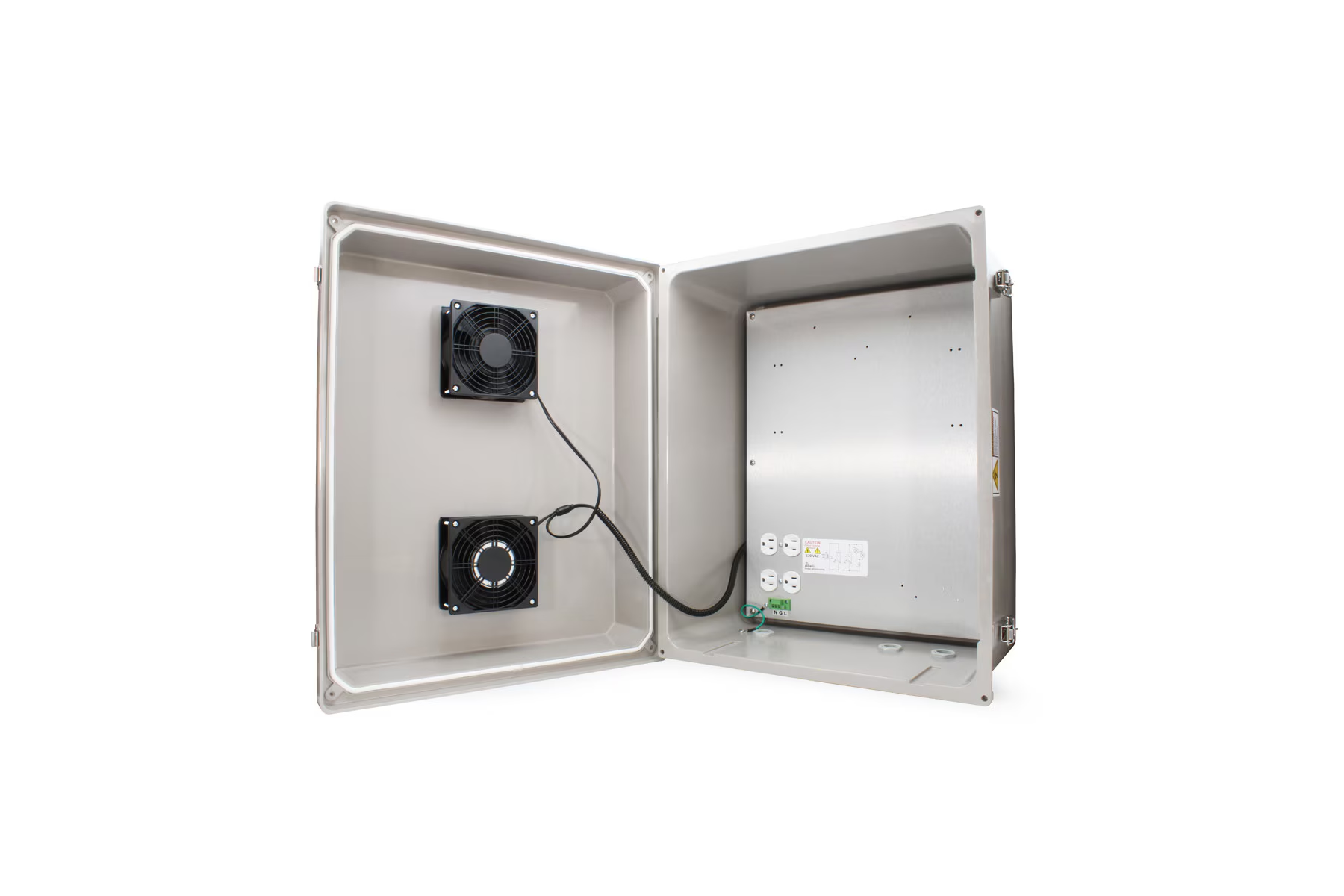

Dual thermostat-controlled fans help extend equipment life

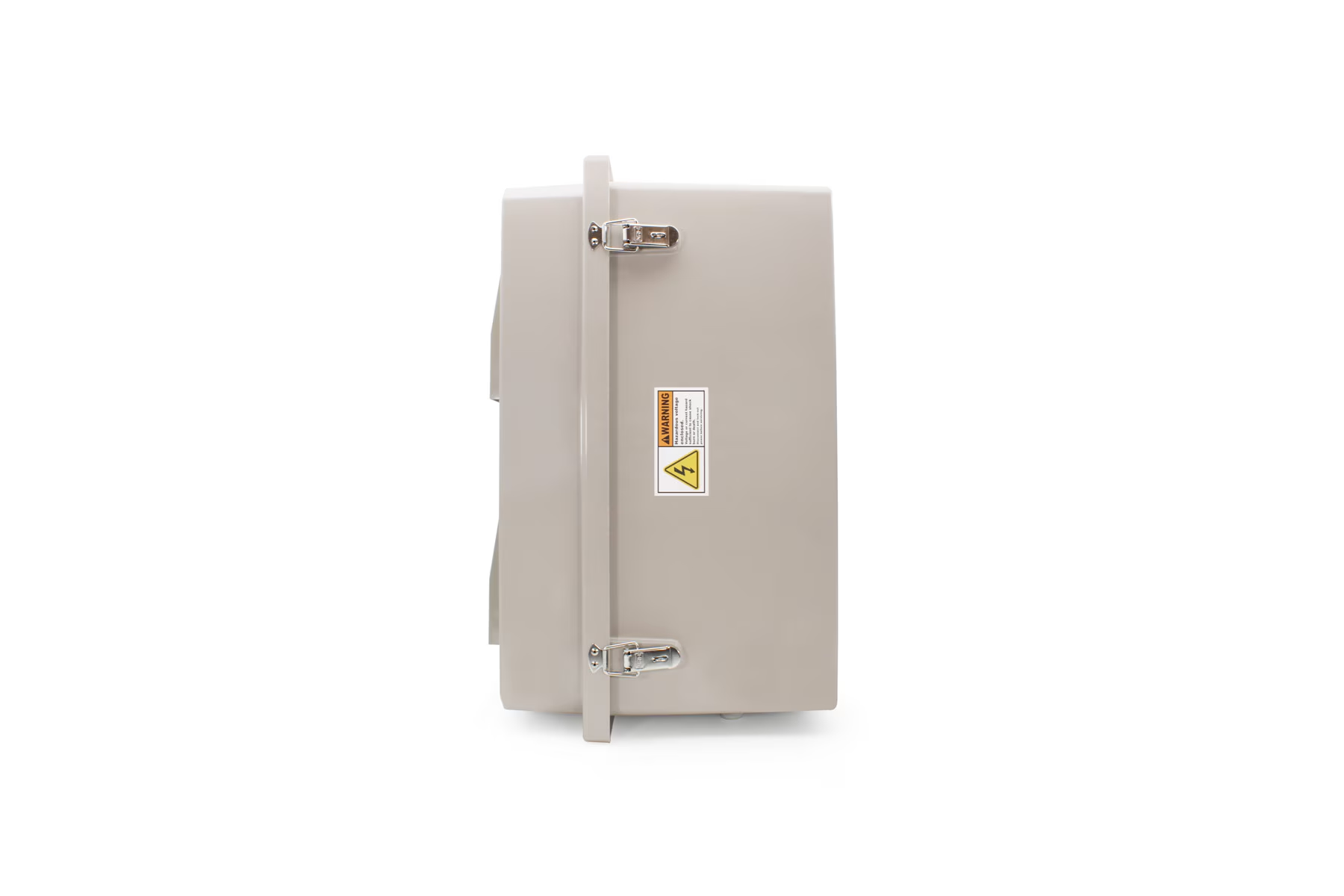

Secure, serviceable access: stainless quick-release latches with padlock hasps

Specifications

Category	Specification
Material	Fiberglass Reinforced Polyester (FRP)
Voltage / Max Load	120VAC / 15A
Cooling Fans	On 100°F (38°C), Off 79°F (26°C)
Heater	200W — On 43°F (6°C), Off 59°F (15°C)
Outer Dimensions	21.8 × 17.9 × 14.3 in (553 × 454 × 363 mm)
Inner Dimensions	18.7 × 14.7 × 9.5 in (475 × 374 × 241 mm)
Mounting Plate	0.08 in (2.0 mm) Aluminum, 18.7 × 14.8 in (475 × 378 mm)
Weight	21.6 lbs (9.9 kg)
Terminal Block	12–18 AWG
Rating	NEMA Type 3R, 3RX / IP24
Flame Rating	UL94-5V
