Description

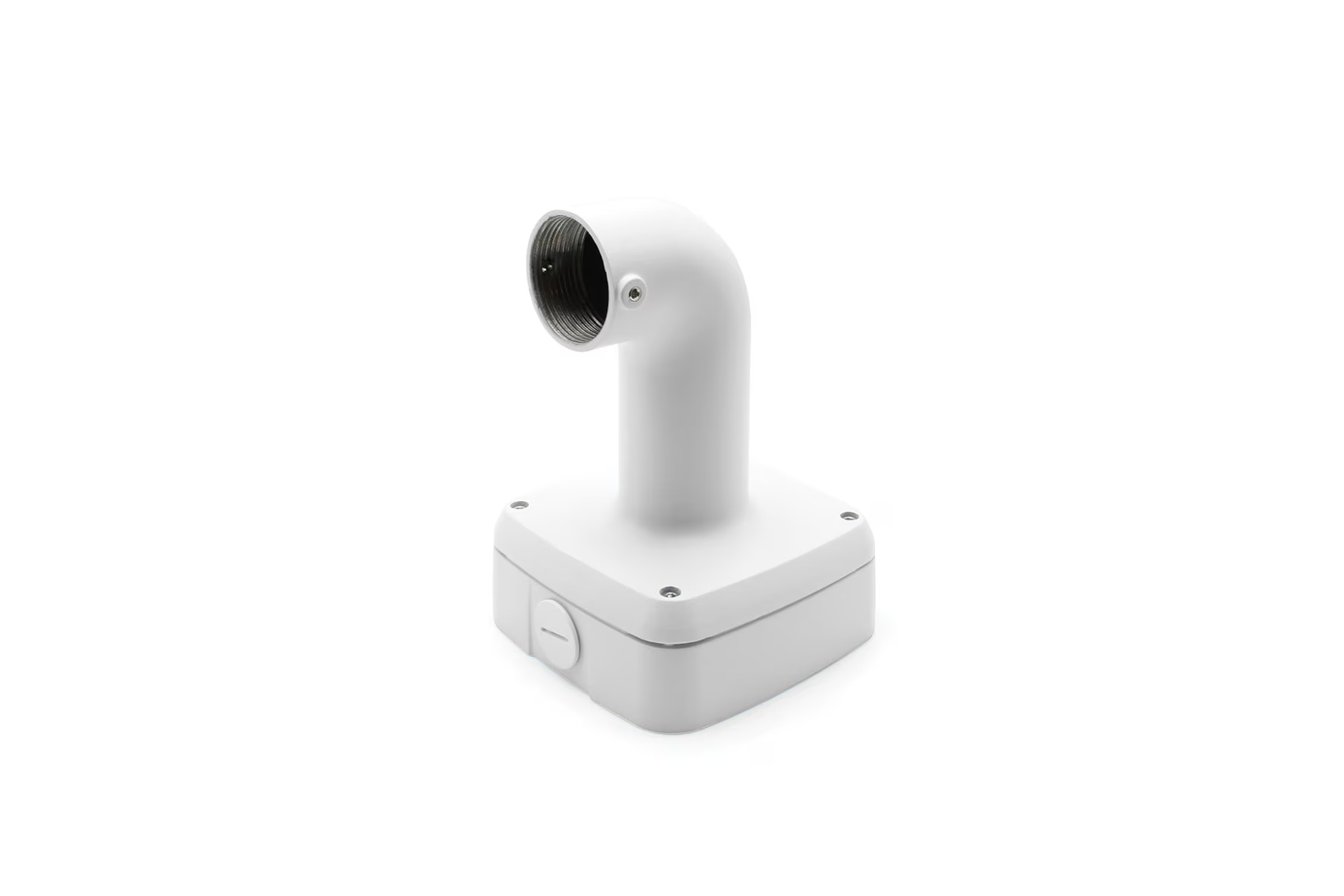

The MNT-ARM-V2 is a wall mount arm that integrates a weather-sealed IP66 junction box to simplify outdoor camera installations. This aluminum mount combines structural support and a protected wiring cavity to reduce installation steps. The color-matched design maintains a clean, professional exterior appearance on vertical surfaces.
Key features include an integrated IP66 junction box that houses and protects weather-sealed connections, an aluminum construction for corrosion resistance, and a compact footprint that fits most medium dome cameras and PTZs when used with compatible adapters. The arm supports a meaningful payload capacity for medium camera heads and provides consistent mechanical alignment. It is engineered to save time on routing and securing cables during deployment.
Technical specifications cover the core physical and environmental parameters of the arm. The product dimensions are 5.28″x5.25″x7.38″ (297mmx248mmx106mm), and the unit weight is 1.54lb (0.7kg). It has a load bearing capacity of 8.82lb (4.0kg), an operating temperature range of -40°F~140°F (40ºC~60ºC), and a humidity tolerance of 0~90% RH.
Connectivity and compatibility focus on camera mounting and conduit access. The arm includes a G 3/4″ inch thread for conduit entry and accepts standard adapter caps to mount medium dome cameras, PTZs, and select bullet cameras when appropriate adapters are used. Applicable adapter models include MNT-DVIR-V2, MNT-N23X4D-MPA102 and MNT-DVIR-MPA100, ensuring compatibility with a range of ICRealtime camera housings.
Common use cases include outdoor surveillance on retail storefronts, parking areas, building perimeters and commercial installations where a weatherproof junction and tidy cabling are required. The integrated junction box reduces the need for separate enclosures and helps maintain a vandal-resistant installation. It is also suited for retrofits where installers replace older wall arms and consolidate wiring into a single mounting solution.
Installation is streamlined by the combined arm and junction box design that reduces separate mounting and boxing steps. The aluminum casting provides structural rigidity and corrosion resistance for long-term outdoor use. Overall, the MNT-ARM-V2 delivers a compact, serviceable mounting solution that protects connections and accelerates field deployments.
