TV One MG-FB-61x 4K60 HDR HDMI 2.0 Fiber Optic Extender (Transmitter/Receiver) Kit with ARC/IR up to 984ft/300m

Description

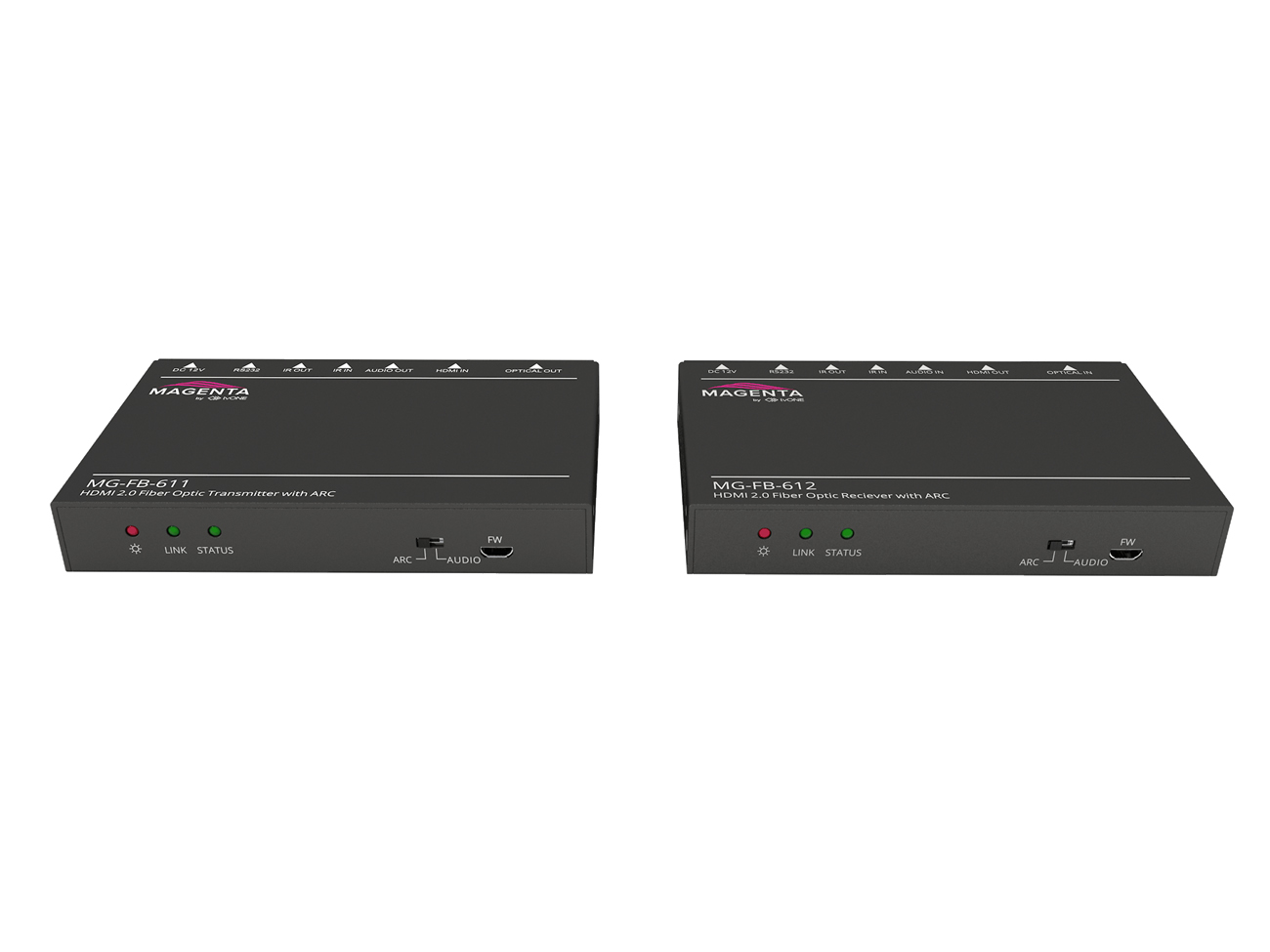

The Magenta fiber optic transmitter and receiver kit (MG-FB-61x) is a powerful solution for extending uncompressed 4Kx2k 60Hz HDMI 2.0 signals over very long distances. The MG-FB-61x supports resolutions up to 4K60 4:4:4 with no compression and zero latency at distances up to 984ft (300m) using either single mode or multi-mode LC fiber. Support is also available for HDCP 2.2, HDR, bidirectional RS-232 and IR in addition to Audio Return Channel, CEC, and EDID pass through, making any installation simple. The Magenta fiber optic extender kit is completely secure and has industry leading RF and EMC immunity to ensure the highest levels of performance and signal integrity, while additionally providing the benefit of future proofing your installations.

Features:

Extends 4K60 uncompressed up to 984ft (300m)
Industry leading 5-year warranty
HDMI 2.0
HDCP 2.2 compliant
EDID & HDR support
Bi-directional IR and RS-232 pass-through
Audio Return Channel (ARC) using Toslink
Mounting ears included
Locking power supply connectors

Specifications

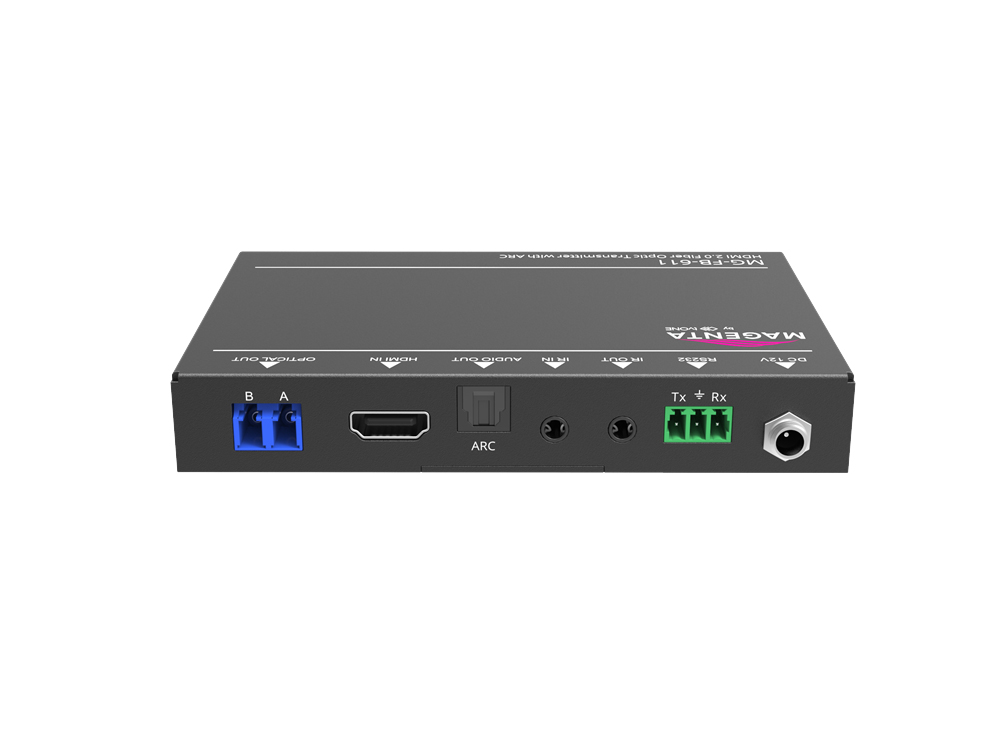

Transmitter

Input (1) HDMI IN
Input Connector (1) Type-A female HDMI
Output (2) OPTICAL OUT; (1) AUDIO OUT
Output Connector (2) LC connector; (1) Toslink connector
Control (1) IR IN; (1) IR OUT; (1) RS232
Control Connector (2) 3.5mm mini jacks; (1) 3-pin terminal block

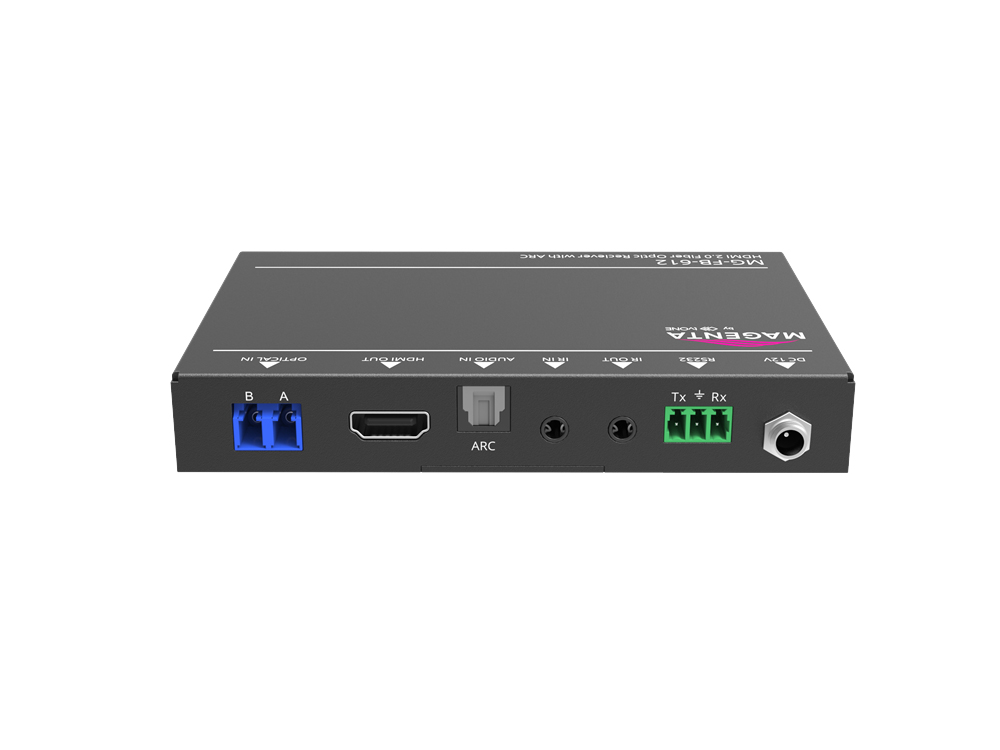

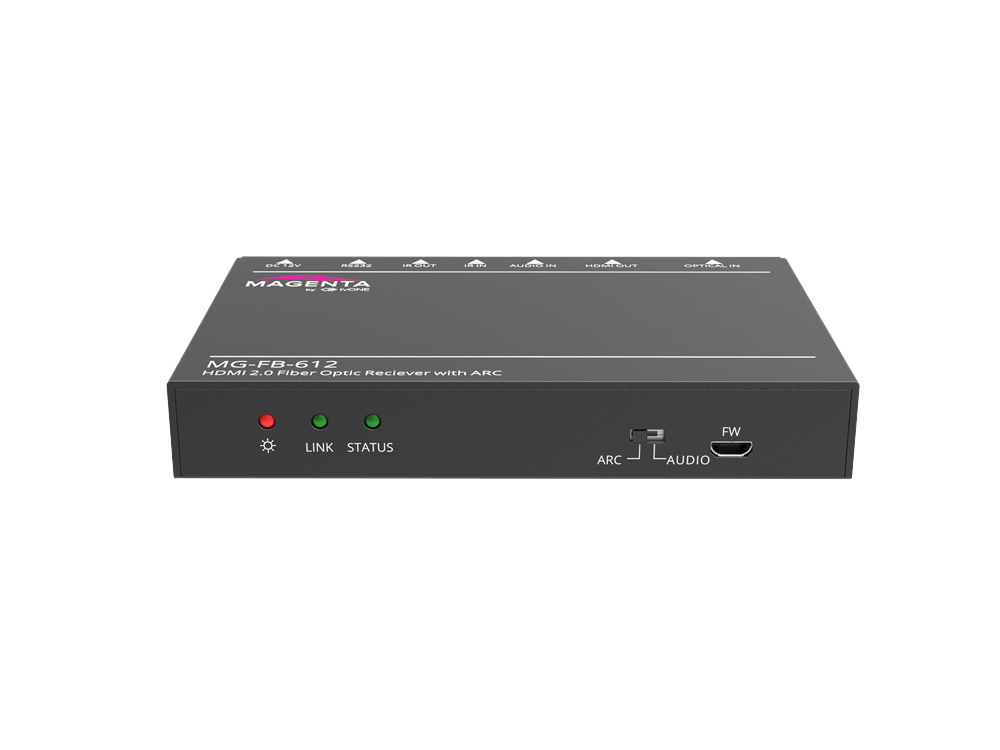

Receiver

Input (2) OPTICAL IN; (1) AUDIO IN
Input Connector (2) LC connector; (1) Toslink connector
Output (1) HDMI OUT
Output Connector (1) Type-A female HDMI
Control (1) IR IN; (1) IR OUT; (1) RS232
Control Connector (2) 3.5mm mini jacks; (1) 3-pin terminal block

General

Video Resolution Up to 4Kx2K 60Hz 4:4:4 HDR
Bandwidth 18Gbps
Color depth 16bpc (48bit/px)
Audio Format PCM, Dolby Digital, DTS, DTS-HD
HDMI Standard 2.0
HDCP Version 2.2
CEC Supported
EDID Pass-through Supported
HPD Supported
Transmission Distance up to 984ft (300m) via single-mode or
OM3/OM4 multi-mode fiber cables.
Operation Temperature -10°C ~ +55°C
Storage Temperature -25°C +70°C
Relative Humility 10%-90%
Power Supply Input: AC 100~240V, 50/60Hz; Output: 12V
DC 1A.
Replacement PSU PS-12-10-LK
Power Consumption 9W (max)
Warranty 5y
Dimension (W*H*D) 130mm x 20mm x 84mm
Net Weight 175g
