Description
Download Manual KN1132VB KVM over IP Switch
The KN1132VB KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, and FIPS 140-2 level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module.
Equipped with dual on-board NICs, the KN series ensures high reliability and availability of remote access to all servers. It can be remotely accessed via WinClient or JavaClient from a separated location for management and operation. ATEN also provides an iOS app – PadClient – allowing users to connect and control computers directly from an iPad.
This KVM switch provides out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. IT administrators can manage servers, storage, routers, and switches via management networks that are separate from production networks.

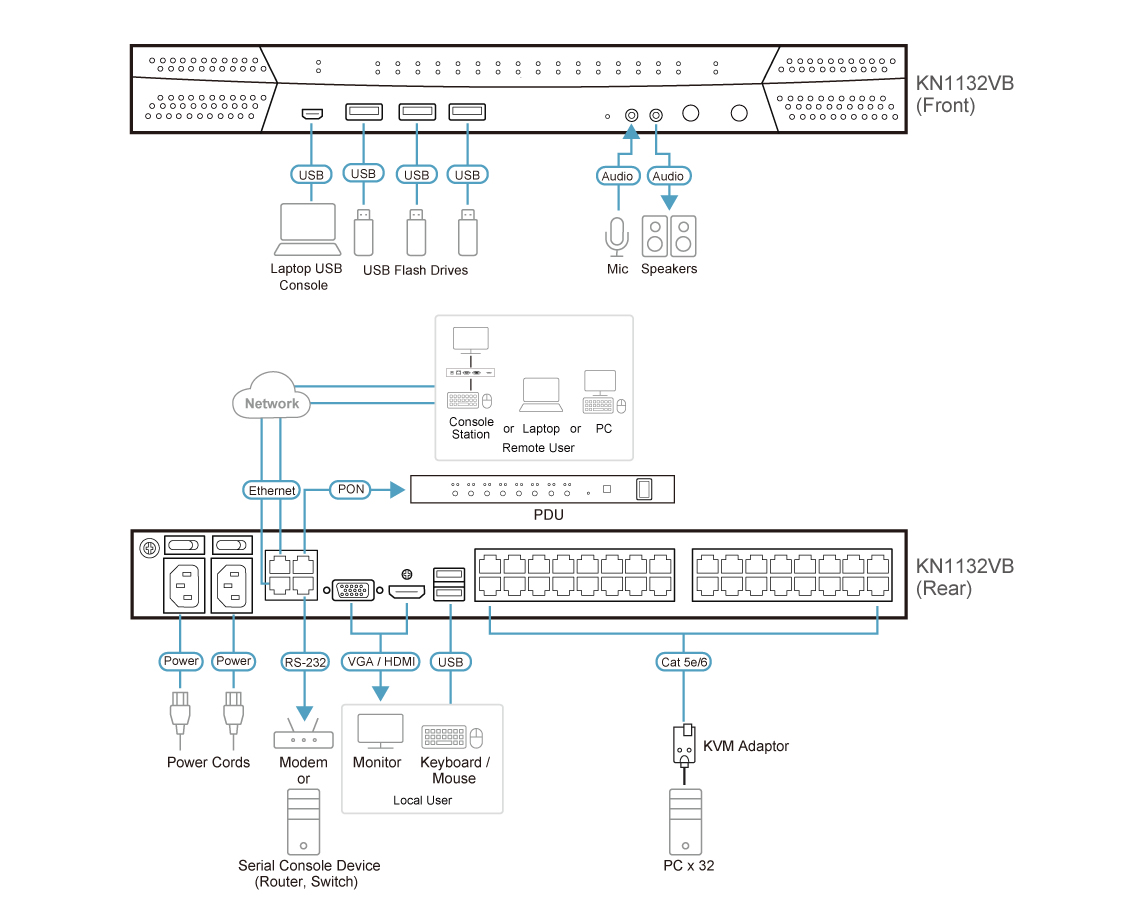

Out-of-band access methods include a local console connection, USB console connection from a laptop, PSTN modem connection, or a dedicated management network via Ethernet (LAN).
The KN series integrates with ATEN’s CC2000 Centralized Management Software, delivering improved usability through consolidated data, task-based navigation, and simplified menus.
It is also compatible with ATEN’s KA82 series KVM over IP Console Stations, providing secure, PC-free access in restricted environments. Additionally, the KN series works with ATEN PDU remote power management systems via the KVM user interface.
Exclusive features include Message Board, Panel Array Mode, Mouse DynaSync™, and Adapter ID. These capabilities help administrators manage data centers from virtually anywhere, reducing travel time and MTTR while maximizing service availability.
Note:
We recommend using the WinClient or JavaClient application for optimal performance. A minimum of 8GB RAM, dual-core CPU, and a graphics card supporting OpenGL is required. Please ensure your browser is updated to the latest version.
Features
Hardware

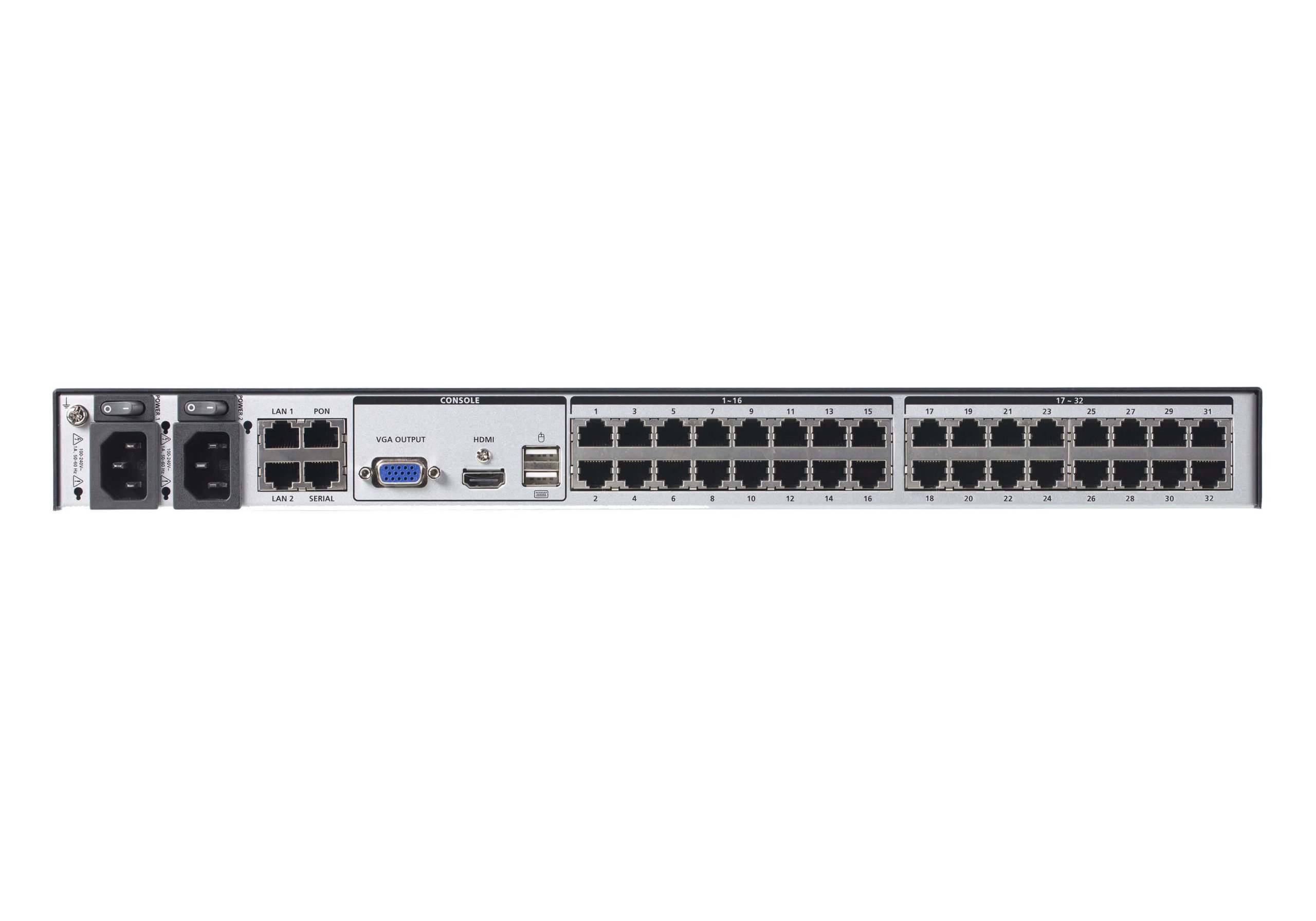

- High port density – up to 32 ports in 1U housing using RJ-45 connectors and Cat 5e/6 cable
- Laptop USB Console (LUC) for direct laptop connection
- Separate bus for remote KVM over IP access
- Dual 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
- Blade server support
- Supports PS/2, USB, Sun Legacy, and serial (RS-232)
- Multiplatform support: Windows, Mac, Sun, Linux, and VT100 serial devices
- Audio enabled
- Dual power supply
- Video resolution up to 1920 x 1200 @ 60Hz, 24-bit color depth
- Transmission distance up to 50m
- Cascadable – controls up to 512 computers
Management
- Simultaneous local console and remote access
- End session control
- Integration with ATEN CC2000 and CCVSR software
- Supports 64 user accounts; up to 32 concurrent users
- Green IT Fan with automatic speed adjustment
- Event logging and Windows-based log server
- Event notifications via email, SNMP Trap, and SMS
- Firmware upgradeable
- Out-of-band access with modem dial-in/dial-out/dial-back
- Adapter ID for easy server relocation
- Port share mode for multiple users
- Supports KA82 series console stations
- Power association with ATEN PDUs
- IPv4 and IPv6 support
Easy-to-Use Interface
- PadClient support for iPad
- Panel Array Mode™ for multi-port monitoring
- Unified multi-language GUI
- Multiplatform client support
- Multi-browser compatibility
- HTML5 WebClient viewer – no Java or plugins required
- Multiple simultaneous remote desktop sessions
- Full-screen and scalable virtual desktops
- Keyboard and mouse broadcast
- EDID-based video optimization
Security
- FIPS 140-2 level 1 certified security
- Authentication via RADIUS, LDAP, LDAPS, and Active Directory
- TLS 1.2 with AES and RSA encryption
- IP and MAC filtering
- Configurable user and group permissions
- CSR creation and third-party CA support
Virtual Media
- High-performance virtual media transmission
- BIOS-level USB support
- Supports USB2.0 DVD/CD, mass storage, HDDs, and ISO images
Virtual Remote Desktop
- Message Board for remote user communication
- Adjustable video quality and bandwidth control
- Mouse DynaSync™
- On-screen multi-language keyboard
- BIOS-level access for troubleshooting
