Description

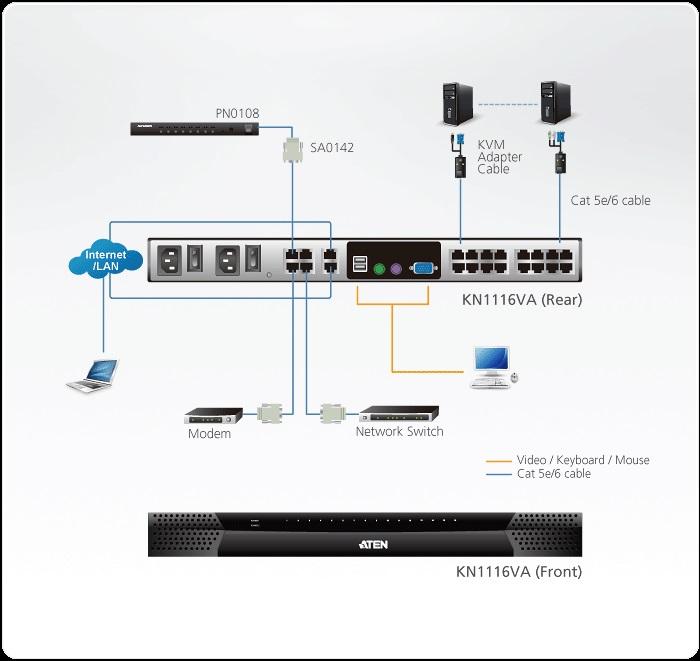

The KN1116VA KVM over IP switch delivers secure local and remote access to server infrastructure using standard Cat5 cabling and web-based management. It provides one local console and one remote over IP session so administrators can access servers at BIOS level and beyond. Dual on-board NICs and dual power supplies ensure continuous availability for critical operations.
Key features include 16 direct KVM ports, support for up to 256 devices via cascading, and Virtual Media for remote mounting of USB drives and ISO images. The switch supports high-resolution local and remote video up to 1920 x 1200 at 60 Hz and includes audio support for applications that require sound. Power Association pairs KVM ports with ATEN PDUs to enable integrated power control from the switch interface.
Performance and security are core strengths of the KN1116VA. Video performance is optimized with EDID management and mouse synchronization for seamless local and remote control. Security features include TLS 1.2 encryption, RSA 2048-bit certificates, IP/MAC filtering, and remote authentication via RADIUS, LDAP, and Active Directory. The unit also supports out-of-band modem access for recovery when the network is unavailable.

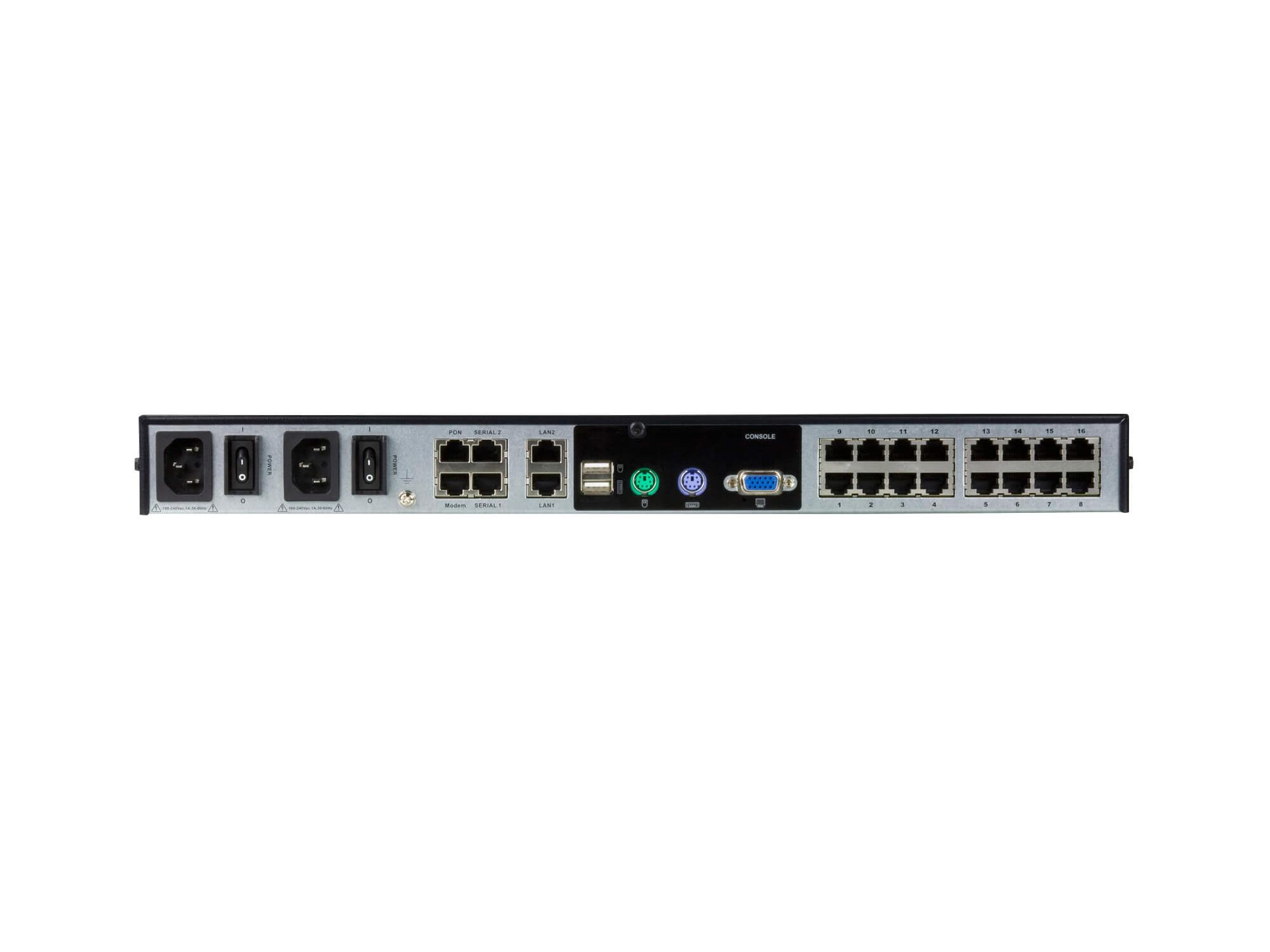

Connectivity covers a broad set of server and console types: PS/2, USB, Sun legacy, and serial VT100 devices are all supported. The unit provides two gigabit LAN ports for redundancy or dual-IP operation, a dedicated Laptop USB Console port, USB ports for peripherals, audio jacks, and RJ-45 KVM adapter connections. The web-based GUI, Java client, Windows client, and iOS PadClient provide flexible access methods for administrators on multiple platforms.
This KVM switch is ideal for data centers, server rooms, and remote management scenarios where reduced mean time to repair and centralized control are priorities. It supports blade servers and chassis and integrates with ATEN CC2000 and CCVSR for centralized management and session recording. Administrators can perform software installs, OS updates, and diagnostics remotely using Virtual Media as if local media were attached.

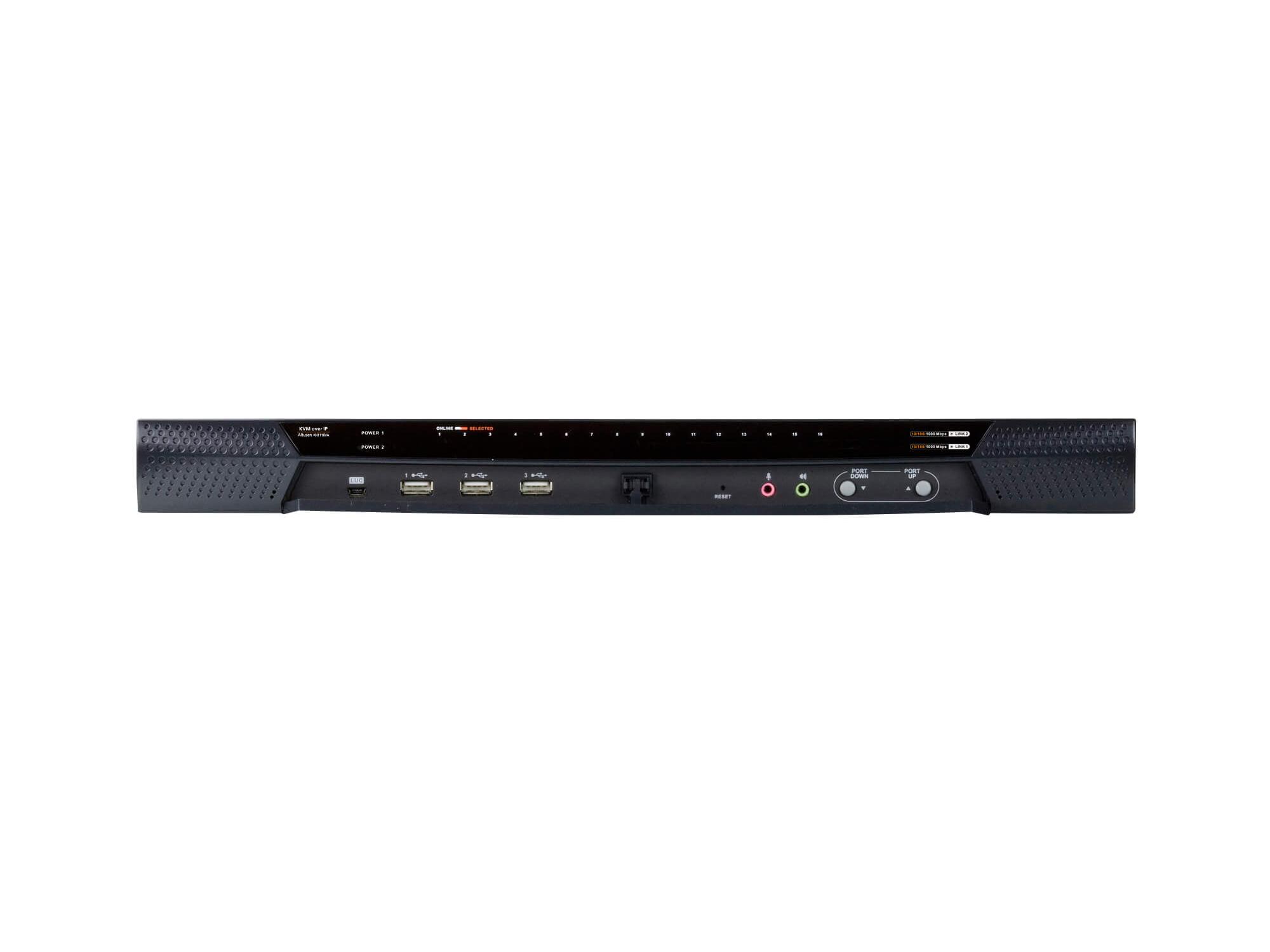

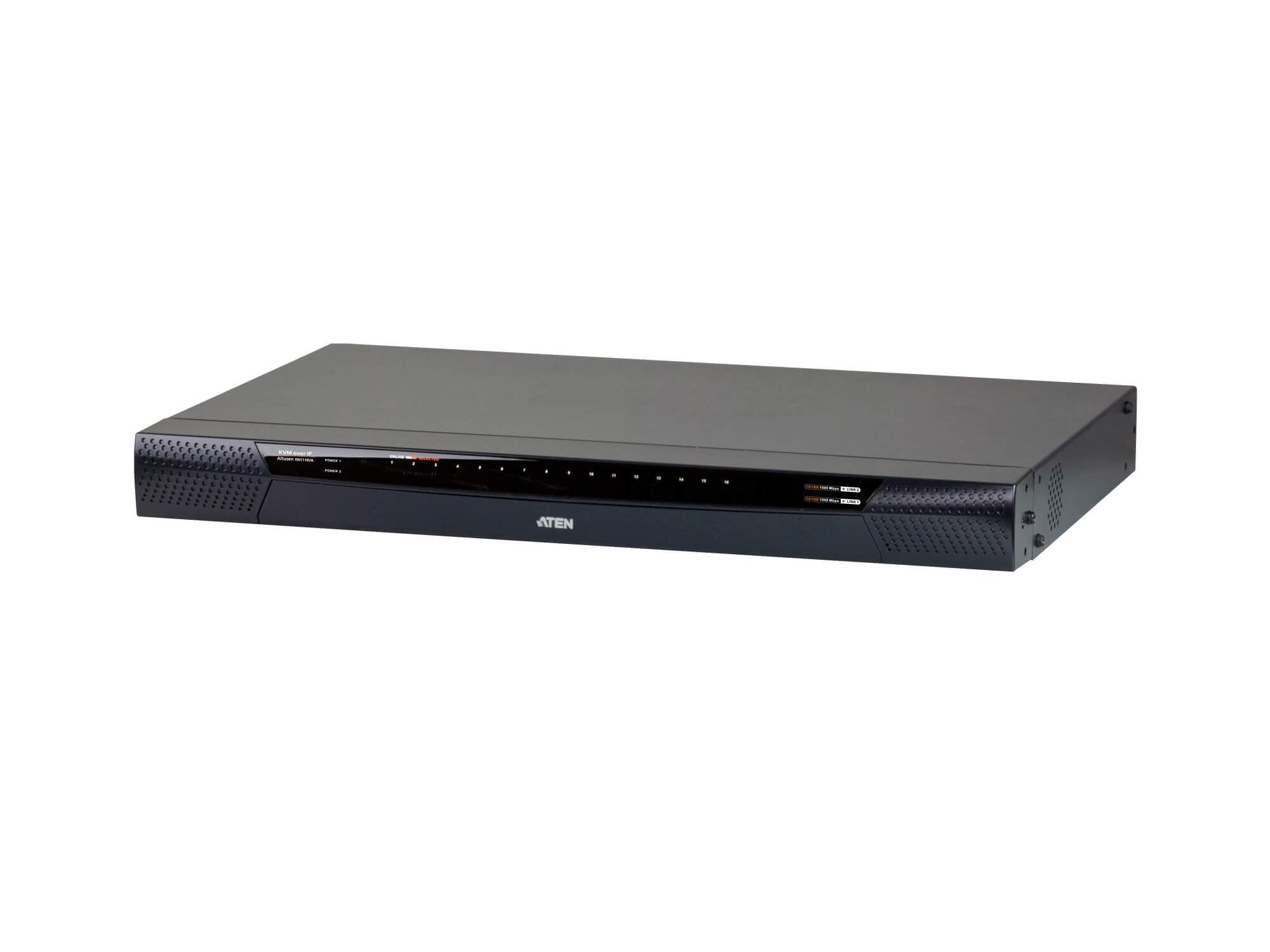

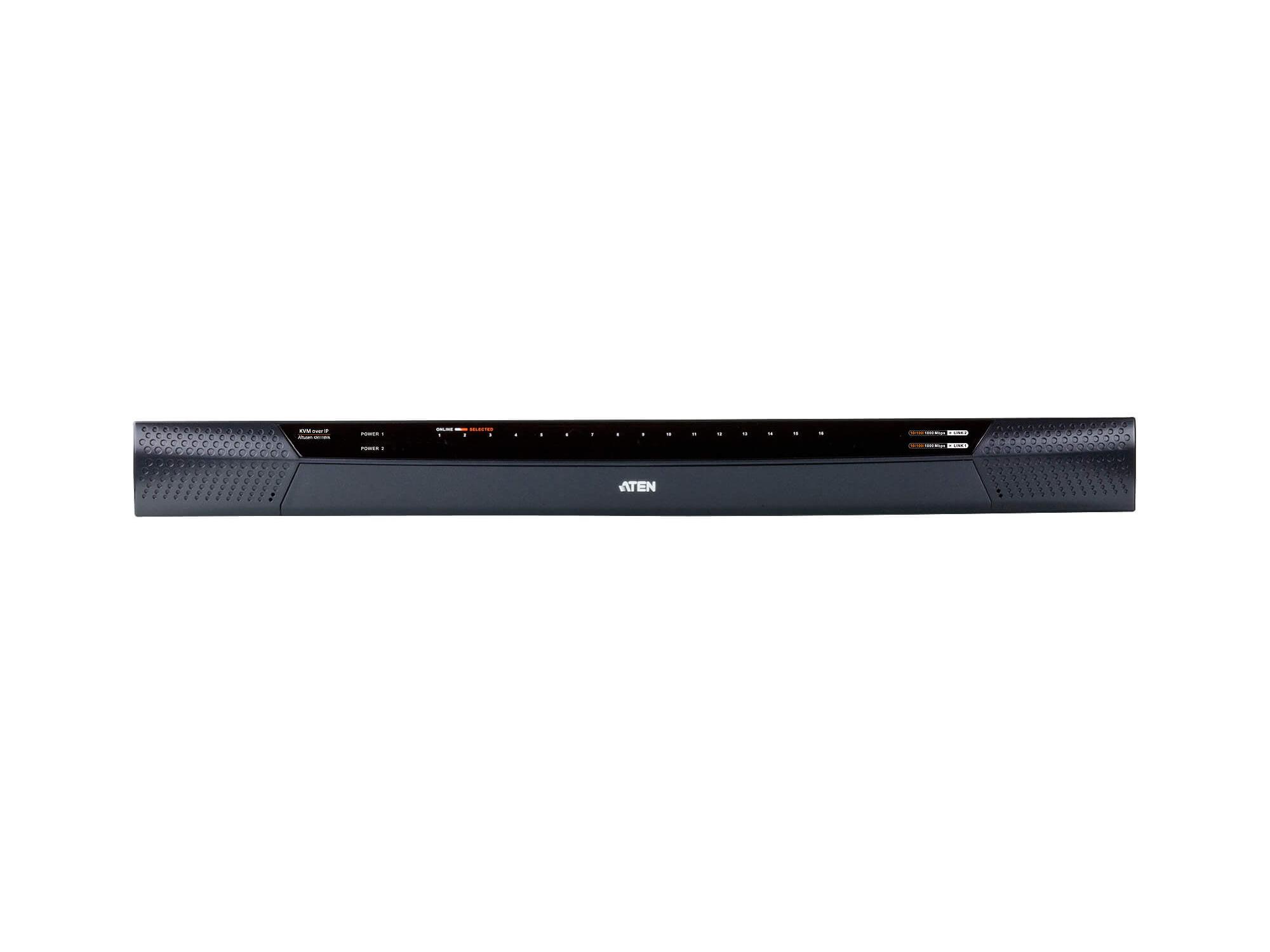

The KN1116VA is built in a 1U metal housing for rack installation and includes a dedicated Laptop USB Console port to simplify local maintenance. Firmware is upgradeable and event logging supports integration with Log Server, SMTP notifications, SNMP traps, and Syslog. Overall, the unit combines robust hardware, multi-layer security, and comprehensive management tools to maintain high availability and operational control in enterprise environments.
