Description

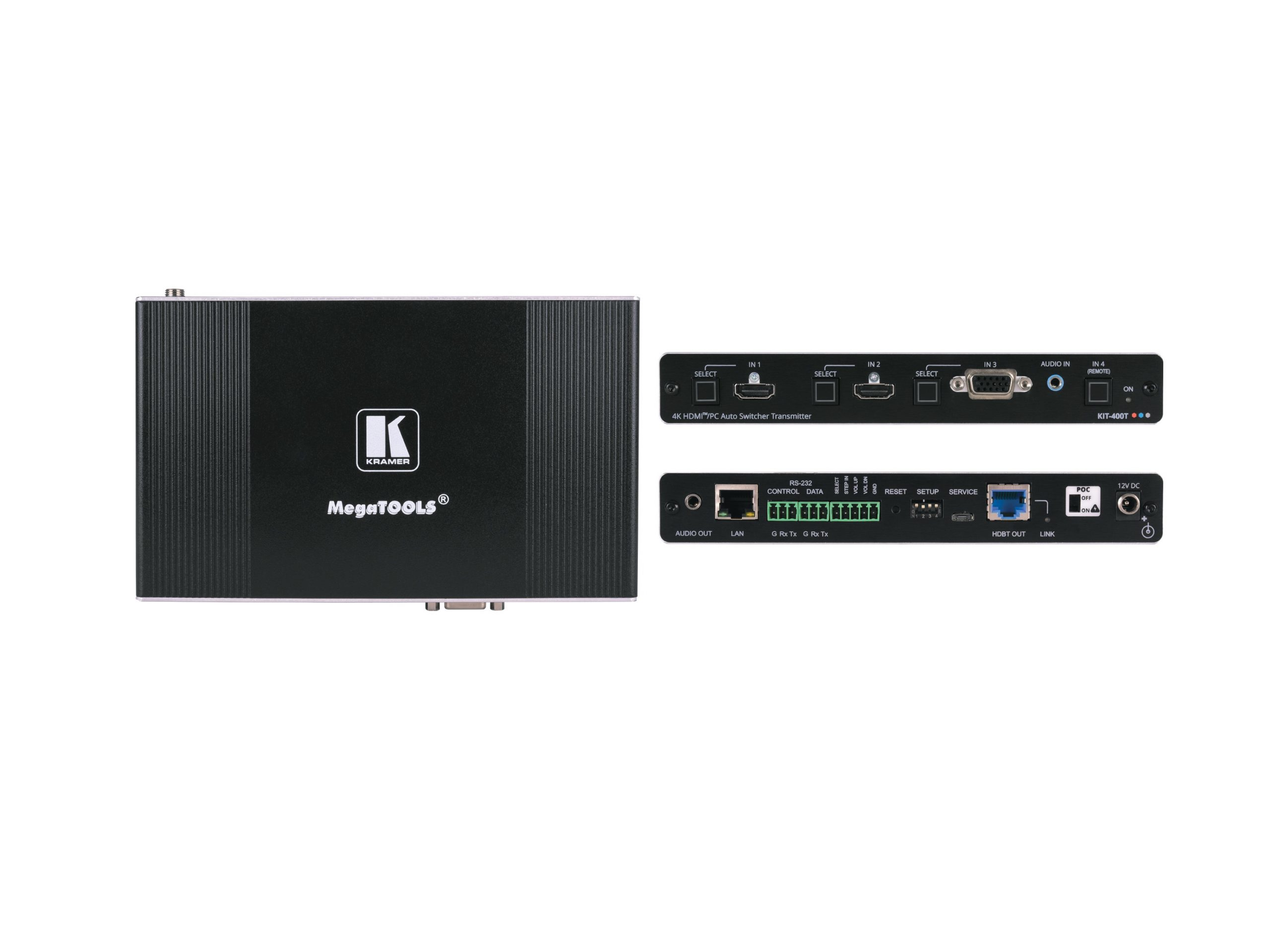

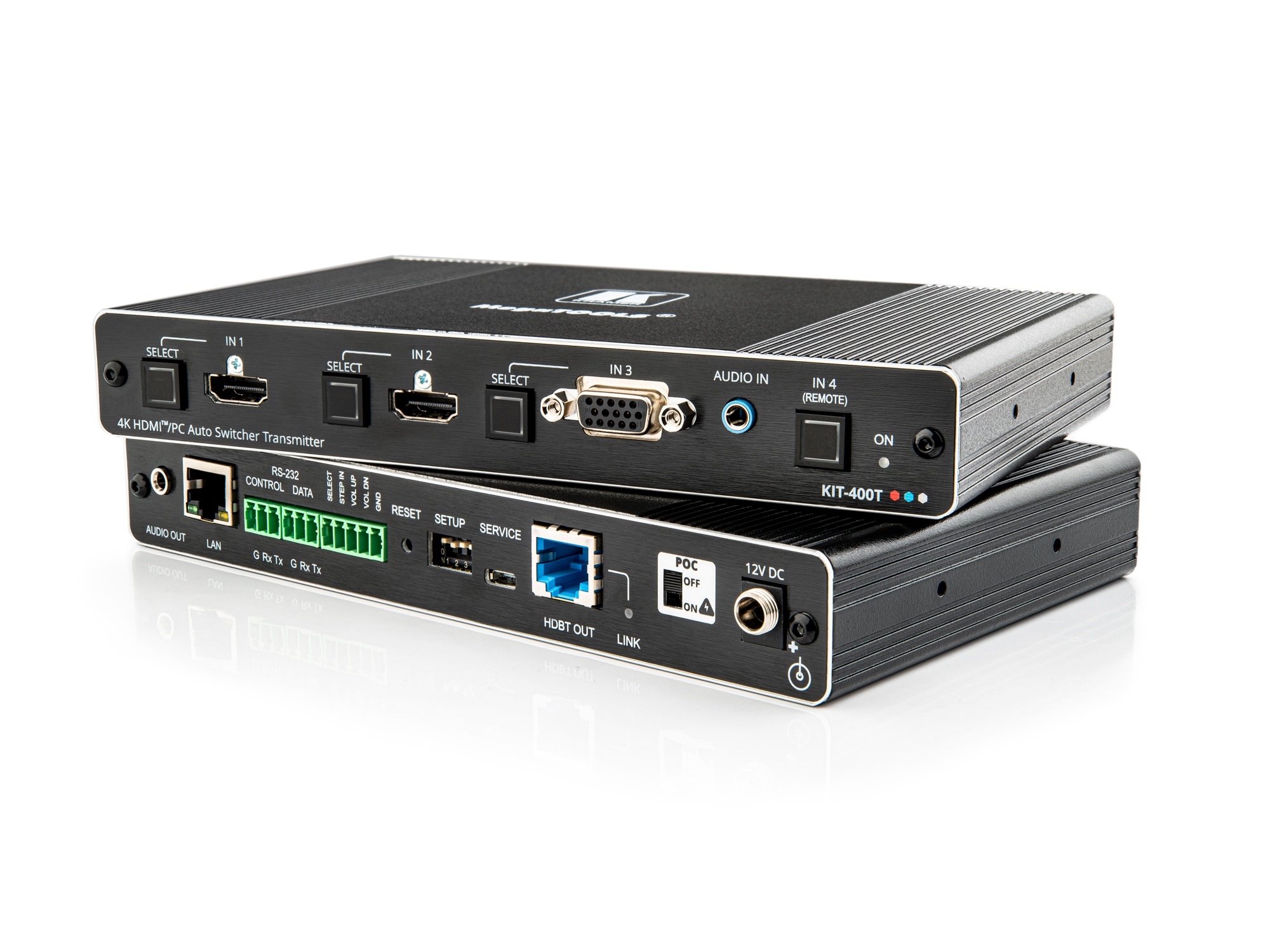

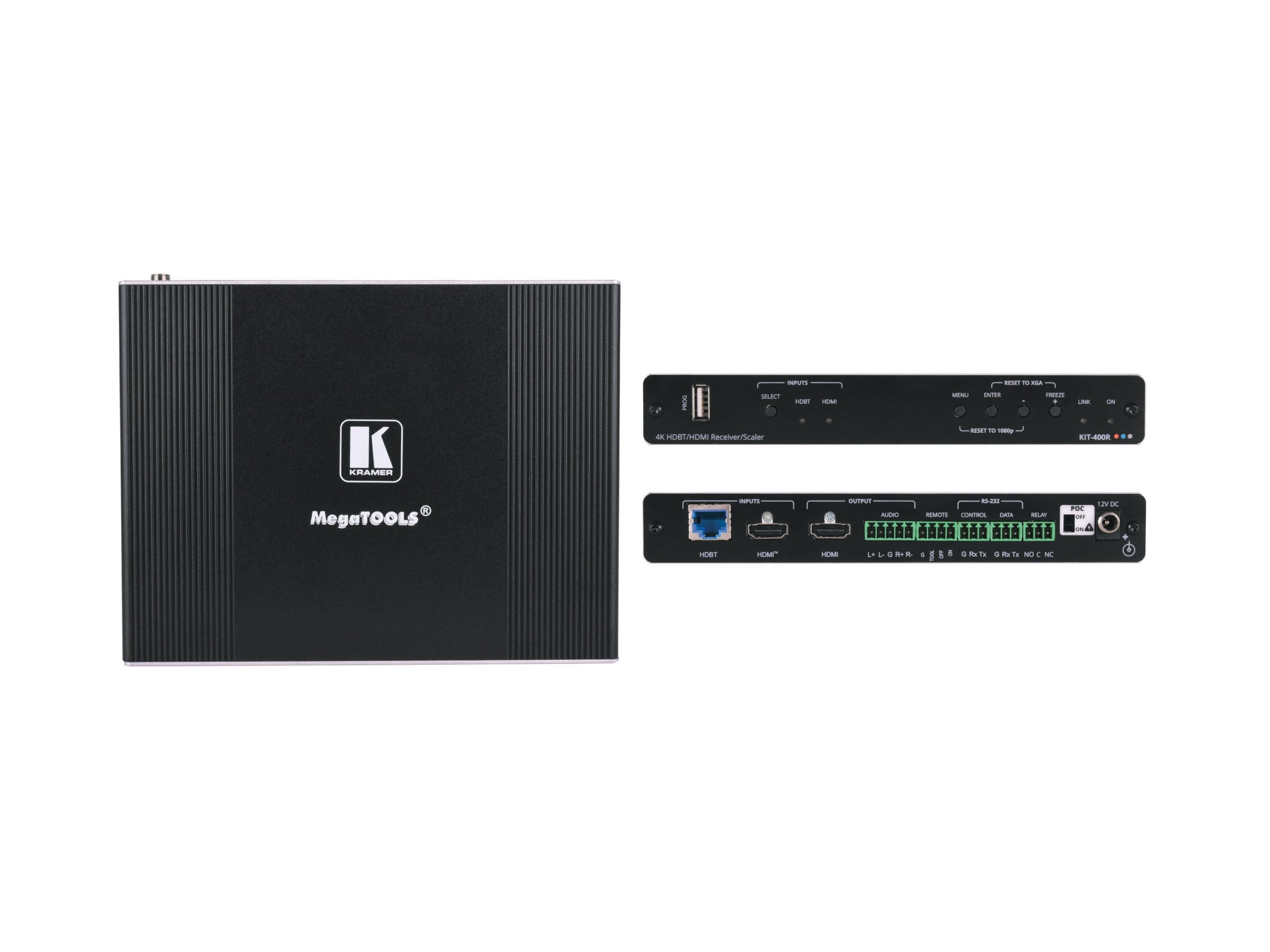

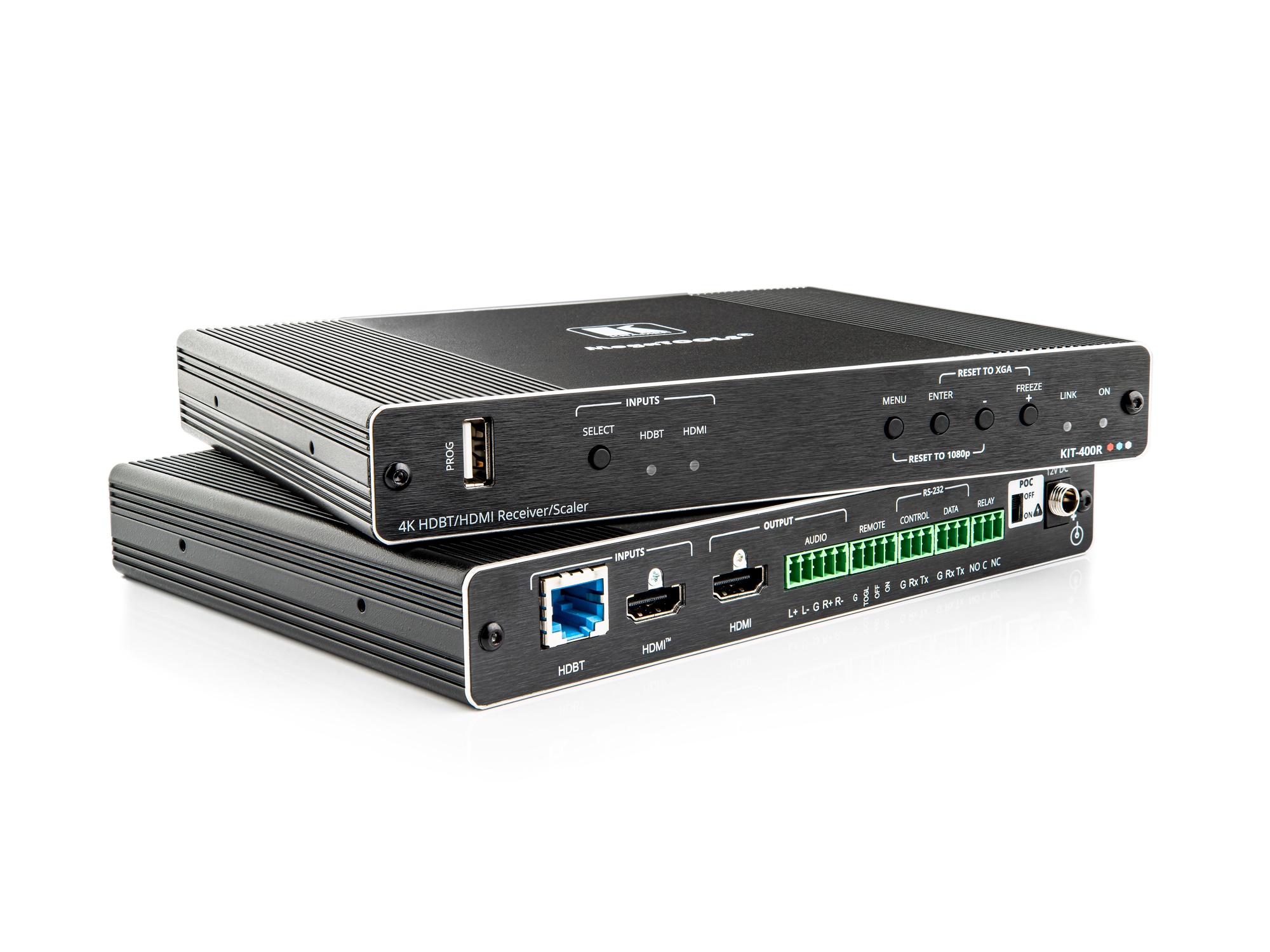

KIT-400 is a high-performance auto-switcher/scaler kit for 4K HDMI™ and VGA over long-reach HDBaseT. The kit includes the KIT-400T transmitter/switcher and the KIT-400R receiver/scaler. The KIT-400T transmitter converts the user-selected input signal into the transmitted HDBaseT signal. The KIT-400R receiver receives the HDBaseT signal, converts it to HDMI and up- or down-scales the picture to match the resolution of the HDMI monitor. KIT-400 extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions
Features:
- Resolution support up to 4K@60Hz (Receiver – 4:4:4; Transmitter – 4:2:0)
- PoC Powered
- Up to 40m (130ft) at 4K@60Hz (4:2:0)
- Up to 70m (230ft): at full HD (1080P@60Hz)
- Simple and Powerful Maestro Room Automation
- Built-in relay and contact closure connections
- HDCP 2.2 & 1.4 compliant
