Description
The KDOCK-5 is a USB-C hub multiport adapter designed to expand a single USB-C host into multiple AV and data interfaces. It connects a USB-C laptop or device to HDMI and DisplayPort video outputs, three USB 3.2 Gen 1 ports, Gigabit Ethernet, a 3.5 mm headset jack and a USB-C power delivery port. The unit provides a compact desktop docking solution that centralizes connectivity for modern USB-C systems.
Main capabilities include single-display 4K60 video support and dual-display capability at reduced refresh rates, three high-speed USB 3.2 Gen 1 ports supporting up to 5.0 Gbps, and Gigabit Ethernet for reliable network access. A dedicated USB-C PD port accepts up to 100W power delivery to charge the host while connected. The integrated 3.5 mm headset jack supports combined audio and microphone connections for conferencing.
Video performance is specified for Windows MST and Mac OS SST modes with single-display 3840×2160@60Hz support and dual-display limitations on Windows to 3840×2160@30Hz. USB data throughput uses USB 3.0/USB 3.2 Gen 1 at up to 5.0 Gbps. Ethernet performance supports 10/100/1000 Mbps with Wake-on-LAN, PXE boot and a single MAC address.

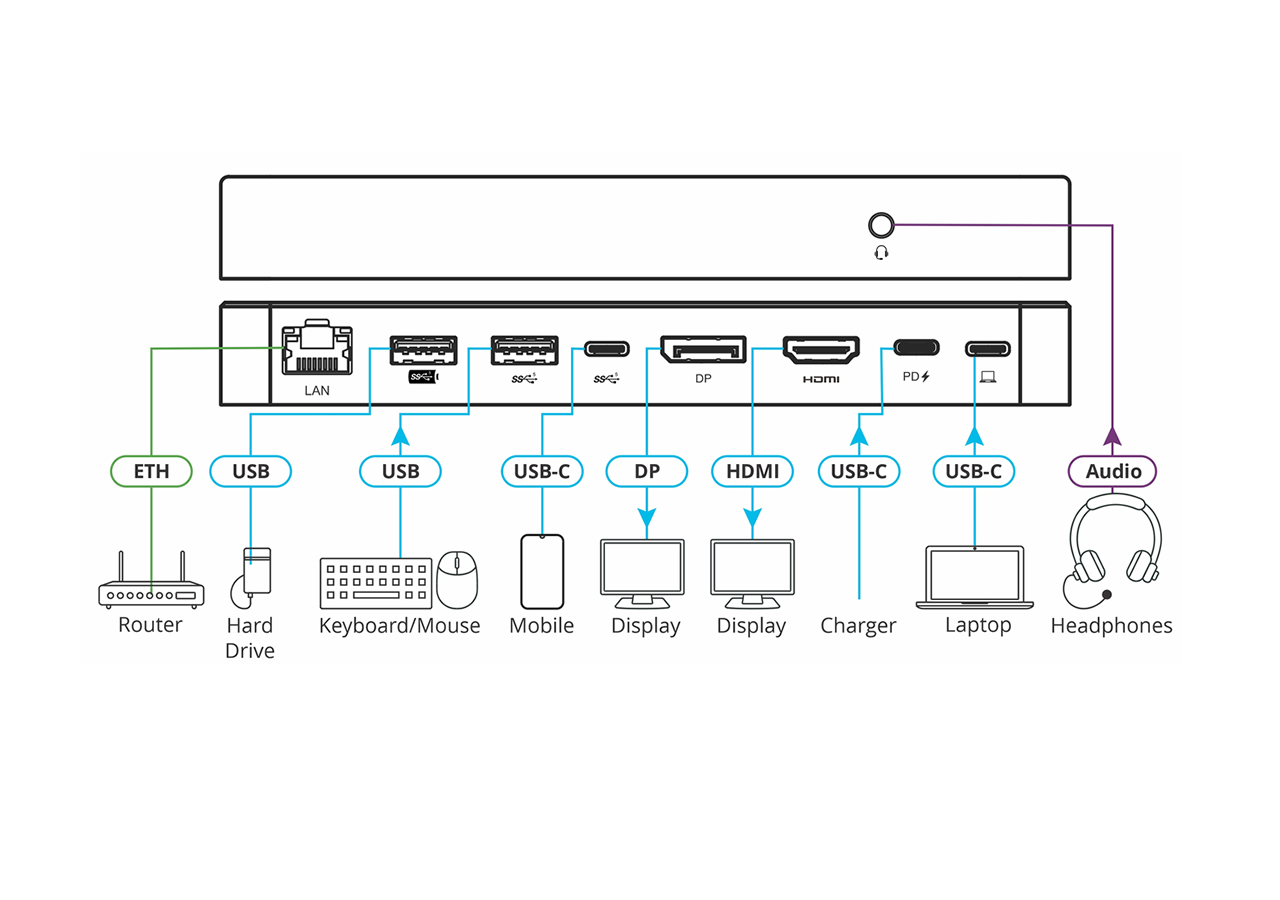

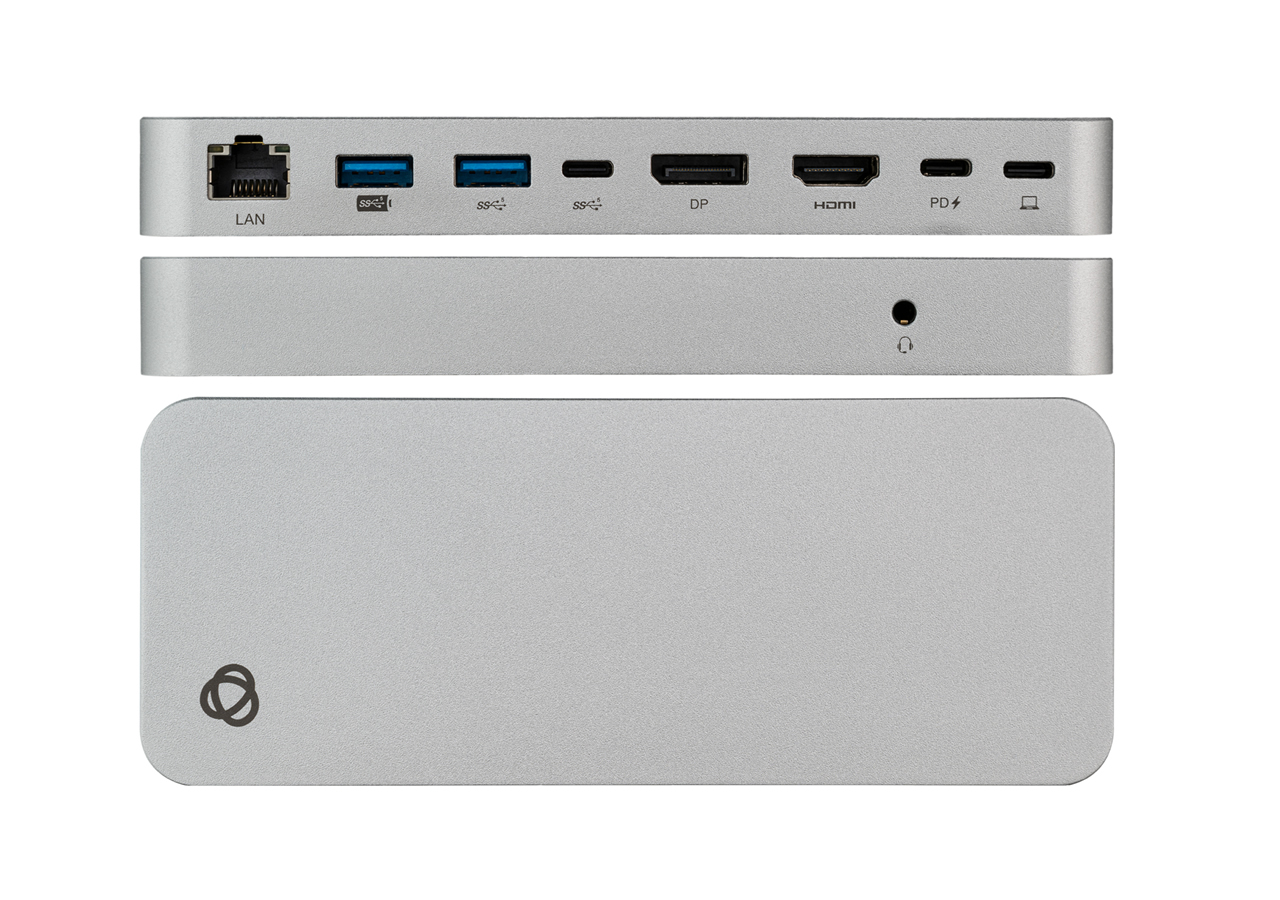

Connectivity includes a USB-C host connection, a USB-C PD input for pass-through charging, one HDMI output, one DisplayPort output, three USB ports (two USB-A and one USB-C), an RJ-45 Gigabit port and a 3.5 mm headset jack. The docking station is compatible with common USB-C host devices that support DisplayPort Alt Mode and standard USB data protocols. No additional drivers are required for basic display and network functionality on supported operating systems.
The KDOCK-5 fits personal workstations, home offices, small meeting rooms and huddle spaces that require consolidated AV and network access. It supports common meeting workflows such as screen sharing, video conferencing, network access and local peripheral connectivity. The compact footprint and single-cable host connection reduce clutter and simplify transitions between desks or rooms.
Installation is plug-and-play – attach the host USB-C, connect displays and peripherals, and optionally connect a power source to the USB-C PD port for host charging. The enclosure is aluminum for a durable chassis and passive heat dissipation. LED indicators and standard connector types make status and troubleshooting straightforward for end users and IT staff.
Overall, the KDOCK-5 provides a practical multiport hub that combines 4K-capable video outputs, USB 3.2 data ports, Gigabit Ethernet and 100W PD in a compact aluminum enclosure. It streamlines connectivity for USB-C hosts while preserving performance for displays, peripherals and wired networks. The device is a focused solution for users who need to expand single-cable USB-C endpoints into a full set of workstation interfaces.
