Description
The IPMX-B40F-ADW3 is a 4MP IP bullet camera designed to provide high-resolution outdoor surveillance and proactive deterrence. It captures 2688 x 1520 video at 25/30 fps and combines low-light imaging with smart illumination to reveal critical details. The camera integrates active visual and audio deterrence to alert and repel unauthorized people and vehicles.
Key features include Smart Dual Illumination that uses IR for covert monitoring and warm white light when a target is detected, integrated red and blue strobe lighting, and programmable voice prompts for on-site warnings. Onboard Perimeter Protection supports virtual tripwires and intrusion zones and distinguishes humans from vehicles to reduce false alarms. Intelligent Motion Detect 2.0 provides secondary filtering to ignore environmental motion and improve detection accuracy.
Technical performance includes a 1/2.7″ 4MP progressive CMOS sensor, 120dB WDR, and minimum illumination down to 0.0003 lux in B/W. Illumination range is up to 98.43 ft (30 m) using IR and warm white LEDs. The camera offers multiple compression formats including Smart H.265+ and Smart H.264+ to optimize bandwidth and storage while preserving image quality.

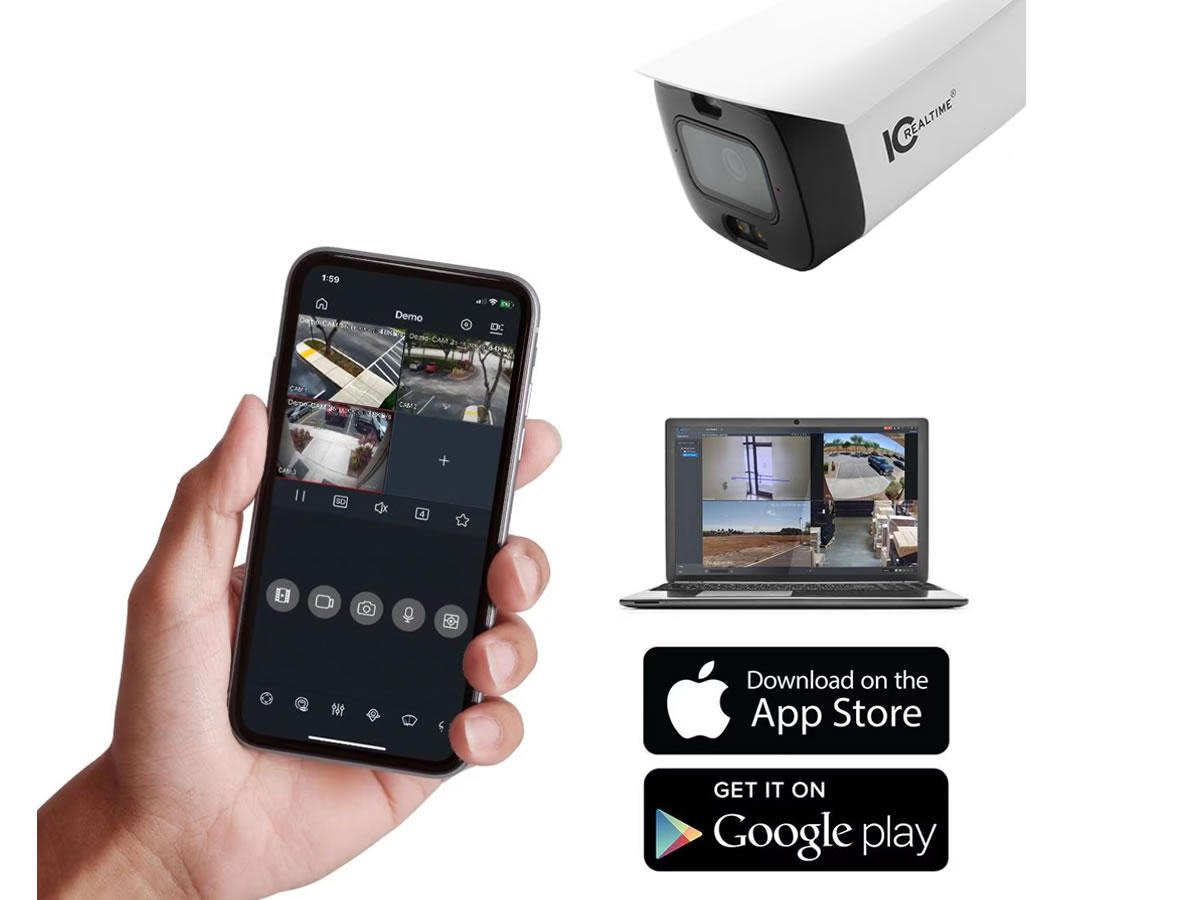

Connectivity and compatibility are comprehensive – the camera supports PoE 802.3af and 10/100Base-T Ethernet for straightforward installs. Edge storage options include Micro SD up to 512 GB, FTP/SFTP, and NAS. It integrates with IC Realtime software including IC Now and IC Now Pro and supports common network protocols for NVR compatibility and remote access via iOS and Android apps.
The IPMX-B40F-ADW3 is well suited for perimeter defense, parking lots, retail exteriors, and campus grounds where visible deterrence and clear identification are priorities. It provides rapid visual confirmation of incidents through active lighting and audible warnings to interrupt unwanted behavior. The combination of analytics and active deterrence reduces investigation time and improves response effectiveness.
Installation is simplified by PoE power and a flexible pan/tilt/rotation mount that supports a wide range of mounting angles. The metal housing is rated IP67 for severe weather resistance and the camera includes built-in microphone and speaker for two-way audio. Backed by IC Realtime support and a long-term warranty, the unit is built for sustained outdoor operation and easy system integration.
