Description

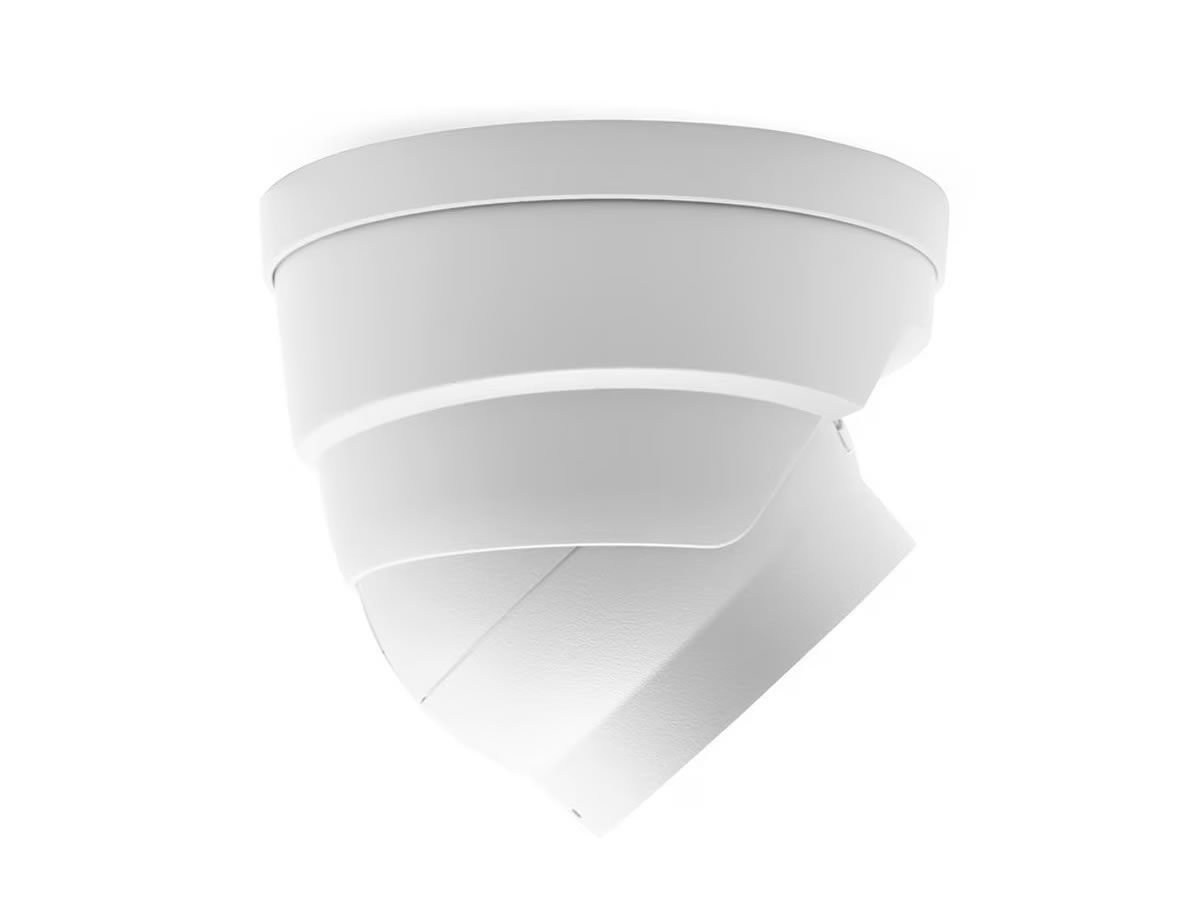

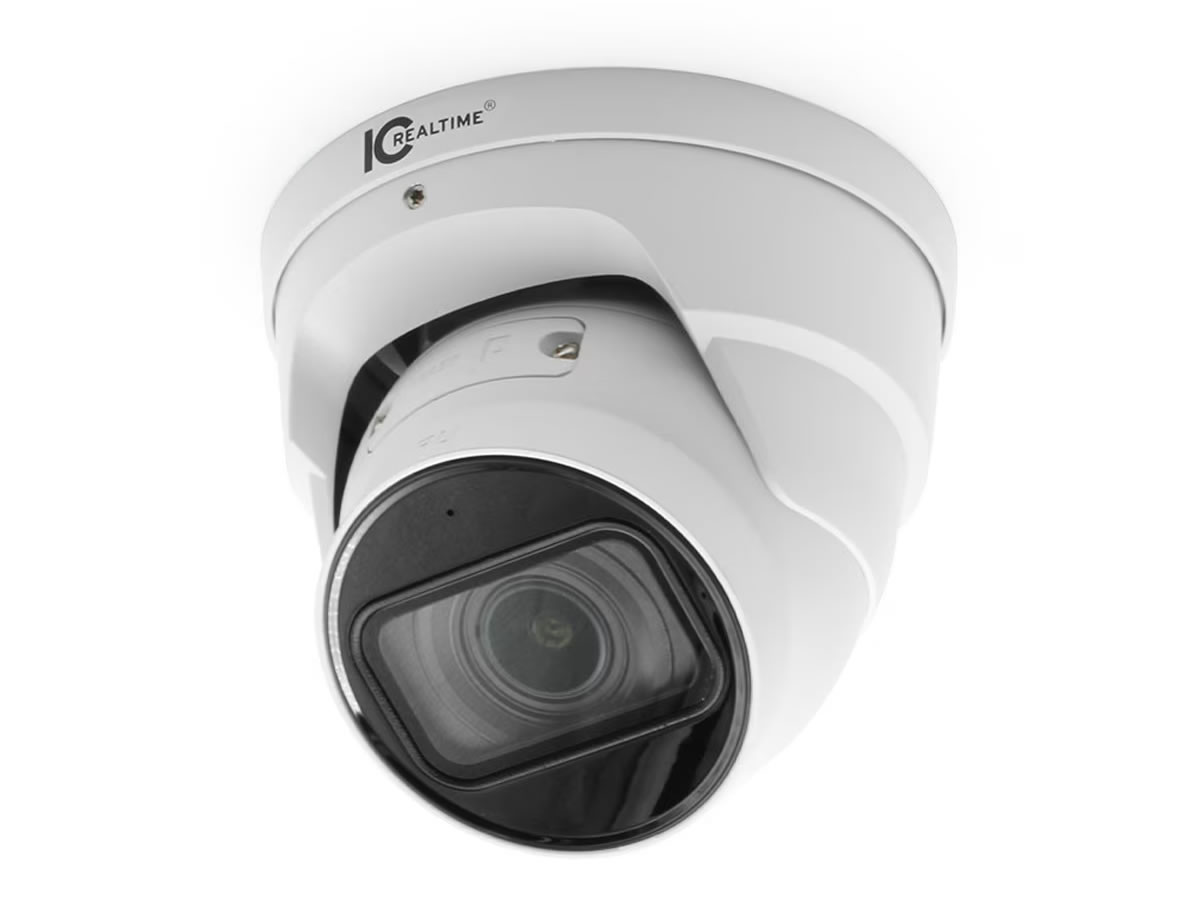

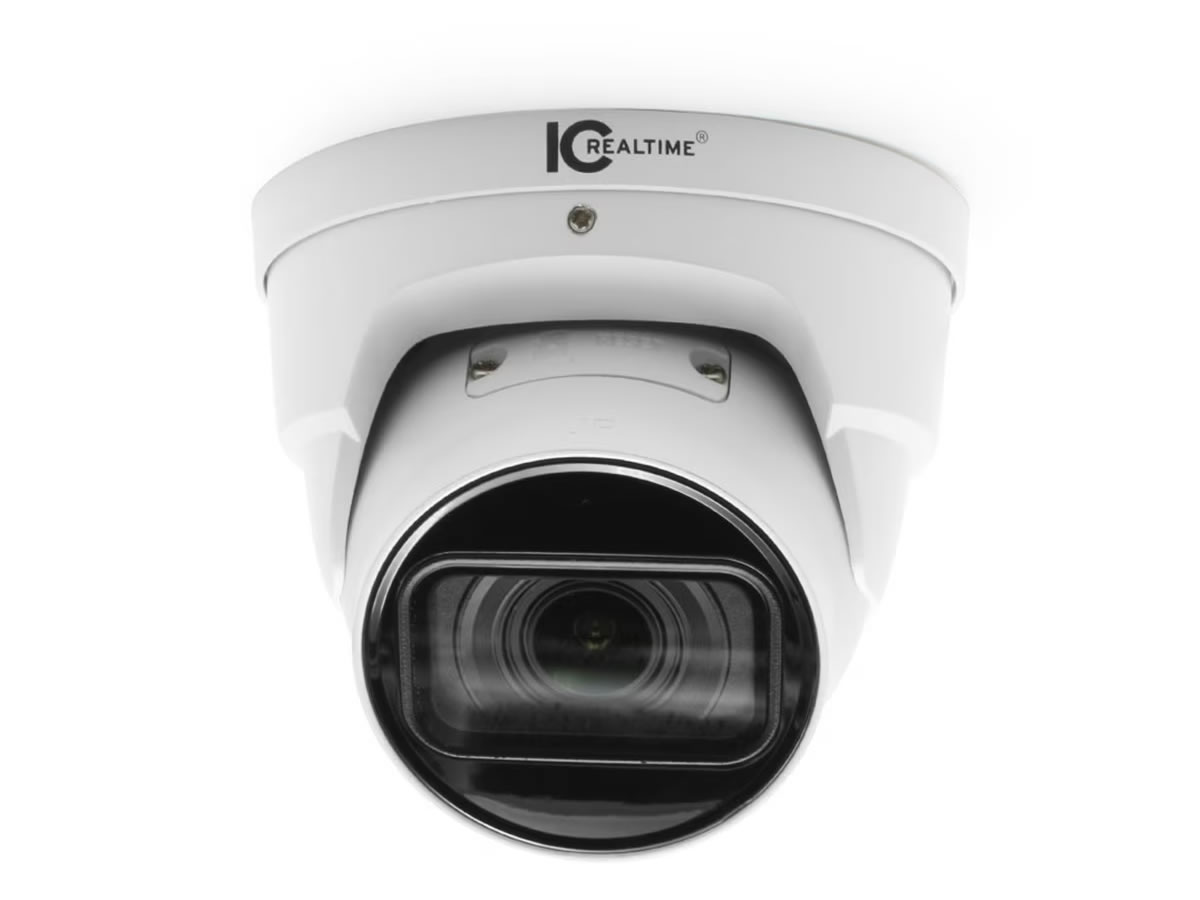

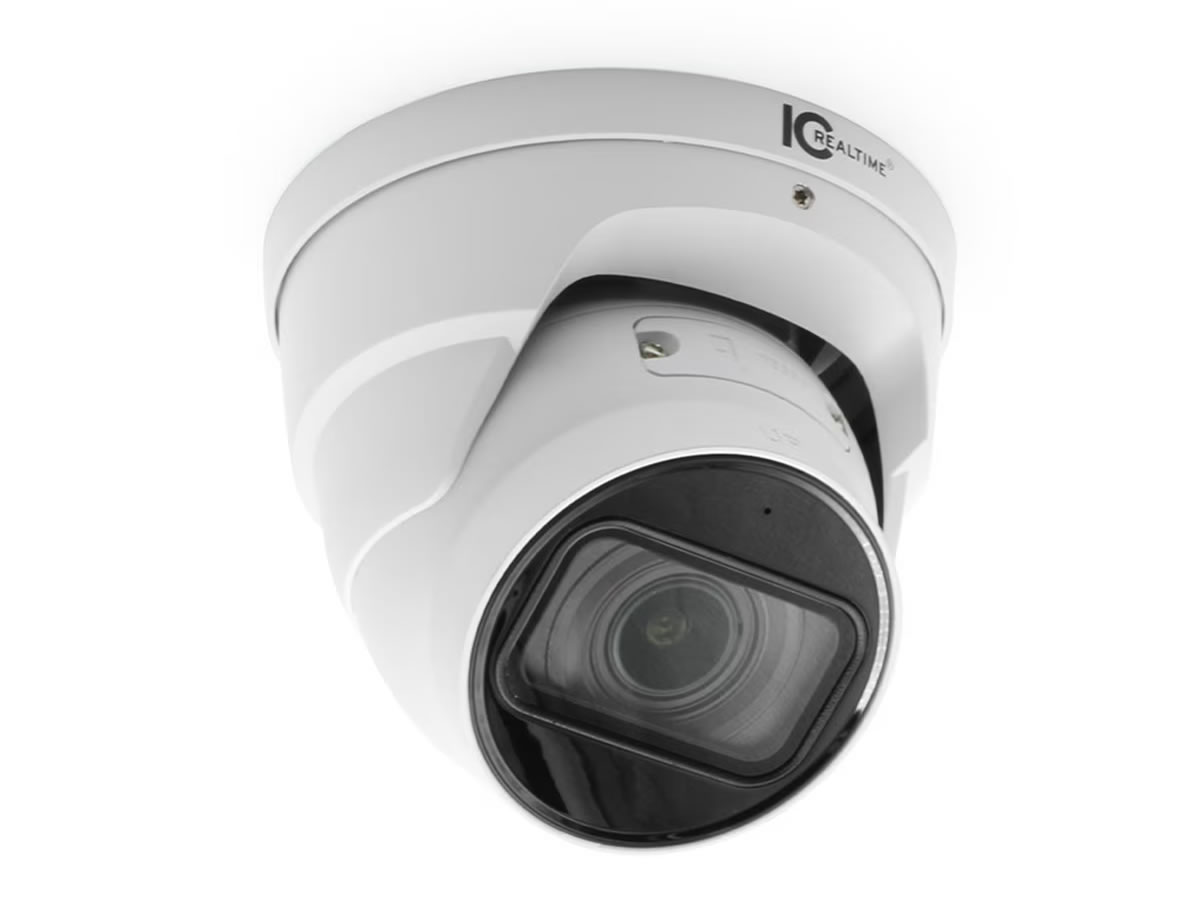

The IPFX-E40V-IRW3 is a 4MP QHD eyeball dome camera that combines Starlight low-light imaging with motorized varifocal optics and onboard AI metadata. It is designed to capture detailed video day and night and to stream in-camera object metadata to compatible NVRs. This model supports both indoor and outdoor installations thanks to an IP67 metal housing.
Key features include a 2.7mm to 13.5mm power zoom motorized lens with auto-focus, Starlight sensor performance, and Smart IR illumination rated to 131 ft. The camera implements IC Realtime iMD 2.0 to perform frame-by-frame object detection and encode metadata into the video stream. It also integrates audio detection via a built-in microphone for combined audio-video event analysis.
Technical performance highlights include 2688 x 1520 resolution at up to 30 fps on the main stream, 120 dB WDR, 3D DNR, and up to 3 H.264/H.265 streams. The camera maintains color down to 0.005 lux and provides 0 lux B/W capture with IR. Power options include DC12V and PoE 802.3af and power consumption ranges from 4.0 W to 8.5 W depending on features used.
Connectivity is flexible with a 10/100Base-T RJ-45 port, ONVIF Profile support, and common network protocols including IPv4/IPv6, RTSP, RTP, FTP, and HTTPS. Edge storage options include microSD up to 256 GB, FTP/SFTP, and NAS. The camera supports remote control via SmartICRSS, DSS, and the IC View+ mobile apps for iOS and Android.
Practical applications include perimeter surveillance, retail and lobby monitoring, parking lot observation, and multi-camera system deployments that require searchable AI metadata. The motorized varifocal lens and wide horizontal field of view make framing and coverage adjustments straightforward from an NVR or the mobile app. The camera’s object metadata supports fast ObjectSearch workflows on compatible IC Realtime AI NVRs.

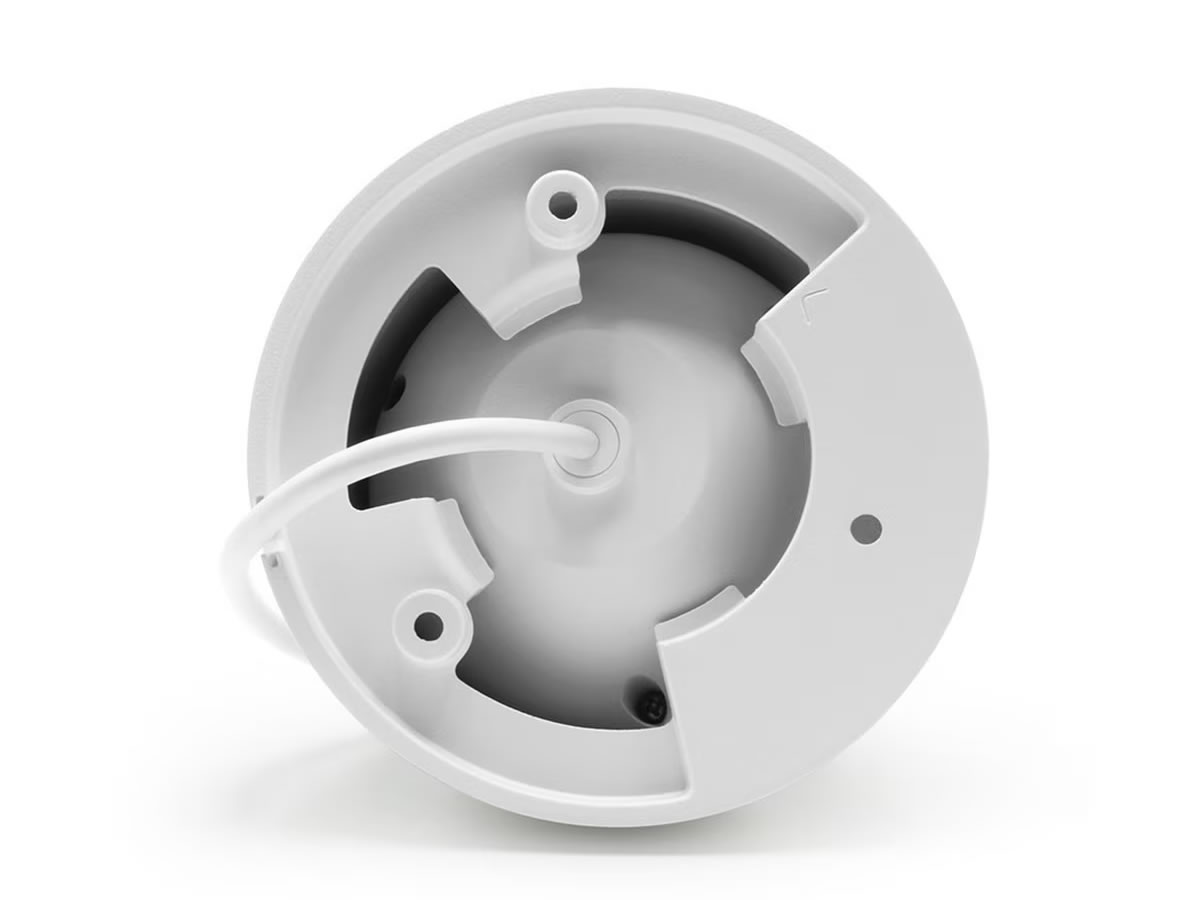

Installation and reliability are emphasized through a robust metal casing, compatibility with existing junction boxes and wall arm mounts, and a wide input voltage tolerance. The IP67 ingress protection rating and vandal-resistant construction provide long-term outdoor durability. The IPFX-E40V-IRW3 is backed by IC Realtime warranty support and field-oriented design choices for integrators.
