Description

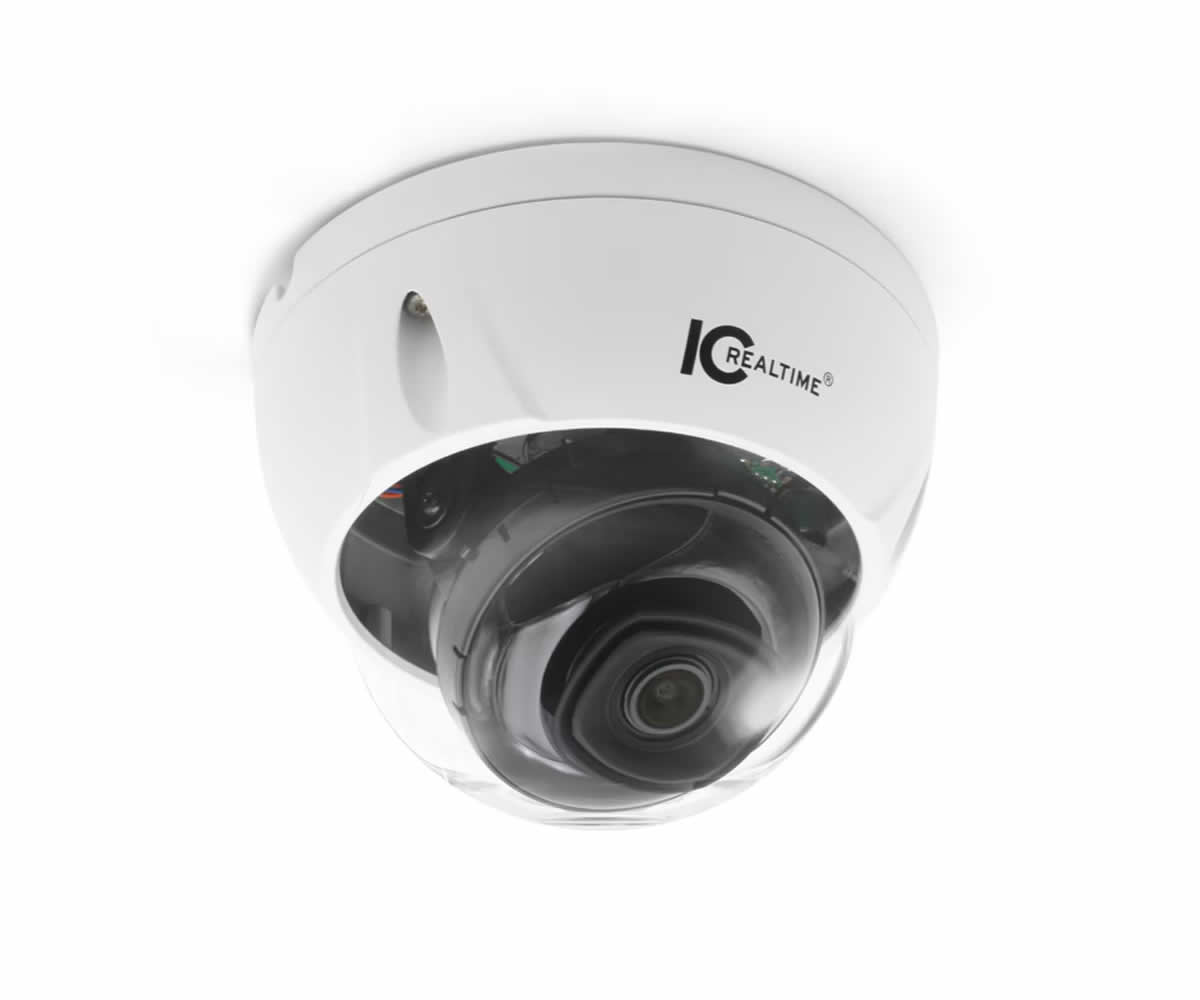

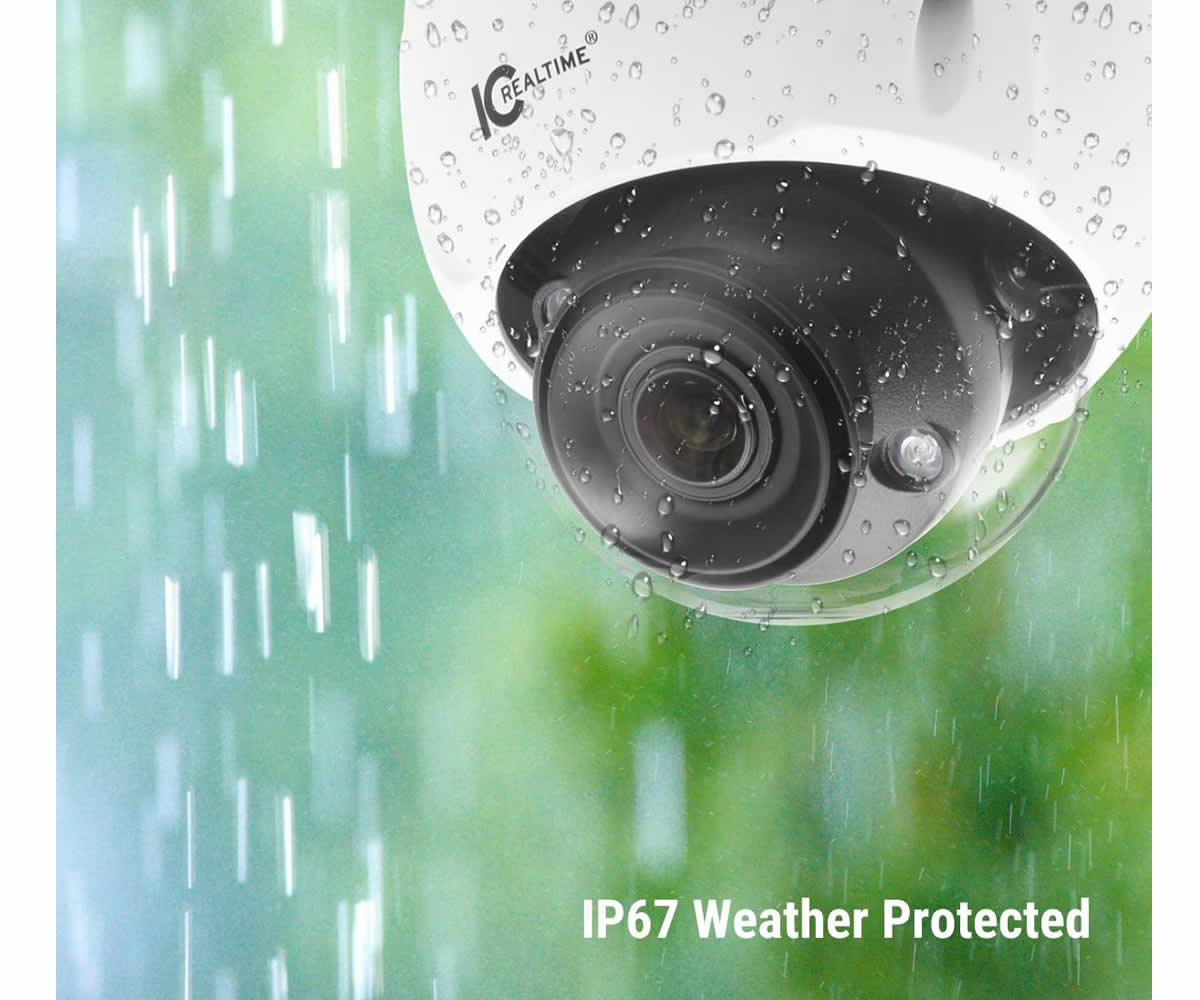

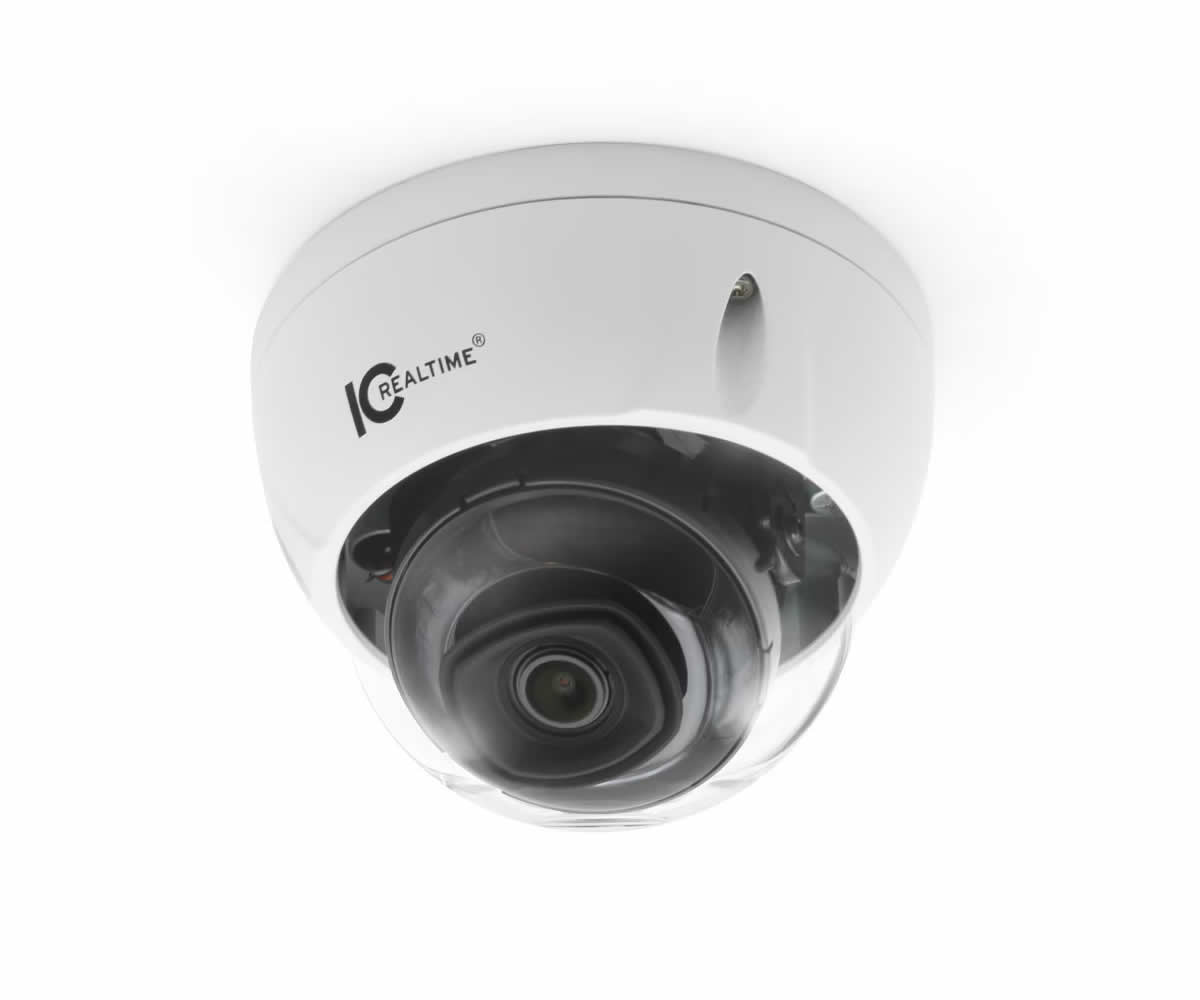

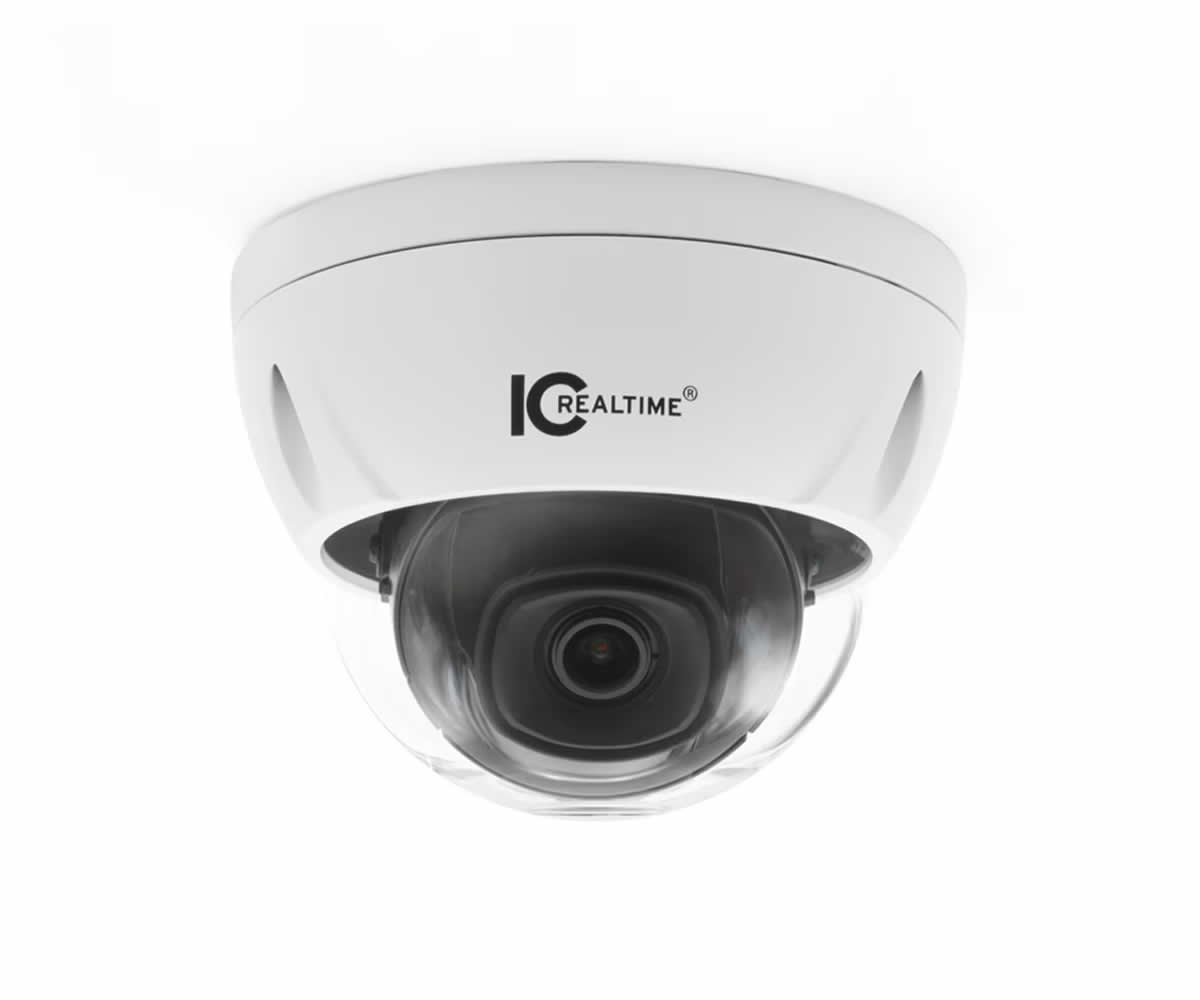

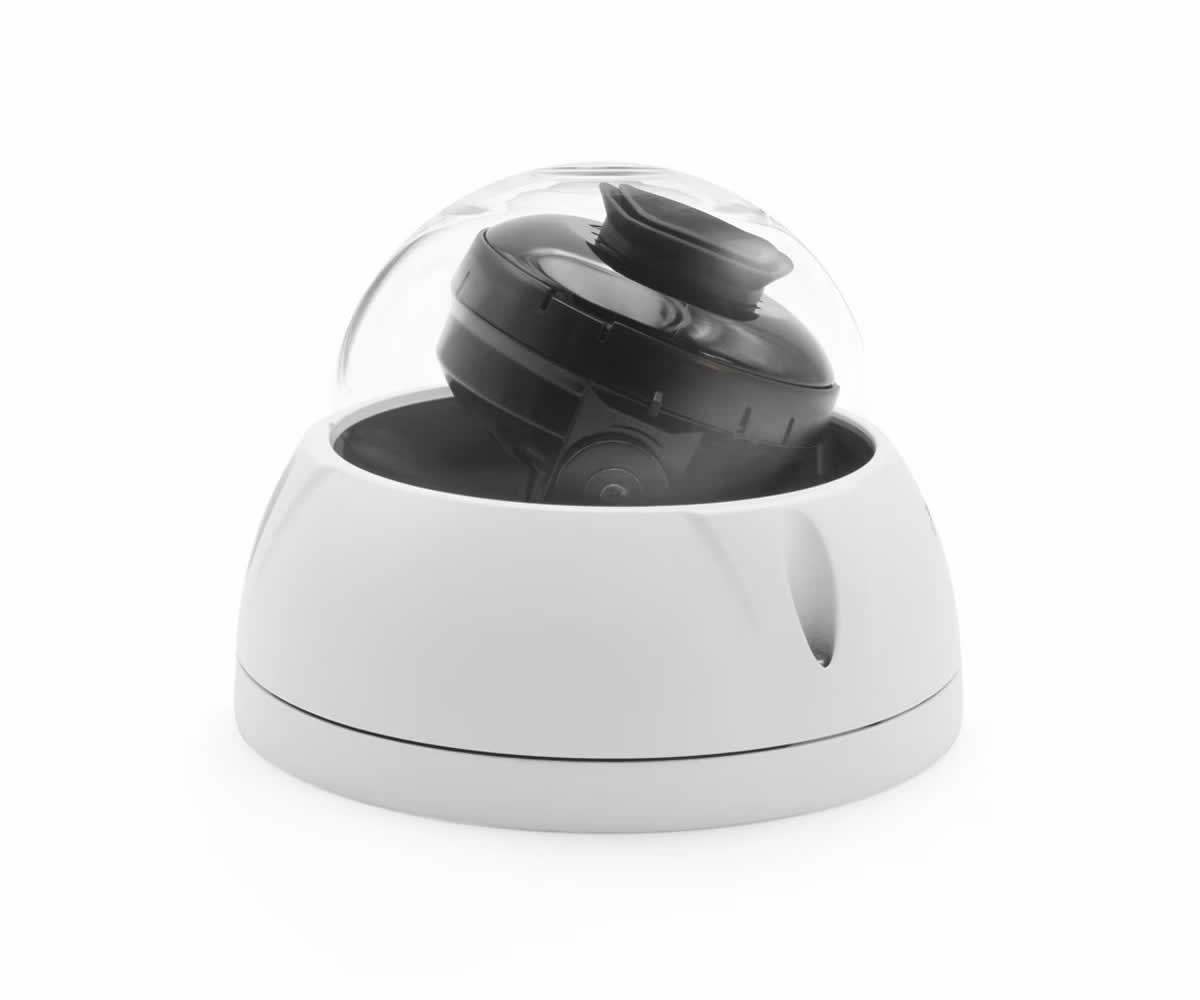

The IPEG-D20F-IRW4 is a compact 2MP IP vandal dome camera designed for reliable 24/7 indoor and outdoor surveillance. It delivers native 1080p resolution and Starlight-level low-light sensitivity to capture usable detail from dusk through night. The camera is IP67 weatherproof and IK10 vandal-resistant for installations that require robust physical protection.

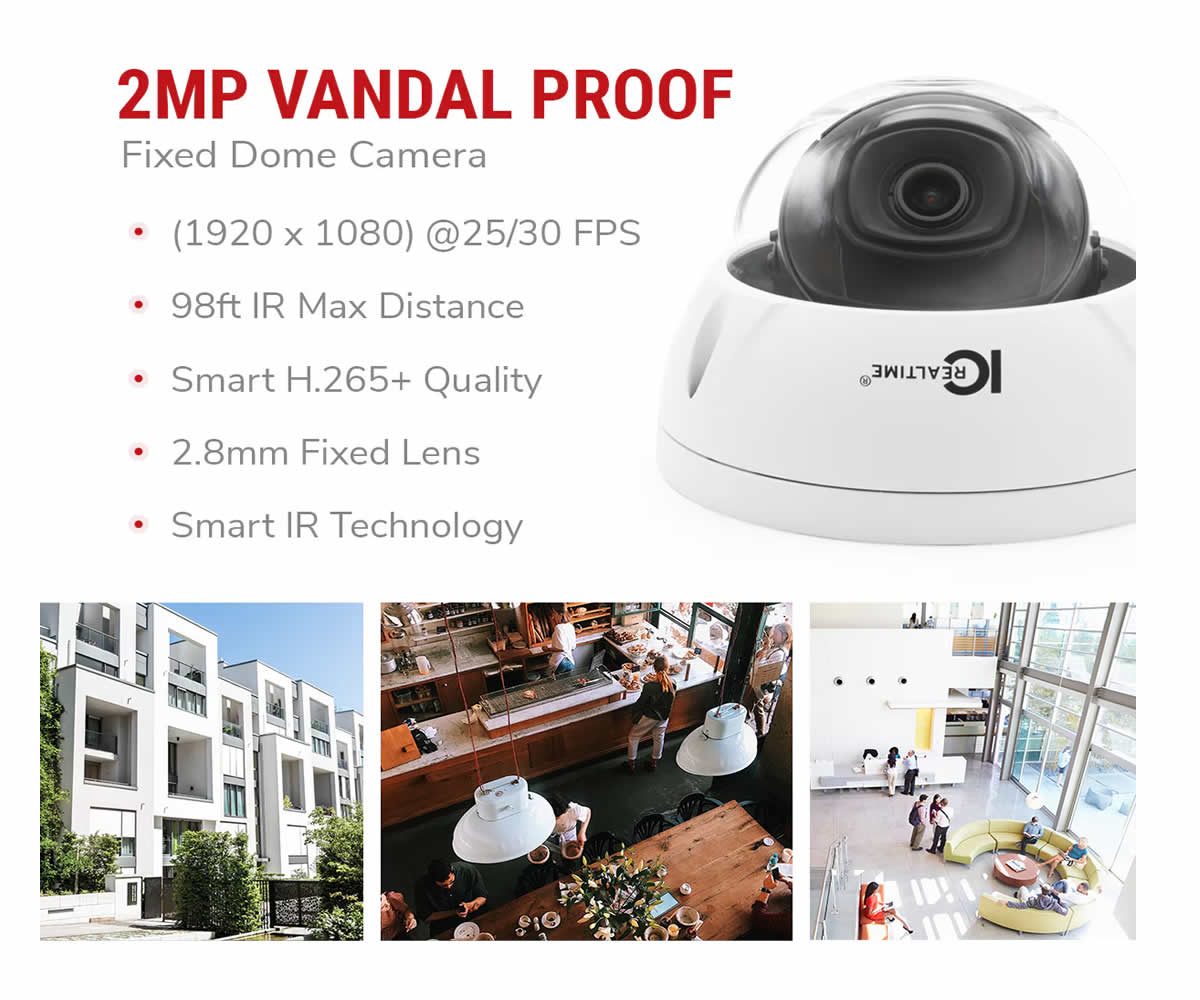

Key features include PoE (802.3af) power for simplified installs, SmartIR night illumination rated up to 98ft, and support for H.265/H.264 video compression to reduce storage and bandwidth needs. The dome provides a wide horizontal field of view of approximately 102deg and fixed 2.8mm focal length for broad scene coverage. Dual streaming supports recorder and remote monitoring simultaneously.
Technical performance includes a 1/2.8 inch 2MP progressive CMOS sensor, 0.01 lux minimum illumination at F2.0, and 3 IR LEDs for night operation. Image processing functions include DWDR, 3D DNR, BLC and HLC plus multiple white balance modes and gain control. The camera supports frame rates up to 25/30 fps at 1920 × 1080 and substream options for efficient remote viewing.

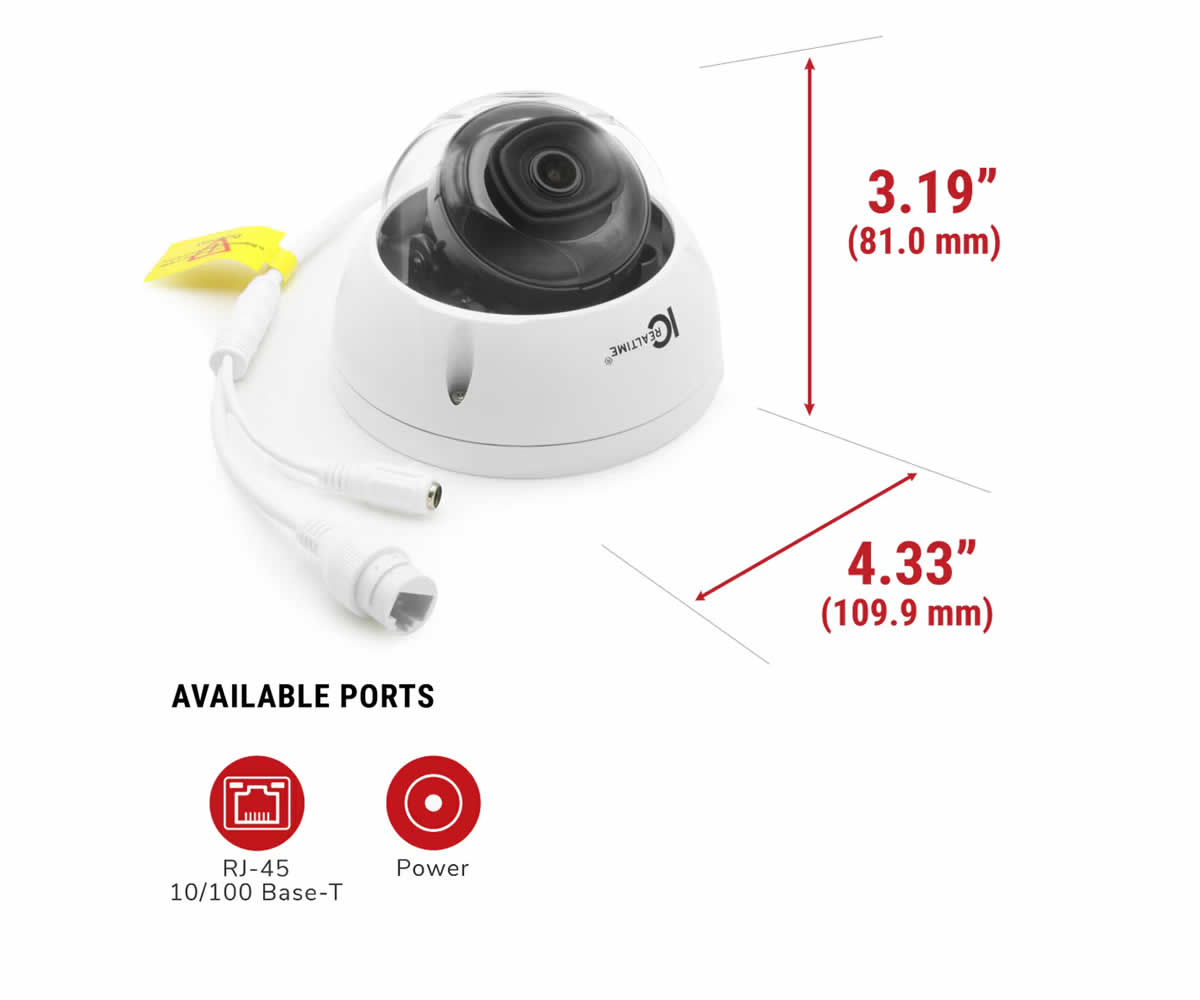

Connectivity includes a single RJ-45 10/100Base-T port with IPv4/IPv6 and common network protocols such as RTSP, RTP, SMTP, FTP and multicast. The camera is ONVIF-compatible and works with standard NVRs and third-party VMS platforms. Edge storage via FTP is available and remote access is supported through web browsers and mobile apps for iOS and Android.
Typical applications include retail and office indoor monitoring, entryways and perimeters for small businesses, and low- to medium-risk outdoor areas where vandal resistance is required. Its compact footprint and color-matched mounting accessories make it suitable for ceiling or wall mounts where a discrete appearance is desired. The camera provides cost-effective coverage where many cameras are deployed and bandwidth or storage efficiency is important.

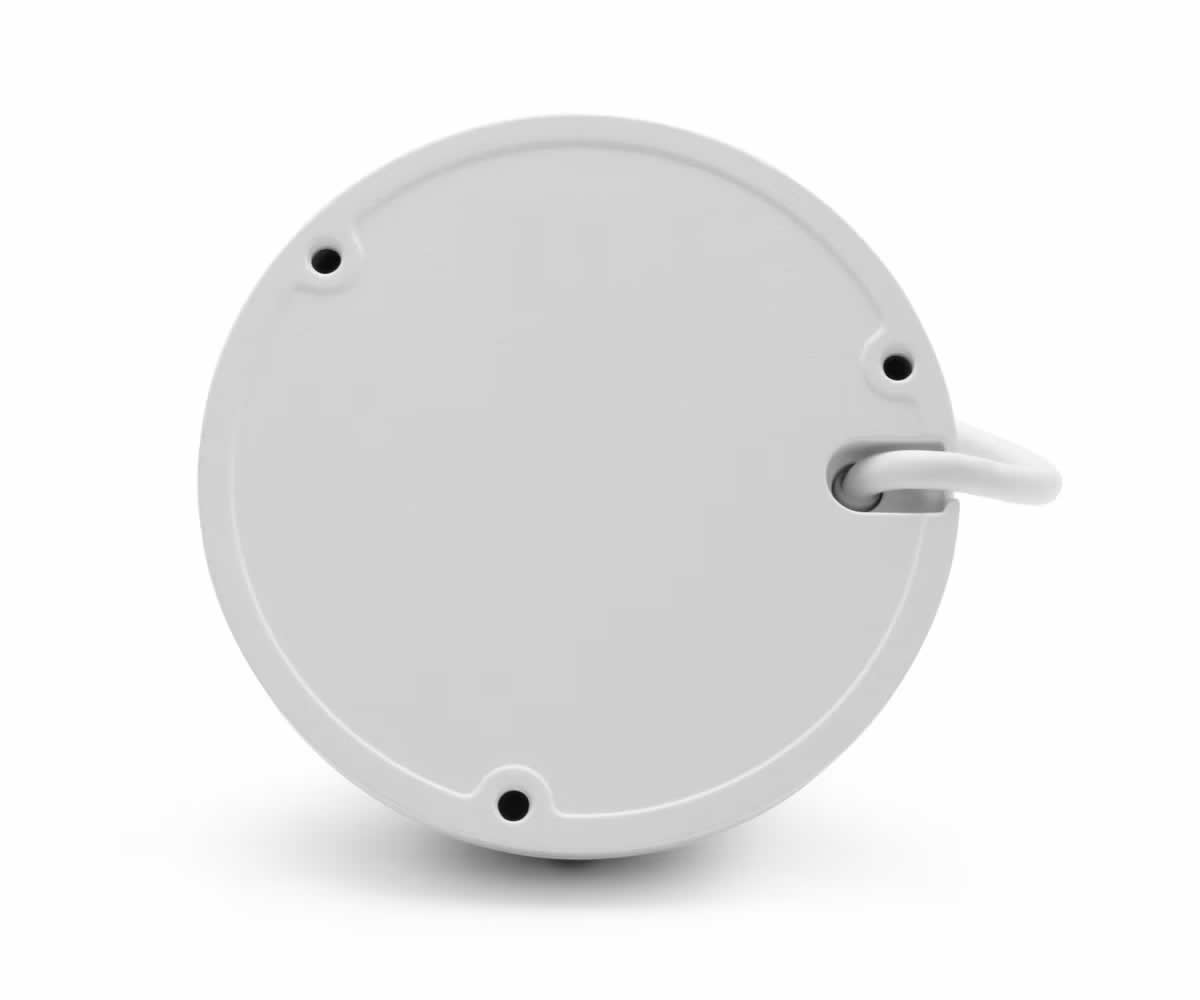

Installation is straightforward using PoE or a 12V DC supply and the dome includes flexible pan/tilt/rotation adjustments for accurate aiming. The metal base and sealed enclosure simplify long-term maintenance and protect electronics from harsh environments. The IPEG-D20F-IRW4 is backed by a long limited warranty for dealer-grade dependability and predictable lifecycle support.
