RTS ICW-6 Window-Mount Full Duplex Intercom / VOX Audio Shaping / Gooseneck or Headset

Description

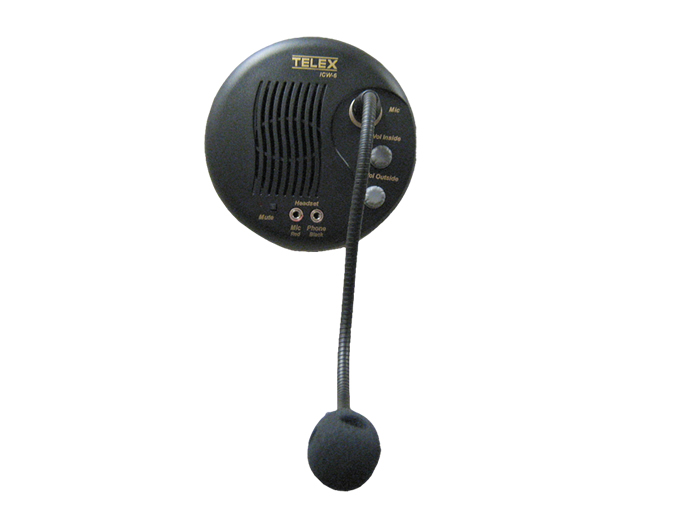

The ICW-6 is a window-mount full duplex intercom system designed for secure ticket windows and controlled access points. It provides clear two-way voice communication between staff and the public and is engineered for continuous, maintenance-free operation. The unit is housed in a rugged polycarbonate enclosure that resists impact and environmental wear.

Key features include full-duplex audio, enhanced VOX (voice threshold level activation) circuitry, and unique audio-shaping that improves speech intelligibility. The system supports hands-free operation via either a gooseneck microphone or a headset, allowing staff to handle transactions while maintaining clear communication. Internal microphone threshold adjustments permit fine tuning of sensitivity to local noise conditions.

Technically the ICW-6 offers a system frequency response of 200 to 4.5 kHz ±3 dB and operates within a wide environmental range of 0° to 50°C and up to 90% non-condensing humidity. Power requirements are listed as 50 mA max at 110-240 VAC and 5 VDC 600 mA max. Output capability includes 2 W external and internal speakers rated for 100 dB SPL at 1 ft at 1 kHz C weighting and an 80 mW headphone output rated to 100 dB peak SPL.

Connectivity supports an internal electret panel microphone and dynamic headset microphones with typical levels of 15 mV and 2 mV respectively at 1 kHz into specified source impedances. The system provides a documented source impedance of 200 ohm for dynamic microphones and 50 ohm impedance for audio. Headset and gooseneck microphone options are available as accessory models for easy field selection.

The ICW-6 is ideal for ticket booths, security checkpoints, customer service windows, and any point-of-sale environment where separation between staff and public is required. Full-duplex communication reduces errors and improves transaction speed by allowing natural back-and-forth speech. Enhanced VOX operation reduces interruptions and helps maintain privacy and intelligibility in noisy environments.

Installation is simplified by a two-piece polycarbonate enclosure and heavy-duty mounting hardware that accepts a 2.5 inch mounting hole or four smaller mounting points. The internal VOX threshold controls eliminate the need for external adjustments and allow installers to set microphone sensitivity to the ambient noise level. The robust construction and maintenance-free materials deliver long-term reliability and low total cost of ownership.
