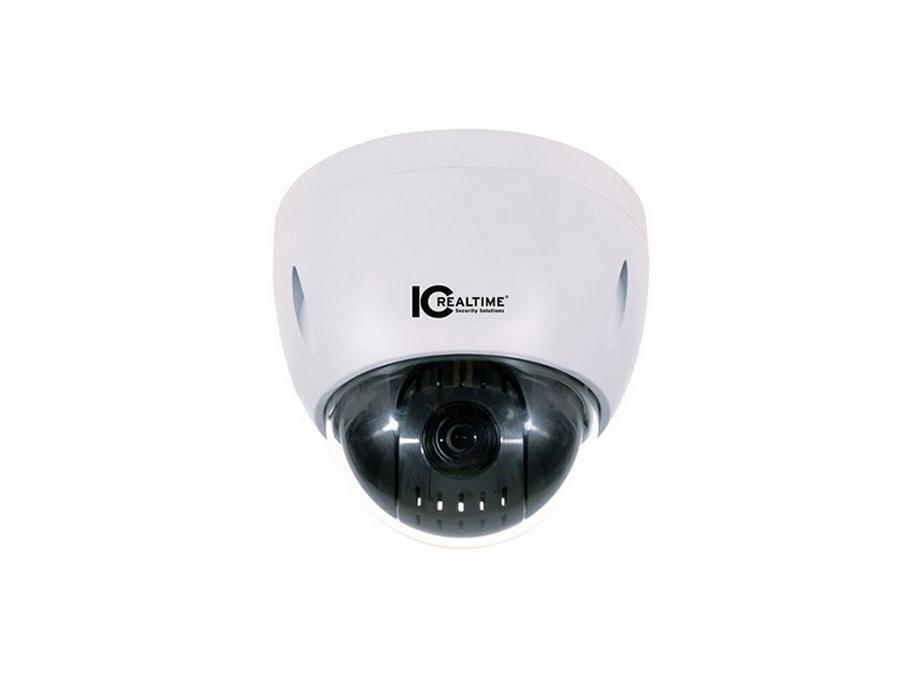

ICRealtime ICIP-P2012T I/O 2Mp/Full Hd 12X Opt/Net Ptz Surface Mount Dome Camera

Description

The ICIP-P2012T is a 2 Megapixel camera with 12x optical zoom. This camera adopts the flush mount style of PTZ cameras. The PTZ itself can auto recognize standard protocols over RS-485 such as ICR-SD and Pelco-P/D, without troublesome dipswitches or configuration. It supports both H.264 video and MPEG4 audio transmission, simultaneously. This camera can function independent of an NVR. By utilizing H.264 video and MPEG4 audio compression, the highest stream quality is achieved while also maintaining excellent stream compression and bandwidth. The ICIP-P2012T enclosure itself has a strong impact rating, which can guarantee proper operation even under a heavy strike. The ICIP-P2012T supports two-way and bidirectional talk. It can be used in either analog or IP environments.

Features

5.1 mm~61.2mm,12x Optical Zoom
Max. 25/30fps@1080P & 50/60fps@720P
DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus
POE+
IP66
MPEG Audio
Bidirectional Audio

Specifications

Model	ICIP-MP2012-T
Camera
Image Sensor	1/2.8" Exmor CMOS
Effective Pixels	1944(H) x 1092(V), 2 Megapixels
Horizontal Resolution	>1000TVL
Scanning System	Progressive
Electronic Shutter Speed	1/3s ~1/30,000s
Min. Illumination	Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6
S/N Ratio	More than 55dB
Camera Features
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR (Digital WDR)
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	2D / 3D
Privacy Masking	Up to 24 areas
Digital Zoom	16x
Lens
Focal Length	5.1 mm~61.2mm (12x Optical zoom)
Max Aperture	F1.2~ F2.1
Focus Control	Auto / Manual
Angle of View	51.3° ~ 4.64°
Close Focus Distance	100mm~1000mm
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~120°/s
Preset Speed	Pan: 300°/s; Tilt:200°/s
Preset	80(ICR-SD) , 255(Pelco-P/D)
PTZ Mode	5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
Speed Setup	Human-oriented focal length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Protocol	ICR-SD (Auto recognition)
Video
Compression	H.264 / MJPEG
Resolution	1080P(1920x1080)/720P(1280x720)/D1(704x576/704x480)/CIF(352x288/352x240)
Bit Rate	H.264: 448K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Frame Rate
Main Stream	1080P/D1 (1 ~ 25/30fps) /720P(1~50/60fps)
Sub Stream	D1/CIF(1 ~ 25/30fps)
Audio
Compression	G.711a / G.711u (32kbps) / PCM (128kbps)
Interface	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
Alarm	2/1 channel In/Out
General
Power Supply	AC24V/1.5A (±10%), POE+(802.3at)
Power Consumption	12W
Working Environment	-14°F - 122° F (-25°C - 50° C) 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10
Dimensions	F198mmx158mm
Weight	2.3Kg
