Description

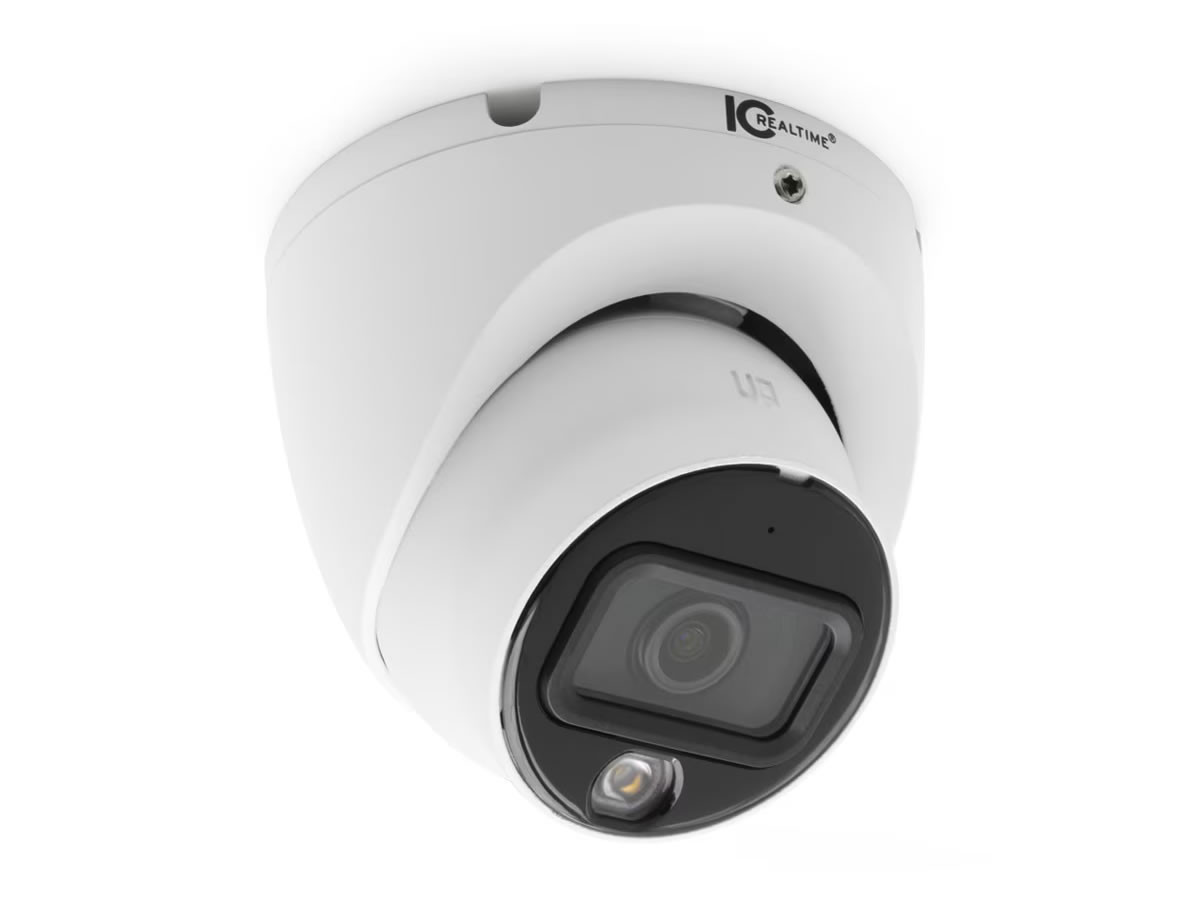

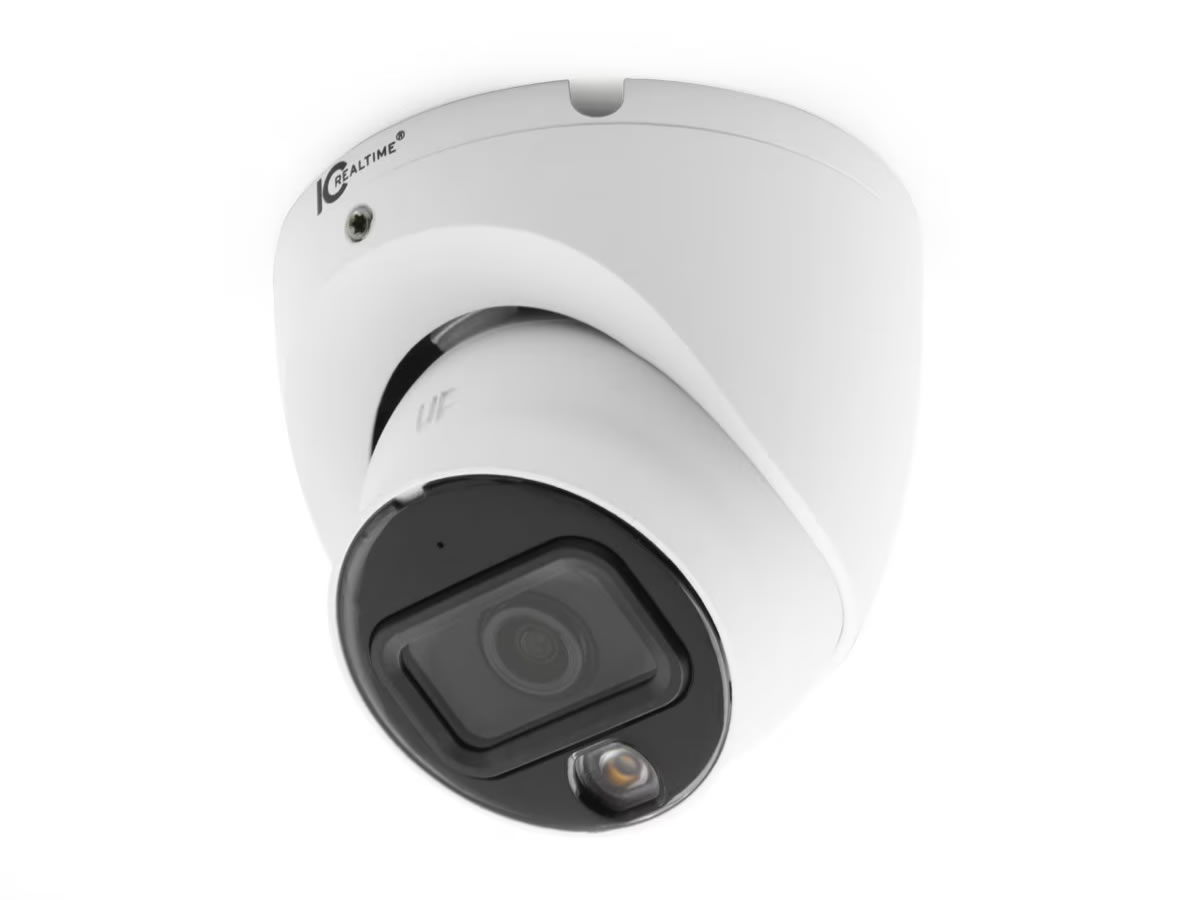

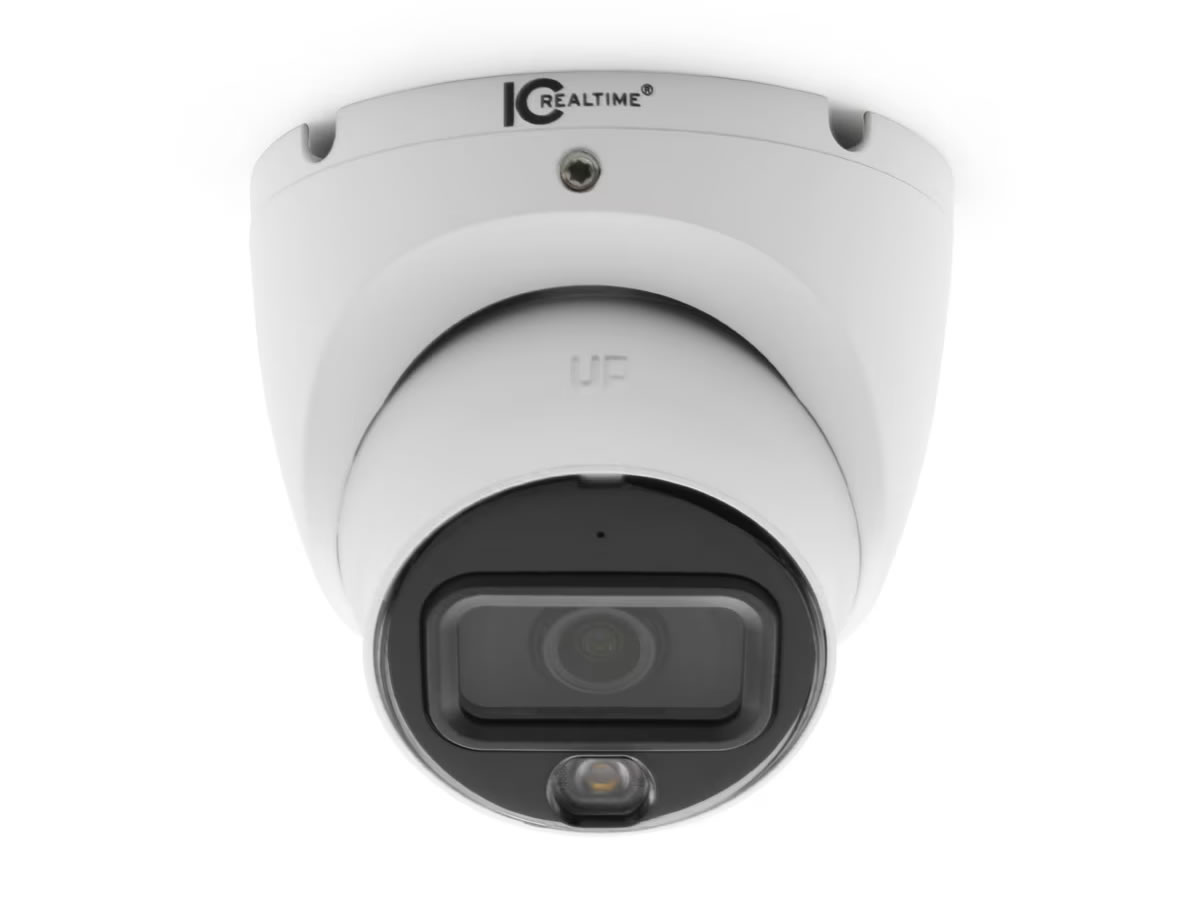

The HDEG-E50F-DI-M1 is a 5MP coaxial eyeball turret dome camera designed to deliver clear high-resolution video in indoor and outdoor installations. It captures 2880×1620 at 25 fps to provide detailed 16:9 imagery for monitoring and evidence. The compact form factor supports discreet placement without sacrificing performance.
Key features include a 2.8mm fixed lens offering a 106° horizontal field of view and Smart Dual Illumination that combines IR and white light LEDs. The camera operates in IR mode for unobtrusive night monitoring and switches to white-light illumination when a target is detected, producing full-color footage out to 65ft. DWDR and 2D noise reduction improve image usability in scenes with challenging lighting.
Technical performance centers on a 5 Megapixel CMOS sensor, progressive scanning, and low-light sensitivity down to 0.05 lux in color and 0.005 lux in black and white. Multiple resolutions are supported including 5M, 4M, 1080p and 960H to match recorder capabilities. Built-in microphone audio adds context to video events for more complete situational awareness.

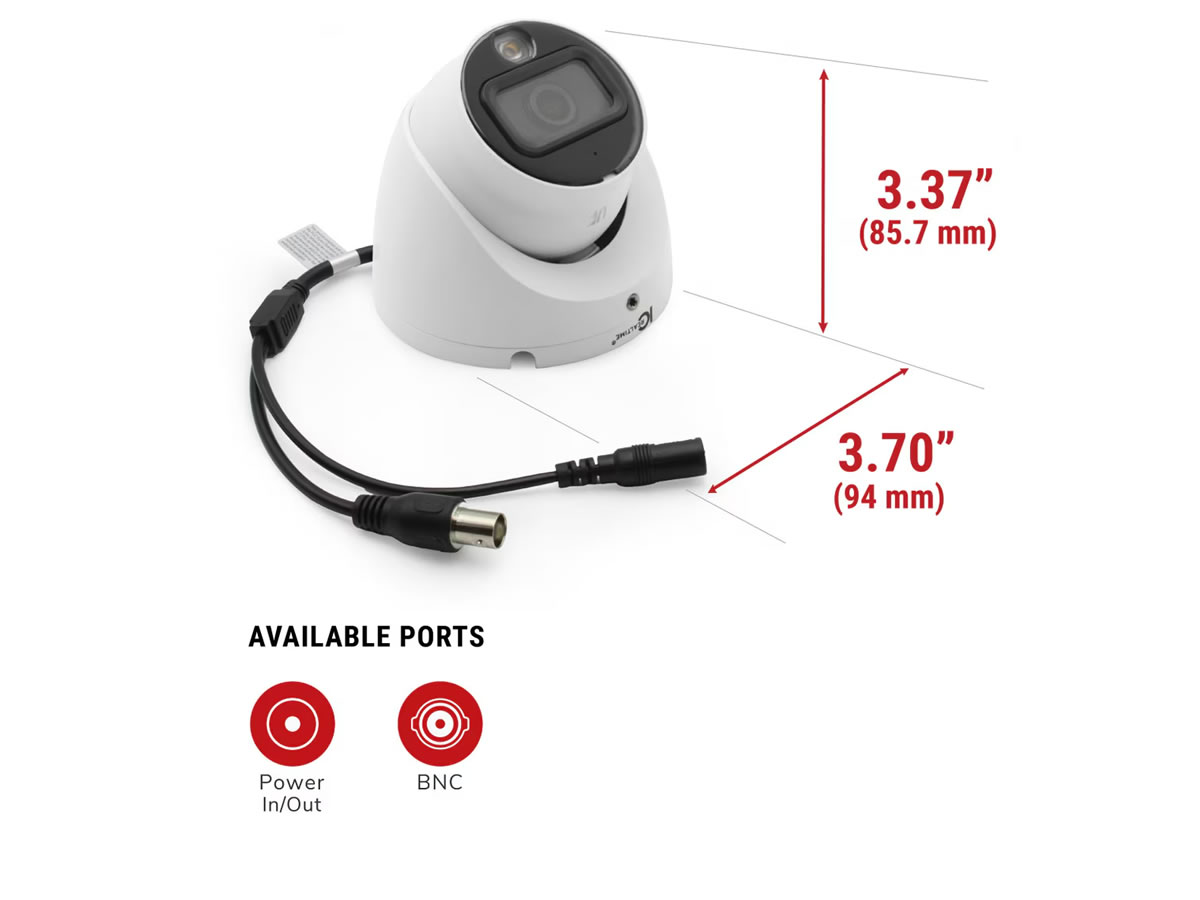

Connectivity is provided through a single BNC video interface with selectable output formats: AVS, AHD, TVI, and CVBS toggled via OSD. The camera is compatible with IC Realtime HDVR platforms and supports HDVR intelligence features when paired for target-triggered illumination. Power is DC 12V with maximum consumption of 3.1 W when illuminators are on.

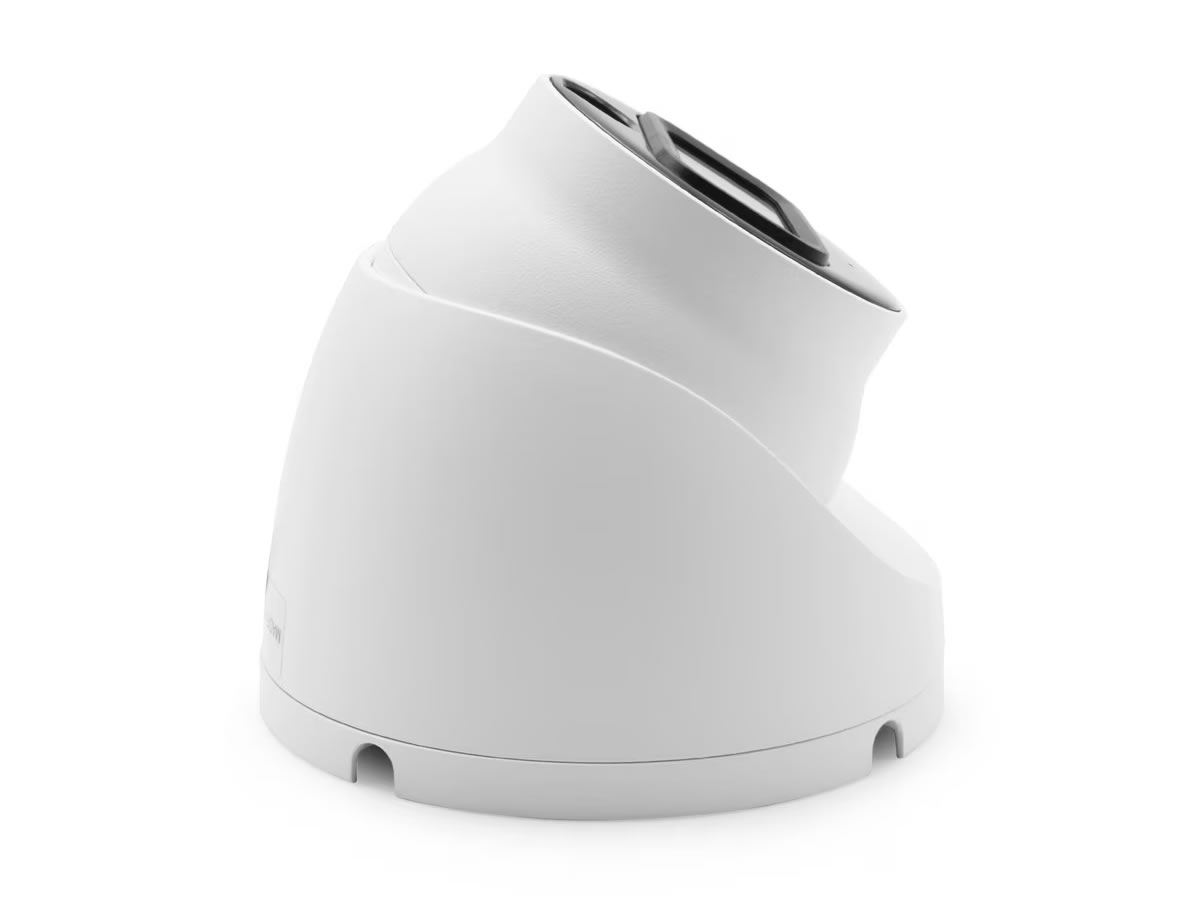

Practical applications include retail loss prevention where color night capture aids identification, small business perimeter monitoring where wide FOV reduces camera counts, and residential surveillance requiring weatherproof hardware. The camera’s compact turret design and 0°–360° pan allowance support flexible aiming and field coverage. IP67 ingress protection ensures dependable outdoor performance in wet and dusty conditions.

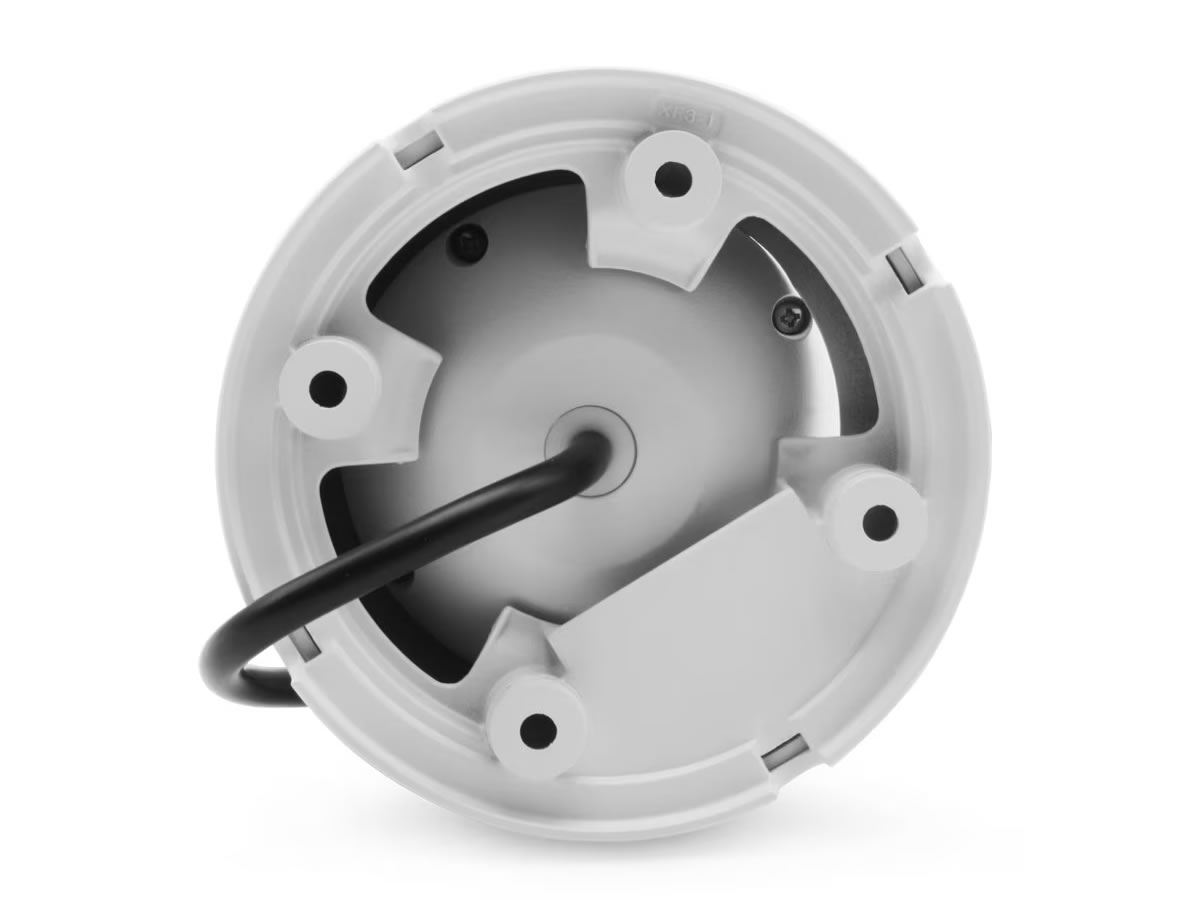

Installation and setup are straightforward using the camera’s fixed focal lens and OSD menu for output format selection. Mounting offers wide pan and tilt adjustment and standard M12 lens mount compatibility for fixed configuration. Rugged construction, a wide operating temperature range, and integrated audio make the HDEG-E50F-DI-M1 a practical choice for installers and system integrators seeking reliable coaxial camera solutions.
