Description

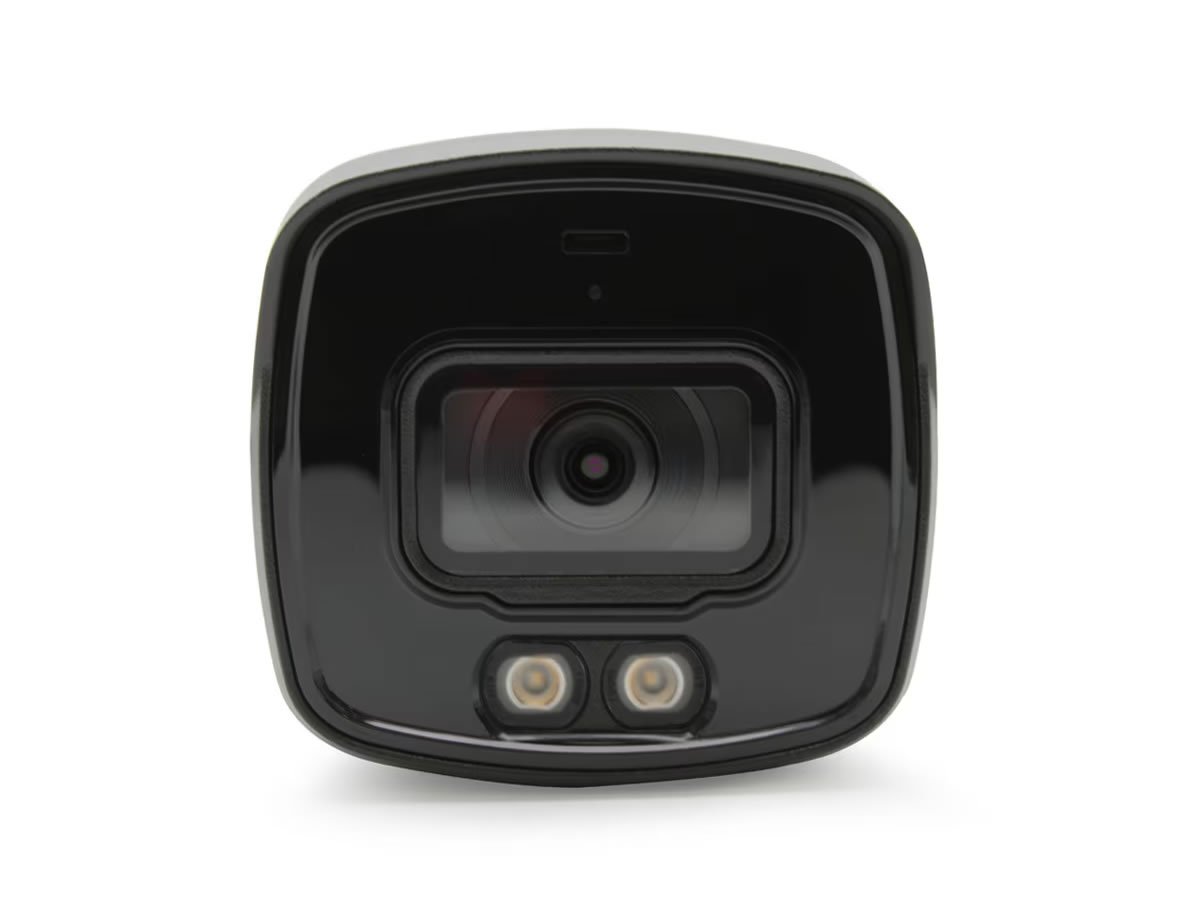

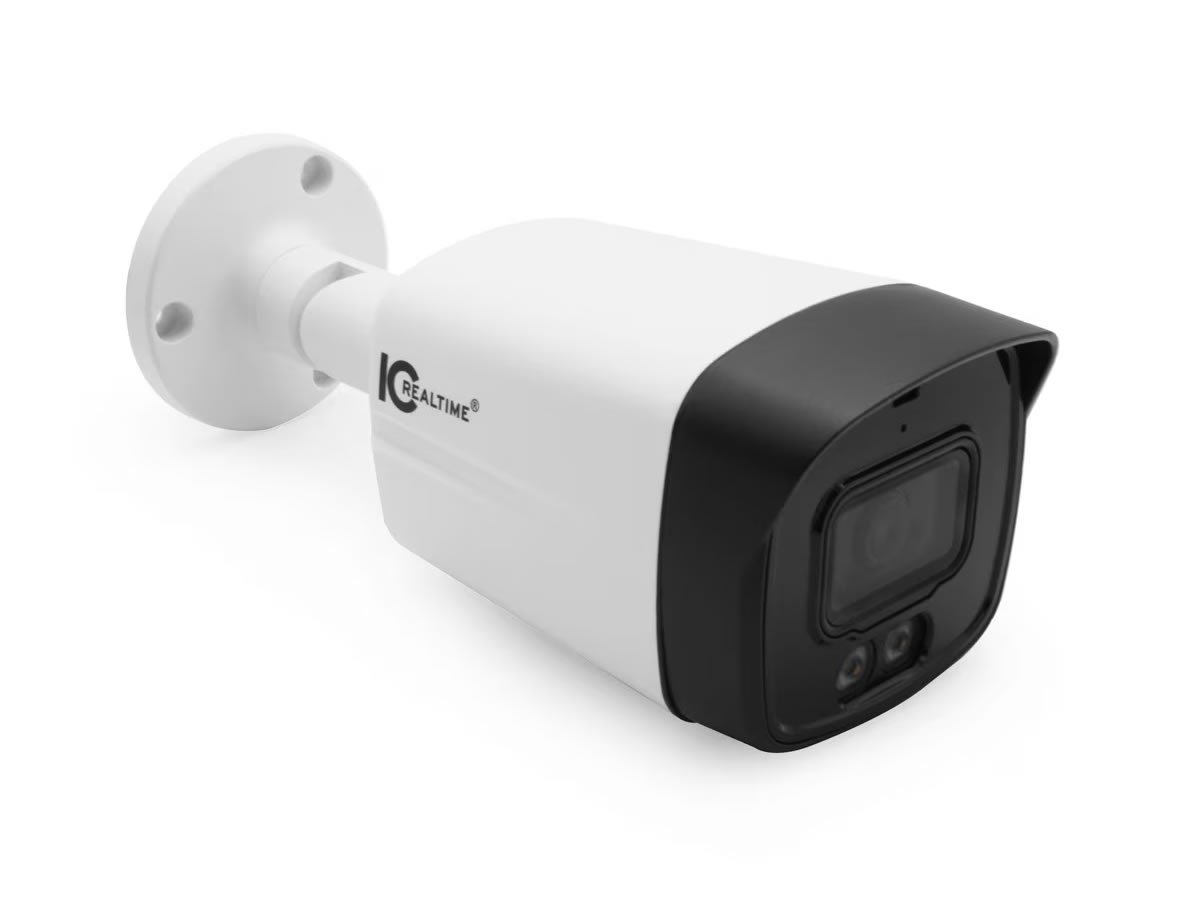

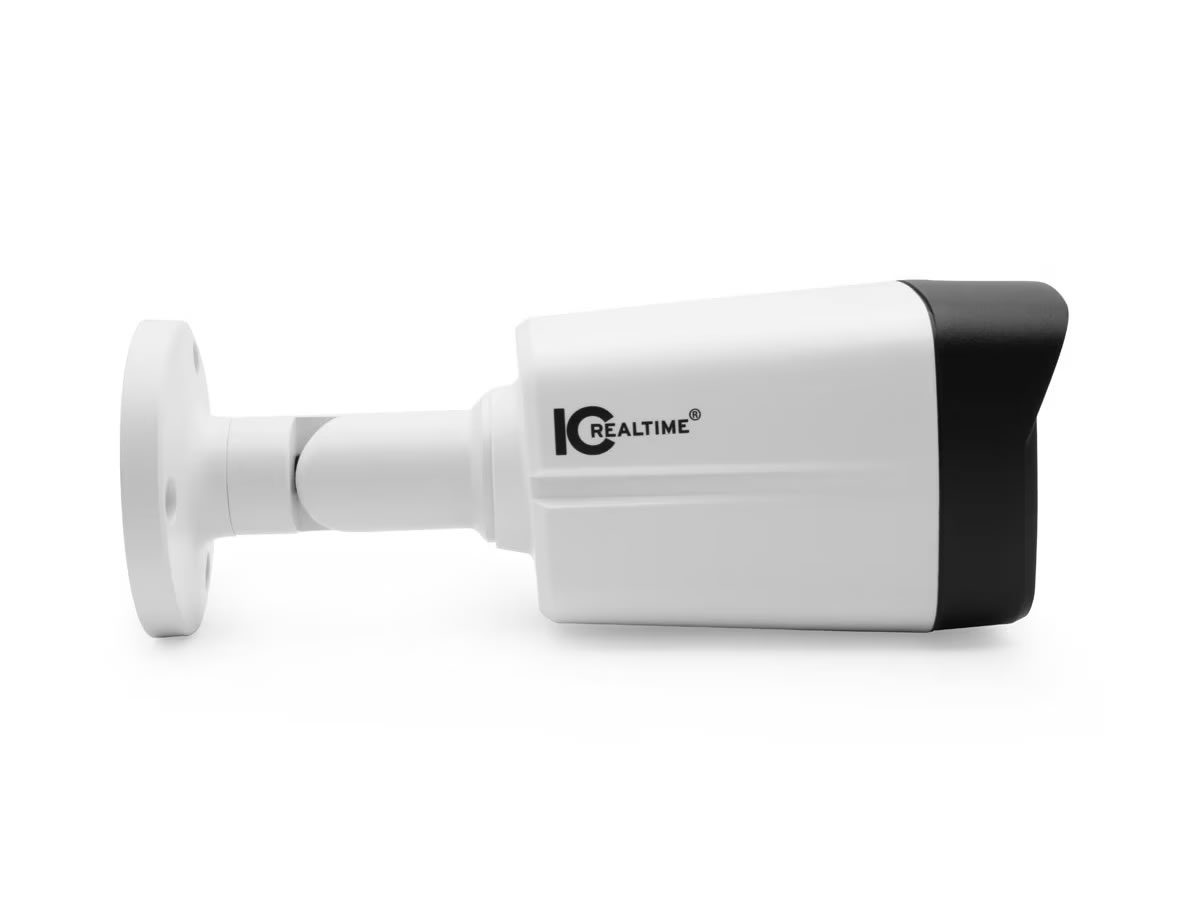

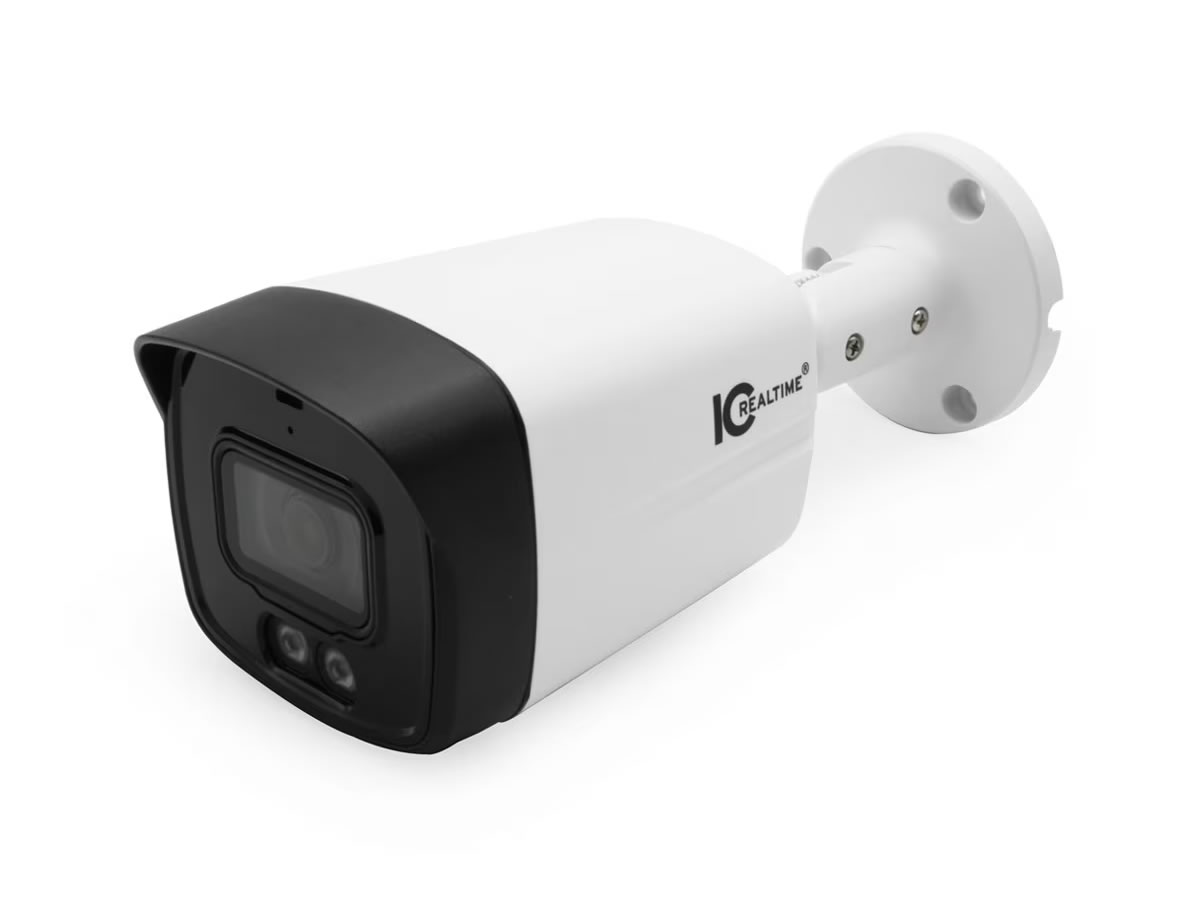

The HDEG-B50F-DI-M1 is a 5MP bullet coaxial camera that captures 16:9 video at up to 25 frames per second. It provides high-resolution surveillance suitable for both indoor and outdoor placements. The design balances image clarity, low-light sensitivity, and environmental durability for continuous monitoring.
This model features Smart Dual Illumination that operates in IR mode by default and switches to white light and full-color capture when motion is detected. Digital Wide Dynamic Range (DWDR) evens out scenes with strong backlight while noise reduction reduces grain in low light. A fixed 2.8mm lens delivers a wide field of view and integrated audio capture via the built-in microphone.
Image performance includes a 5MP 2880 x 1620 sensor operating in progressive scan and supporting 5MP/4MP/1080p resolutions across multiple formats. Minimum illumination is 0.05 lux in color and 0.005 lux in black and white, with 0 lux when illuminators are on. The camera supports DWDR, BLC, HLC, and 2D noise reduction for reliable footage in mixed lighting.
Connectivity is handled through a single BNC video output and the unit supports AVS/TVI/AHD/CVBS multi-format output selectable via OSD. Audio is recorded through the built-in microphone and the camera is powered by DC 12V with +/-30% tolerance. The Smart Dual Illumination feature requires compatible HDVR firmware for full automated IR/white light switching.
Common applications include perimeter monitoring, parking lots, retail storefronts, and building entry points where both image detail and nighttime capability are required. The 2.8mm lens and wide 106 degree horizontal view make the camera well suited to cover broad areas while the illumination range reaches up to 131ft. Motion-triggered white light improves identification and evidence capture during events.
Installation is straightforward thanks to a metal front cover, metal bracket and a plastic rear cap that keep the camera lightweight and durable. The HDEG-B50F-DI-M1 meets IP67 ingress protection for dust and water resistance and operates from -40C to +60C. Backed by IC Realtime technical support and a long warranty, the camera is built for long-term field operation and simplified maintenance.
