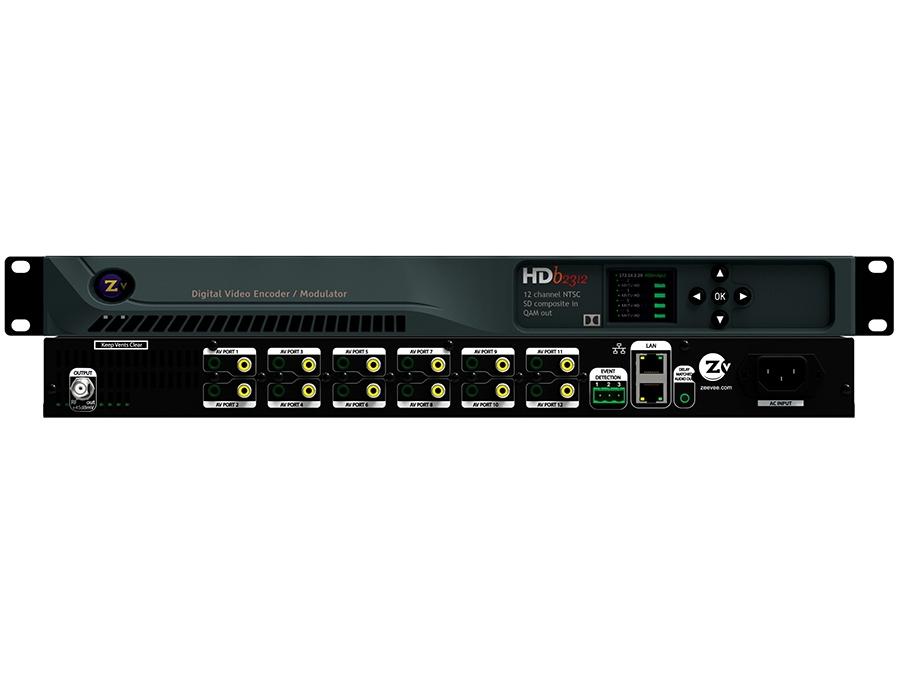

ZeeVee HDb2312-NA SD Digital Encoder / Modulator

Description

Priced competitively with analog modulation, the new HDbridge 2312 encodes and modulates 12SD sources for crystal clear digital reception at connected HDTVs. Quick setup through a web browser enables you to customize your system. Uses the digital tuner built into every HDTV.

Features

Superior Video Quality

Full MPEG2 implementation
I, P, and B Frames
Low latency
Full motion estimation with a wide search range

Ease of Management

Powerful, highly intuitive web interface
On-site or remote management
Web accessible instrumentation and management
Single session configures and manages all connected units
Front Panel Display for on-site status and management at a glance

High Reliability

Low-stress power system
Full system instrumentation and monitoring
Official international regulatory approval
Forced air cooling for effective thermal control

Extensible Architecture

Easy downloadable firmware updates
Future enhancements provided regularly
Emergency Alert System (EAS)

Specifications

GENERAL
Model Name	HDbridge Series 2000. HDb2312
Part Number	HDb2312-NA
Power	100-240 VAC 50/60 Hz. 60W max. 30W Typical IEC 60320-C14
Cooling	Dual internal cooling fans, Front inlet. Rear exhaust
Temperature/Humidity	Operating +32 F° to +113 F° (0 C° to +45 C°) /10% to 80%. non-condensing
Vibration	NSTA 1A in carton
MTBF	62,000 hours
Compliance	FCC Class A, IEC60065, EN61000 (see manual 70-00039), CE. RoHS, RCM C-Tick
Enclosure Type	Metal
Mounting	Rack ears shipped attached, 1RU high
Enclosure Dimensions	1.72 in. (H) x 17.33 in. (W) (without rack mount ears) x 9.9 in. (D) 43.6 mm (H) x 440.2 mm <W) x 251.5 mm (D)
System Weight	6.25 lbs. (2.84 kg)
Carton Dimensions (individual)	4.25 in. (H) 30.875 in. W12.125 in (D) 108 mm (H) 785 (mm) W 308 (mm) D
Shipping Weight	7.88 lbs. (3.58 kg)
Warranty	5 years
VIDEO INPUT
Composite Video x12	RCA connector, 75 Ohm 0 to 0.7v, 480i input 59.94 fields per second
Closed Caption	EIA/CEA-608 captions accepted over composite video input (HDb2312-NA Only)
AUDIO INPUT
Stereo Audio Input x12	3.5 mm stereo female, line level input per channel
VIDEO ENCODER
Encoder Video Profile	MPEG2 SD: IS013818-2 Main Profile @ Main Level
Traffic Shaping	Variable Bit Rate
Video Encoding Data Rates	Variable, 2 Mbs • 12 Mbs per channel
Average Encoding Data Rate	10-12 Mbs per channel
Encoding Latency	Programmable 200 msec to 400 msec
Color Profile	4:2:0
GOP Size	15
Video, Audio PID	Programmable starting valve
Program Information	Programmable program name. EIT
AUDIO ENCODER
Encoder Audio Profile	ATSC A/52, Dolby* Digital (AC-3)
MODULATOR / UPCONVERTER
Modulation Types	QAM 256 only (ITU-T J83 Annex B) Interleaving modes: (64,2) only
Cable Standard	HRC, IRC or STD
Frequency Range	4 paired, frequency agile QAM RF CATV Channels 2-135 • 2kHz resolution • +/-30 ppm accuracy • +/-35 ppm stability
Output Power	+45 dBmV typical
Output Level Adjust	25 - 45 dBmV in 1dBmV steps
MER	> 38 dB typical
l/Q Amplitude Imbalance	< 1% typical
Spectral Tilt	</= 1 dB over 6 MHz typical
