Description

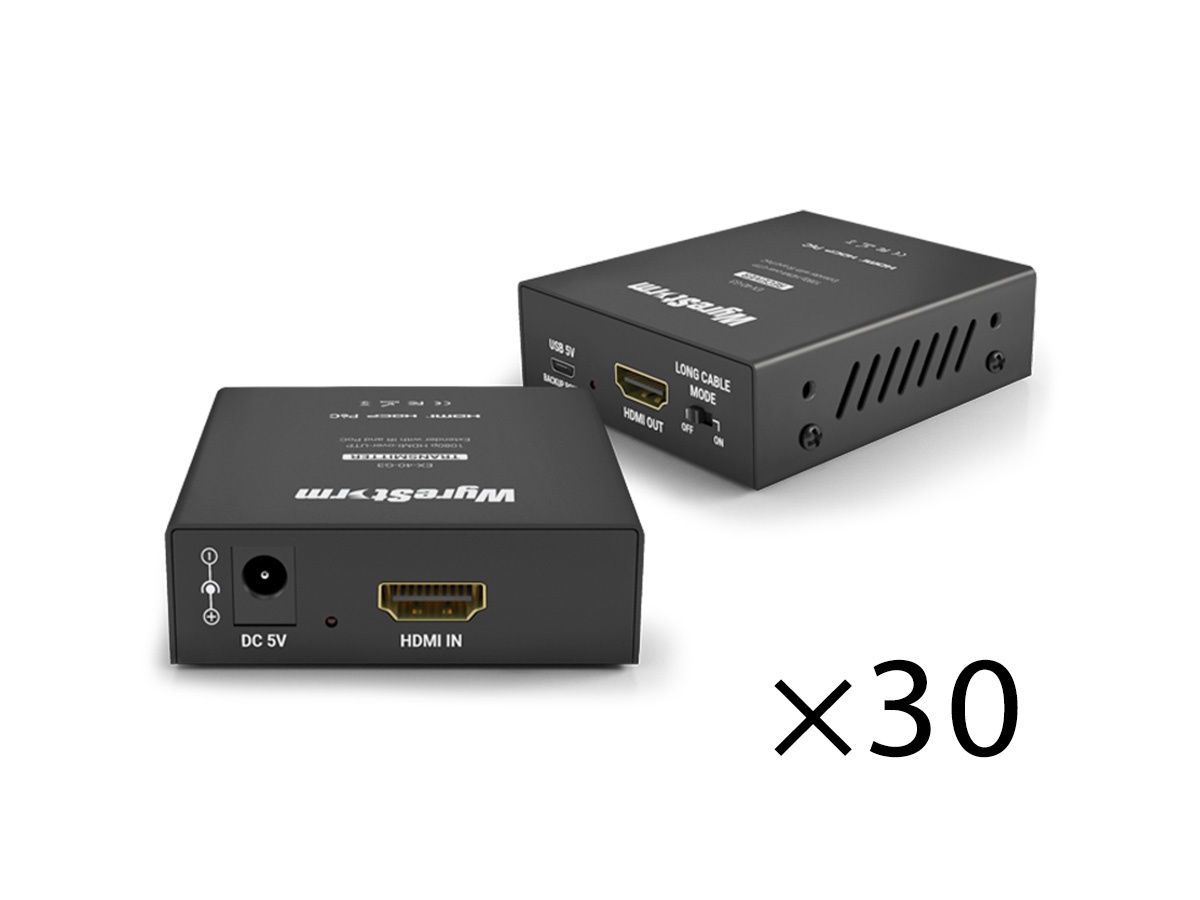

The EX-40-G3 is a compact point-to-point HDMI extender pair designed to transmit full 1080p video over a single Cat6 cable up to 40m/131ft. It supports HDMI 1.3b video and HDCP 1.4 ensuring compatibility with common professional and consumer HDMI sources. The low-profile chassis simplifies placement in shallow racks and tight spaces.
Key features include one-way Power over Cable (PoC) that allows both transmitter and receiver to be powered from a single supply connected to the transmitter, IR pass-through for remote source control, and a simple slider for signal equalization. The unit carries 2-channel PCM audio and uses TMDS encoding over UTP for reliable transmission. The slim 21mm housing provides discreet installation in AV installations.
Performance is specified at a 6.75Gb/s encoding data rate with a maximum pixel clock of 225MHz and support for 1920x1080p @60Hz 8-bit. Distance performance varies by cable type and mode, reaching up to 40m/131ft in long cable mode over Cat6/6a/7. Power consumption for the TX/RX pair is low at 2.5W, which reduces thermal load and power requirements in deployed systems.

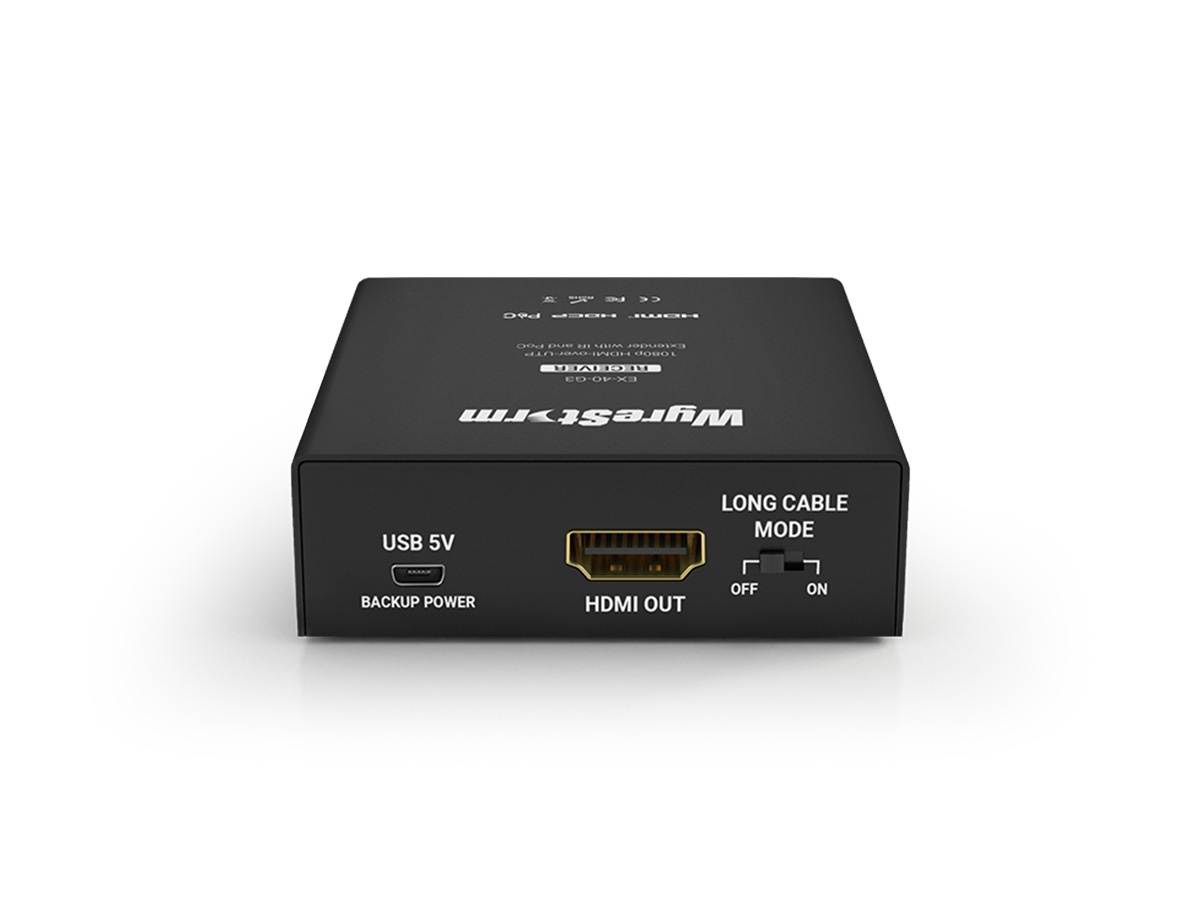

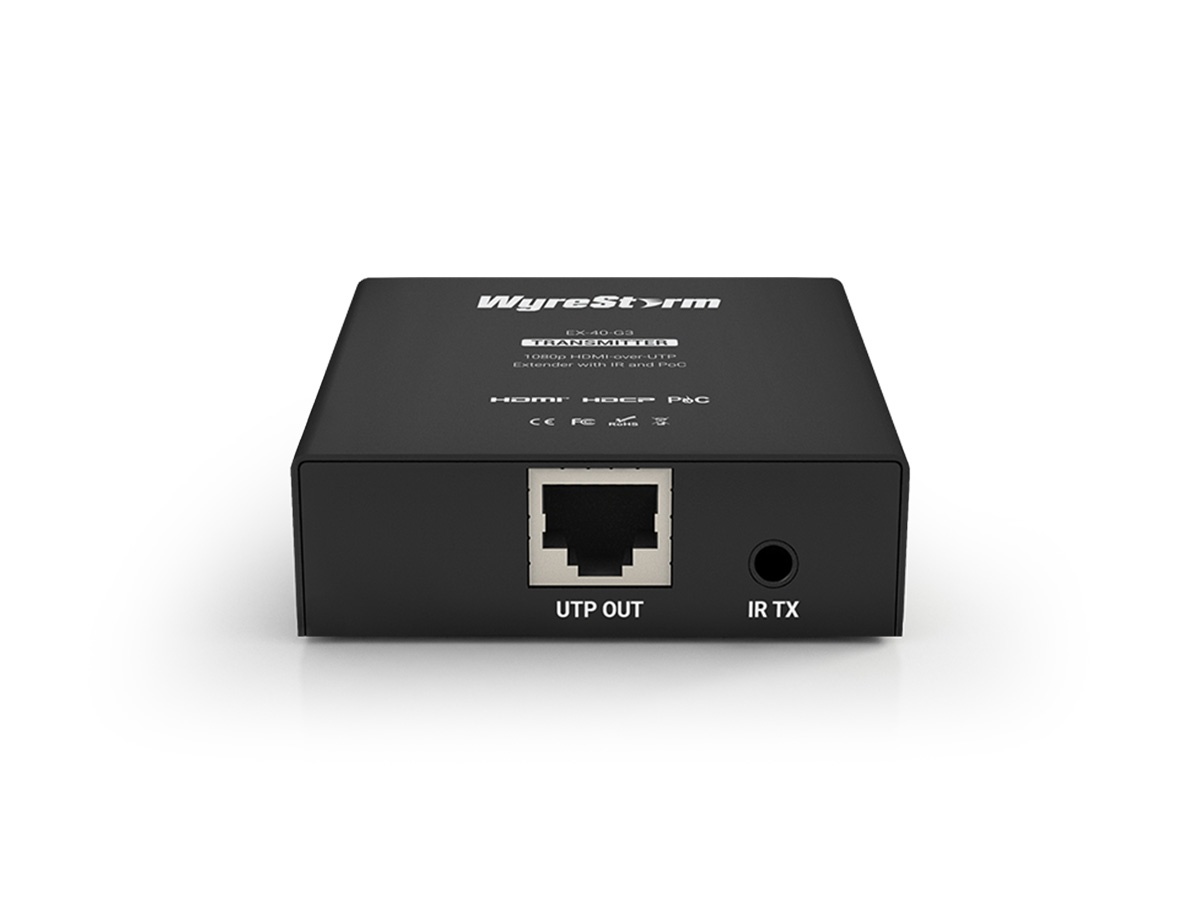

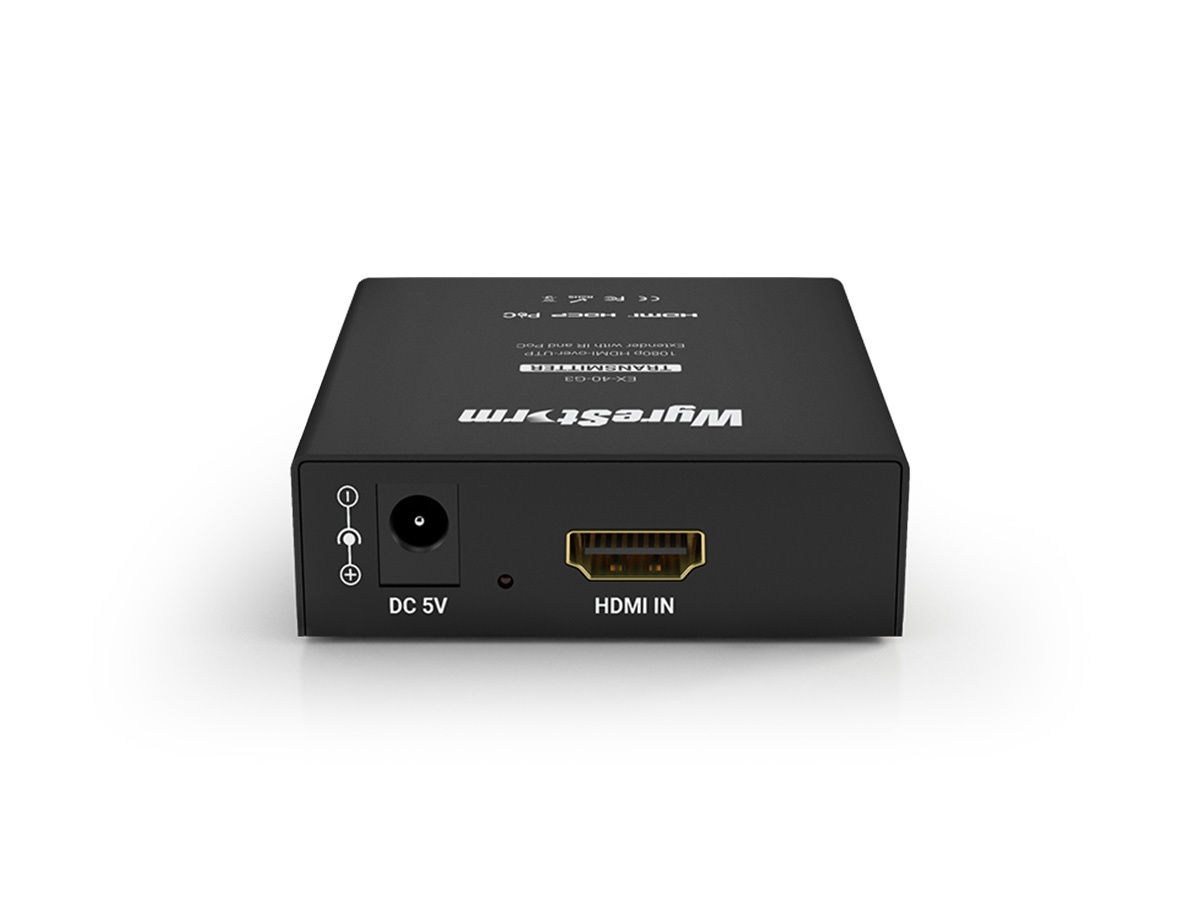

Connectivity is straightforward with 1x HDMI input on the transmitter and 1x HDMI output on the receiver plus UTP RJ-45 connections for link transmission. The product supports EDID management and DVI-D via adapter, and features 3.5mm IR TX/RX ports for full remote control passthrough. Compliance includes CE, FCC, RoHS and RCM to meet common regulatory requirements.
The EX-40-G3 is suited to digital signage, conference room source distribution, classroom AV and short-run video distribution where simplicity and footprint matter. Installers can extend HDMI signals without long HDMI cabling or complex infrastructure, and integrate IR control back to the source. Its compatibility with standard Cat6/6a/7 simplifies cabling choices in retrofit and new installations.
Installation is simplified by the slim, low-profile design, a single power source option via PoC, and an intuitive equalization slider to optimize video over varying cable runs. The robust operating temperature range and low BTU output support reliable 24/7 operation in controlled environments. Overall build quality and standardized connectors make the EX-40-G3 an easy-to-deploy solution for common AV extender needs.
