Description

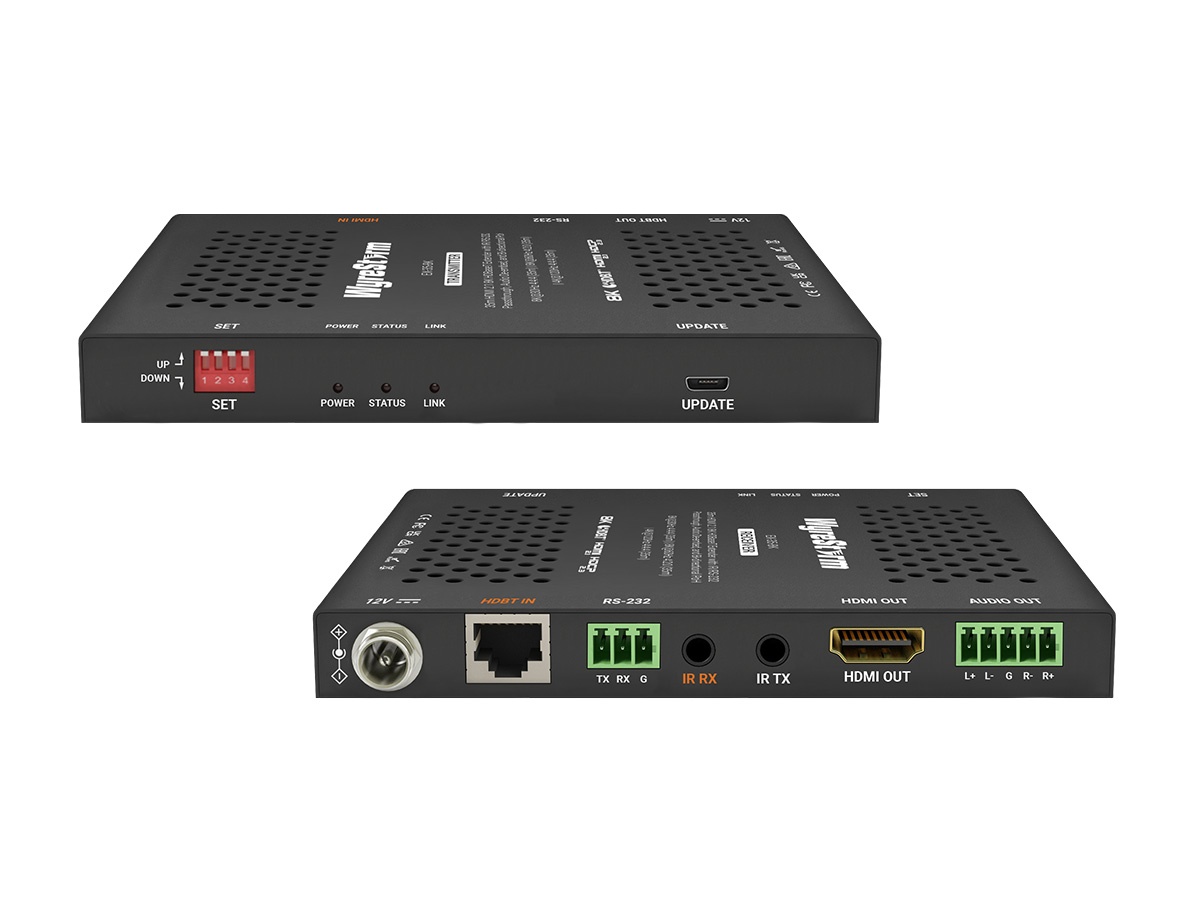

The EX-35-8K is an HDBaseT HDMI 2.1 extender pair designed to transmit high-bandwidth video and control signals over a single Cat cable. It supports 8K and high-refresh 4K formats while preserving HDCP 2.3 compliance and modern audio formats. The product is intended for professional residential and commercial AV installations that require long-distance HDMI connectivity with integrated control and audio extraction.
The extender transmits up to 8K@30Hz or 8K@60Hz 4:2:0 and supports 4K@120Hz 4:4:4 over compatible cables, delivering a 40Gbps HDMI data rate. It includes bi-directional PoH for single-supply powering of the link and provides RS-232 and bi-directional IR pass-through for full device control. The receiver offers a balanced de-embedded audio output for integration with pro audio systems.
Performance specifications include HDMI 2.1 signaling, HDCP 2.3 support and multi-channel audio up to PCM 7.1 and major Dolby/DTS codecs. Transmission distances vary by cable type – Cat5e/6 supports up to 35m for high-bandwidth video while Cat6a/7 extends that range to 40m. The system preserves common VESA and HDTV resolutions with specific handling for 8K at higher frame rates using YCbCr 4:2:0 where required.

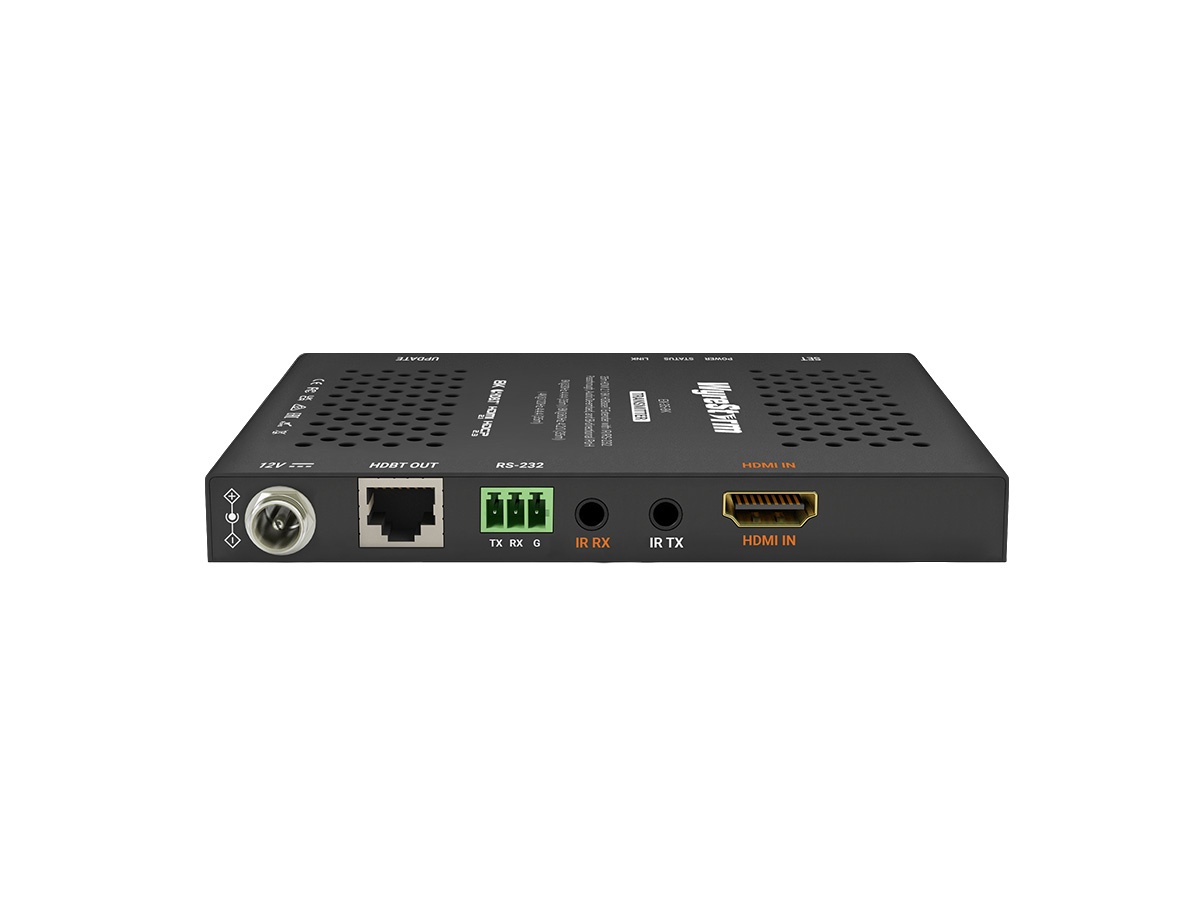

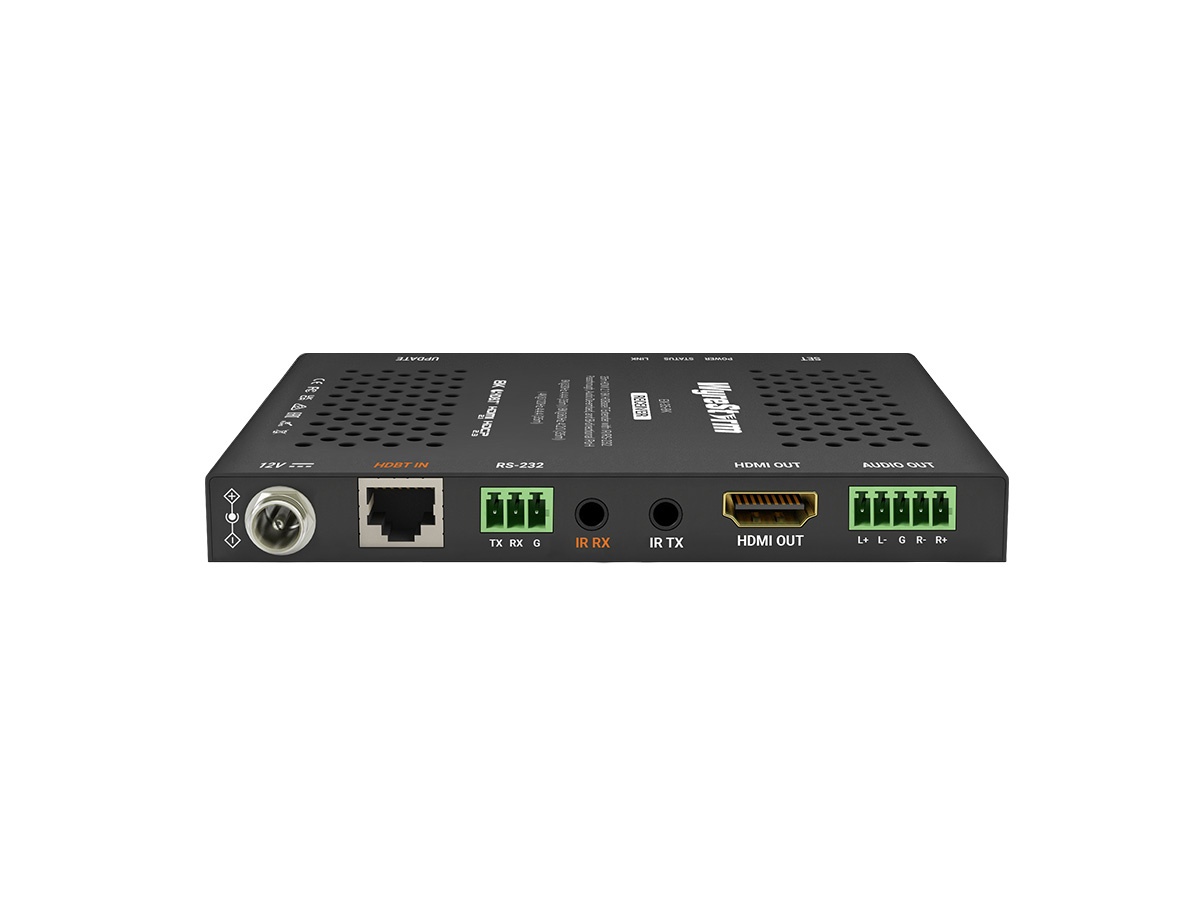

Connectivity is provided via standard HDMI inputs/outputs plus a single Cat link for HDBaseT extension. Control interfaces include RS-232 (up to 115200 bps) and bi-directional IR pass-through for remote control systems. The receiver includes a balanced audio output using a 5-pin phoenix terminal for de-embedded two-channel audio.
Typical applications include residential media rooms, corporate boardrooms, digital signage and education environments that require centralized source control and long cable runs. The EX-35-8K supports integration with control systems and AV racks while enabling local audio extraction for zone audio. It is suitable for installations that demand future-proof bandwidth for next-generation displays.
Installation is simplified by PoH power delivery across the HDBaseT cable, reducing power outlet requirements at displays. The pair ships with mounting brackets and common control accessories to support rack or behind-panel mounting. The units are built for stable long-term operation and straightforward integration into professional AV systems.
