Description
The EX-100-G2 is an HDBaseT HDMI extender pair designed to transmit high-resolution HDMI signals over a single Cat cable – delivering reliable long-distance video and control. It extends HDMI video up to 100 m/328 ft using Cat6a/7 cabling while preserving key control interfaces. This plug-and-play solution reduces cable clutter and simplifies installations.
The system supports 4K@60 4:2:0 8bit and a broad range of lower resolutions, plus multichannel audio formats up to PCM 7.1, Dolby TrueHD, DTS HD Master Audio, Dolby Atmos and DTS:X. It includes bi-directional PoH so power can be applied at either the transmitter or the receiver. IR and RS-232 control pass-through and CEC support allow remote device control across the single cable link.
Performance is optimized for AV distribution with a maximum data rate of 6.75 Gbps and HDMI 1.4 signal handling. The extender supports 4K@30Hz native HDMI 1.4 modes as well as full VESA and SMPTE formats. Firmware is remotely updateable via the unit’s toggle switch and RS-232 interface for field maintainability.

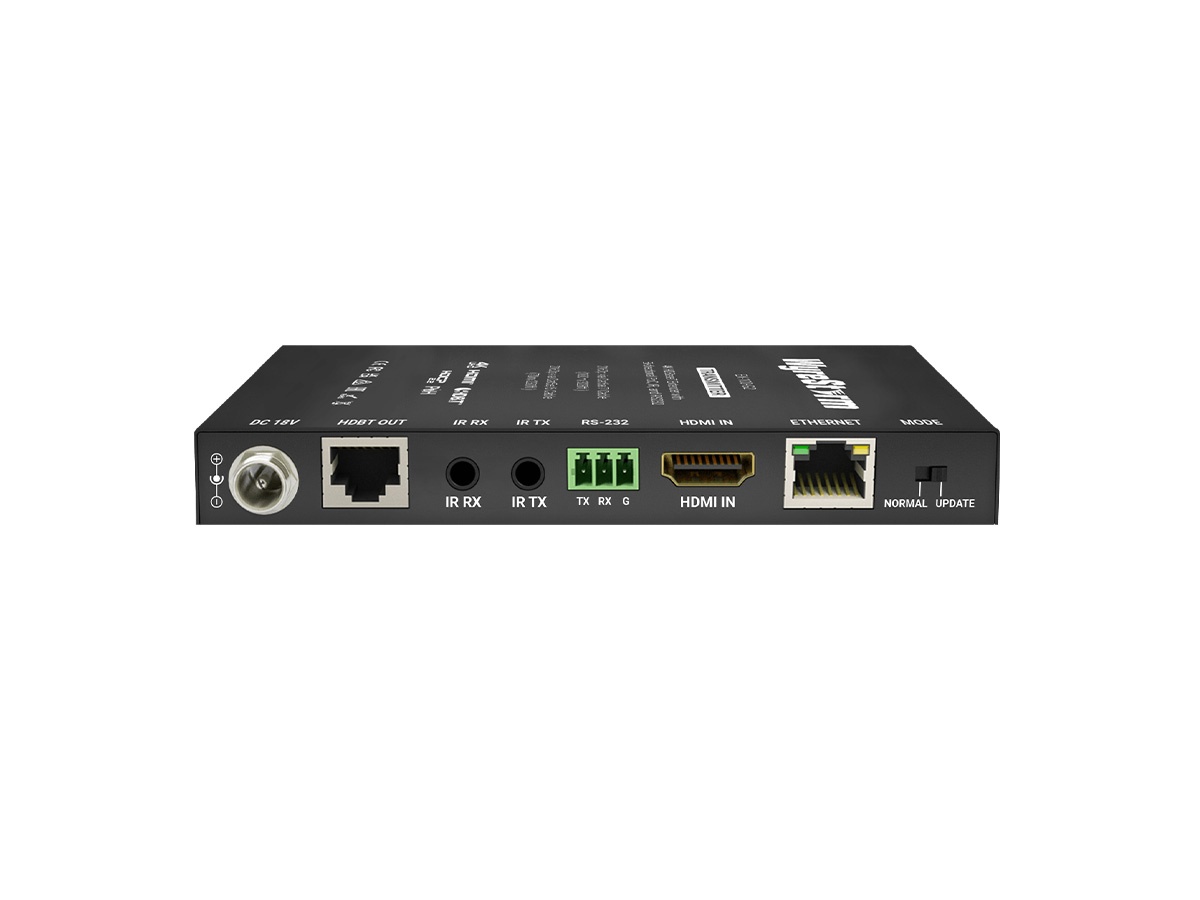

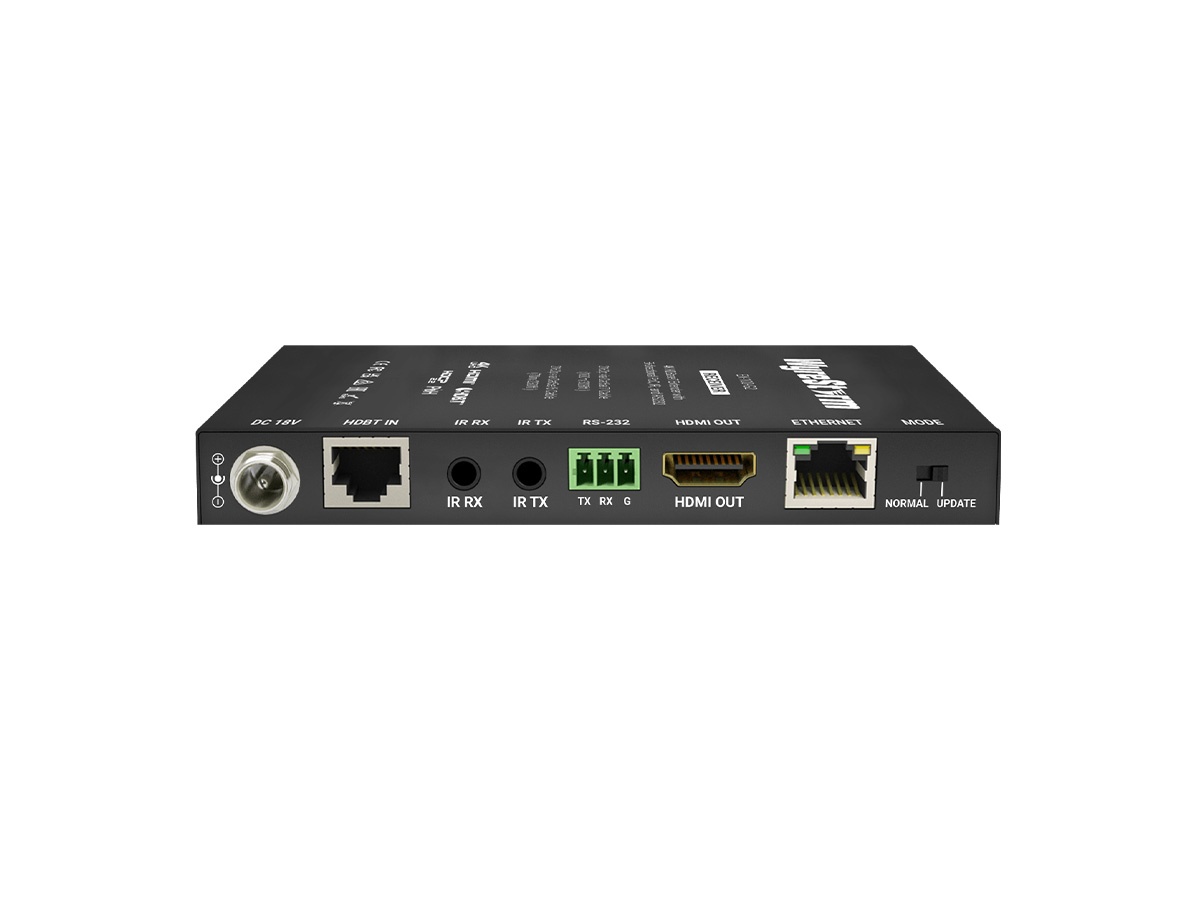

Connectivity includes standard HDMI inputs/outputs, a single HDBaseT RJ45 link over Cat5e/6/6A/7, 3.5 mm IR I/O and 3-pin phoenix terminals for RS-232 control. The included power supply (DC 18V/1A) powers the kit when required and the bi-directional PoH feature allows flexible power placement. The units also include mounting brackets for rack or surface installation.
This EX-100-G2 pair is suited to conference rooms, digital signage runs, lecture halls and home theater installations where a remote display or source must be located far from the other endpoint. The combined video, audio and control passthrough simplifies system design and reduces intermediary hardware. The solution supports common AV workflows that require remote control and multichannel audio across long cable runs.
Installation is designed to be straightforward – connect HDMI at the source and display, link with a single Cat cable, apply power to either TX or RX and verify control channels. The compact metal enclosures and included brackets provide secure, professional mounting options. For integrators, the firmware update option and RS-232 control provide further flexibility during commissioning and maintenance.
